Removing Control Unit For Telephone

Unscrew the 4 fastening screws from the holder.

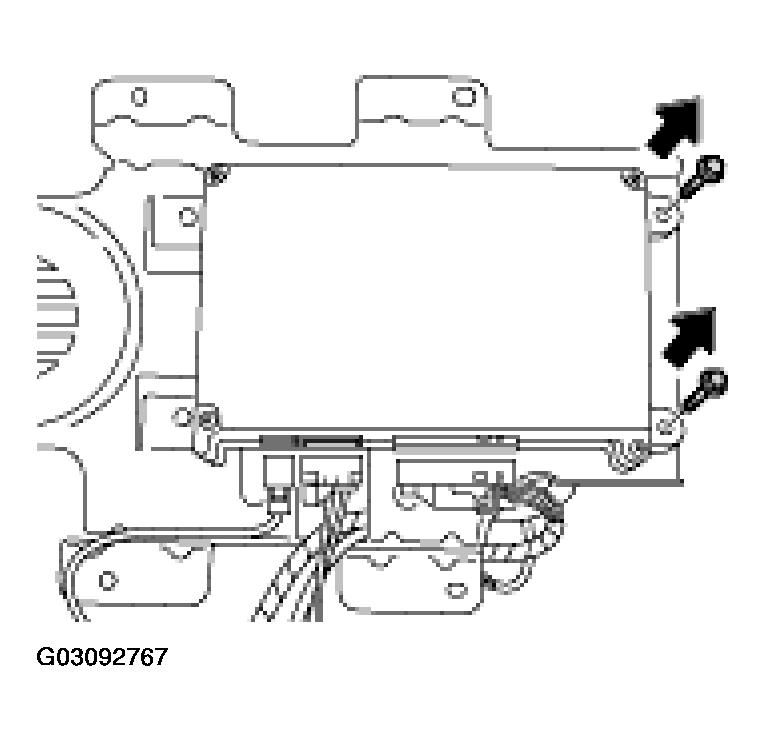

Fig 1: Removing Control Unit For Telephone
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Unscrew the two fastening screws on the holder and remove the control unit from the holder.

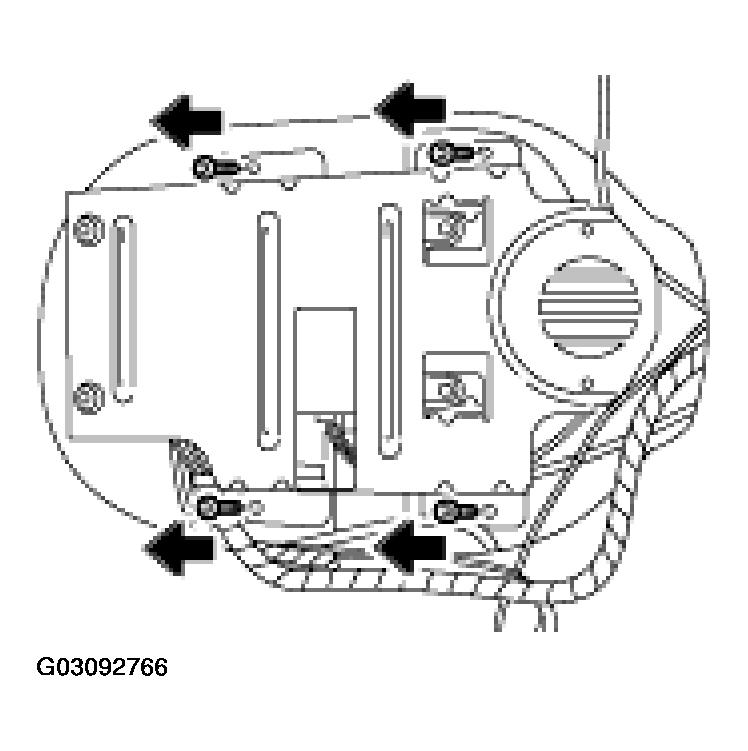

Fig 2: Removing Telephone Control Unit From Holder
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Disconnect the electrical plug connections.

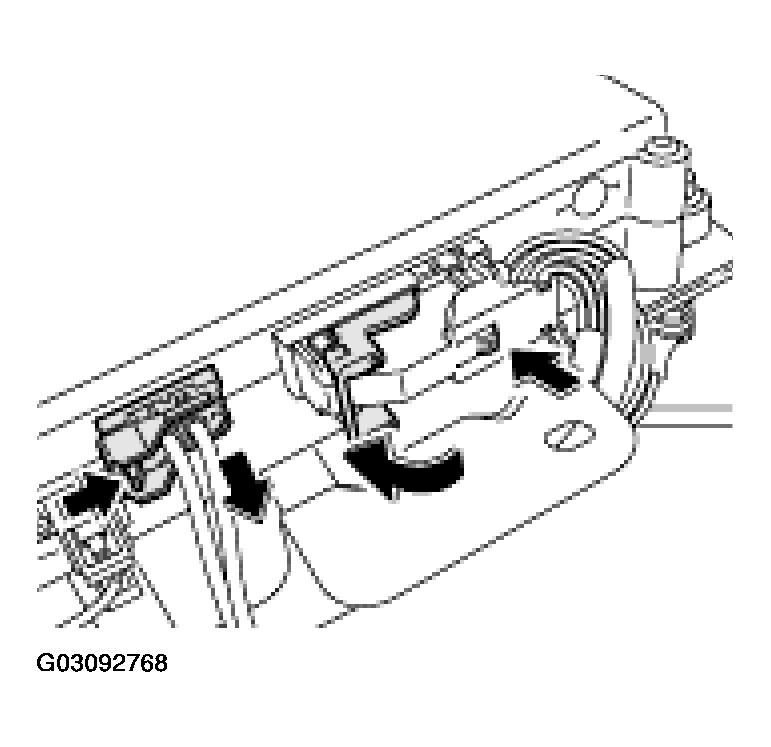

Fig 3: Disconnecting Electrical Plug Connections
Courtesy of PORSCHE OF NORTH AMERICA, INC.
