Installing Control Unit For The Telephone

  1. Connect the electrical plug connections on the control unit.

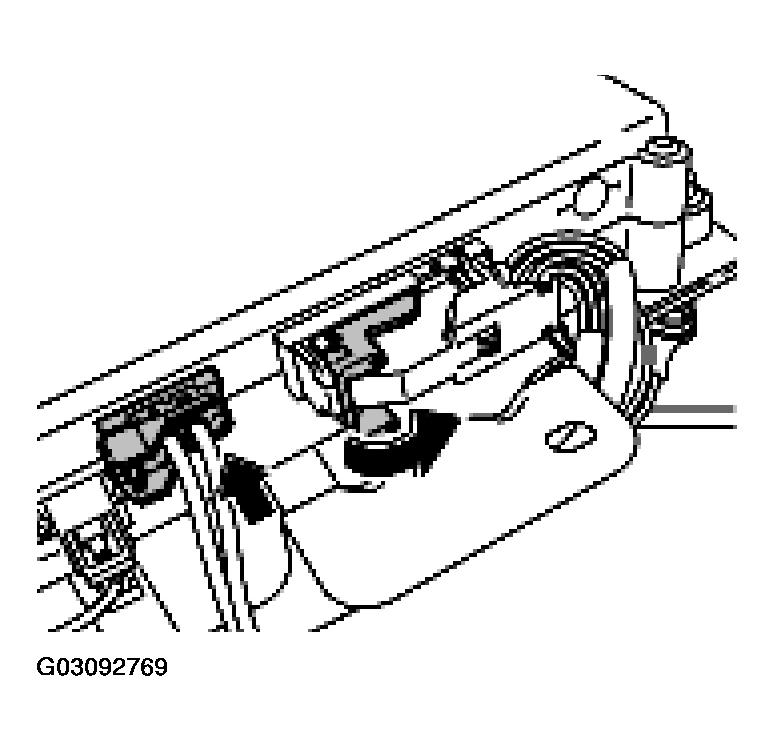

    Fig 1: Connecting Electrical Plug Connections On Telephone Control Unit
    G03092769Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Position control unit on the holder and screw it down with the fastening screws. Tightening torque 10 Nm (7.5 ft.lb).

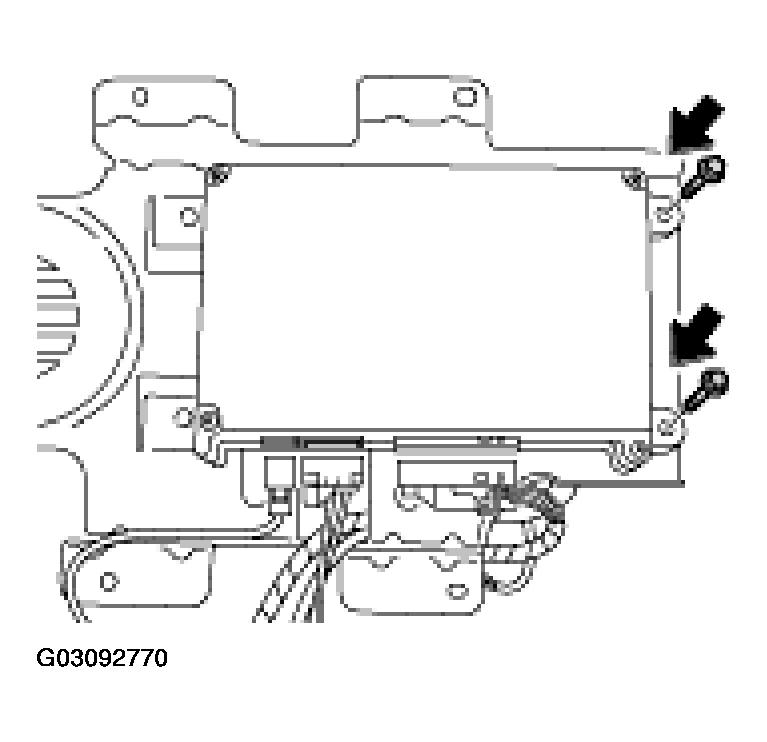

    Fig 2: Positioning Telephone Control Unit On Holder And Screw It Down With Fastening Screws
    G03092770Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Lay the holder with the control unit on the floorpan and screw it down with the 4 fastening screws.

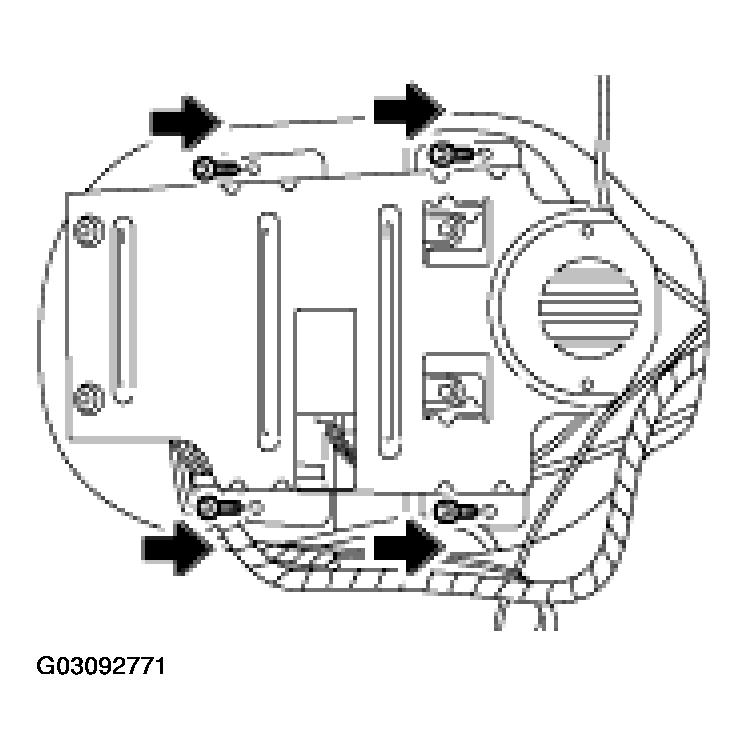

    Fig 3: Laying Holder With Telephone Control Unit On Floorpan
    G03092771Courtesy of PORSCHE OF NORTH AMERICA, INC.
