Removing The Regulator For Wipe Interval

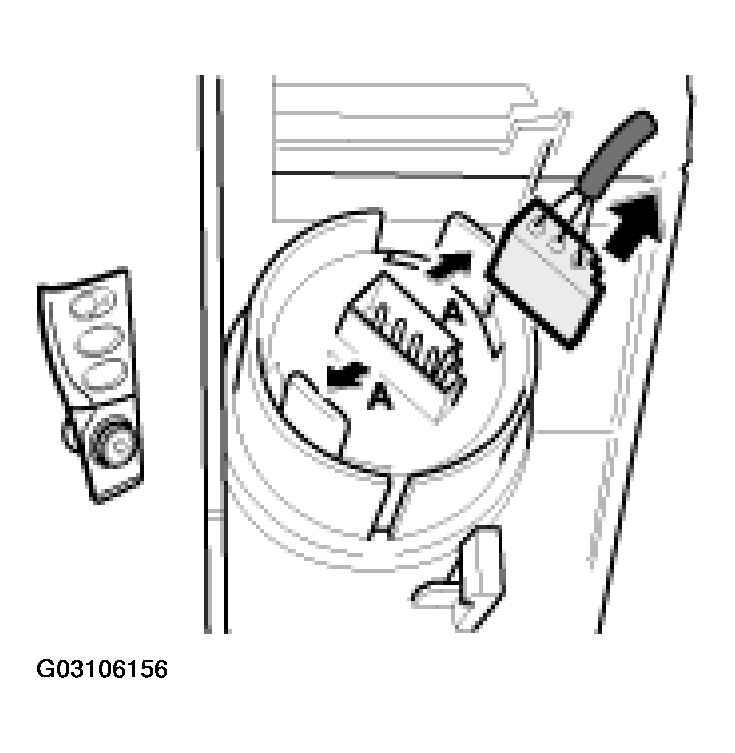

Fig 1: Removing Regulator For Wipe Interval
G03106156Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Disconnect the electrical plug connection.
  2. Press the locking tabs of the regulator for the wipe interval -arrows A-  outwards and guide the regulator out of the front cover towards the front. See Fig 1 .
