Ground Locations

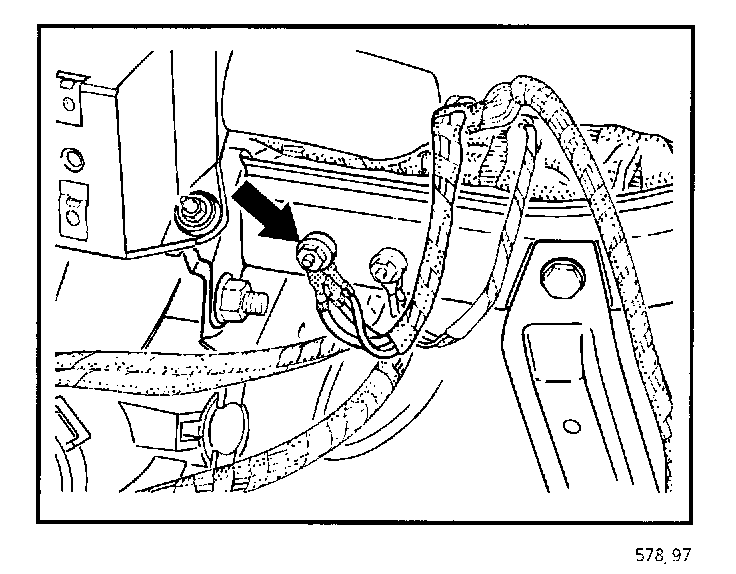

Ground Point 4:






Ground point 4 is located behind the instrument cluster on the dashboard support frame


Ground Point 9:






Ground point 9 is located in the passenger compartment behind the right spring strut support.
