Connector Assignment, Control Module (ABS and ABS/TC)

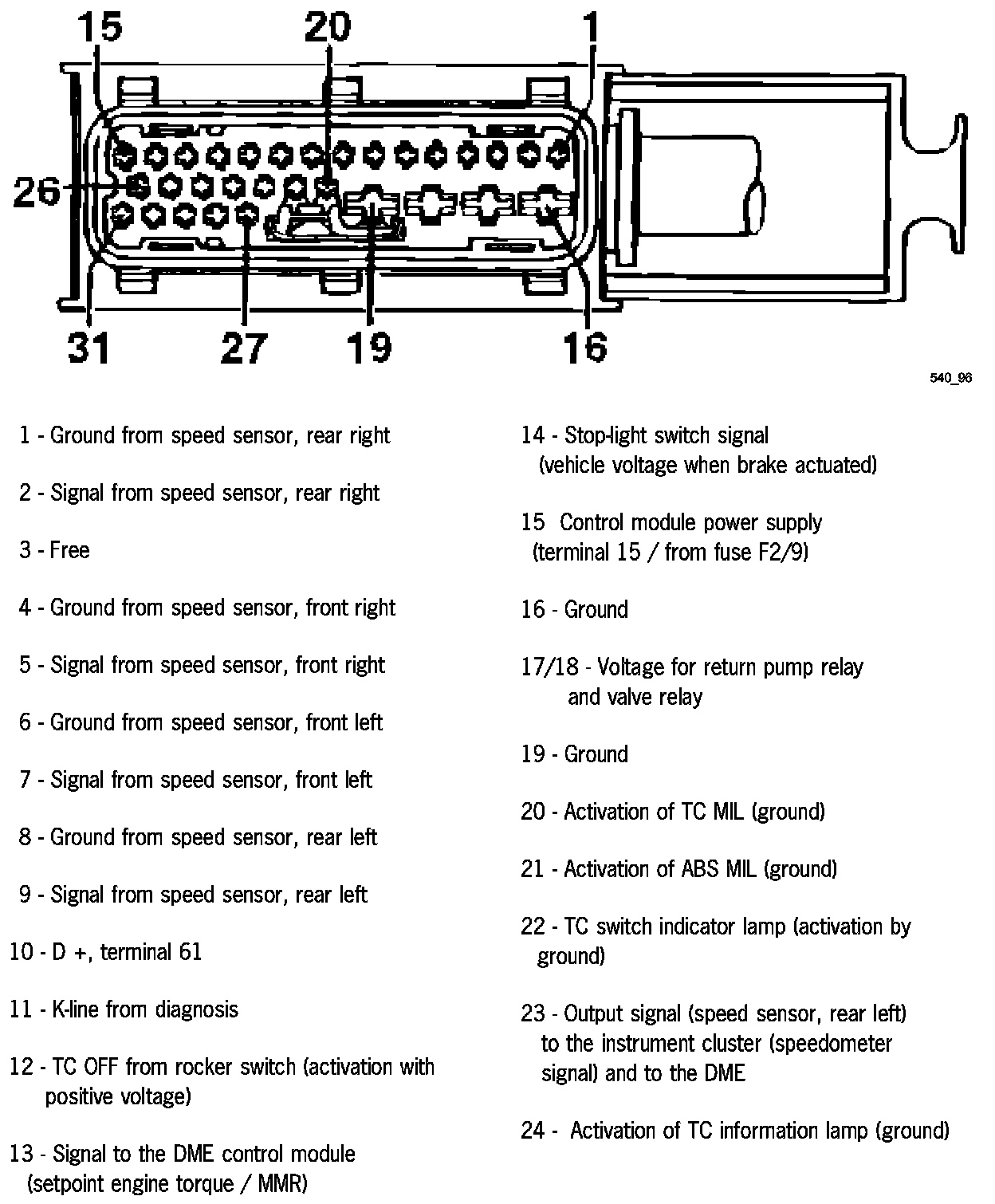

Connector Assignment, Control Module (ABS And ABS/TC) - Part 1:



Connector Assignment, Control Module (ABS And ABS/TC) - Part 2:
