Tightening Specifications

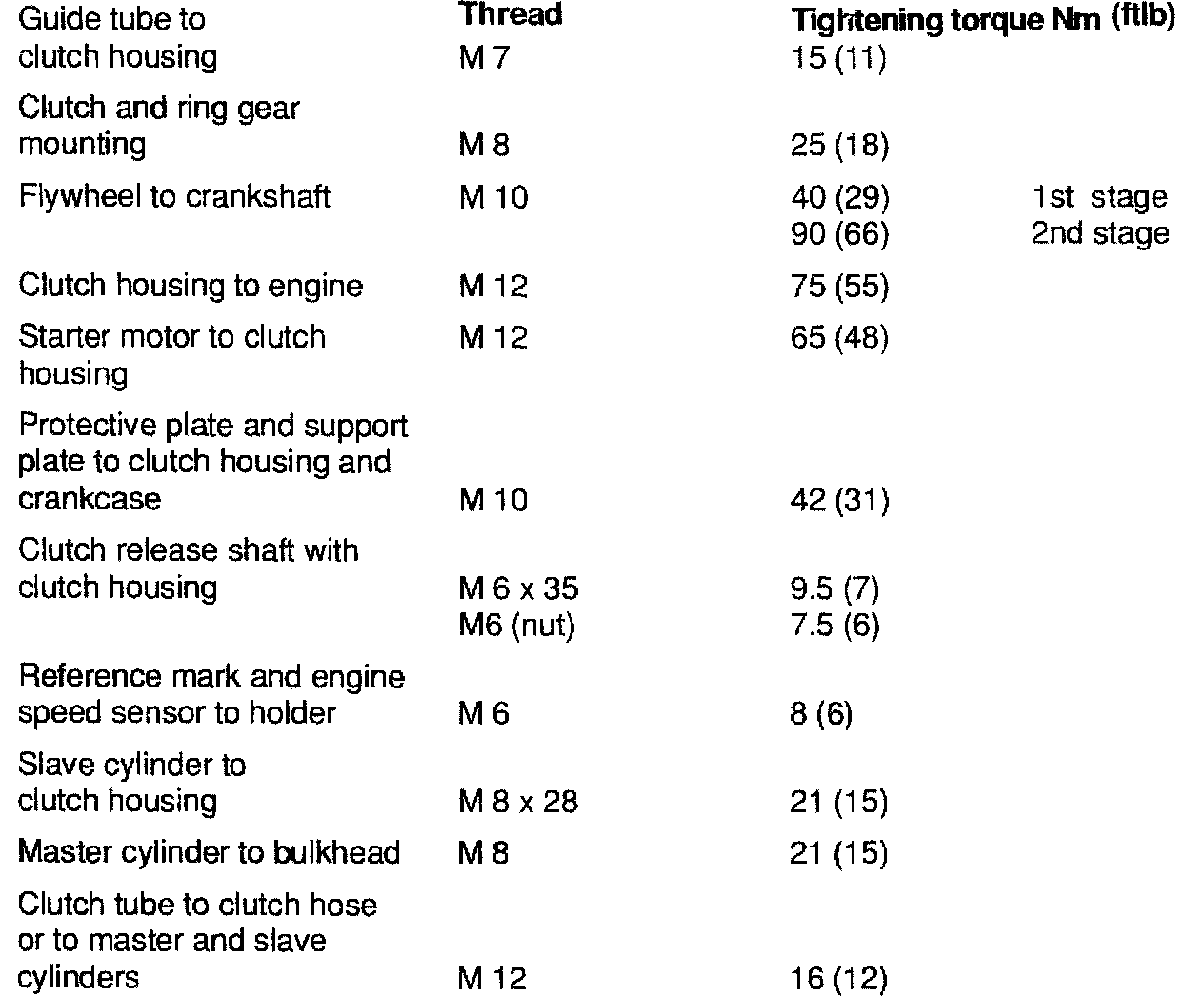

Clutch Tightening Torque:

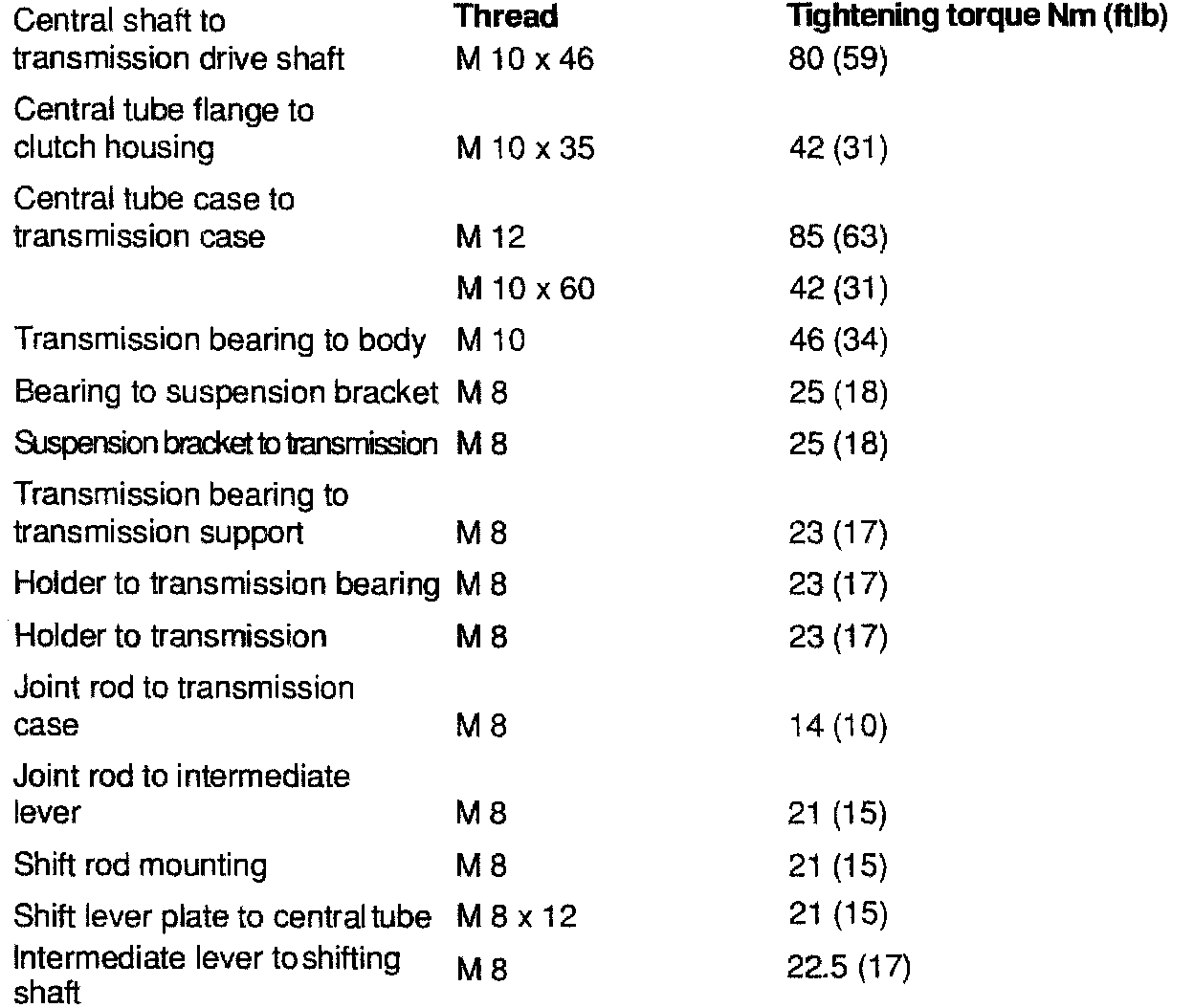

Central Tube, Suspension And Shift Actuation Torque:

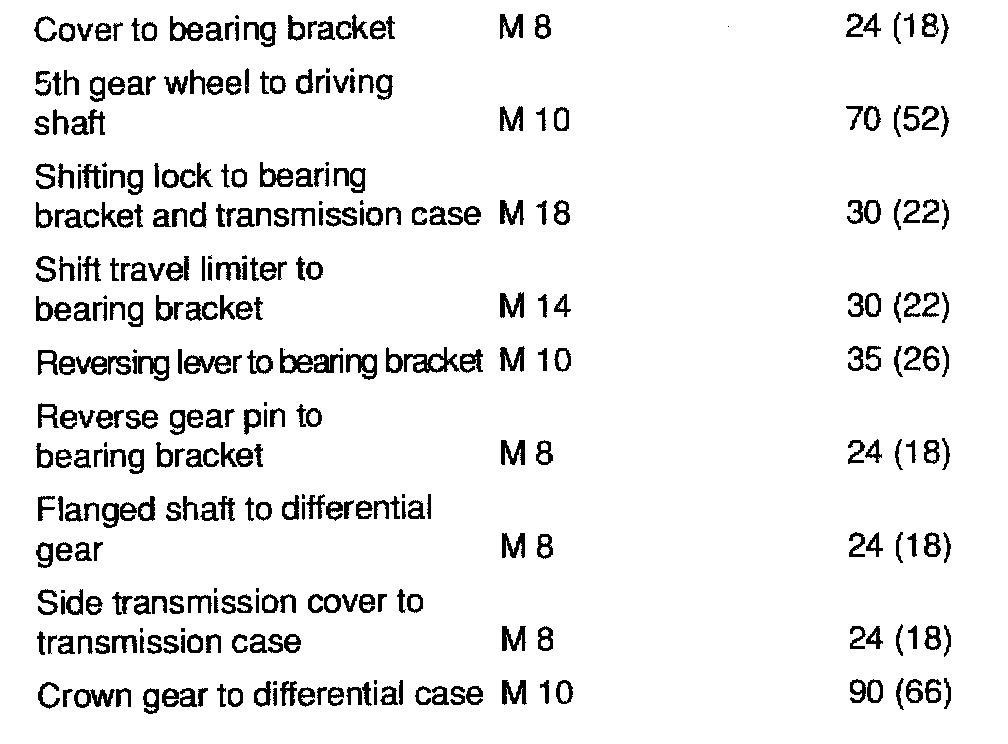

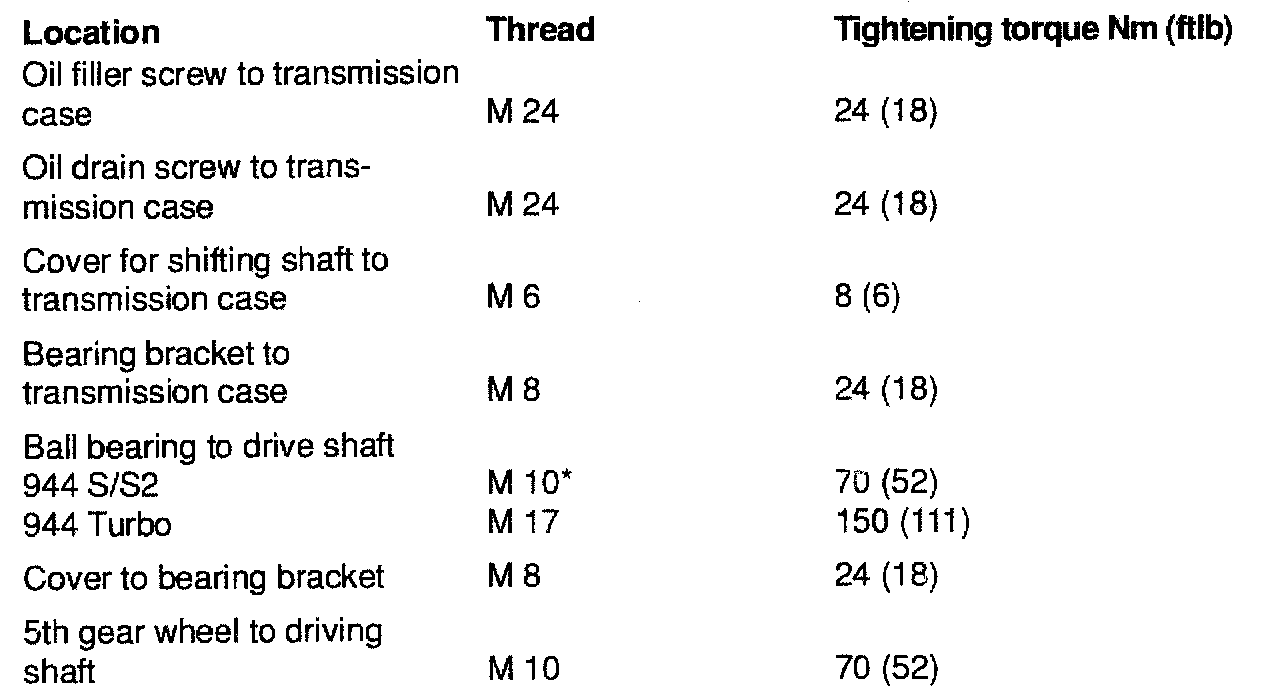

Transmission Tightening Torque:

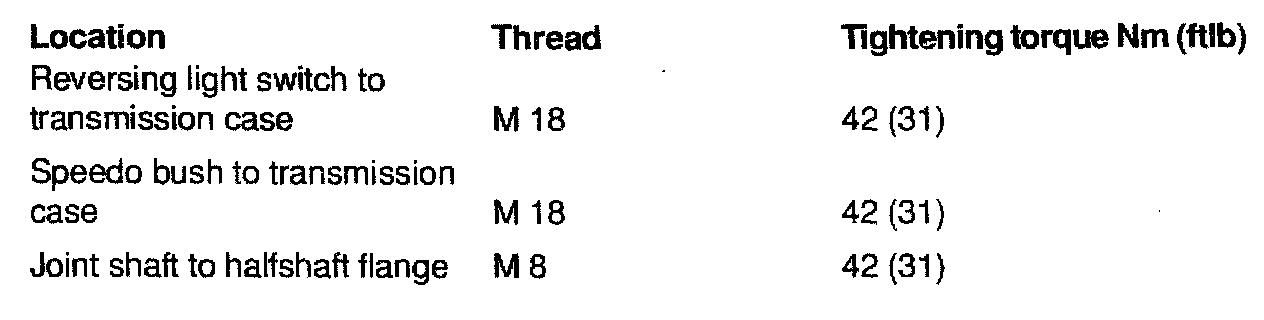

Tightening Torque Cont.:




Tightening Torque Cont.:

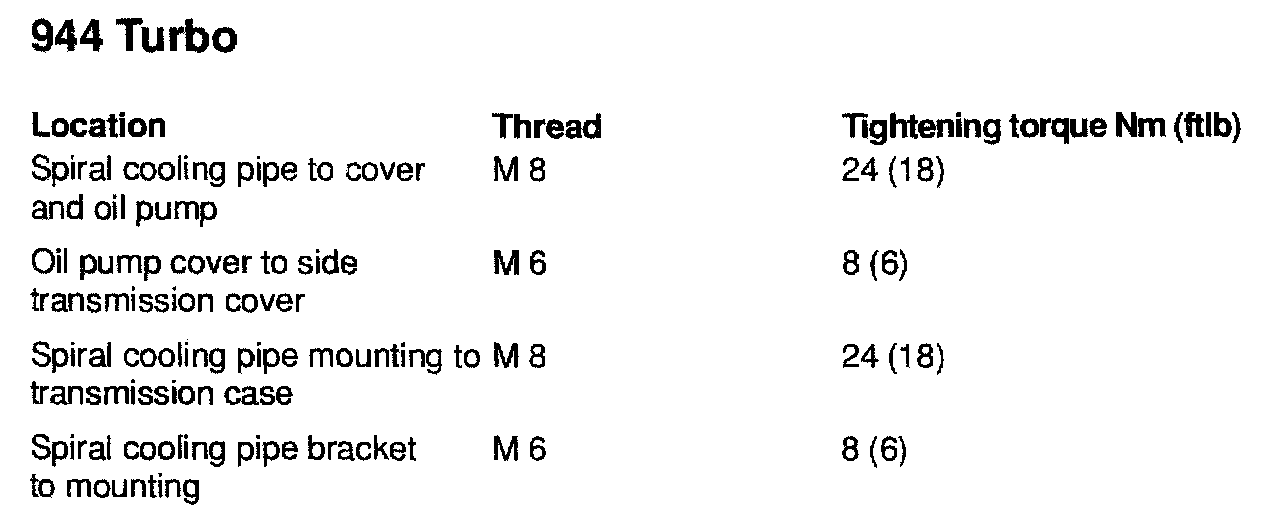

Tightening Torque (Turbo Only):
