Door Switch




Component Connector End Views

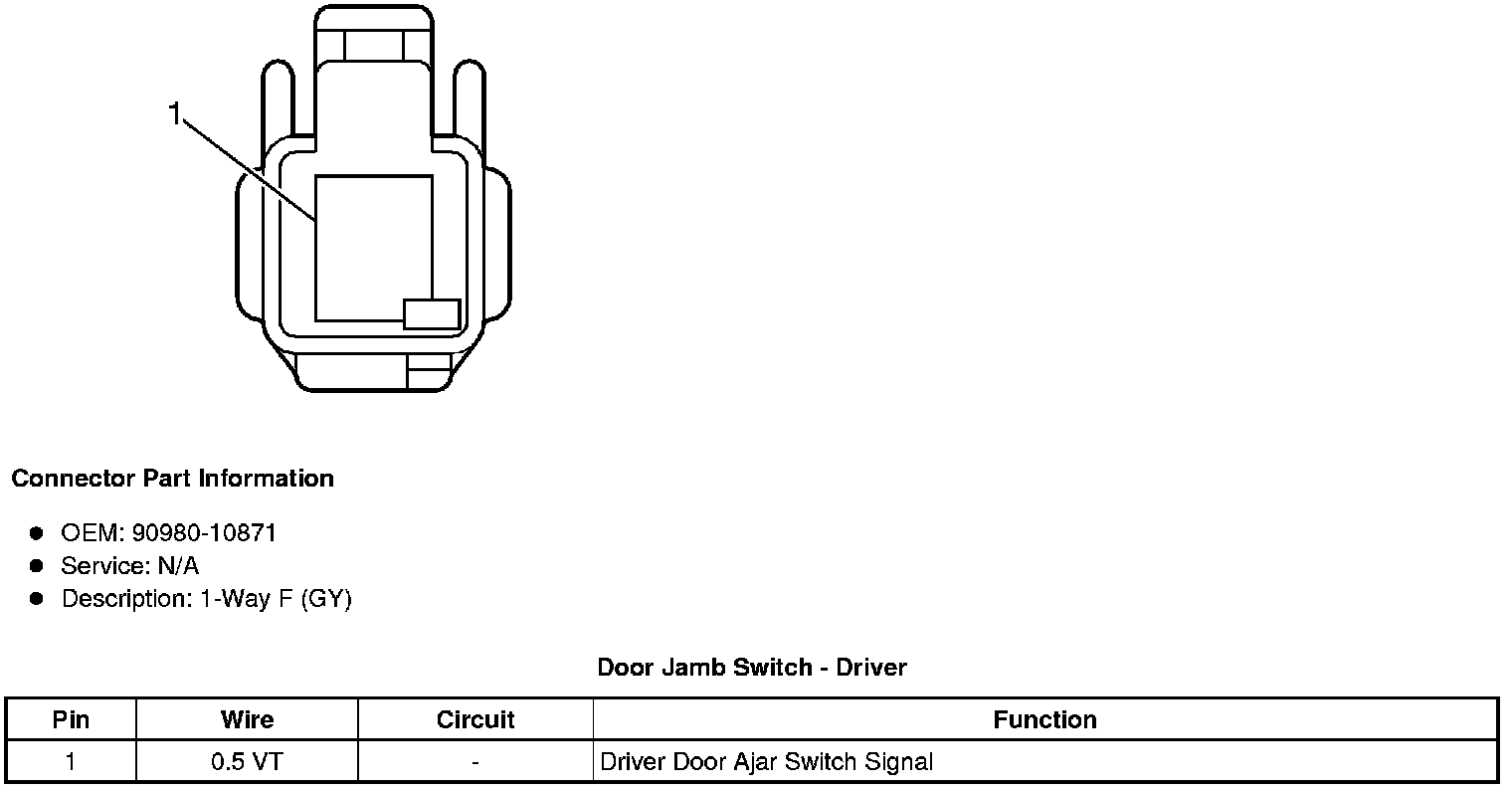

Door Jamb Switch - Driver

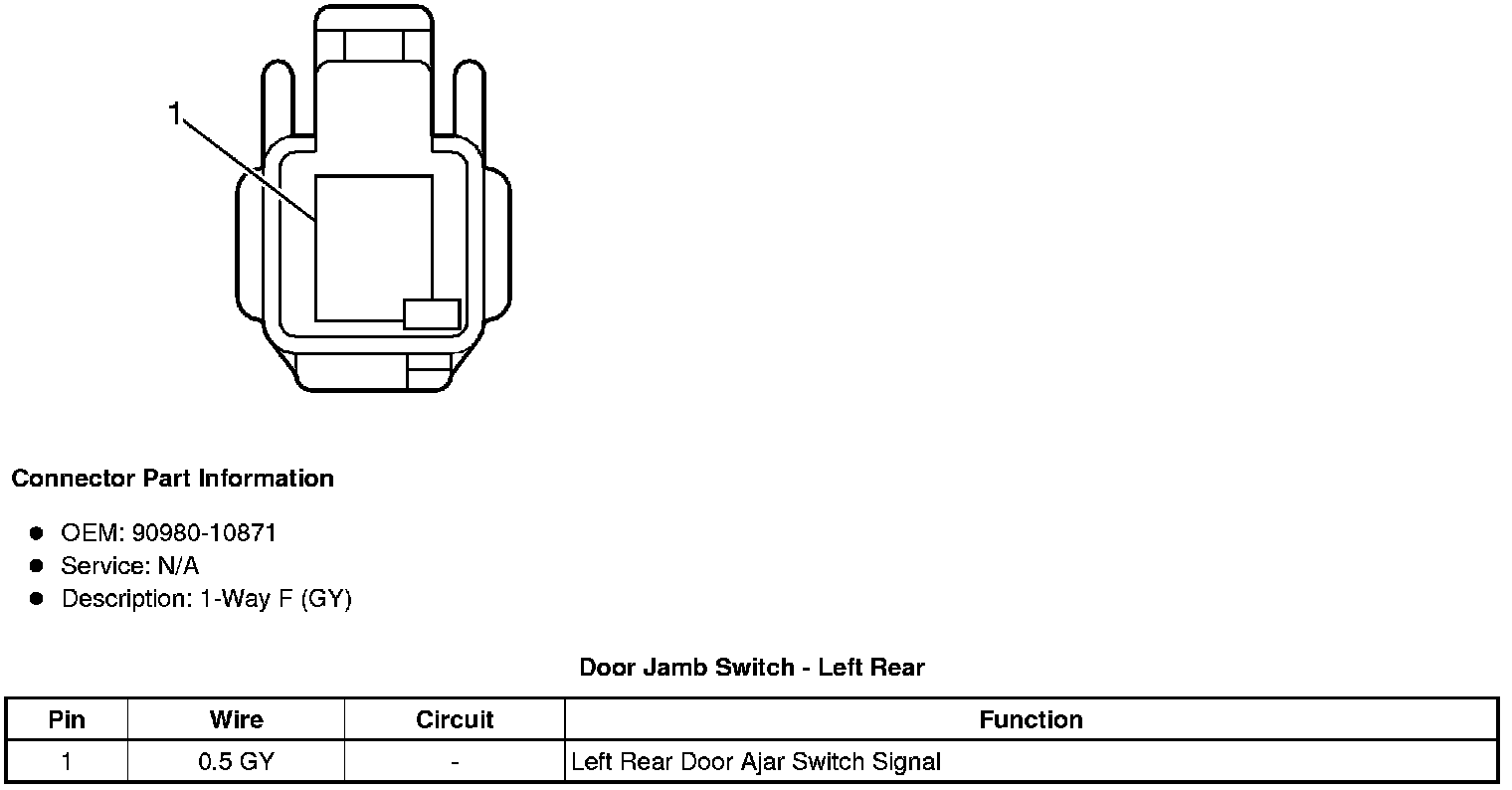

Door Jamb Switch - Left Rear

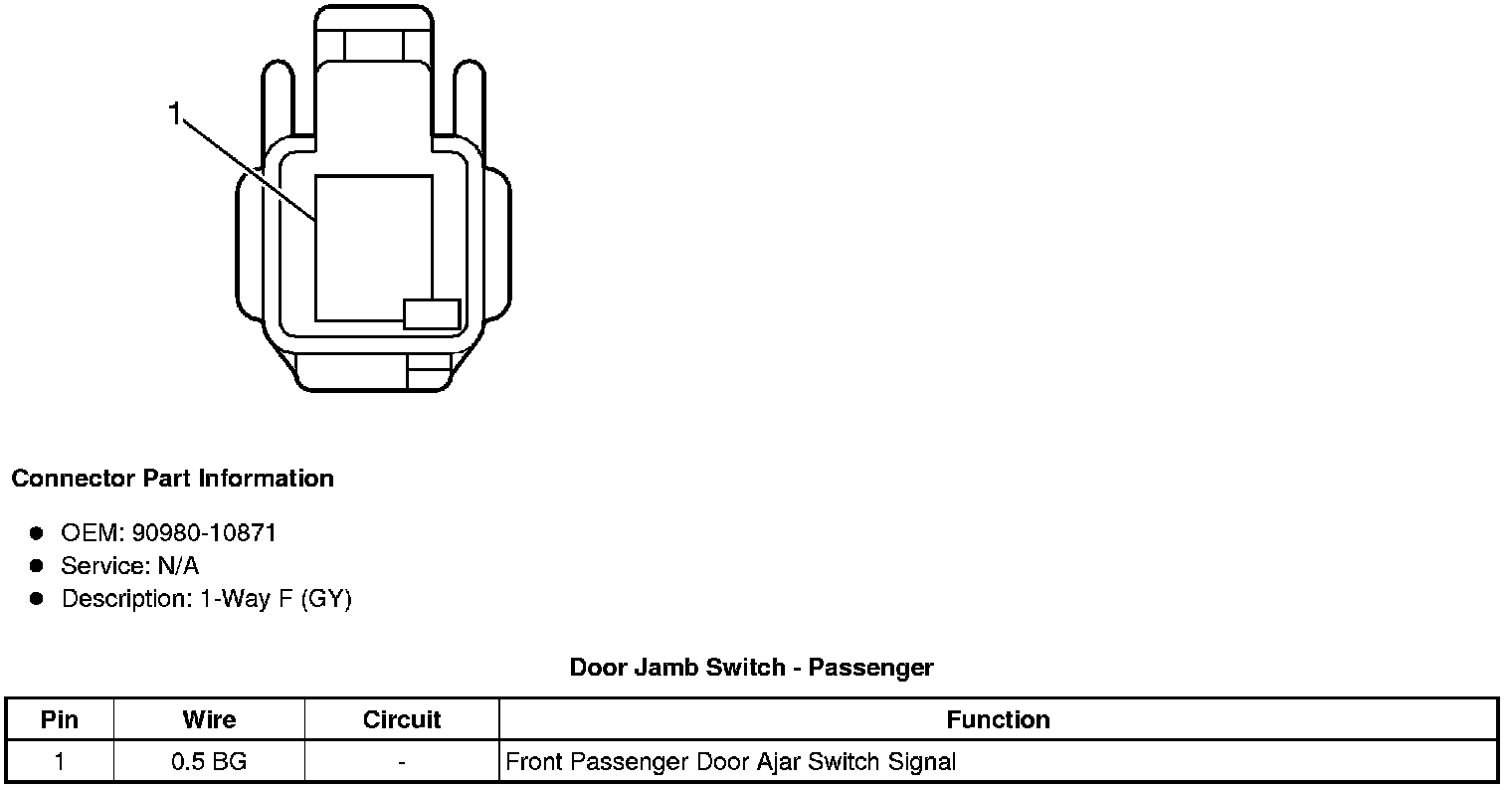

Door Jamb Switch - Passenger





Door Jamb Switch - Right Rear
