Ambient Temperature Sensor / Switch HVAC: Service and Repair

Ambient Air Temperature Sensor Replacement

Removal Procedure




1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Without GT) (Front Bumper Fascia Replacement)Front Bumper Fascia Replacement (With GT) (Front Bumper Fascia Replacement).

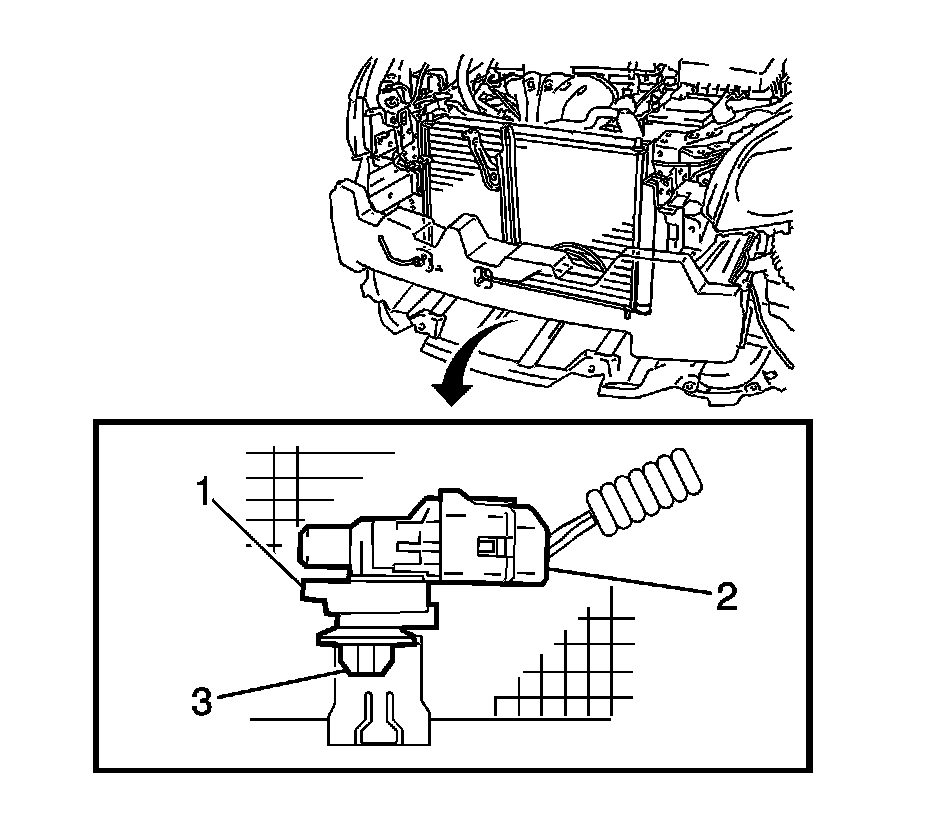

2. Disconnect the electrical connector (2).
3. Disengage the clamp (3) and remove the ambient temperature sensor (1).

Installation Procedure




1. Engage the clamp (3) and install the ambient temperature sensor (1).
2. Connect the electrical connector (2).
3. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement (Without GT) (Front Bumper Fascia Replacement)Front Bumper Fascia Replacement (With GT) (Front Bumper Fascia Replacement).
