Rear of Engine Compartment Components

Powertrain Component Views

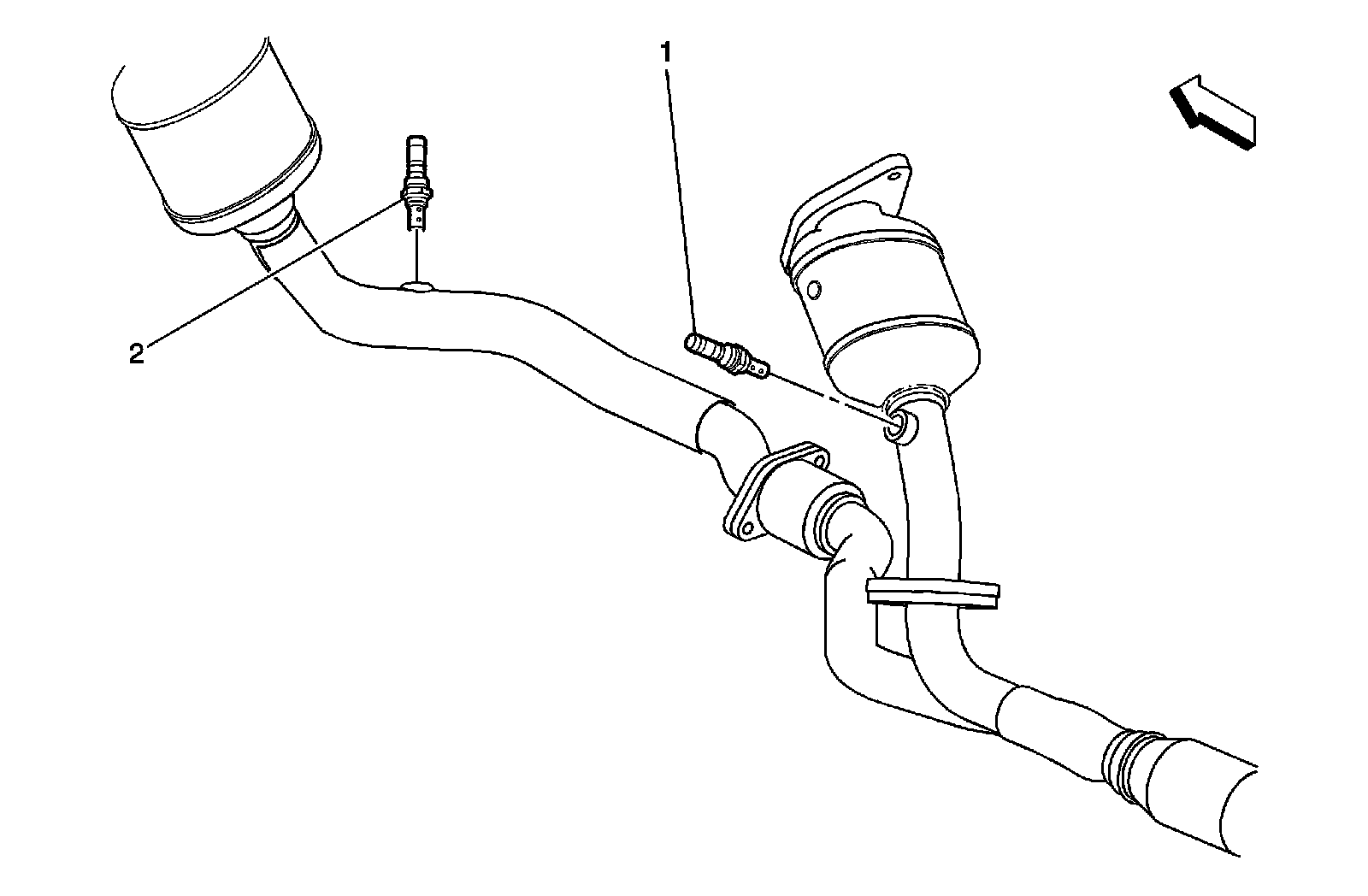

Rear of Engine Compartment Components (LZ4 or LZE or LZ9)

1 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2
2 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2
