Vehicle Communication Interface Module (VCIM) (UE1)




Instrument Panel/Center Console Component Views

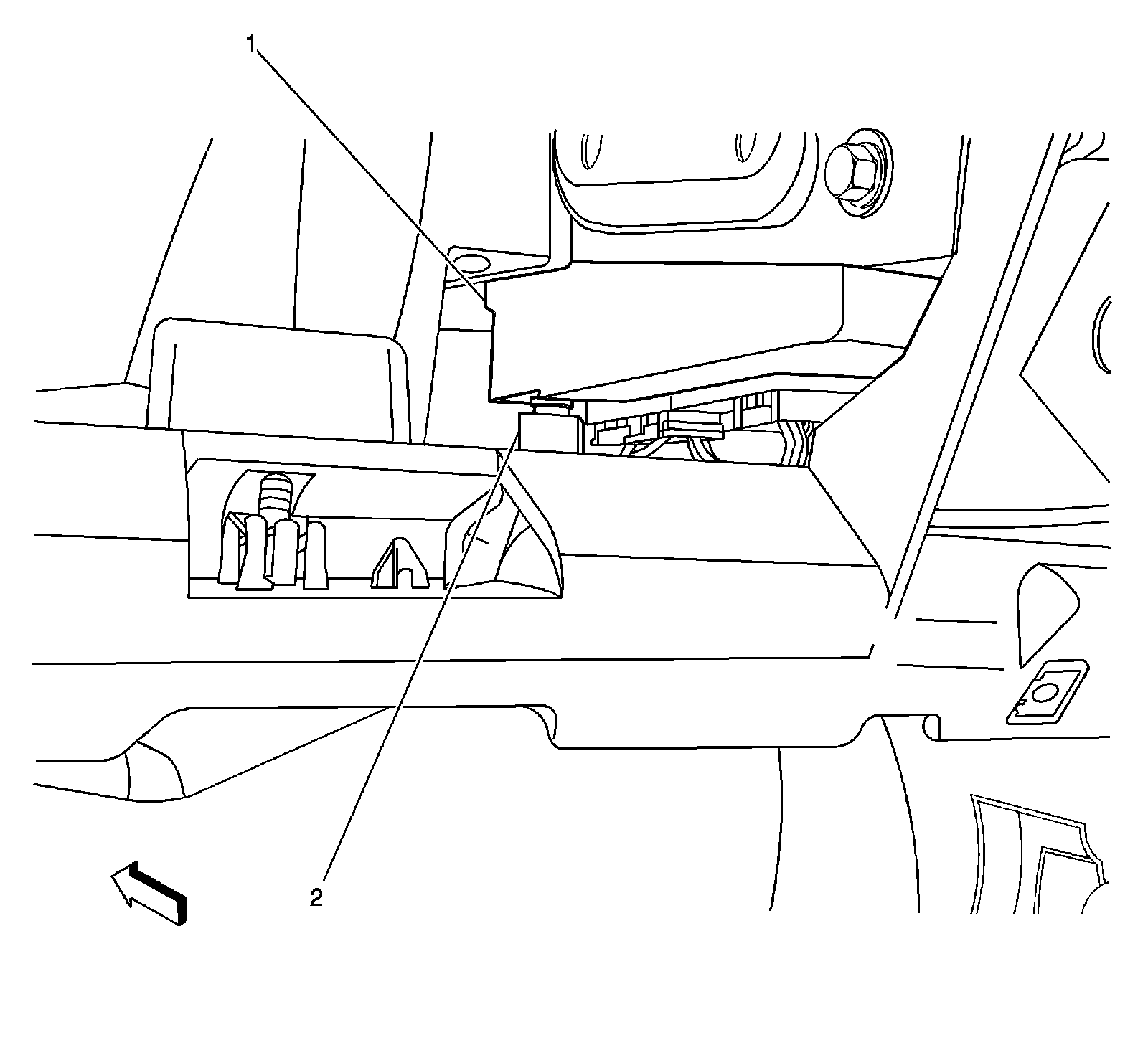

Lower Right of the I/P Components (4 of 4)




1 - Vehicle Communication Interface Module (VCIM) (UE1)
2 - Wireless Communication Interface Antenna - Bluetooth (UPF)
