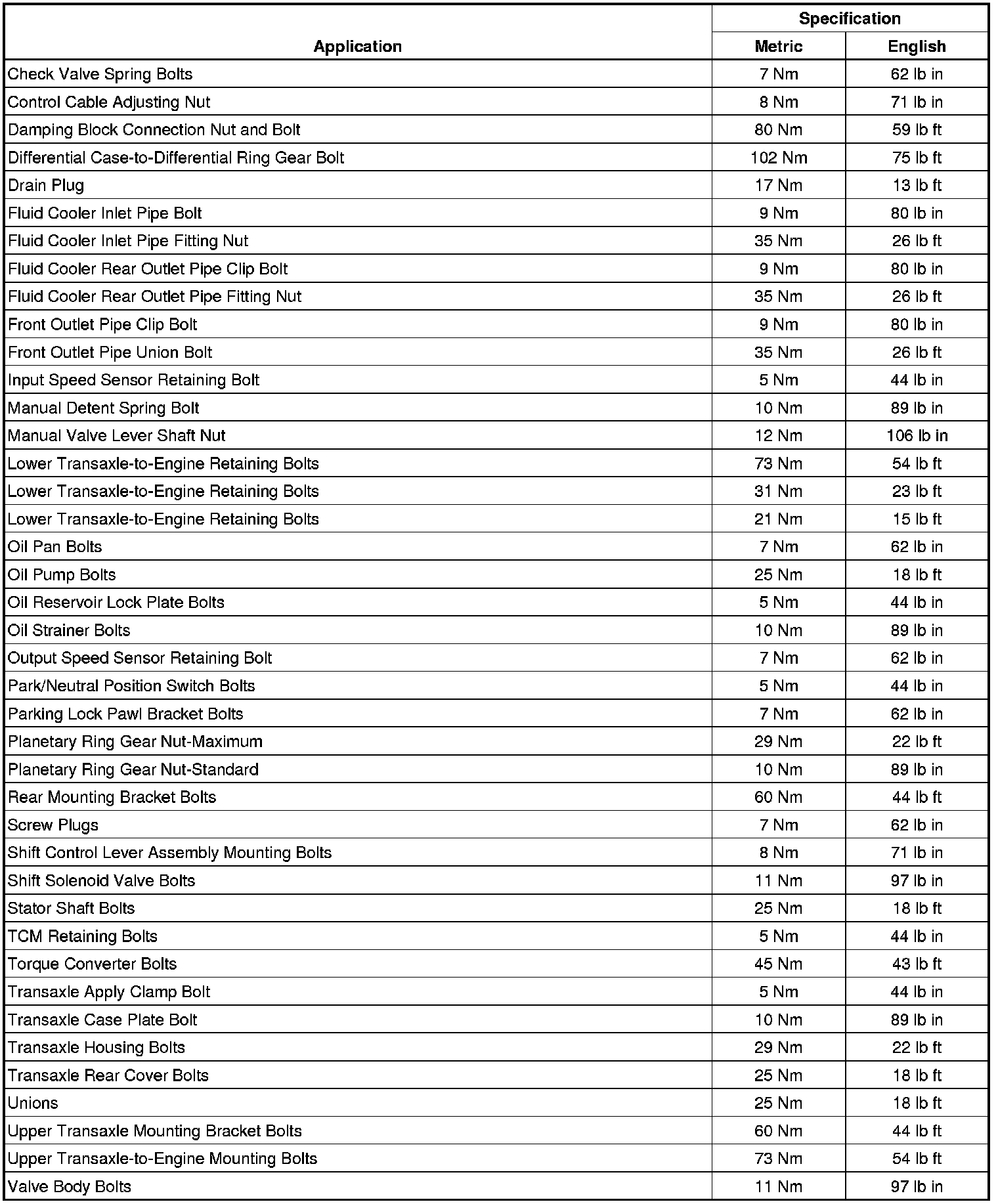

Fastener Tightening Specifications




Fastener Tightening Specifications





Flex Plate 35 Nm +30° +15° (25.8 lb ft +30° +15°)
