Fuse Block - I/P




Electrical Center Identification Views

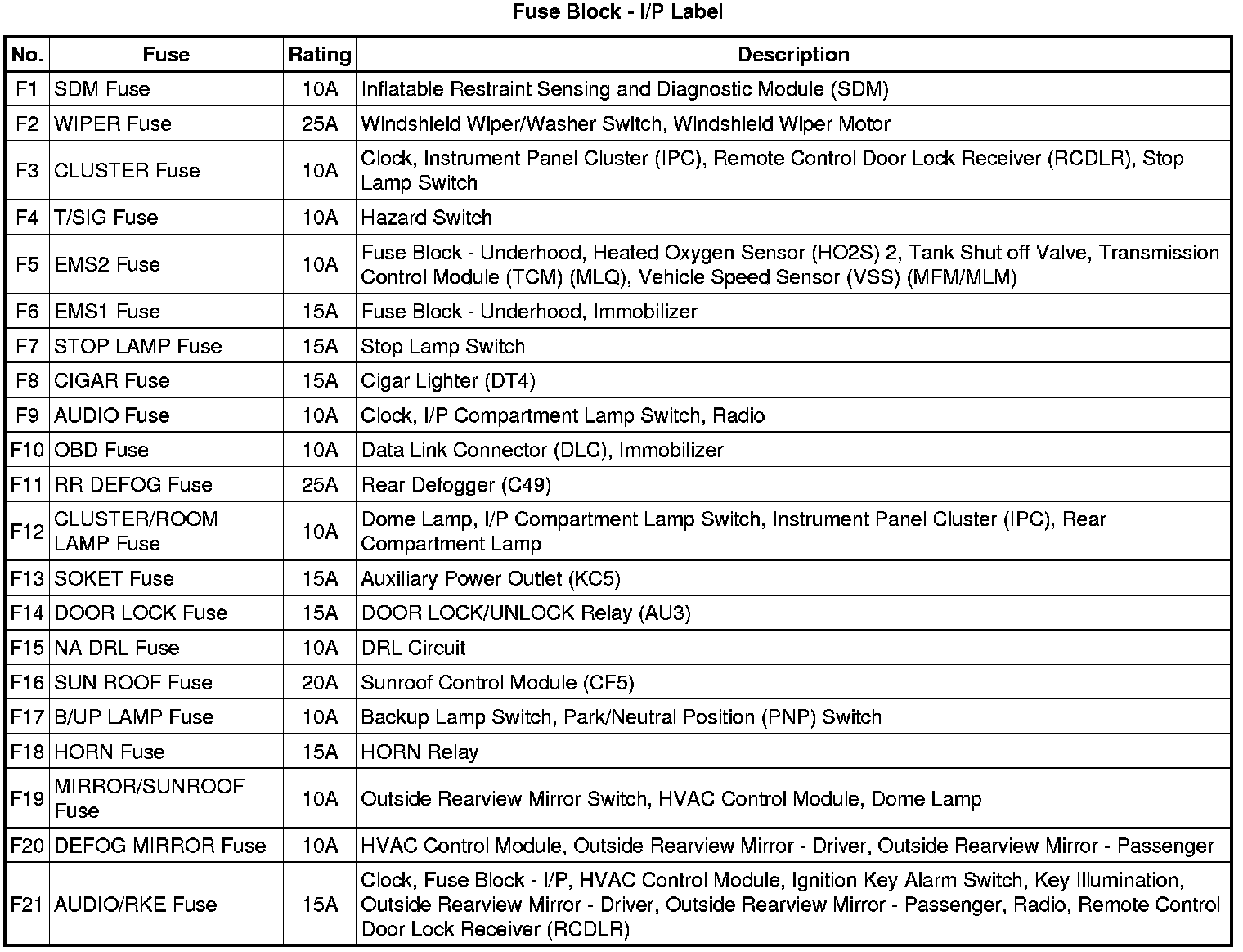

Fuse Block - I/P Label

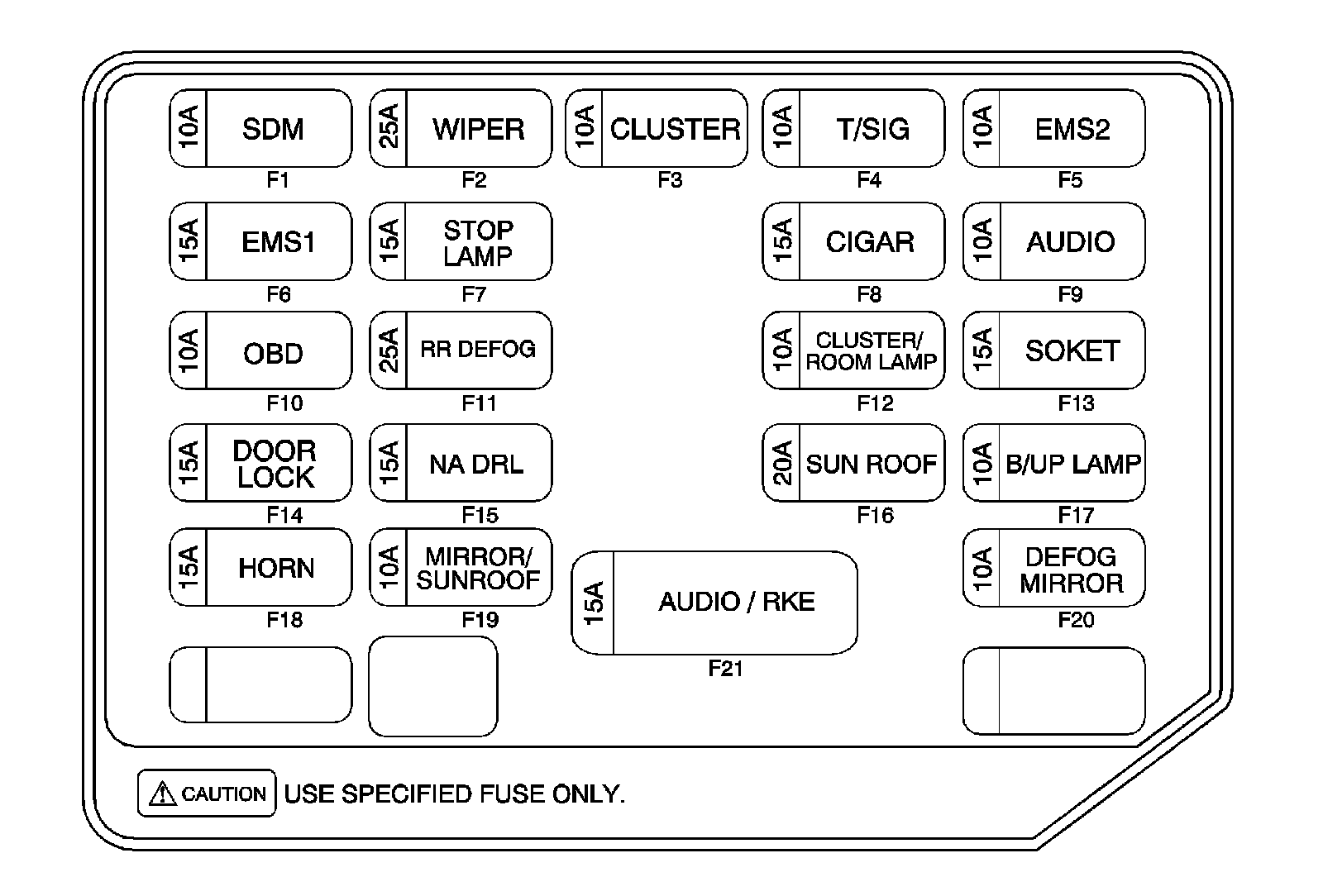

Fuse Block - I/P (Bottom View)

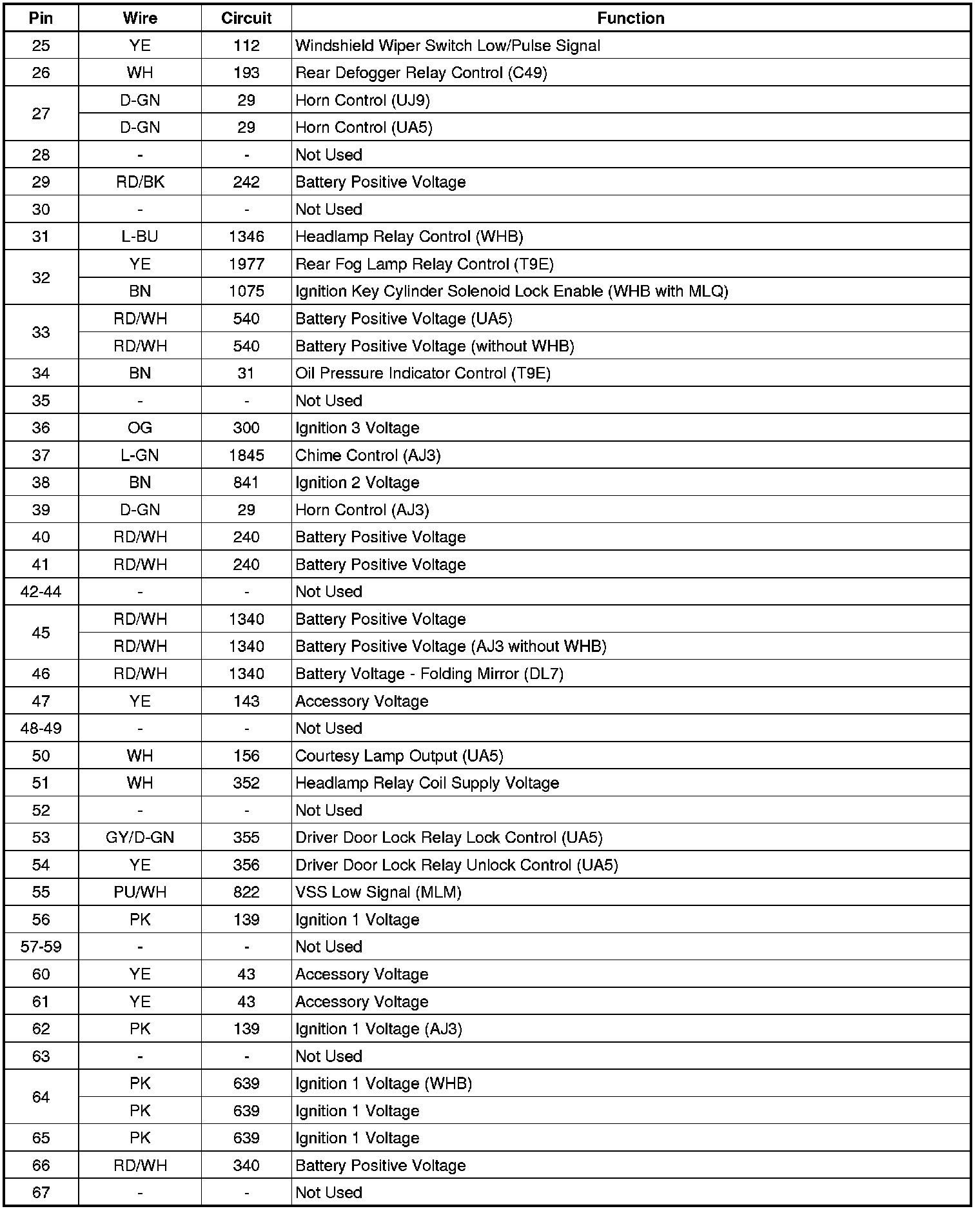

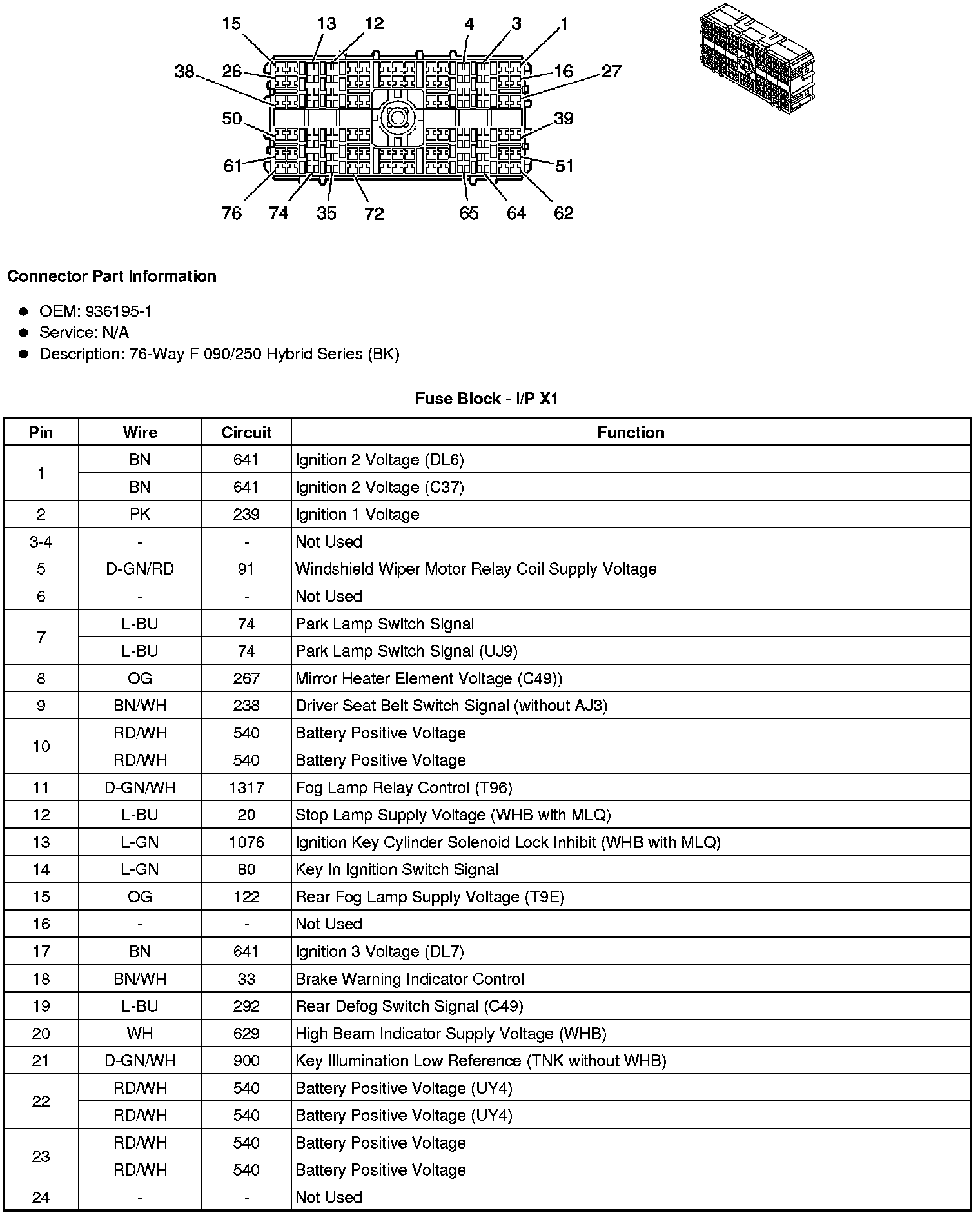

Fuse Block - I/P X1

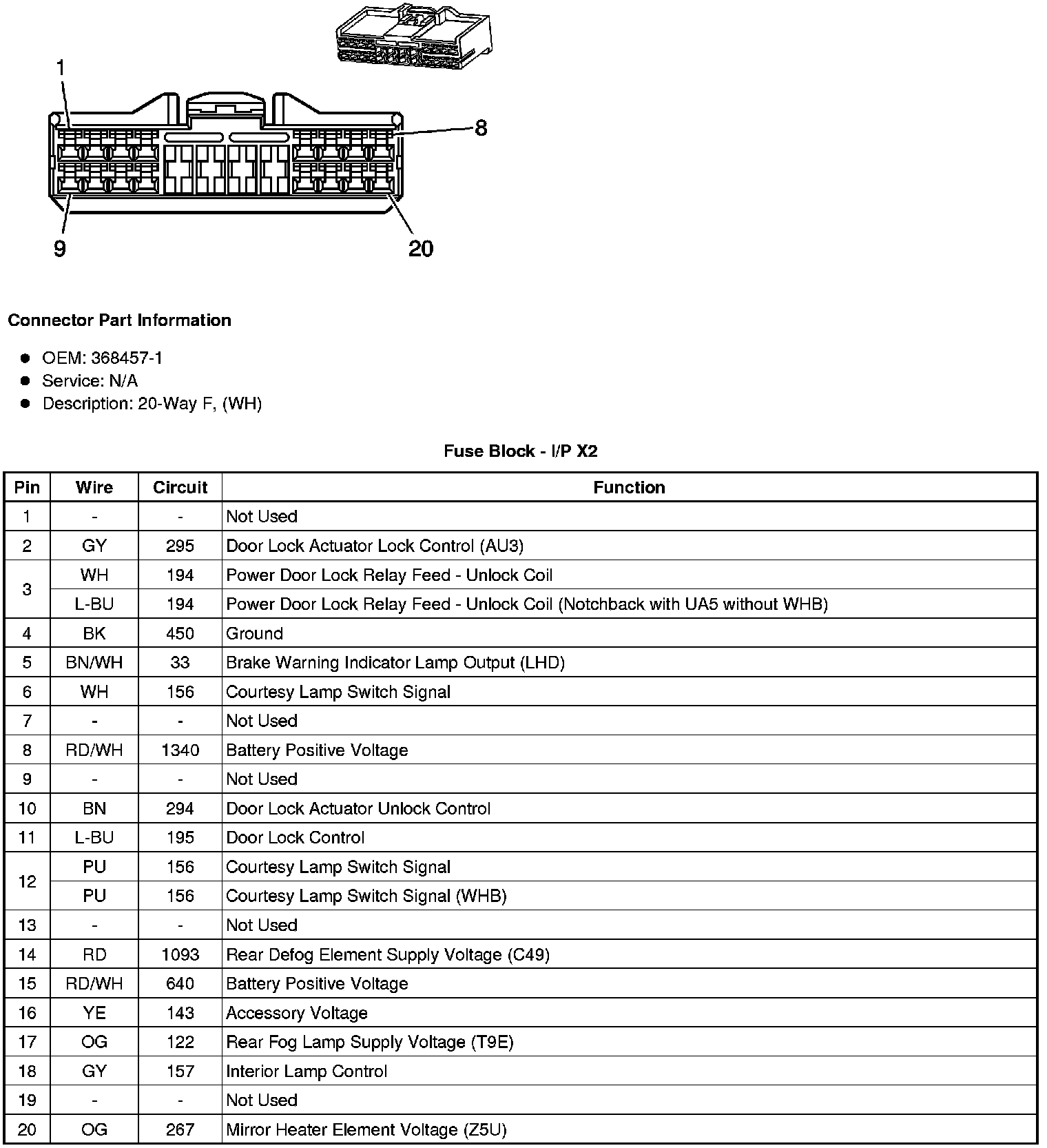

Fuse Block - I/P X2

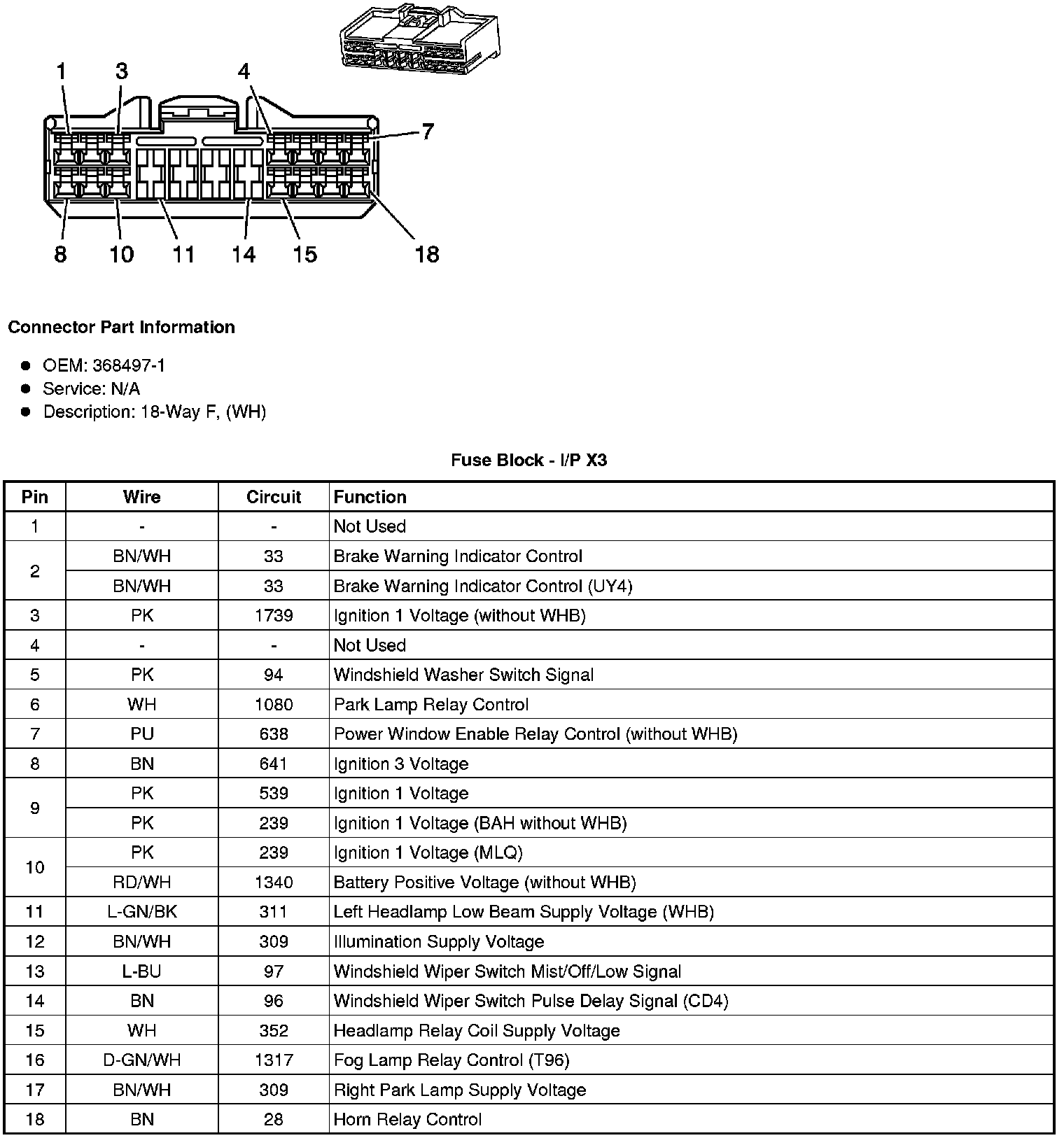

Fuse Block - I/P X3
