Installation Procedure

  1. Relieve the fuel pressure. Refer to Fuel Pressure Relief .
  2. Remove the engine cover.
  3. Remove the quick connect coupling cover of the fuel feed hose.
    4. Fig 1: Quick Connect Coupling
    GM236747Courtesy of GENERAL MOTORS CORP.
  4. Using the J 43178  , disconnect the quick connect coupling of the fuel feed hose from the fuel feed pipe of the fuel rail. See Special Tools . Use a shop towel in order to catch any remaining fuel that may leak. Refer to Metal Collar Quick Connect Fitting Service .
  5. Install the J 42982  between the fuel feed pipe of the fuel rail and of the fuel feed hose. See Special Tools .

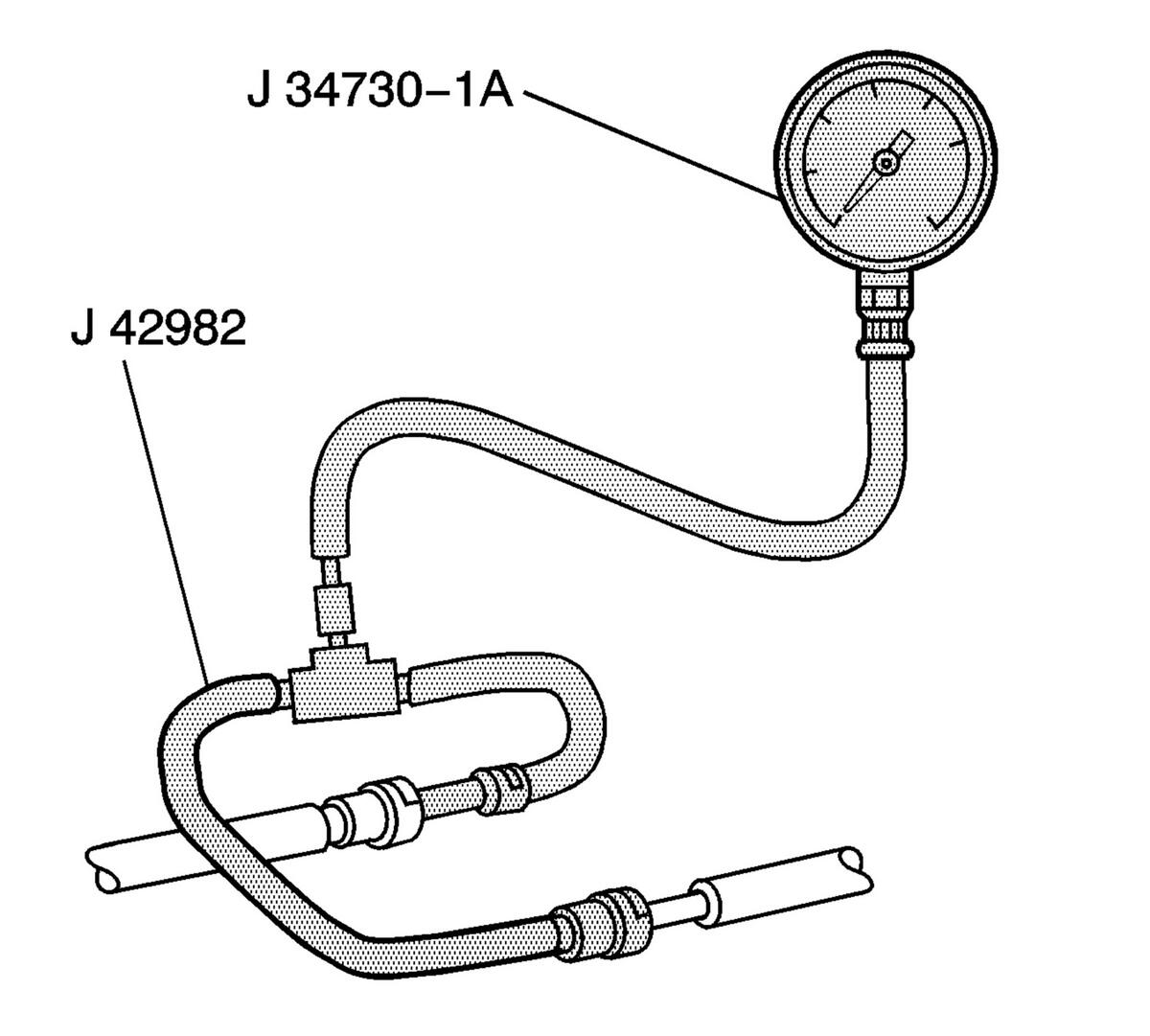

    6. Fig 2: Fuel Pressure Gage
    GM320792Courtesy of GENERAL MOTORS CORP.
  6. Install the J 34730-1A  to the J 42982  , and tighten securely. See Special Tools .
    7. NOTE: Refer to Fastener Caution .
  7. Connect the negative battery cable.

    Tighten:  Tighten the retainer for the negative battery cable terminal to 15 N.m (11 lb ft).

  8. Turn ON the ignition in order to pressurize the fuel system.
  9. Turn OFF the ignition.
  10. Check for any fuel leaks.
