Amplifier, Sound System
Component Connector End Views

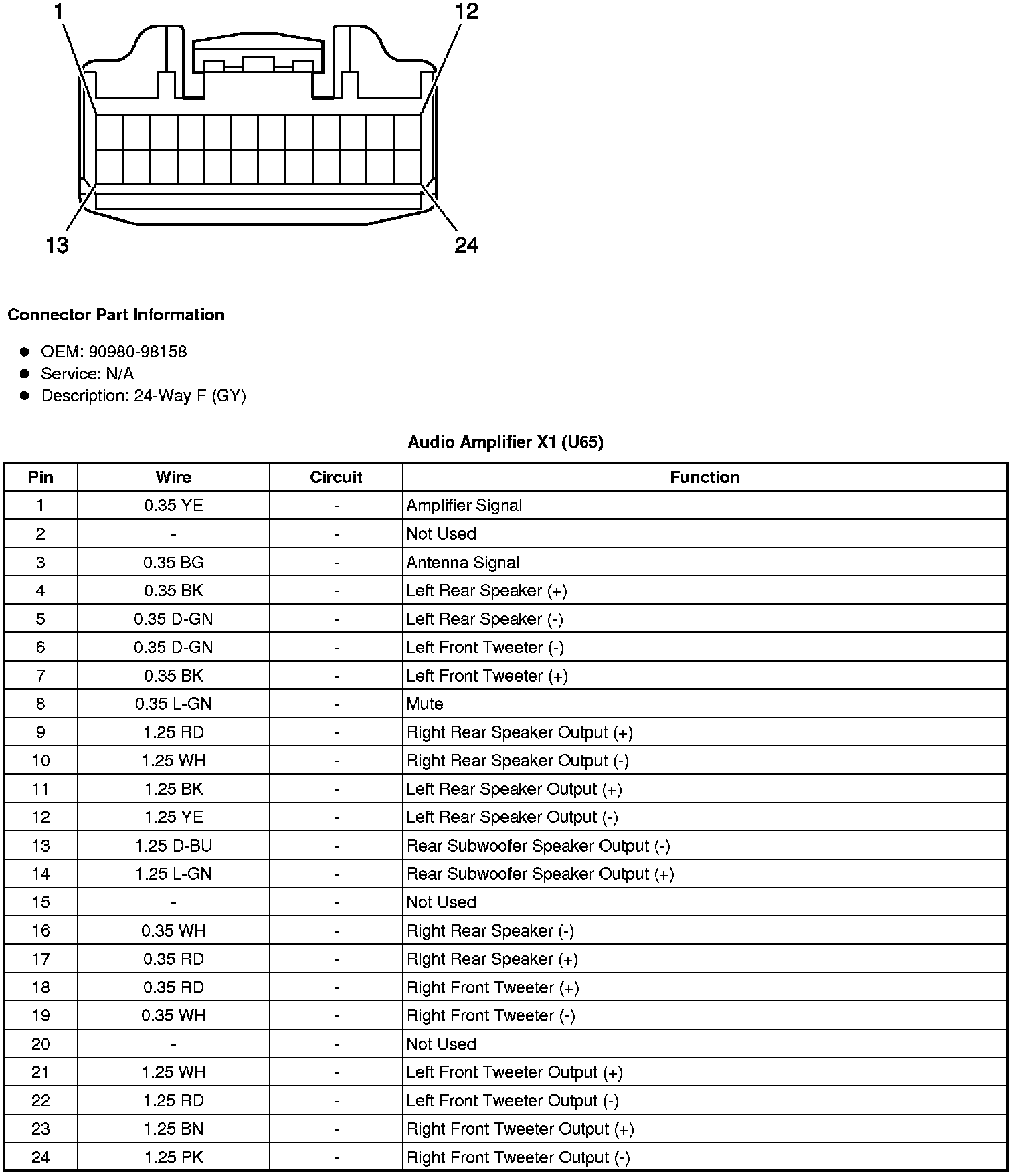

Audio Amplifier X1 (U65)
Audio Amplifier X2 (U65)
