Steering Control Module




Component Connector End Views

Electric Power Steering (EPS) Module X1 (LNJ)






Electric Power Steering (EPS) Module X2 (LNJ)

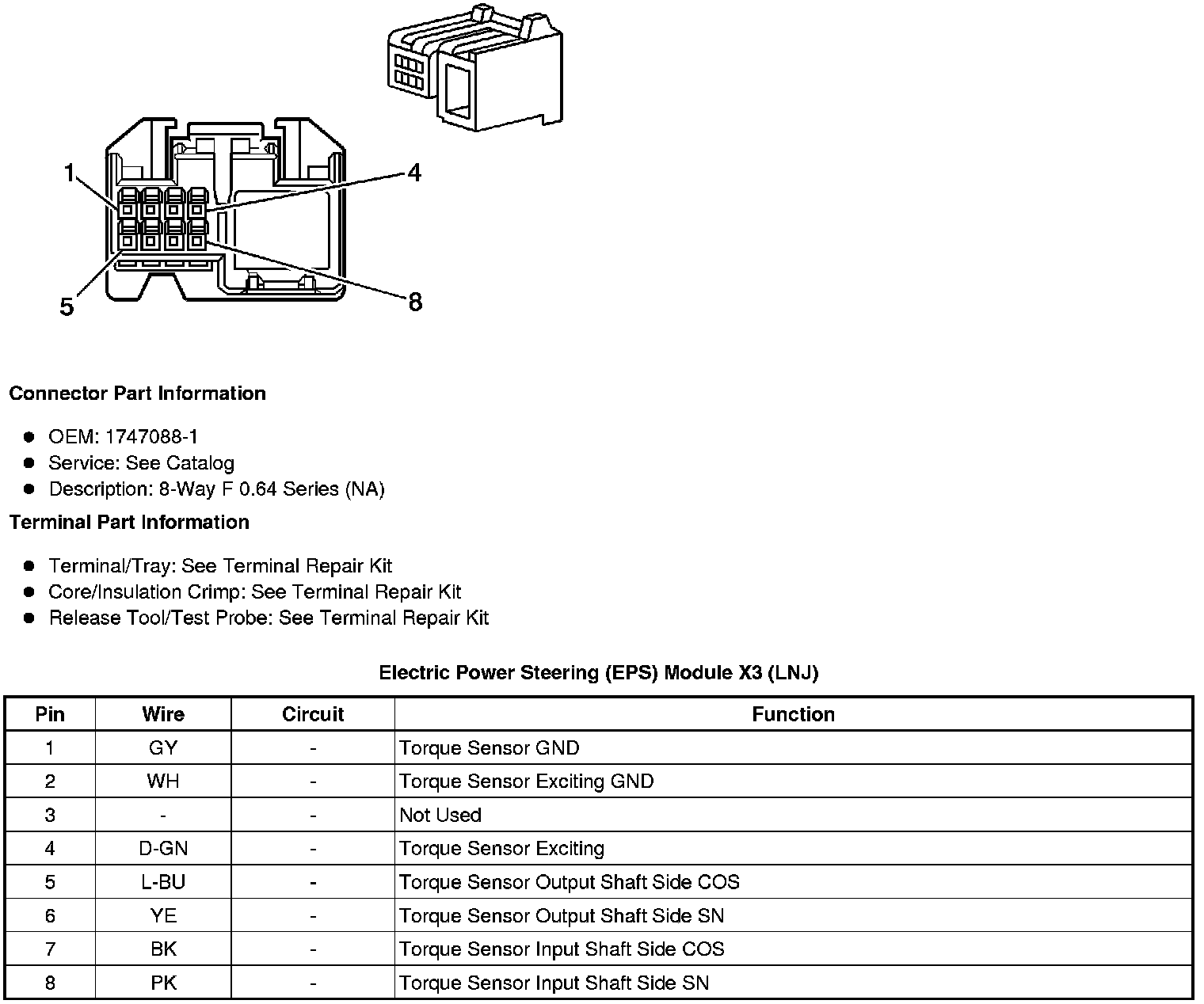

Electric Power Steering (EPS) Module X3 (LNJ)

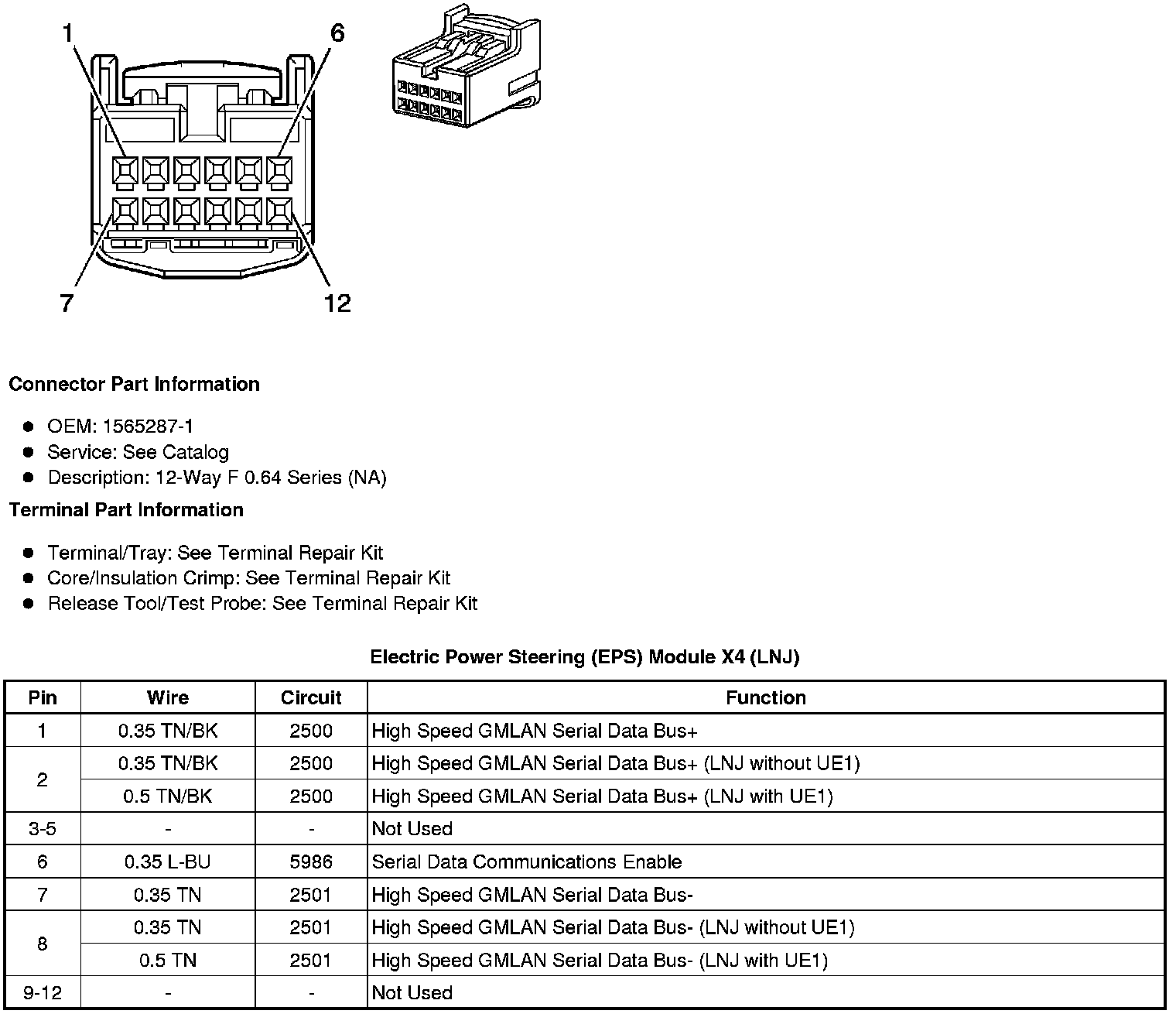

Electric Power Steering (EPS) Module X4 (LNJ)






Electric Power Steering (EPS) Module X5 (LNJ)
