Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Torrent and 2006 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

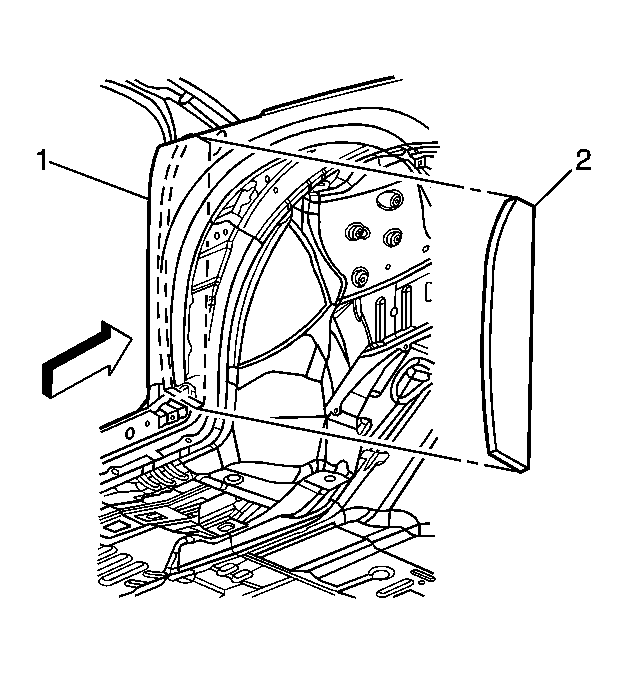

    Fig 1: View Of Front Fender Insulator
    GM1344372Courtesy of GENERAL MOTORS CORP.
  1. Position the fender insulator (2) between the fender and structure.
  2. Install the front wheelhouse liner. Refer to Wheelhouse Liner Replacement - Front .
