Fog Lights Schematics

WARNING: This page is about a different car, the 2006 Pontiac Torrent and 2006 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

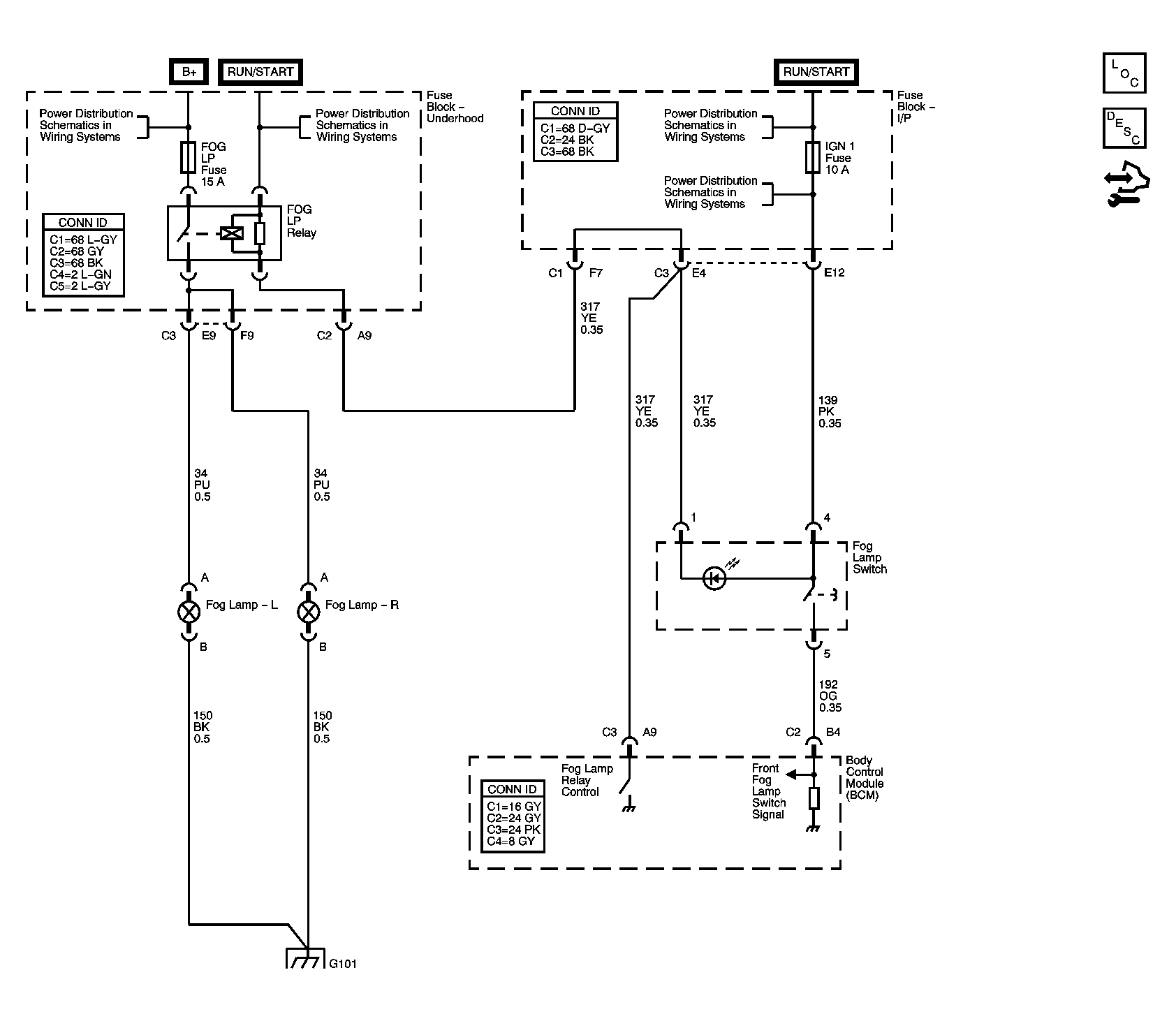

Fig 1: Fog Lights Schematics
GM1623703Courtesy of GENERAL MOTORS CORP.
