Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

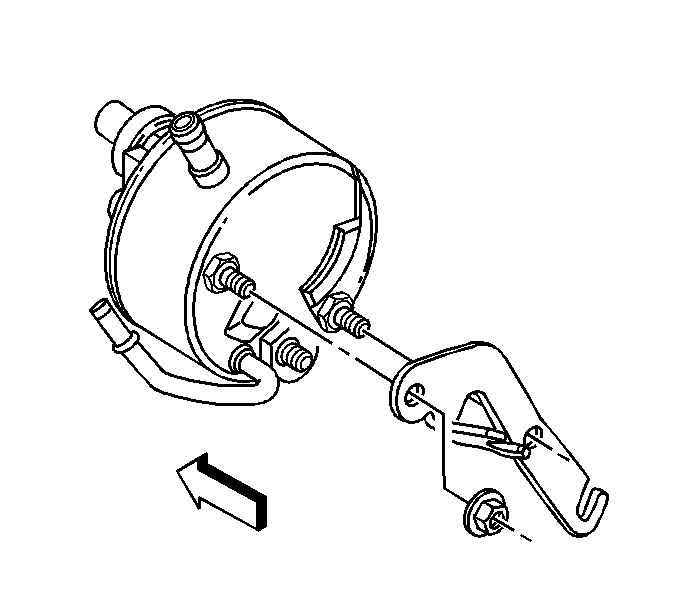

Fig 1: Power Steering Pump Rear Bracket

Courtesy of GENERAL MOTORS CORP.

Install the rear bracket to the power steering pump.

CAUTION: Refer to Fastener Caution .

Install the power steering pump rear bracket mounting nuts and tighten to 50 N.m (37 lb ft).

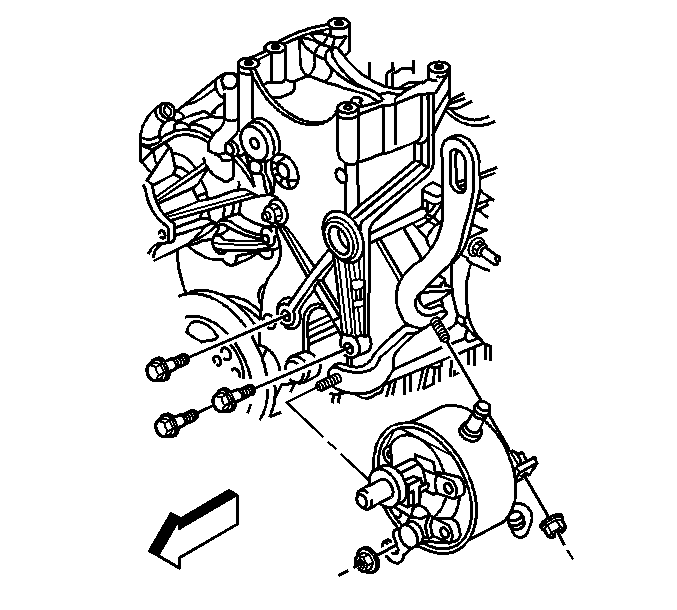

Fig 2: Power Steering Pump

Courtesy of GENERAL MOTORS CORP.

Install the power steering pump to the vehicle.
Install the power steering pump front mounting bolts 50 N.m (37 lb ft).
Install the power steering pump lower and rear nuts and tighten to 41 N.m (30 lb ft).
Uncap the power steering hoses.

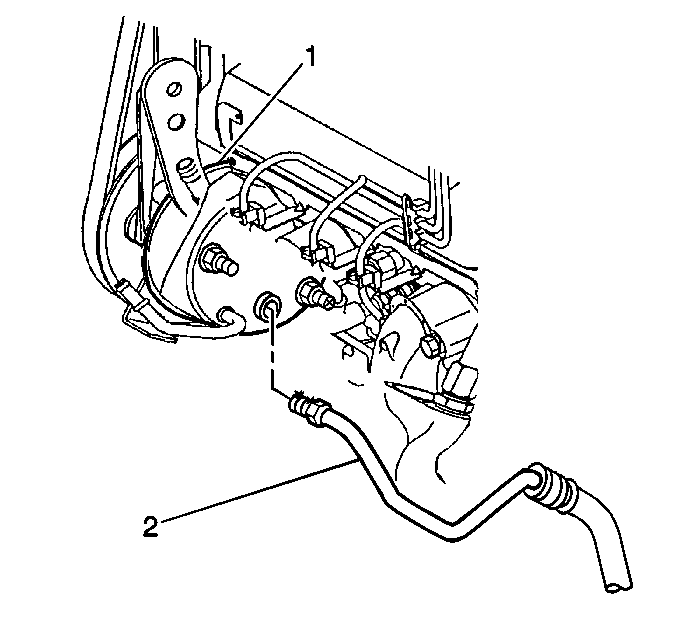

Fig 3: Power Brake Booster Inlet Hose At Power Steering Pump

Courtesy of GENERAL MOTORS CORP.

NOTE: Route the power steering hoses in the same location in which they were removed.

Install the power brake booster inlet hose (2) to the power steering pump through the wheel well and tighten 33 N.m (24 lb ft).

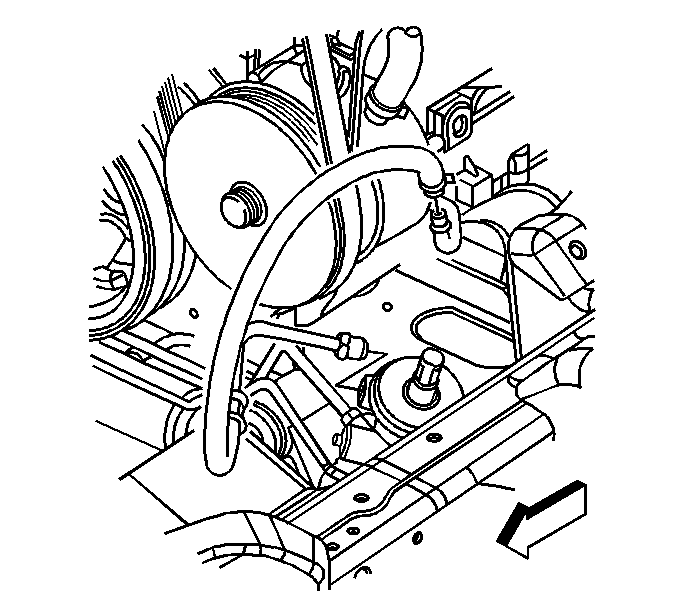

Fig 4: Identifying Power Steering Gear Outlet Hose/Cooler Hose

Courtesy of GENERAL MOTORS CORP.

Install the power steering gear outlet hose or cooler hose to the power steering pump through the wheel well.

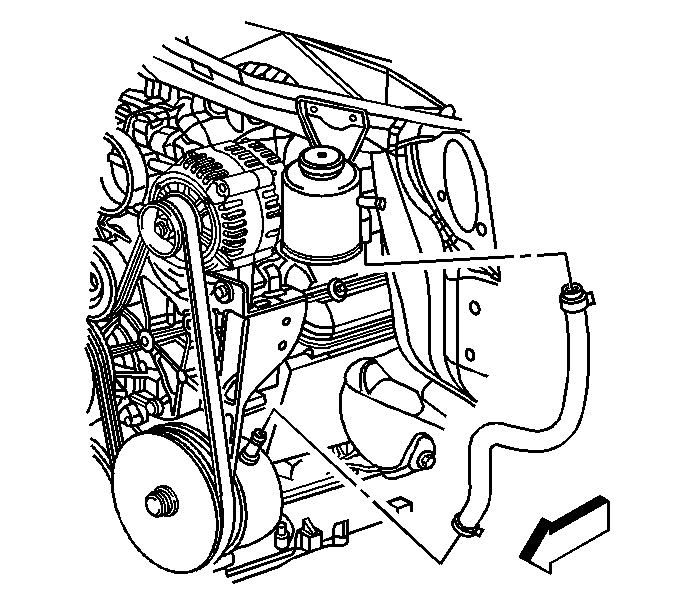

Fig 5: Remote Power Steering Fluid Reservoir Outlet Hose

Courtesy of GENERAL MOTORS CORP.

Install the reservoir outlet hose to the power steering pump through the wheel well.
Install the power steering pump pulley. Refer to Power Steering Pump Pulley Replacement .
Bleed the system. Refer to Power Steering System Bleeding .
Remove the drain pan from under the vehicle.
