Ground Distribution Schematics

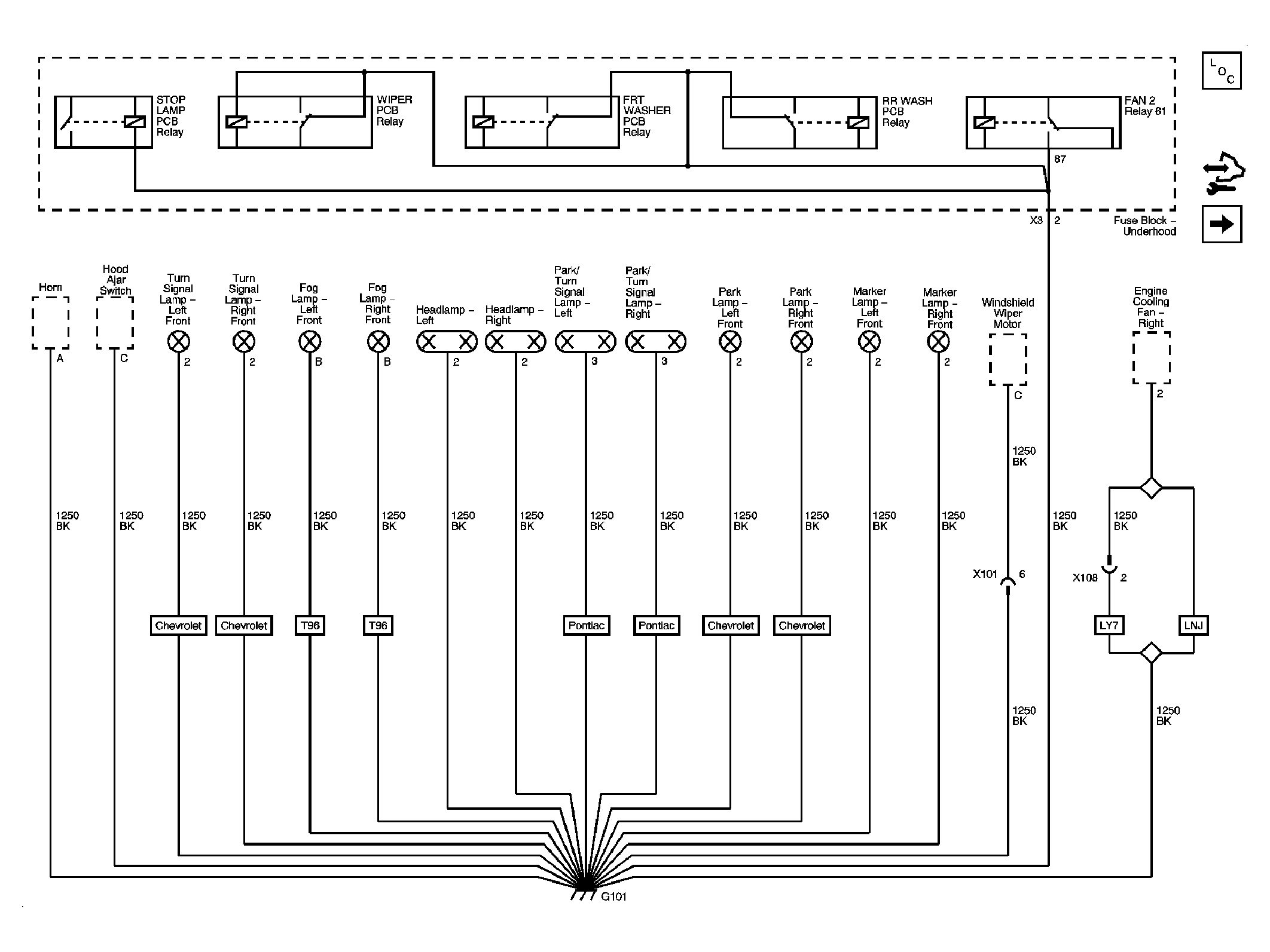

Fig 1: G101 Schematic

Courtesy of GENERAL MOTORS CORP.

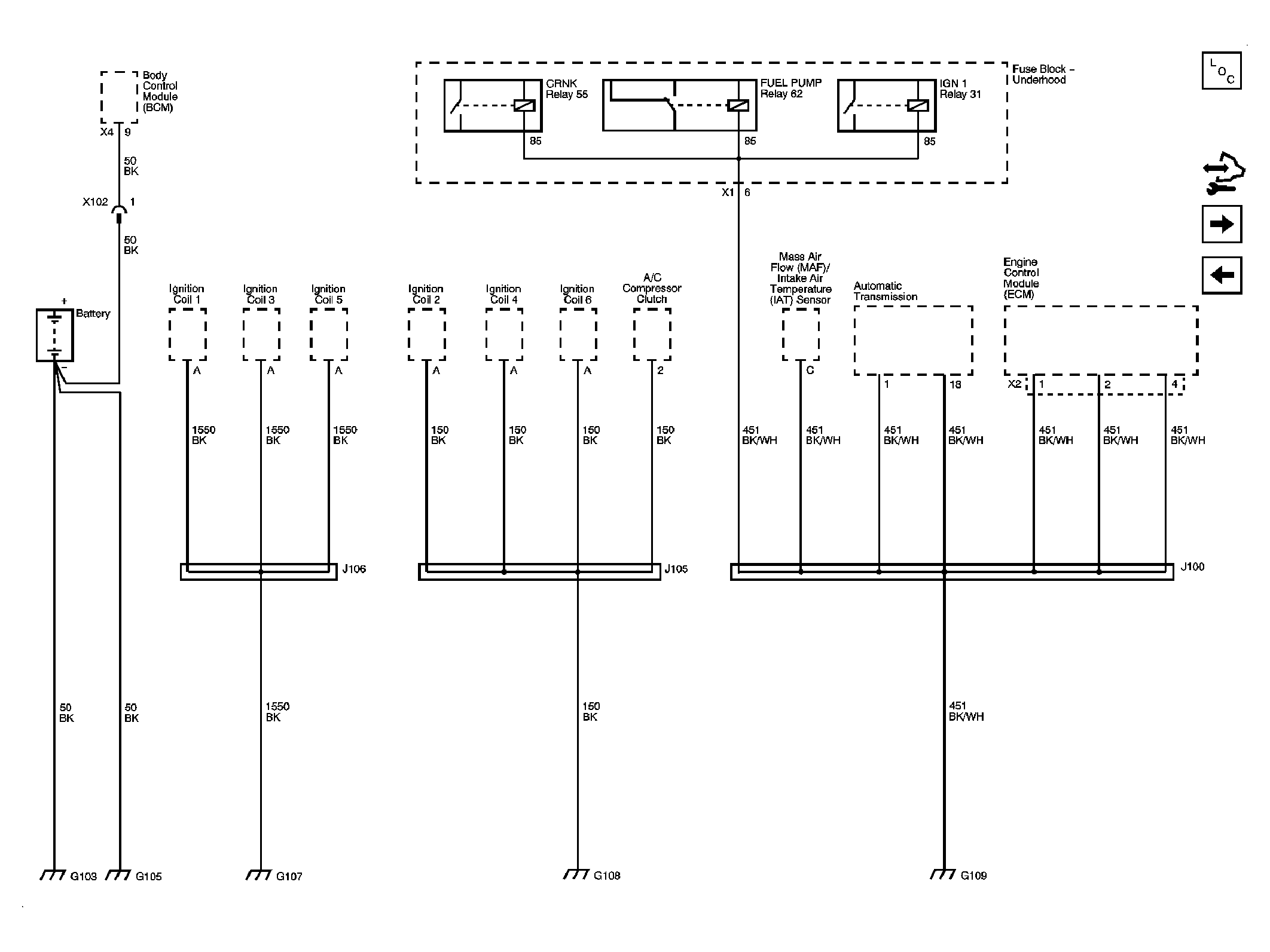

Fig 2: G103, G105, G107, G108 and G109 Schematic (3.6L)

Courtesy of GENERAL MOTORS CORP.

Fig 3: G103, G105, G111 Schematic (3.4L)

Courtesy of GENERAL MOTORS CORP.

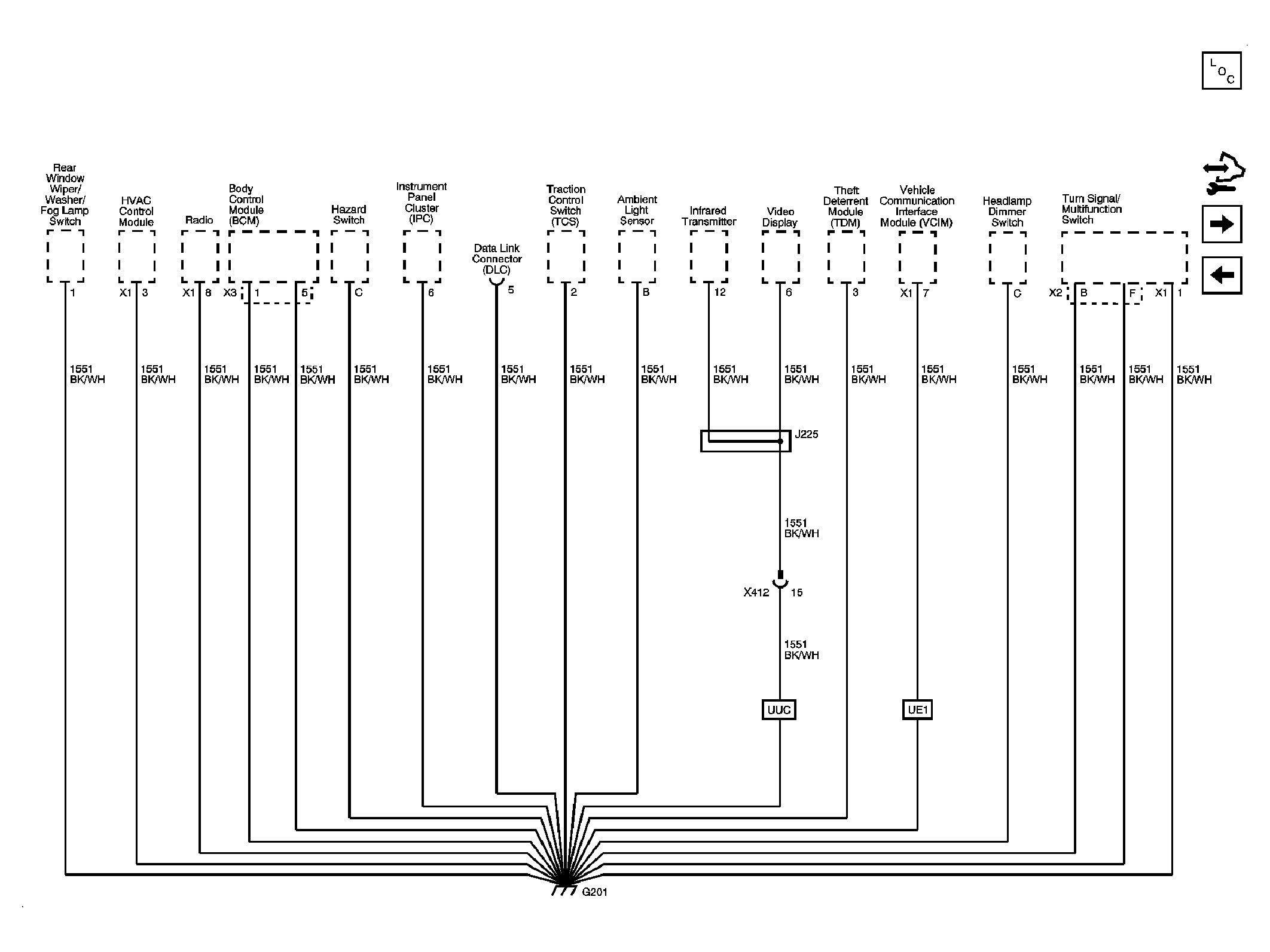

Fig 4: G201 Schematic

Courtesy of GENERAL MOTORS CORP.

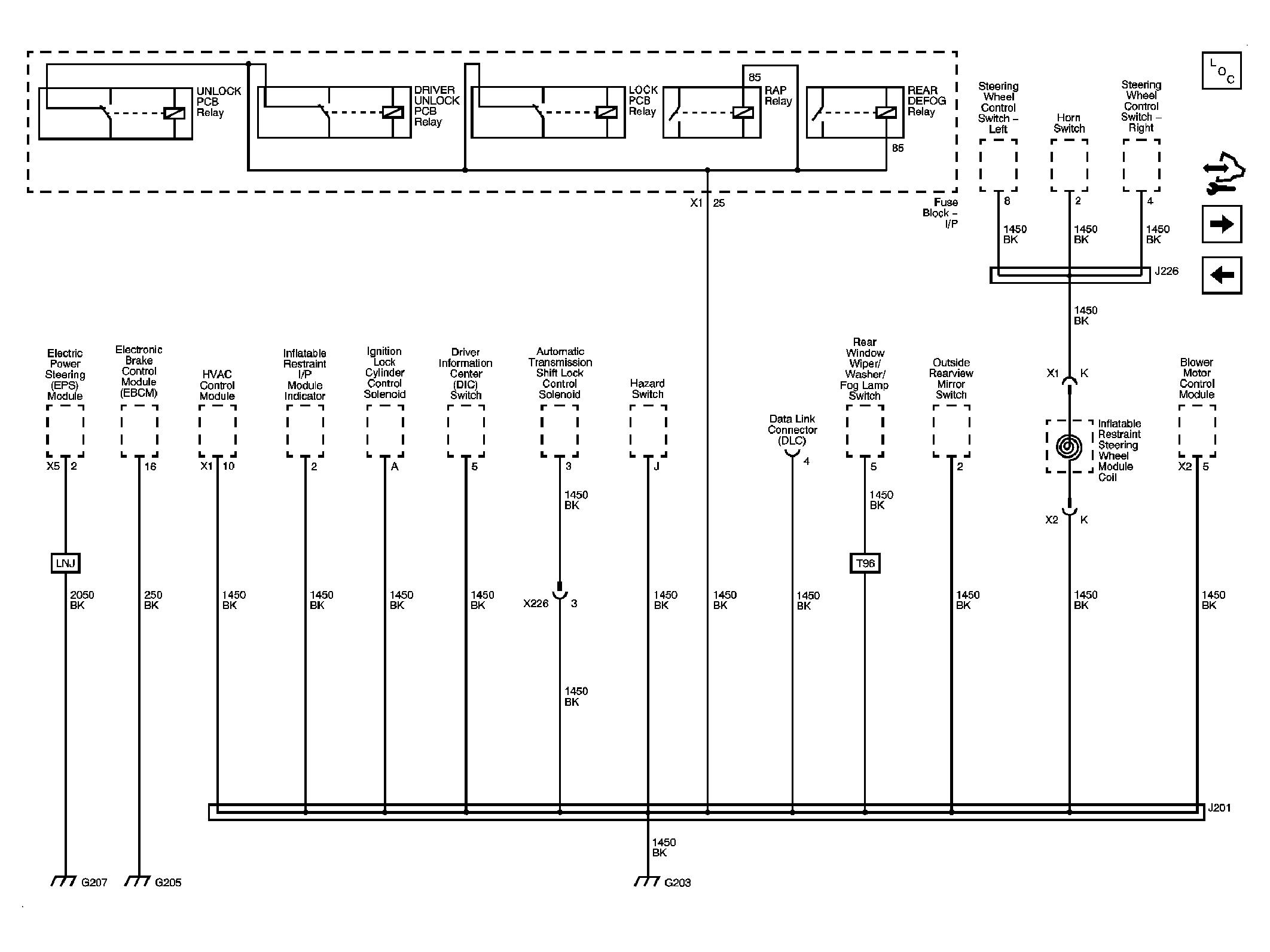

Fig 5: G203, G205, G207 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: G301 Schematic

Courtesy of GENERAL MOTORS CORP.

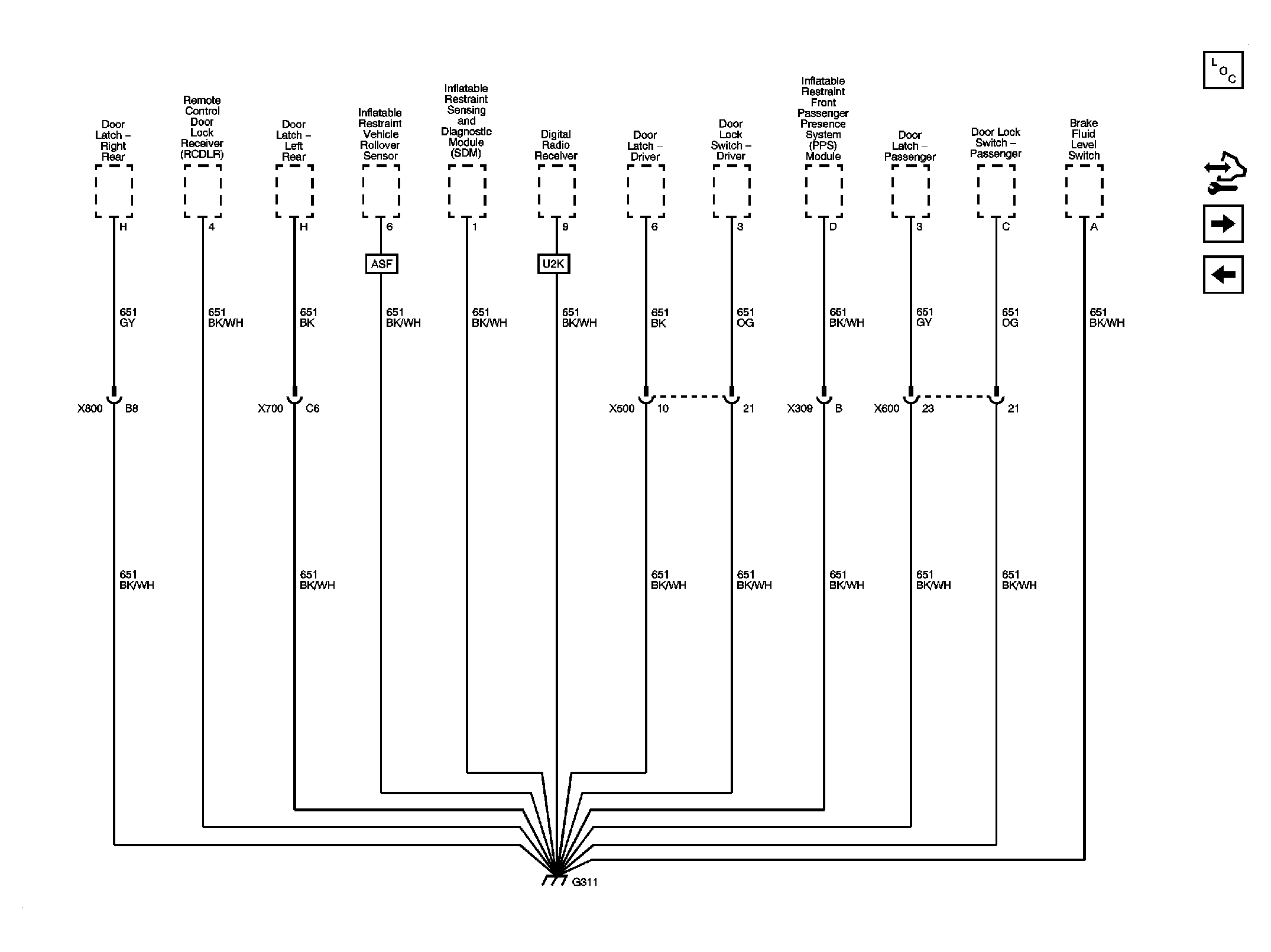

Fig 7: G311 Schematic

Courtesy of GENERAL MOTORS CORP.

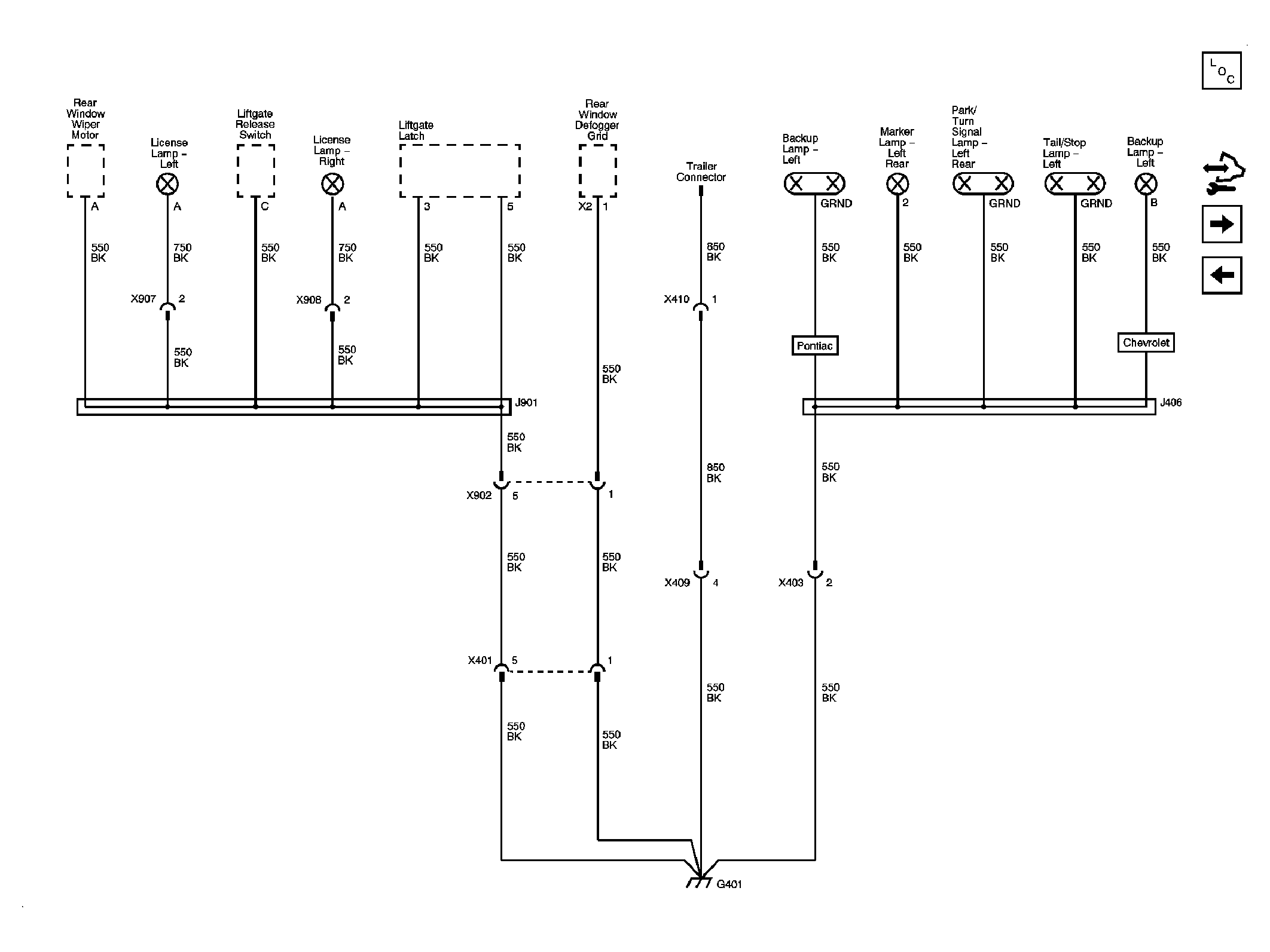

Fig 8: G401 Schematic

Courtesy of GENERAL MOTORS CORP.

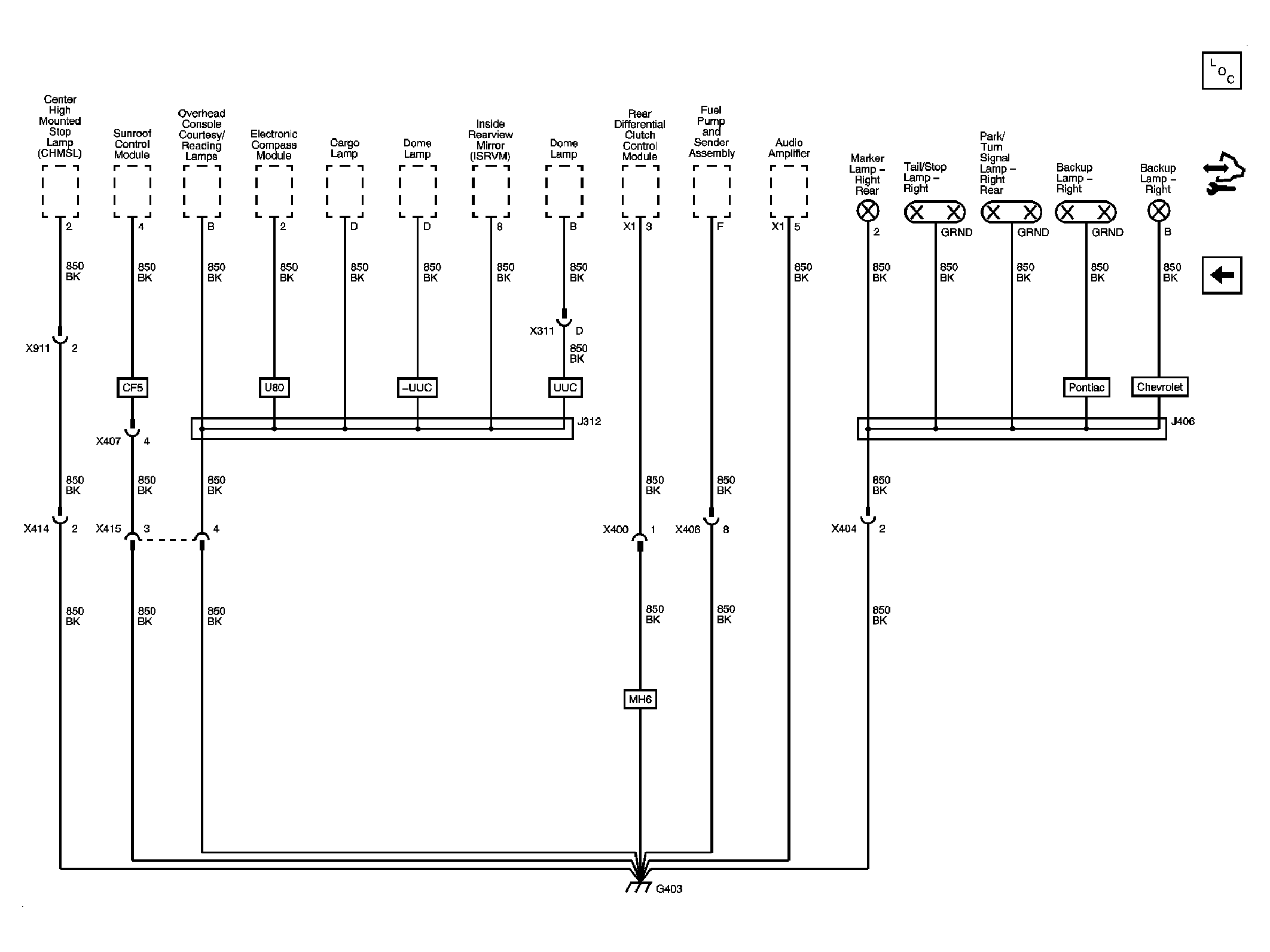

Fig 9: G403 Schematic

Courtesy of GENERAL MOTORS CORP.
