Video System Schematics

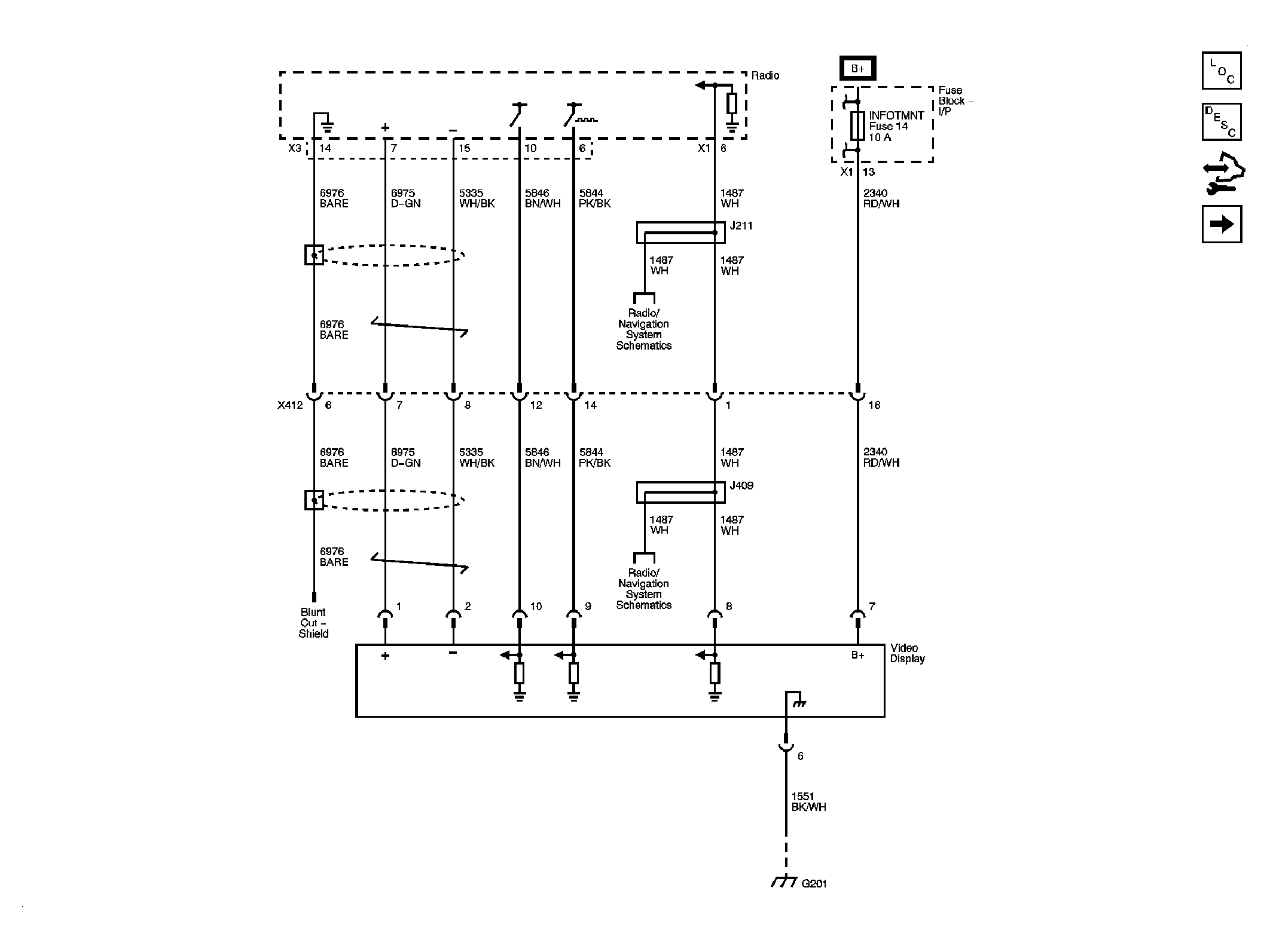

Fig 1: Power, Ground, and Video Signals Schematic
GM2086266Courtesy of GENERAL MOTORS CORP.

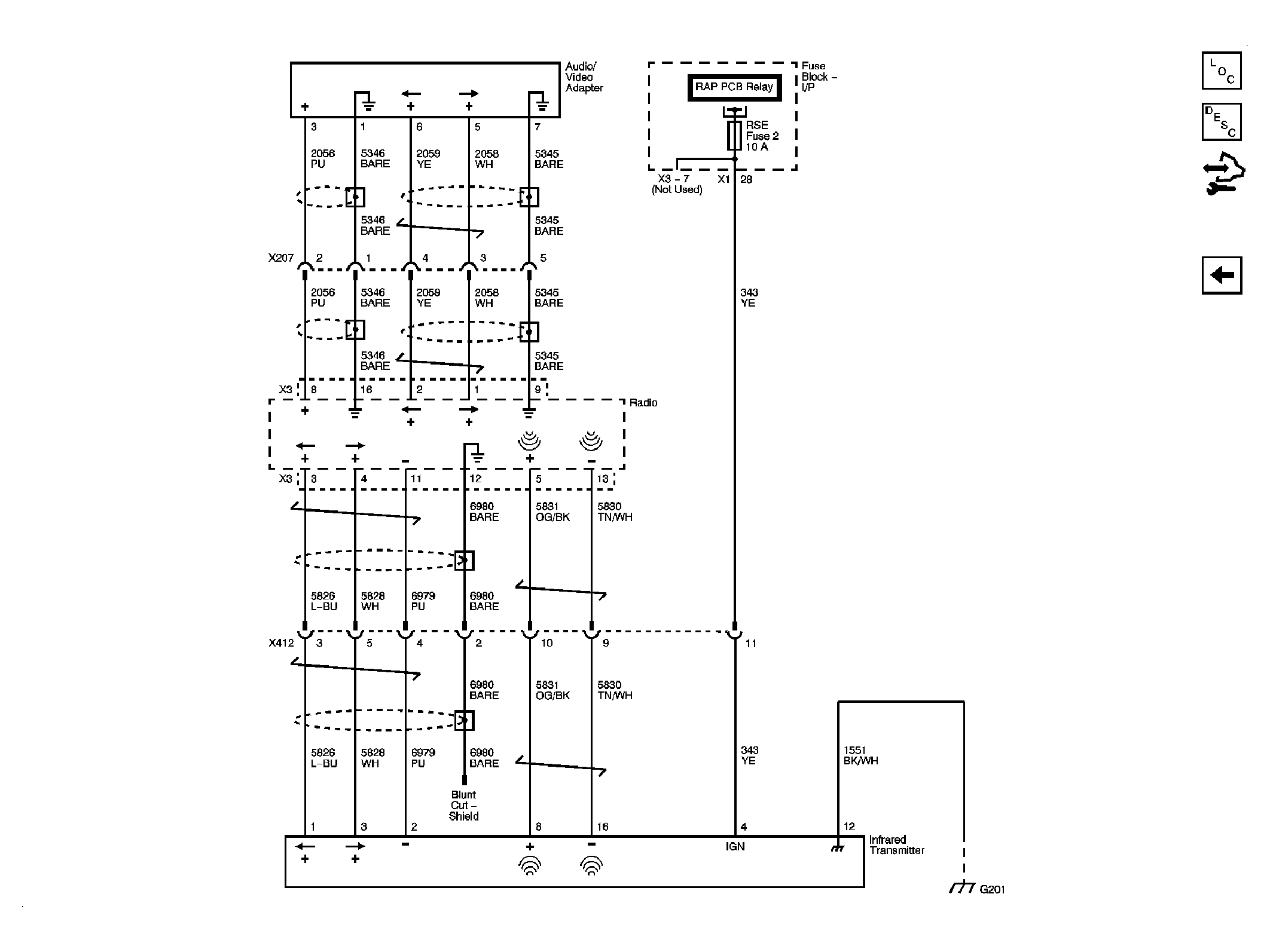

Fig 2: Audio Signals Schematic
GM2086272Courtesy of GENERAL MOTORS CORP.
