Turn Signal Lamp




Component Connector End Views

Park/Turn Signal Lamp - Left Front (Pontiac)

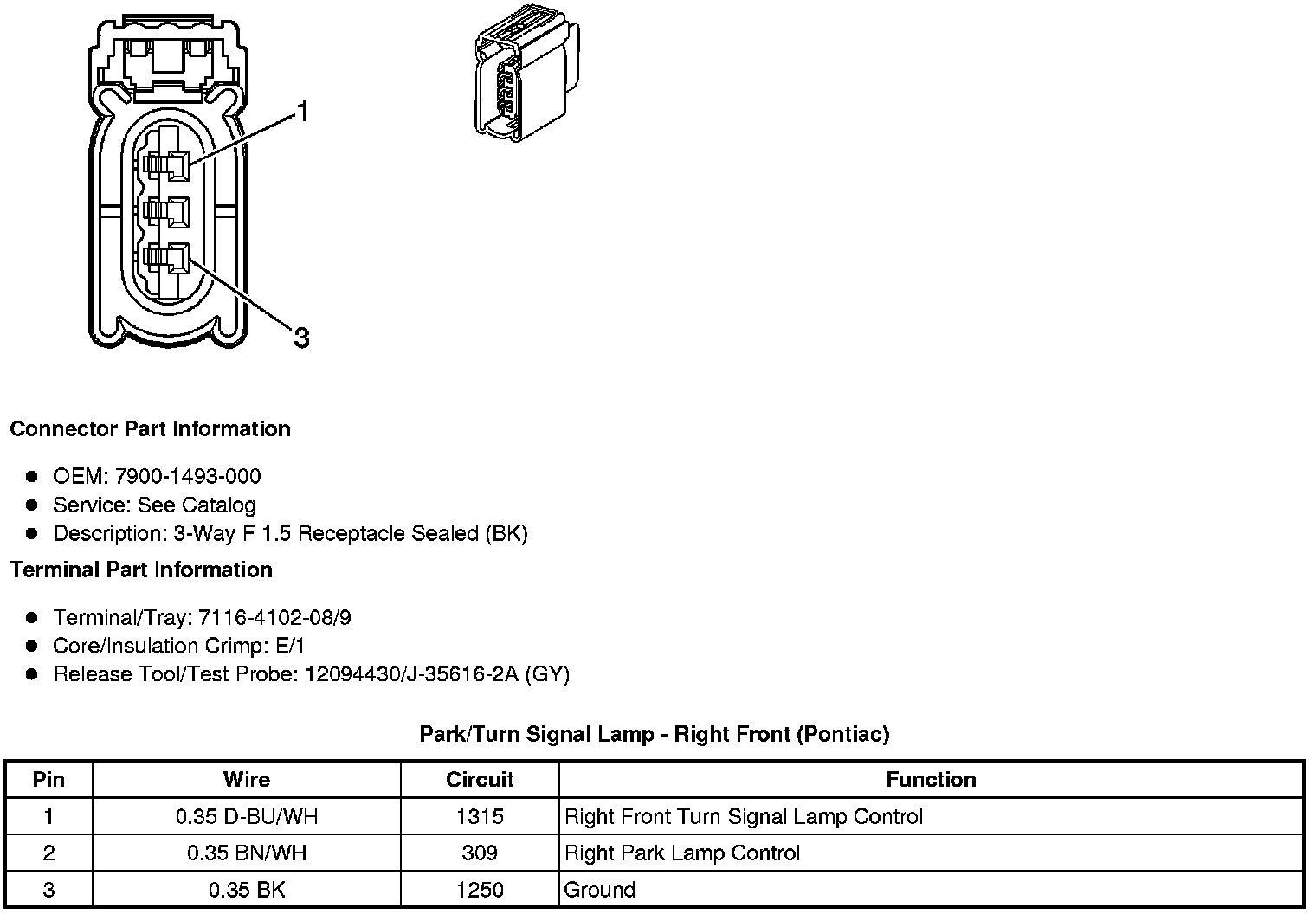

Park/Turn Signal Lamp - Right Front (Pontiac)






Park/Turn Signal Lamp - Left Rear

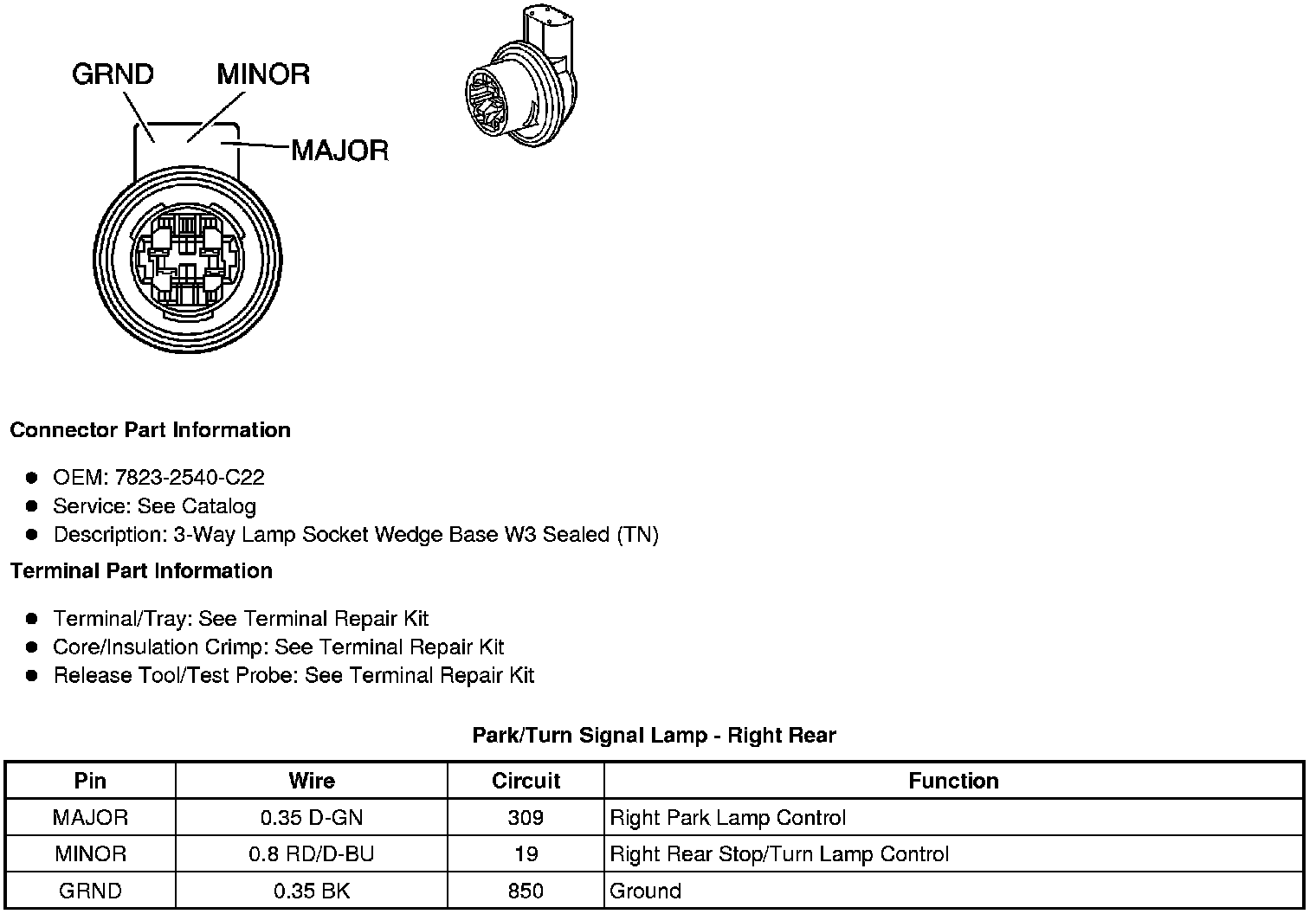

Park/Turn Signal Lamp - Right Rear
