Marker Lamp




Component Connector End Views

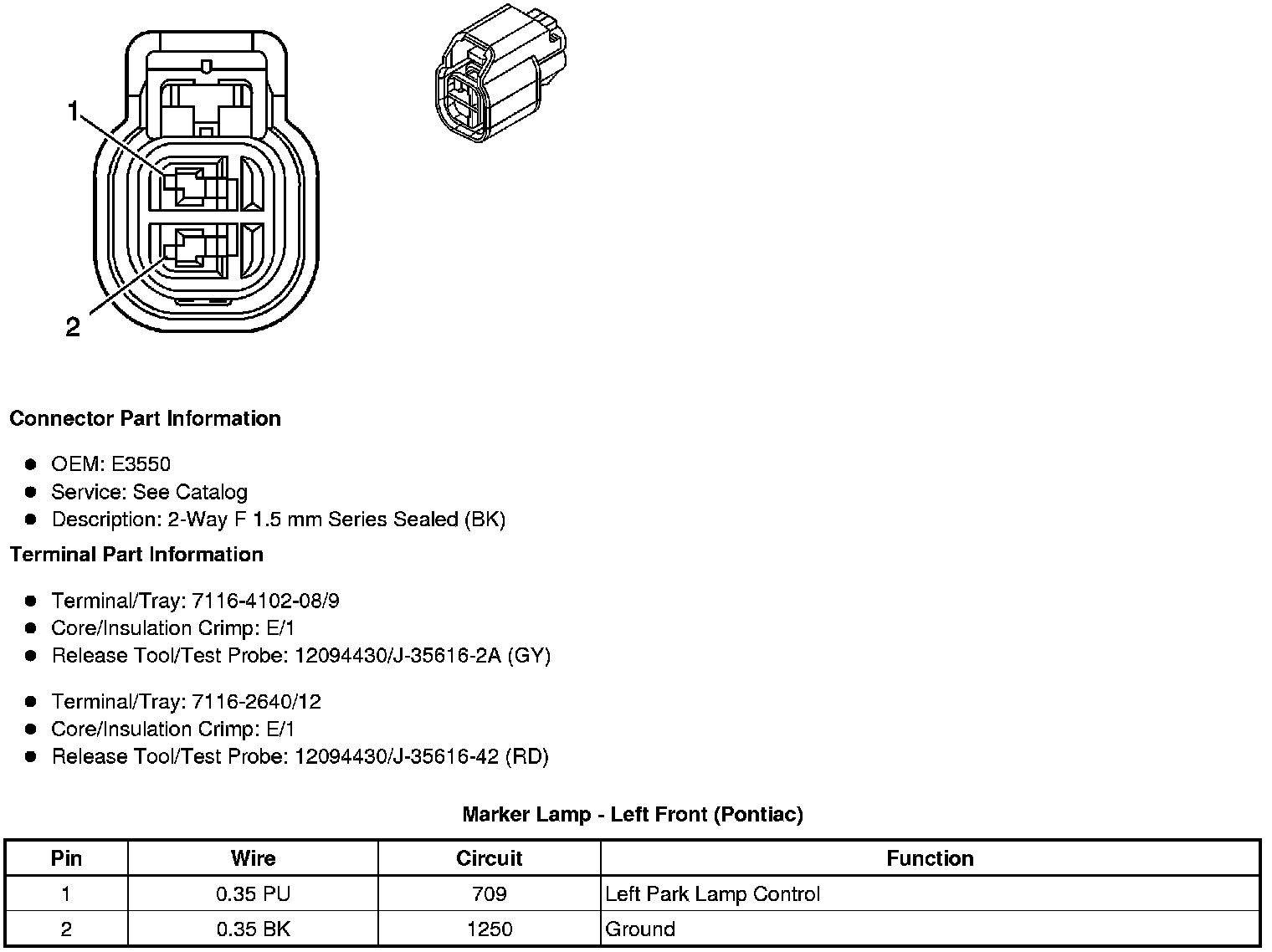

Marker Lamp - Left Front (Pontiac)

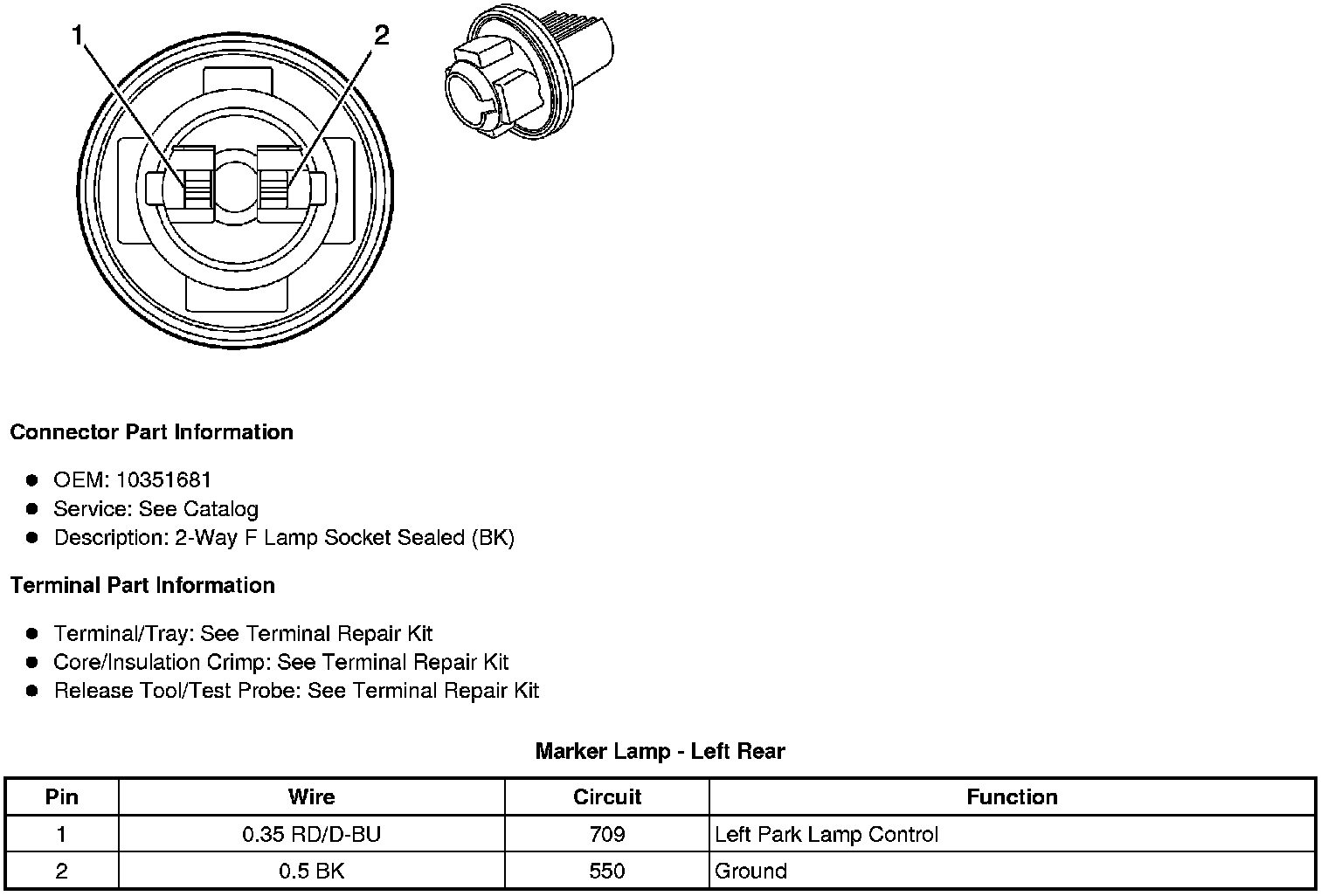

Marker Lamp - Left Rear

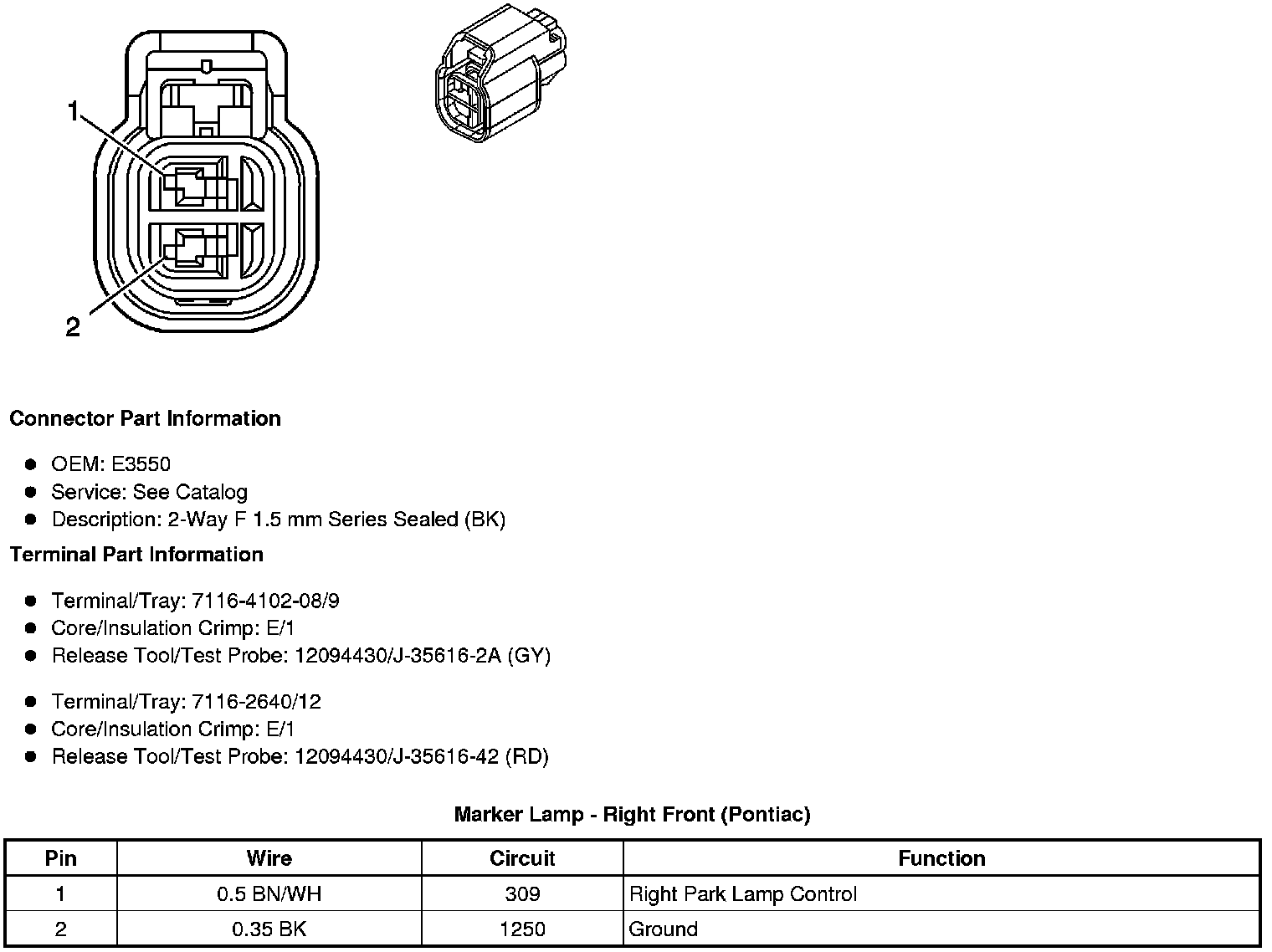

Marker Lamp - Right Front (Pontiac)






Marker Lamp - Right Rear
