Door Component Views

Door Component Views

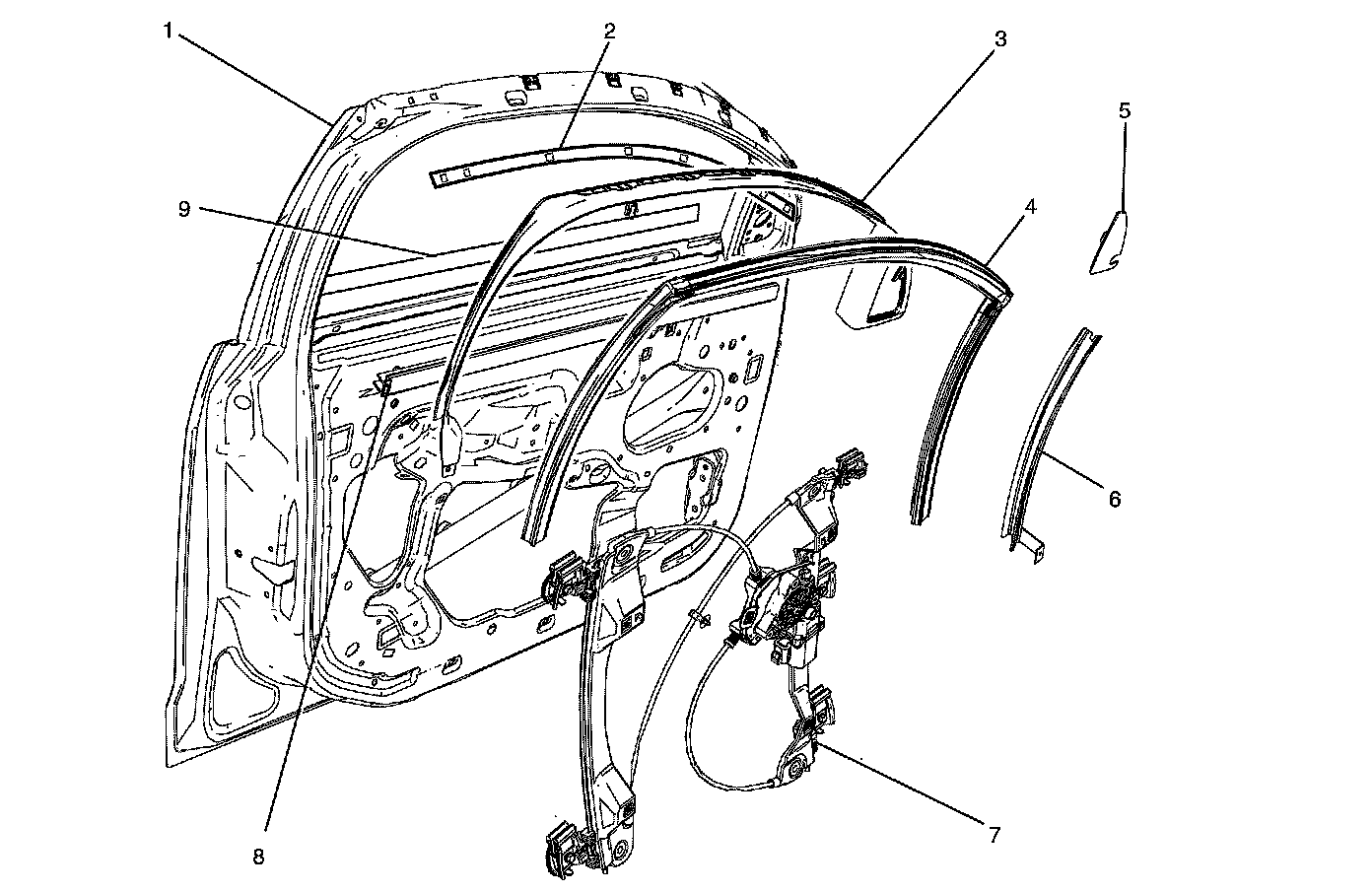

Front Door Window Component View




1 - Front Door Frame
2 - Inner Window Weather Seal
3 - Inner Sealing Strip
4 - Mirror Trim Panel
5 - Window Channel
6 - Front Window Regulator
7 - Sealing Strip Belt Inner
8 - Sealing Strip Belt Outer

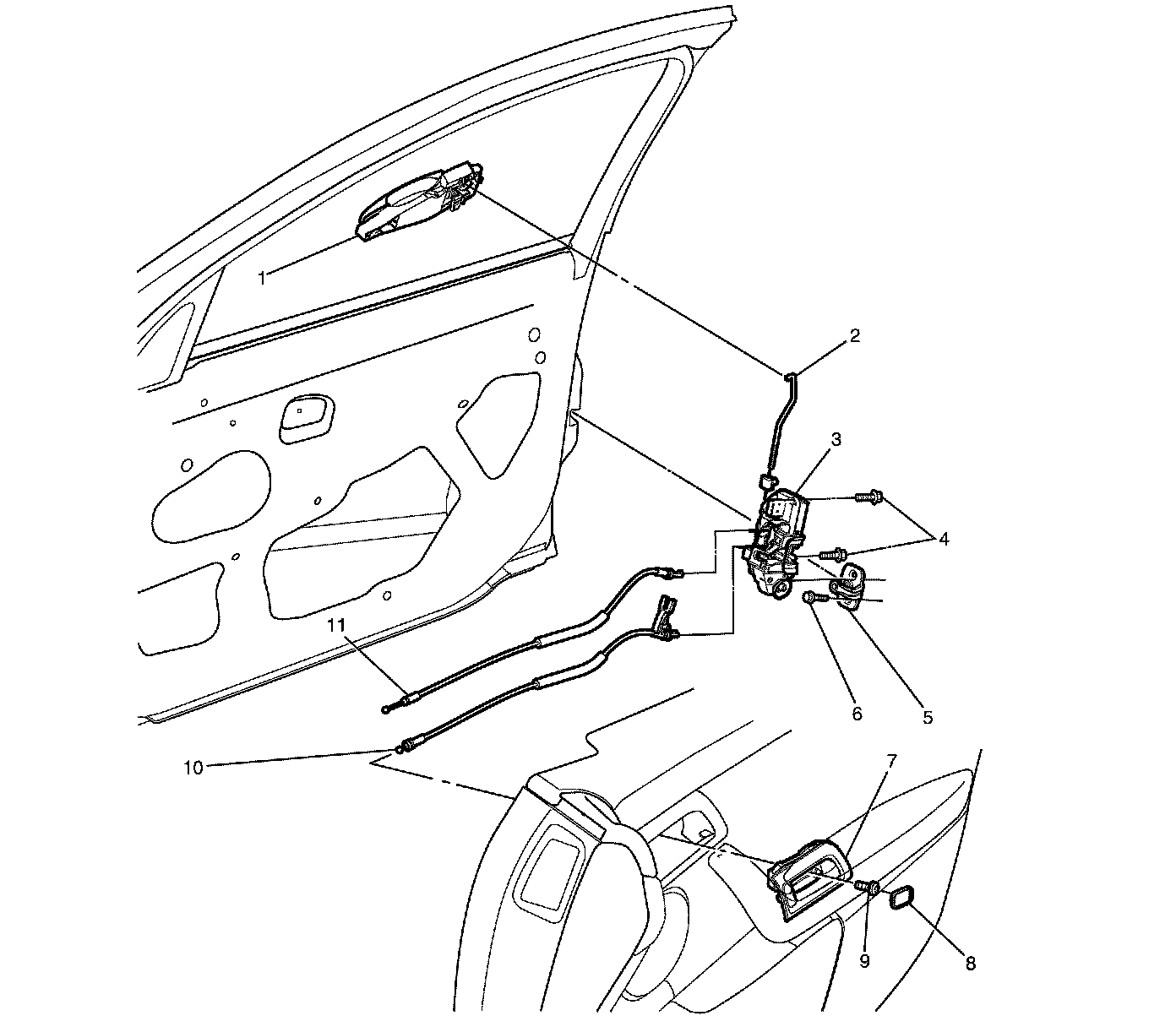

Front Door Component Views




1 - Front Outside Door Handle
2 - Front Outside Door Handle Rod
3 - Front Door Latch
4 - Door Latch to Door Retaining Screws
5 - Door Striker
6 - Door Striker to Pillar Retaining Screw
7 - Front Inside Door Handle
8 - Front Inside Door Handle to Front Door Retaining Screw Cover
9 - Front Inside Door Handle to Front Door Retaining Screw
10 - Front Door Lock Cable
11 - Front Door Handle Cable

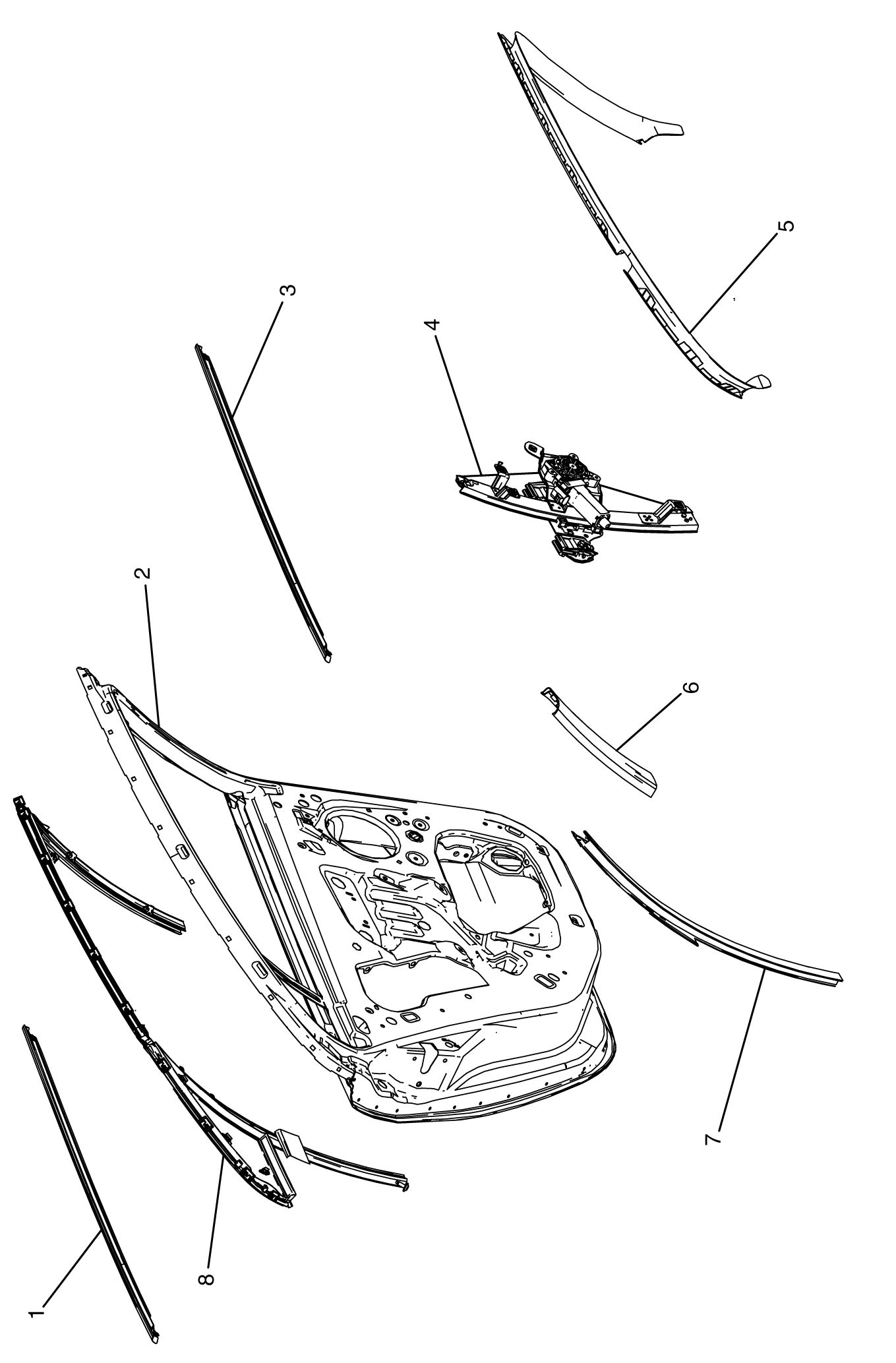

Rear Door Window Component Views




1 - Sealing Strip Belt Outer
2 - Rear Door Frame
3 - Sealing Strip Belt Inner
4 - Rear Window Regulator
5 - Inner Window Weather Seal
6 - Window/Division Channel Trim Panel
7 - Window/Division Channel
8 - Outer Window Weather Seal

Rear Door Component Views




1 - Rear Outside Door Handle
2 - Rear Outside Door Handle Rod
3 - Rear Door Latch
4 - Door Latch to Door Retaining Screws
5 - Door Striker
6 - Door Striker to Pillar Retaining Screw
7 - Rear Inside Door Handle
8 - Rear Inside Door Handle to Rear Door Retaining Screw Cover
9 - Rear Inside Door Handle to Rear Door Retaining Screw
10 - Rear Window Switch
11 - Rear Door Lock Cable
12 - Rear Door Handle Cable
