Connector Locations

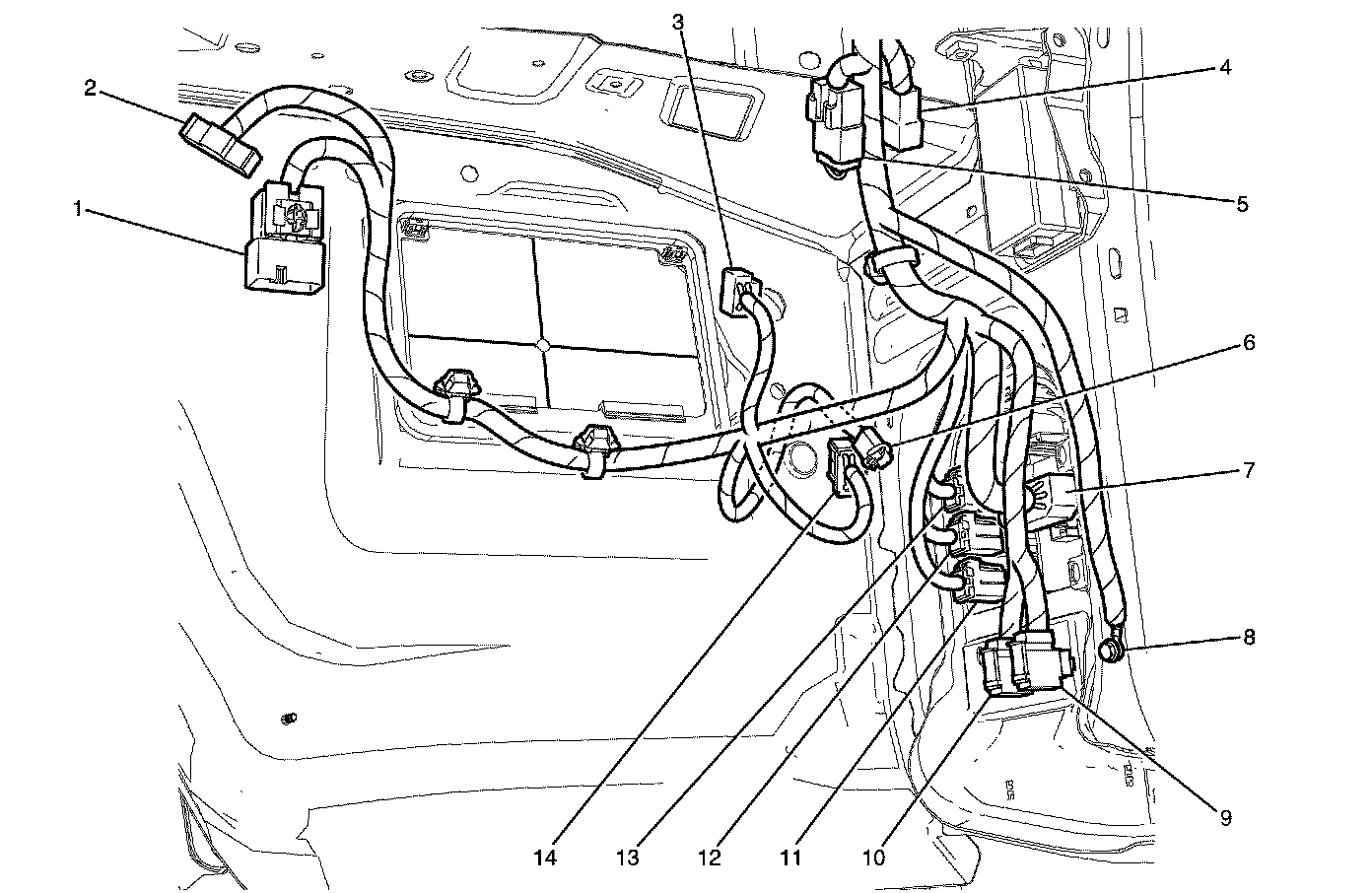

Harness Routing Views

Instrument Panel Wiring - Right Kick Panel(Left Hand Drive)




1 - I/P to I/P Compartment Lamp Wiring Connector - X205
2 - Blower Control Module Connector - A13
3 - Blower Motor Connector - M3
4 - Navigation Gateway Module - A156 (Long Wheel Base)
5 - Bluetooth Connector - X137
6 - Courtesy Lamp - Right Footwell Connector - E105
7 - Right Hand Body Wiring Connector 1 - X201
8 - Right Cockpit Endplate Ground - G201
9 - Right Hand Body Wiring Connector 3 - X254
10 - Right Hand Body Wiring Connector 2 - X253
11 - Body Front Wiring Connector 5 - X207
12 - Body Front Wiring Connector 4 - X204
13 - Body Front Wiring Connector 3 - X200
14 - HVAC Control Module Connector 1 - A14-X1
