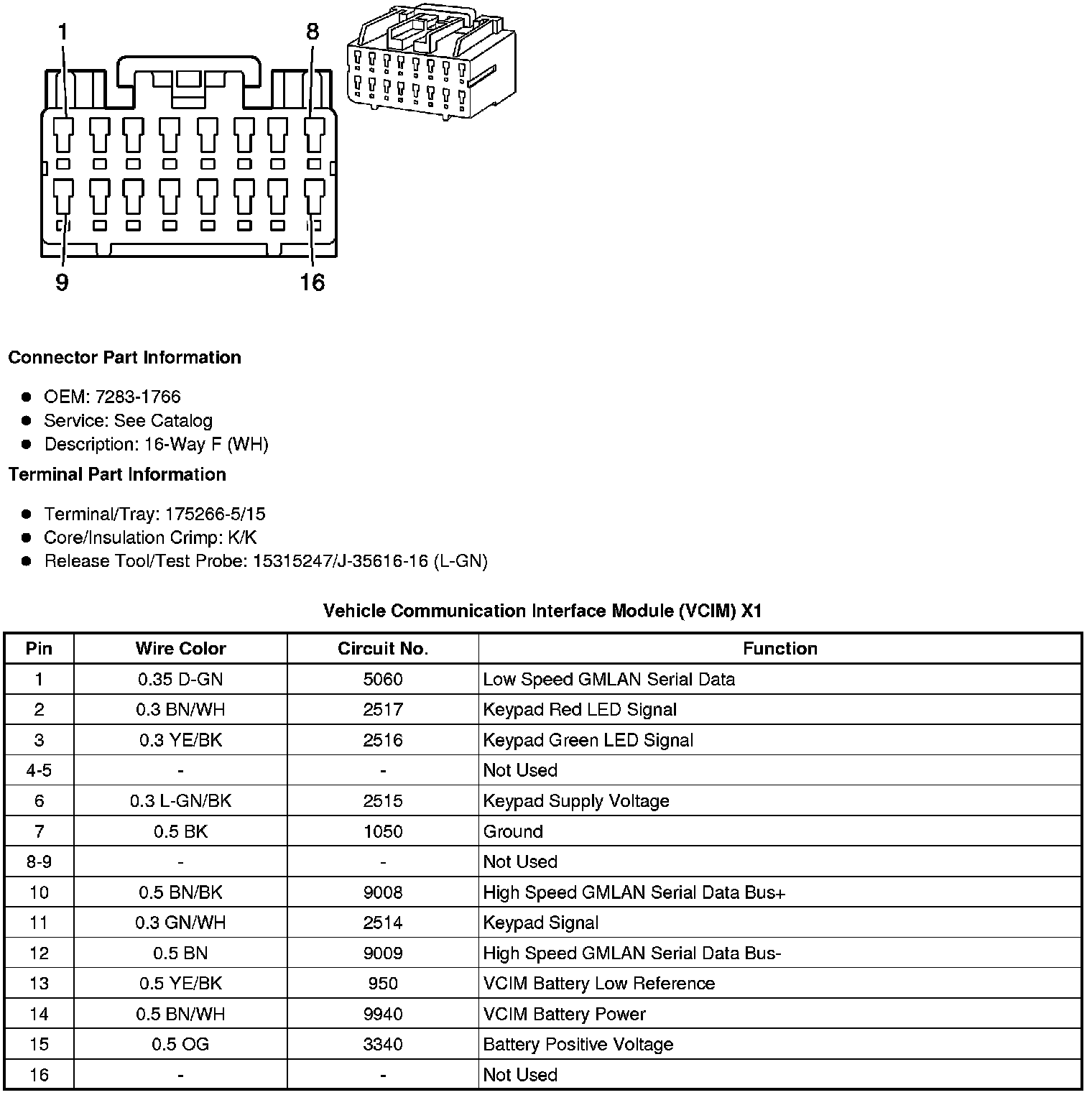

Vehicle Communication Interface Module (VCIM) X1




Component Connector End Views

Vehicle Communication Interface Module (VCIM) X1
