Installation Procedure

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.

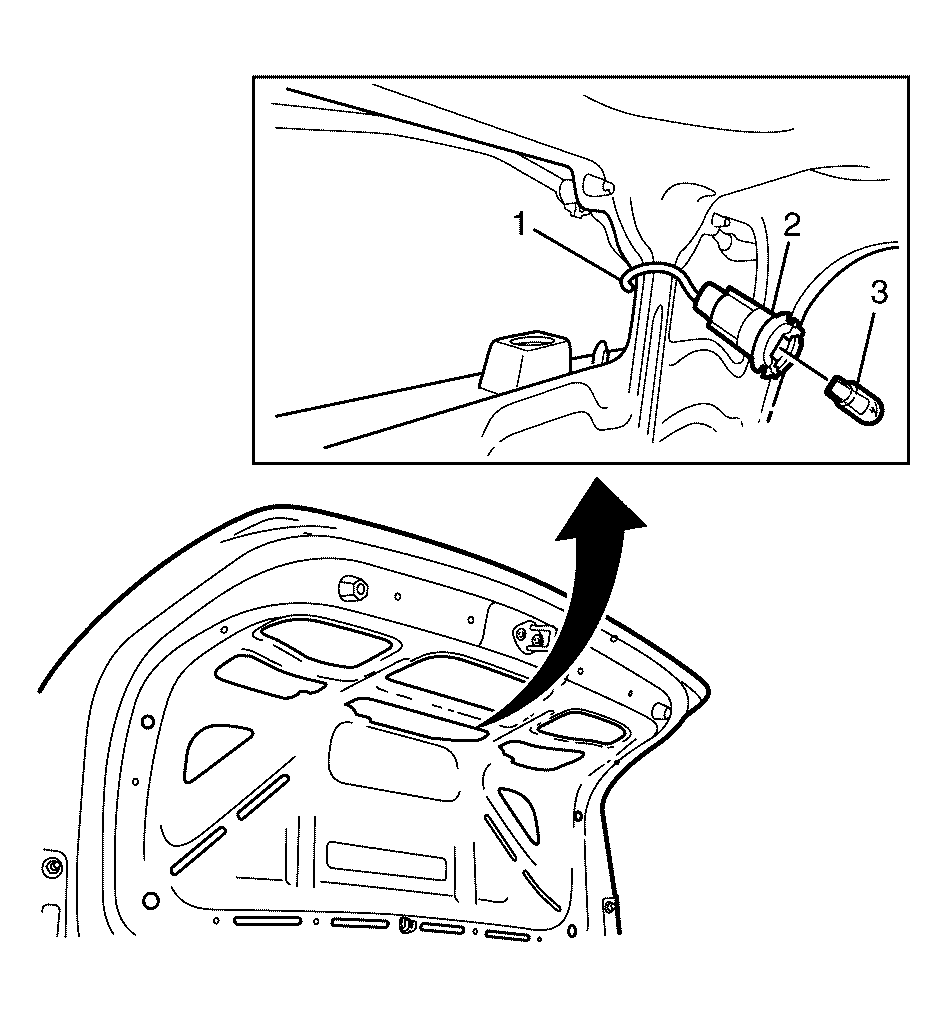

Fig 1: Identifying License Plate Lamp Bulb & Socket

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Push the license plate lamp bulb (3) into the license plate lamp bulb socket (2).

Install license plate lamp bulb (3) into the license plate lamp bulb socket (2).

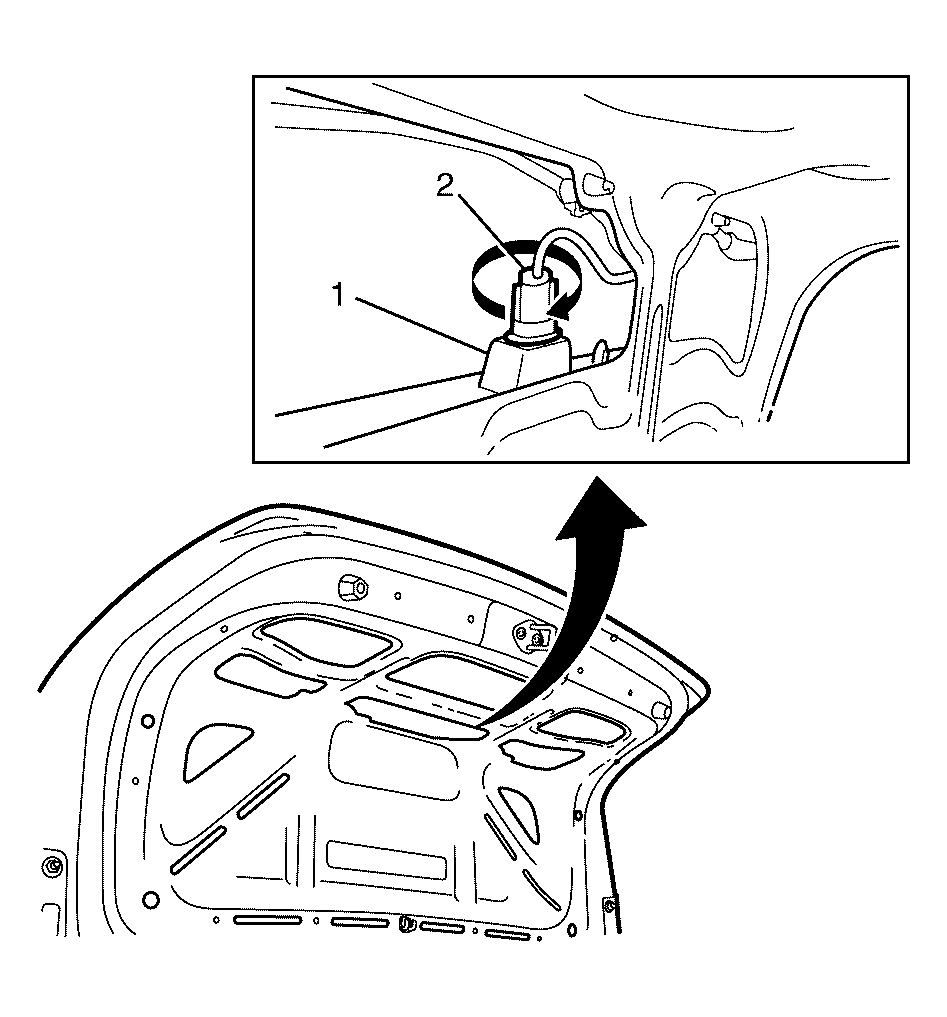

Fig 2: Identifying License Plate Lamp Bulb Socket & Housing

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Rotate the license plate lamp bulb socket (2) clock-wise to install.

Install the license plate lamp bulb socket (2) to the licence plate lamp housing (1).
Close the rear compartment lid.
