Installation Procedure

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.

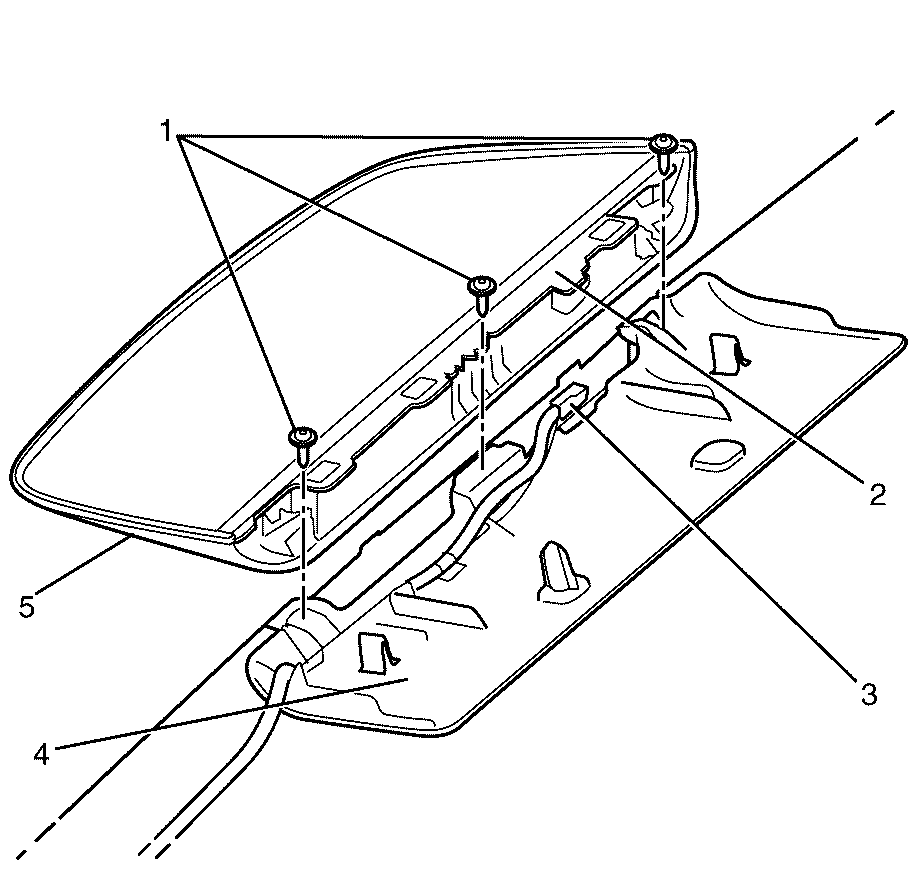

    Fig 1: Identifying CHMSL Assembly To Headlining Retaining Screws
    GM2126756Courtesy of GENERAL MOTORS CORP.
  1. Install the CHMSL assembly (5) to the headlining (4).
    2. NOTE: Refer to Fastener Notice .
  2. Install the CHMSL assembly to headlining retaining screws (1).

    Tighten:  Tighten the screws to 2.0 N.m (18 lb in).

  3. Connect the CHMSL electrical connector (3) to the CHMSL assembly (2).
  4. Install the headlining. Refer to Headlining Trim Panel Replacement
