Installation Procedure

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Front Side Marker Lamp Assembly & Connector
    GM2126734Courtesy of GENERAL MOTORS CORP.
  1. Connect the front side marker lamp connector (2) to the front side marker lamp assembly (1).

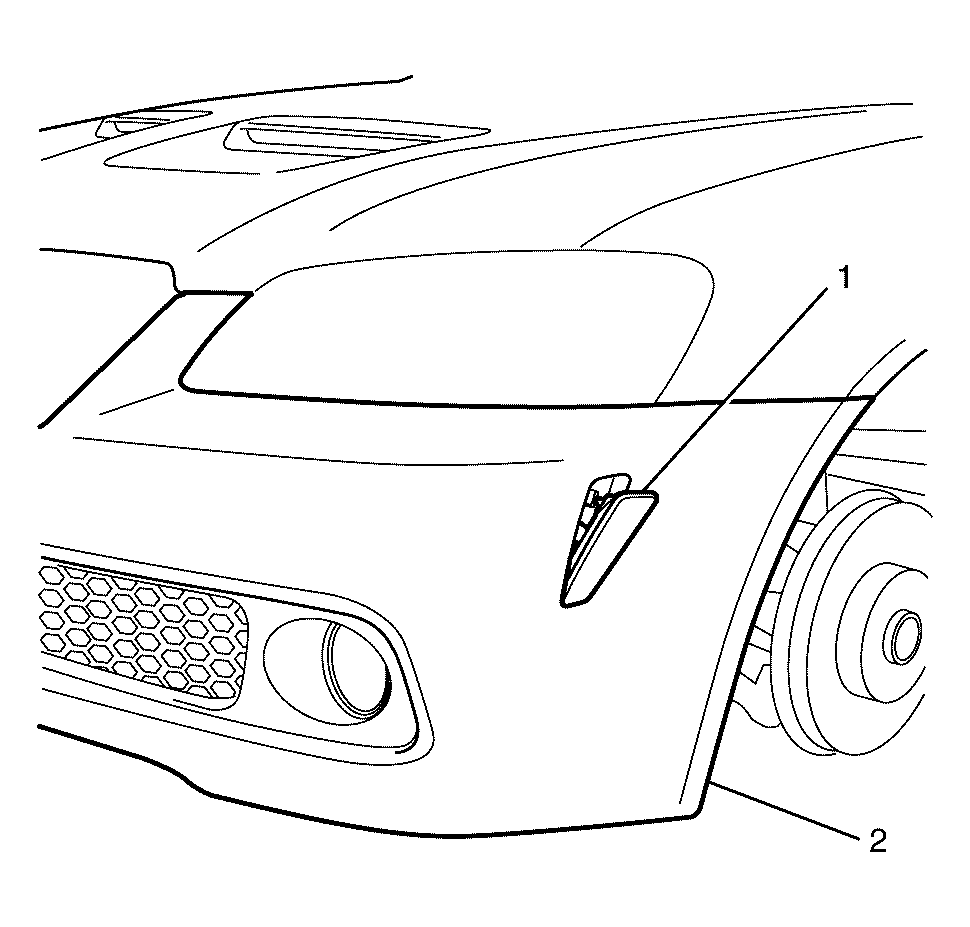

    2. Fig 2: Identifying Front Side Marker Lamp Assembly & Front Fascia
    GM2041085Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Listen for an audible click to confirm correct installation of the front side marker lamp assembly (1).
  2. Install the front side marker lamp assembly (1) to the front fascia (2).
