Power Distribution Schematics

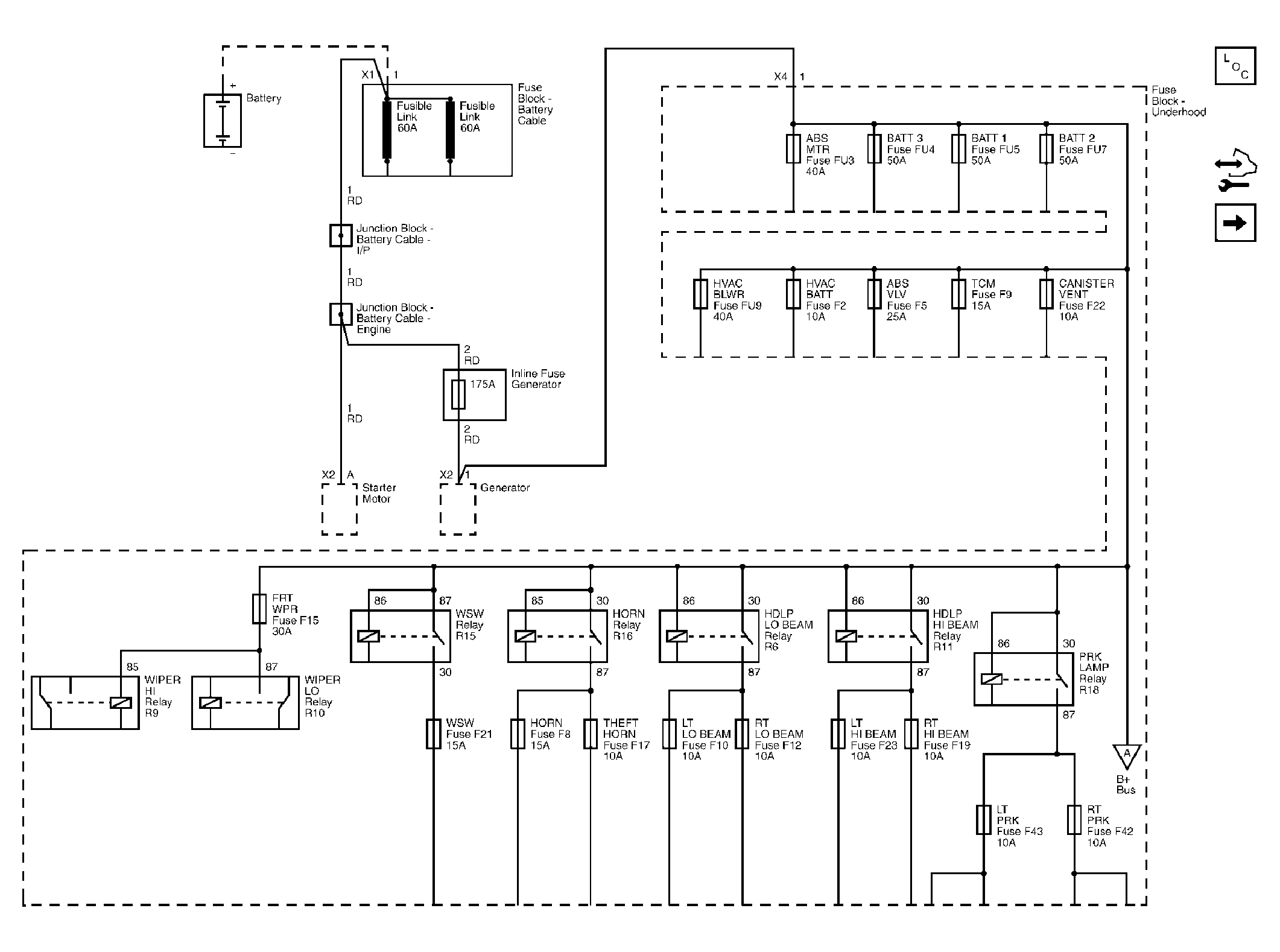

Fig 1: B+ Bus - 1 of 2

Courtesy of GENERAL MOTORS CORP.

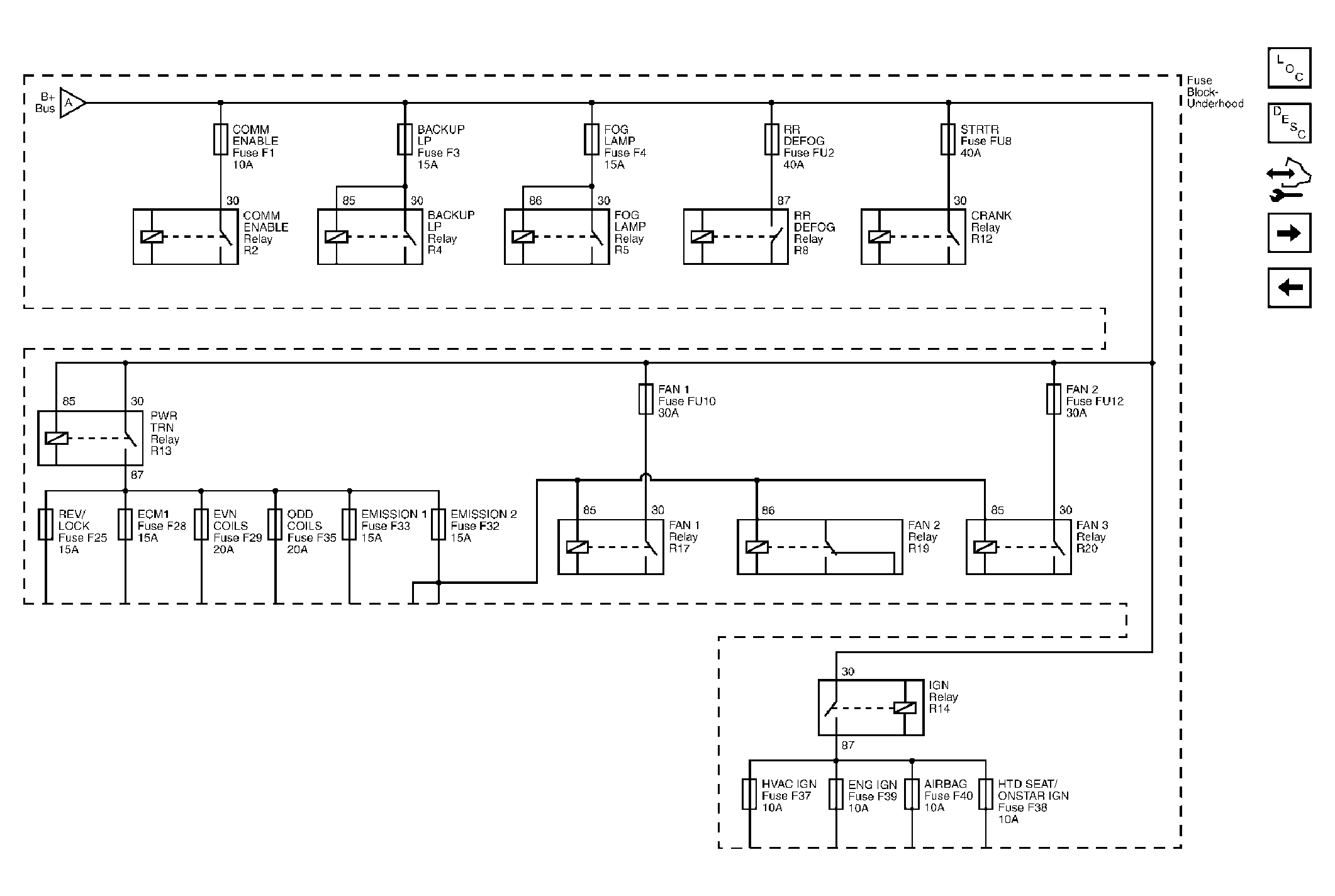

Fig 2: B+ Bus - 2 of 2

Courtesy of GENERAL MOTORS CORP.

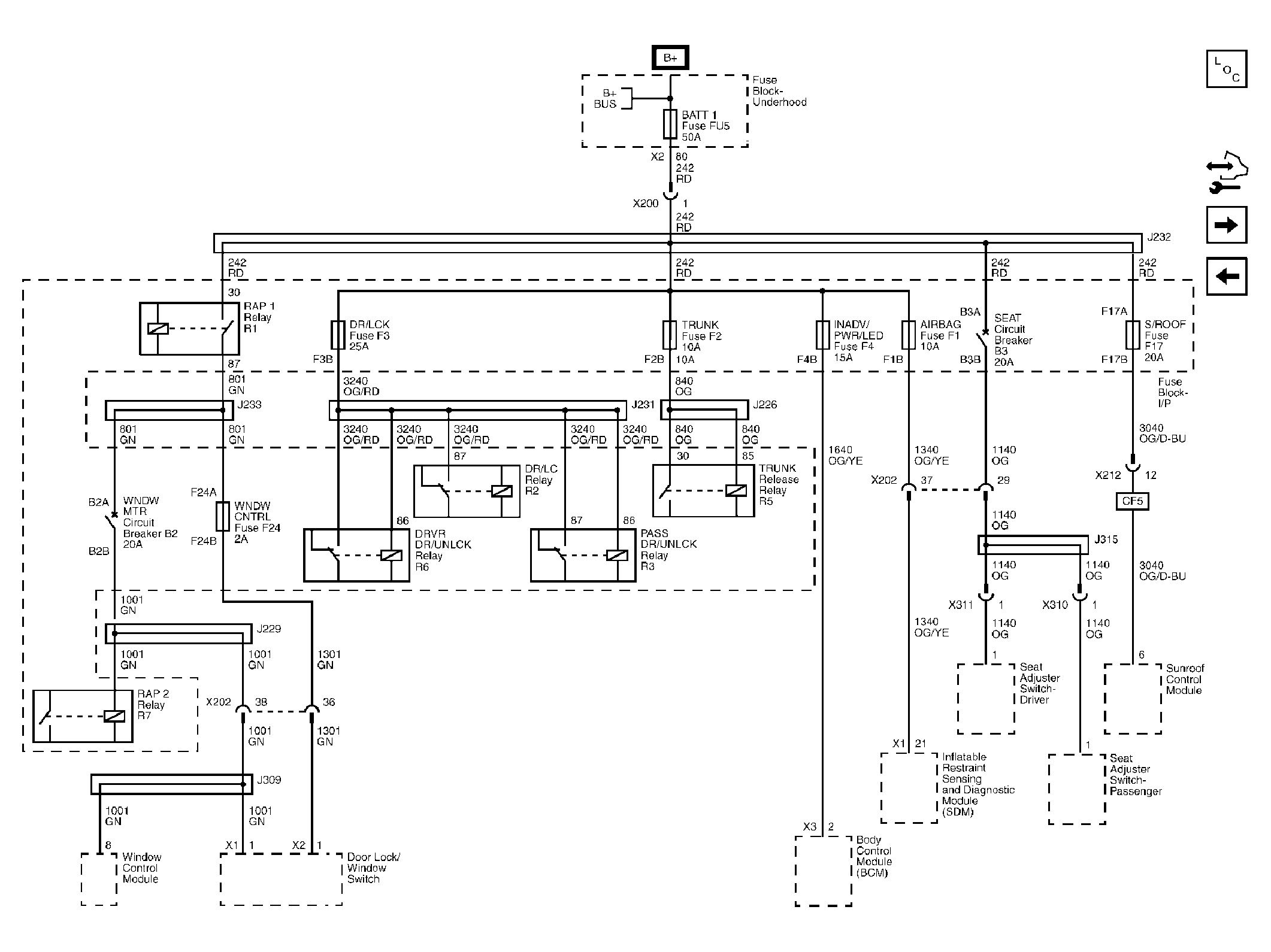

Fig 3: AIRBAG, BATT 1, DR/LCK, INADV/PWR/LED, S/ROOF, TRUNK, WNDW CNTRL Fuses and Seat and WNDW MTR Circuit Breakers

Courtesy of GENERAL MOTORS CORP.

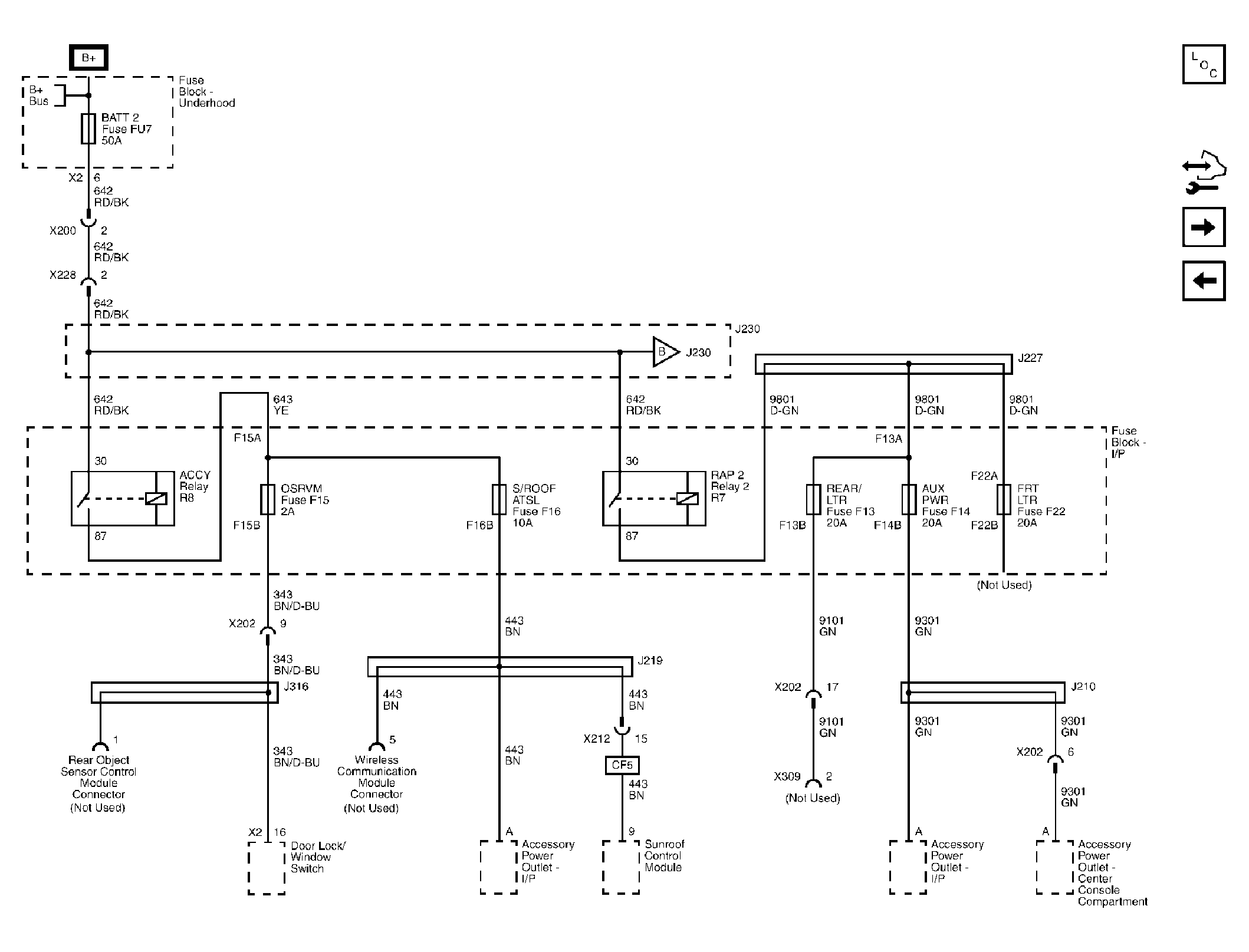

Fig 4: AUX PWR, BATT 2, FRT LTR, OSRVM, REAR LTR, and S/ROOF ATSL Fuses

Courtesy of GENERAL MOTORS CORP.

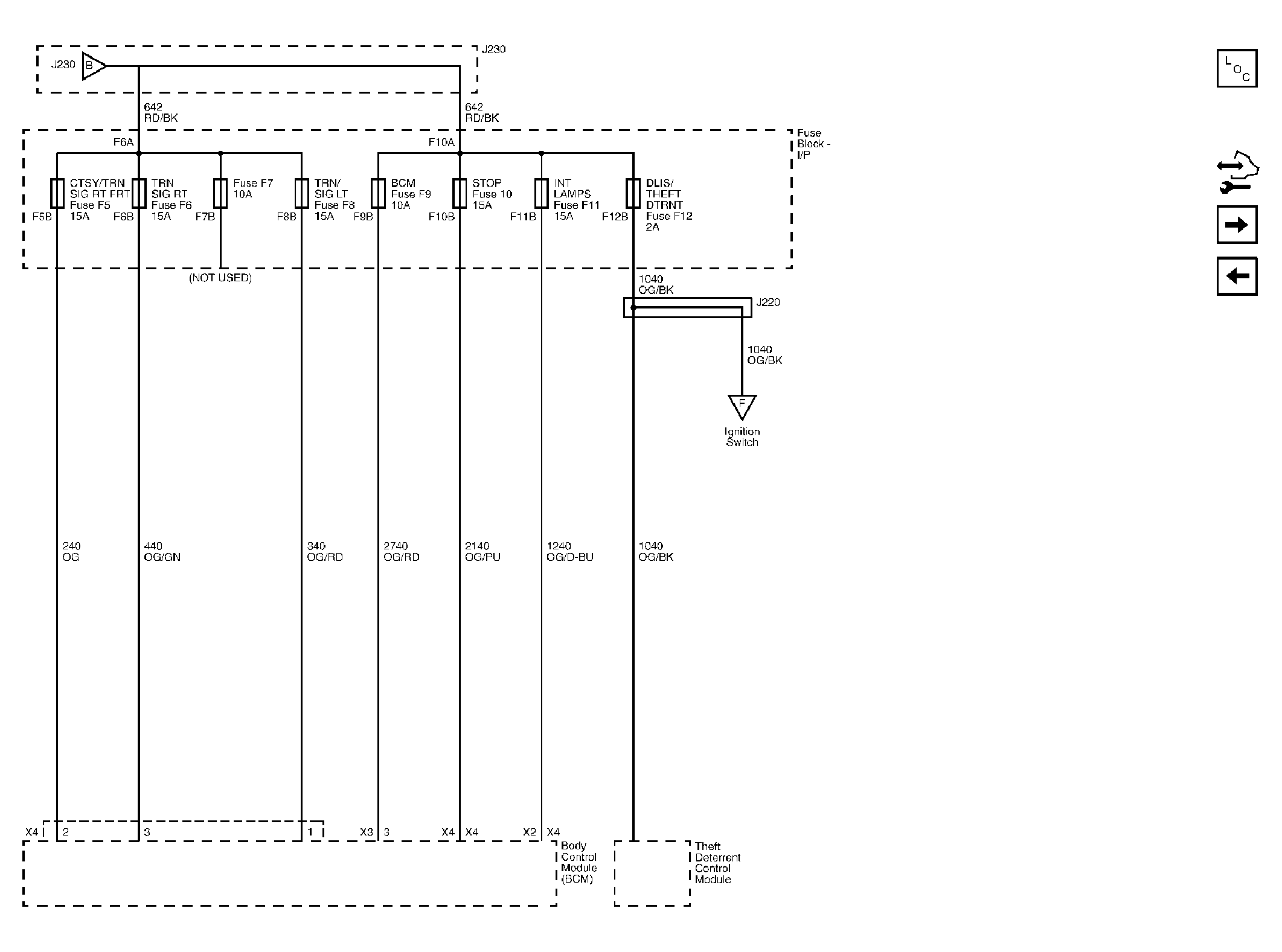

Fig 5: BCM, CTSY/TRN SIG RT FRT, DLIS/THEFT DTRNT, INT LAMPS, STOP, TRN/SIG LT, and TRN/SIG RT Fuses

Courtesy of GENERAL MOTORS CORP.

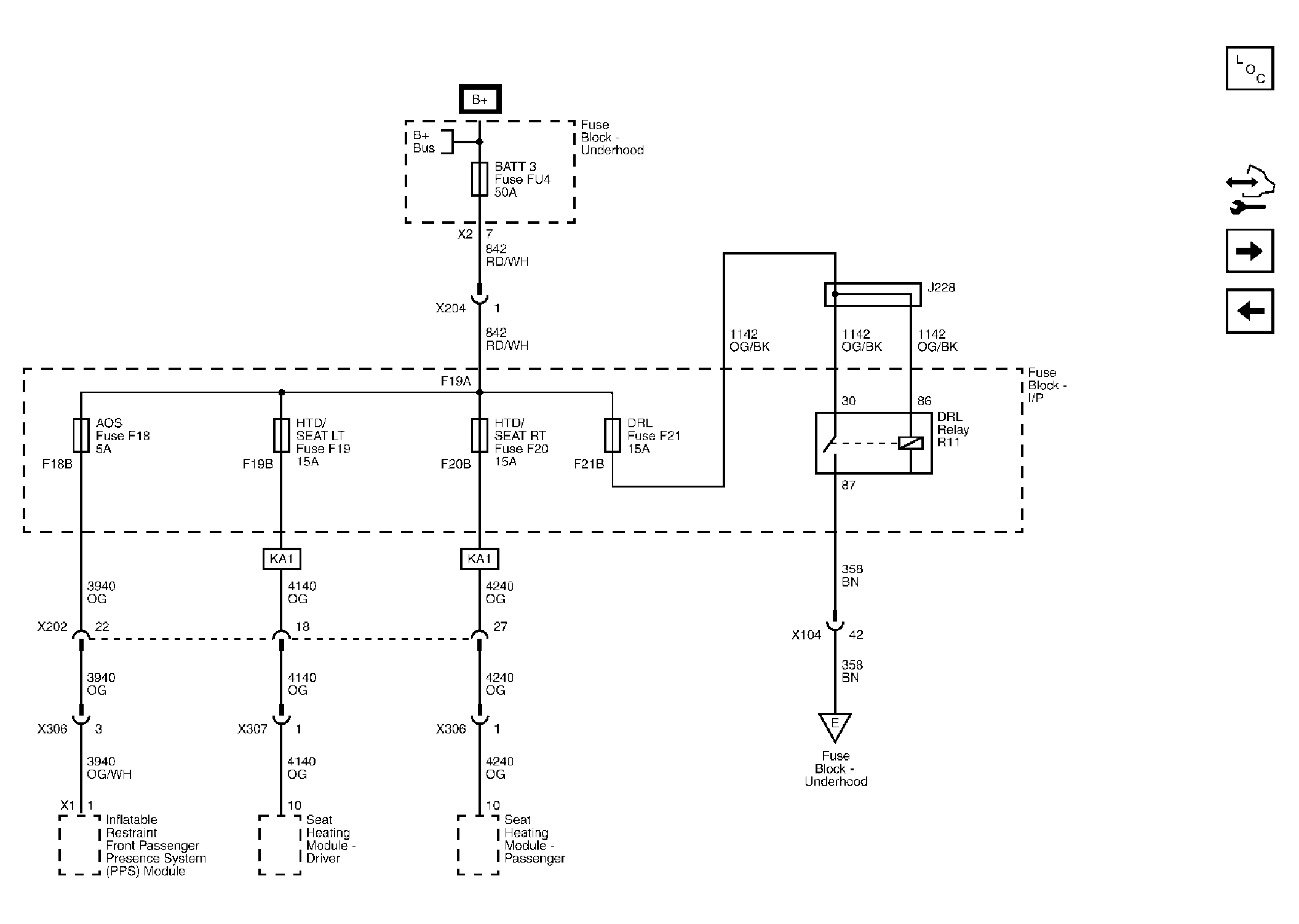

Fig 6: AOS, BATT 3, DRL, HTD SEAT LT, and HTD SEAT RT Fuses

Courtesy of GENERAL MOTORS CORP.

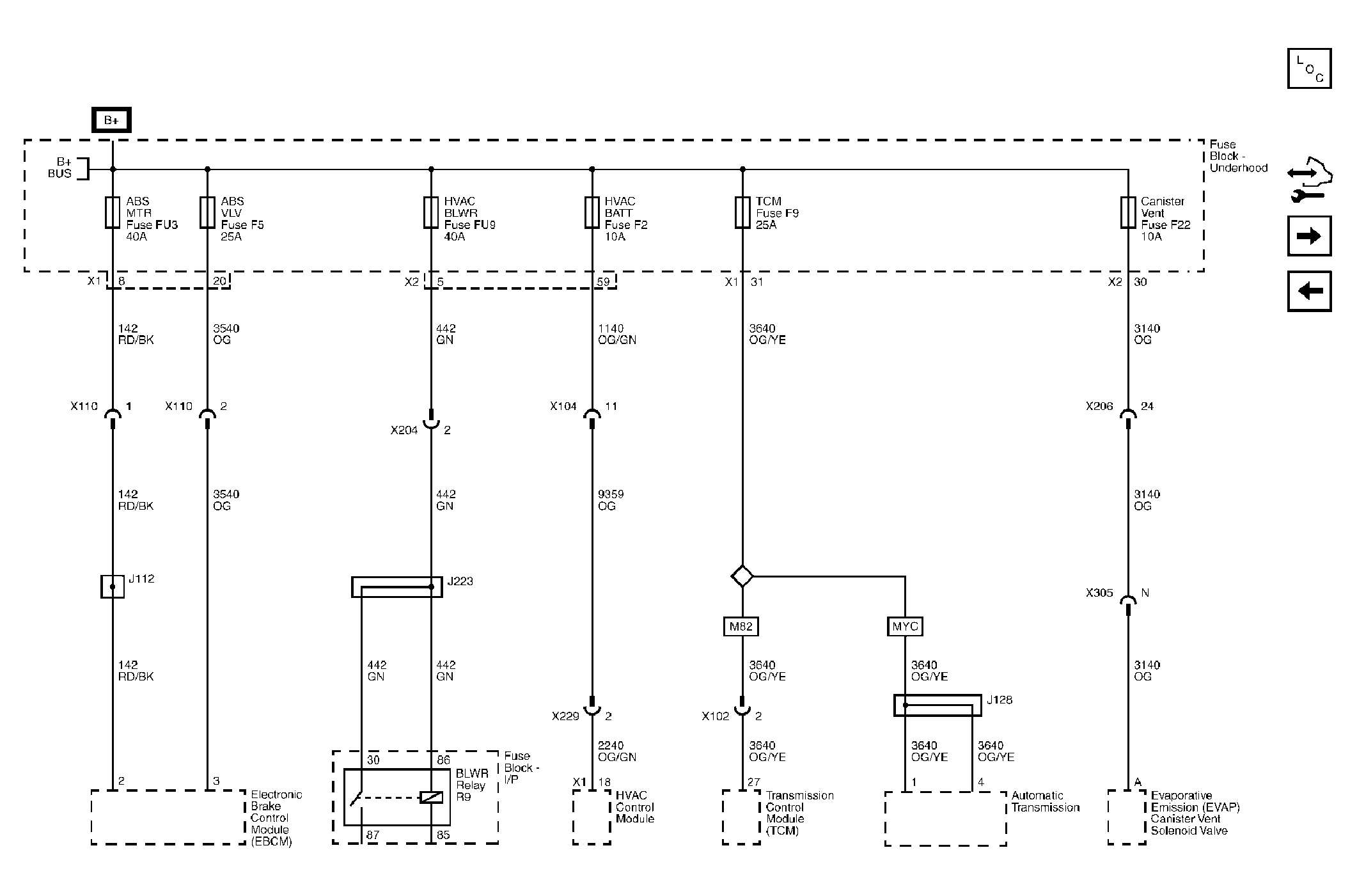

Fig 7: ABS MTR, ABS VLV, CANISTER VENT, HVAC BATT, HVAC BLWR, and TCM Fuses

Courtesy of GENERAL MOTORS CORP.

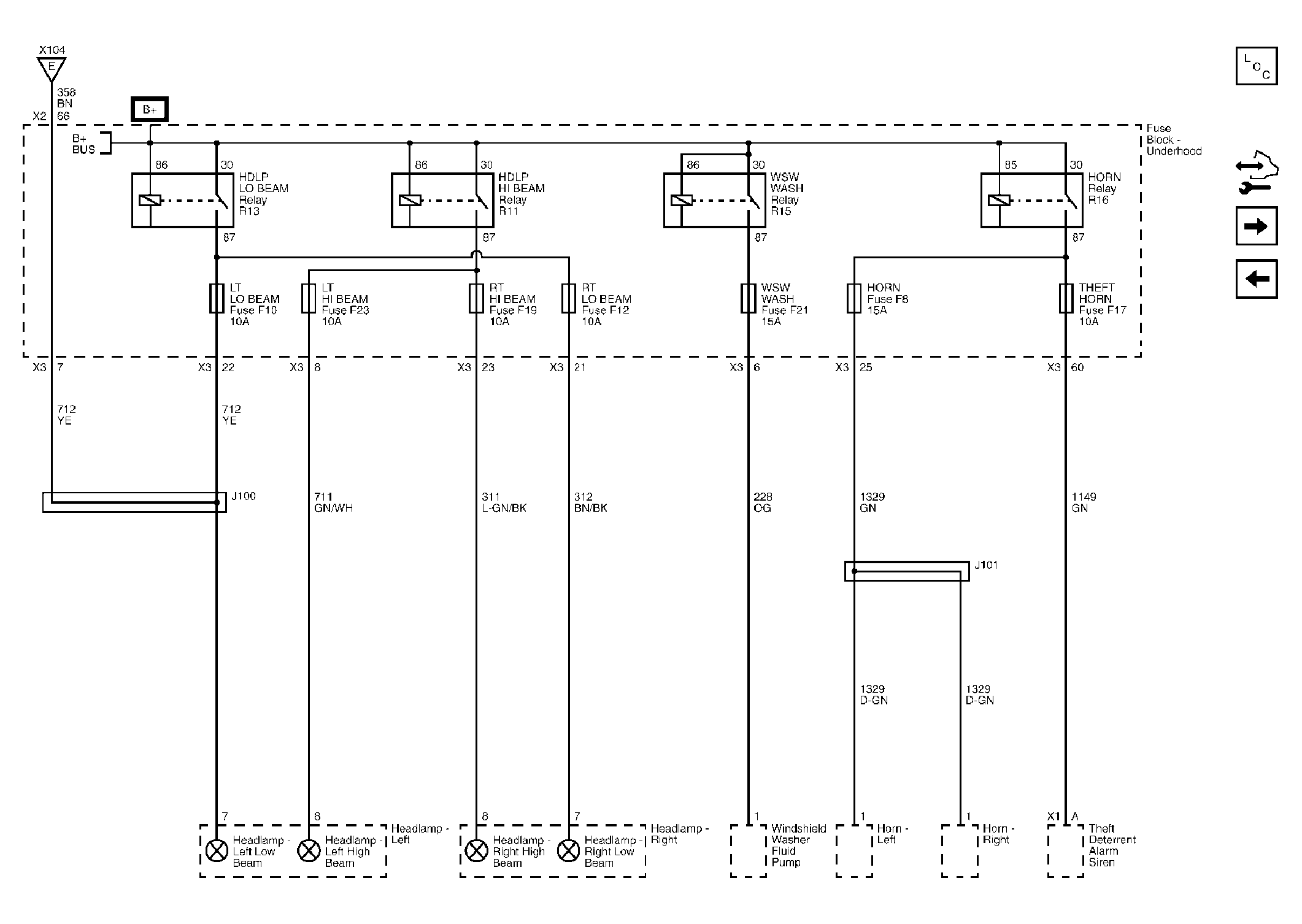

Fig 8: HORN, LT HI BEAM, LT LO BEAM, RT HI BEAM, RT LO BEAM, THEFT HORN, WSW

Courtesy of GENERAL MOTORS CORP.

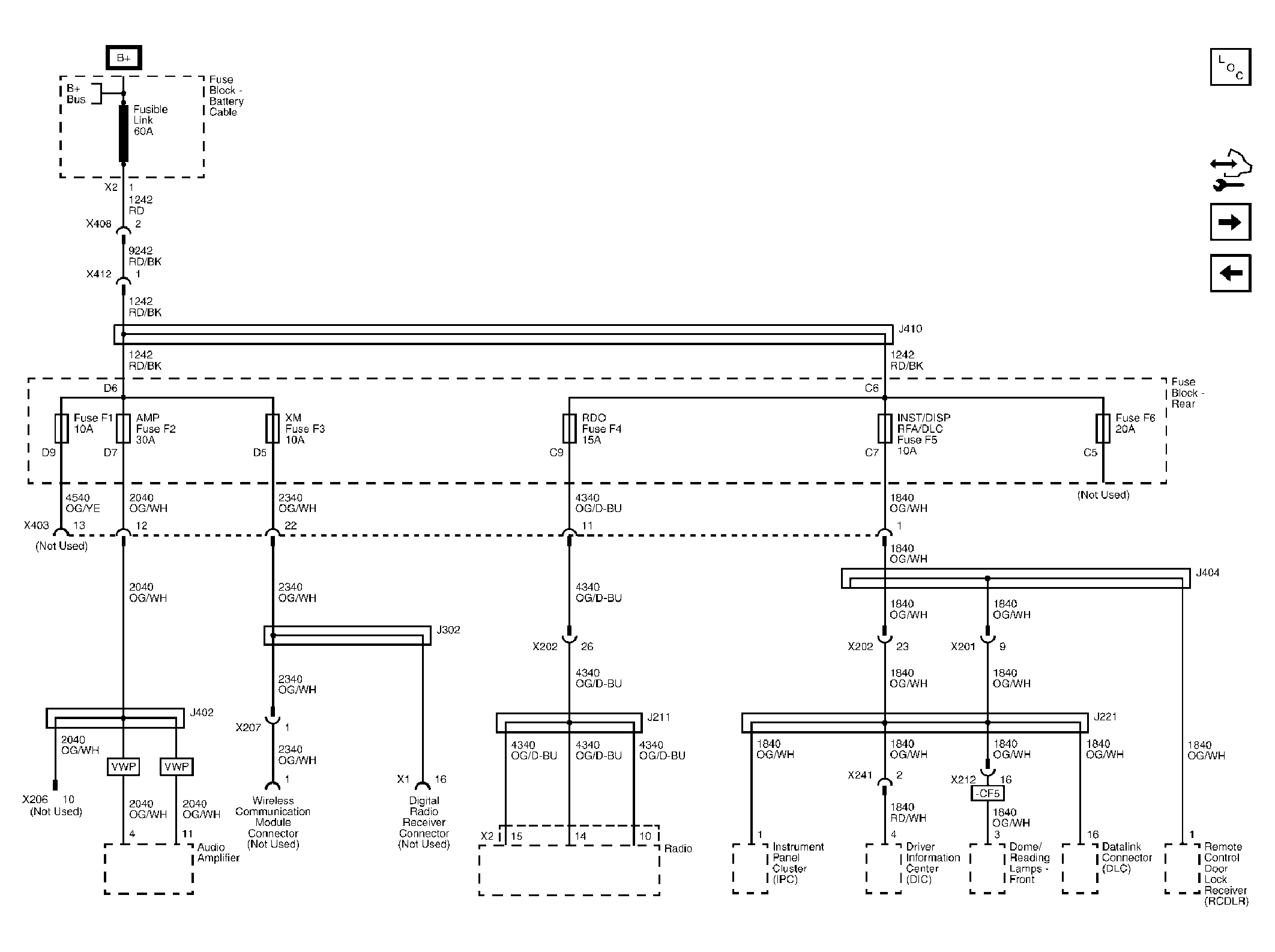

Fig 9: AMP, INST/DISP/RFA/DLC, RDO and XM Fuses

Courtesy of GENERAL MOTORS CORP.

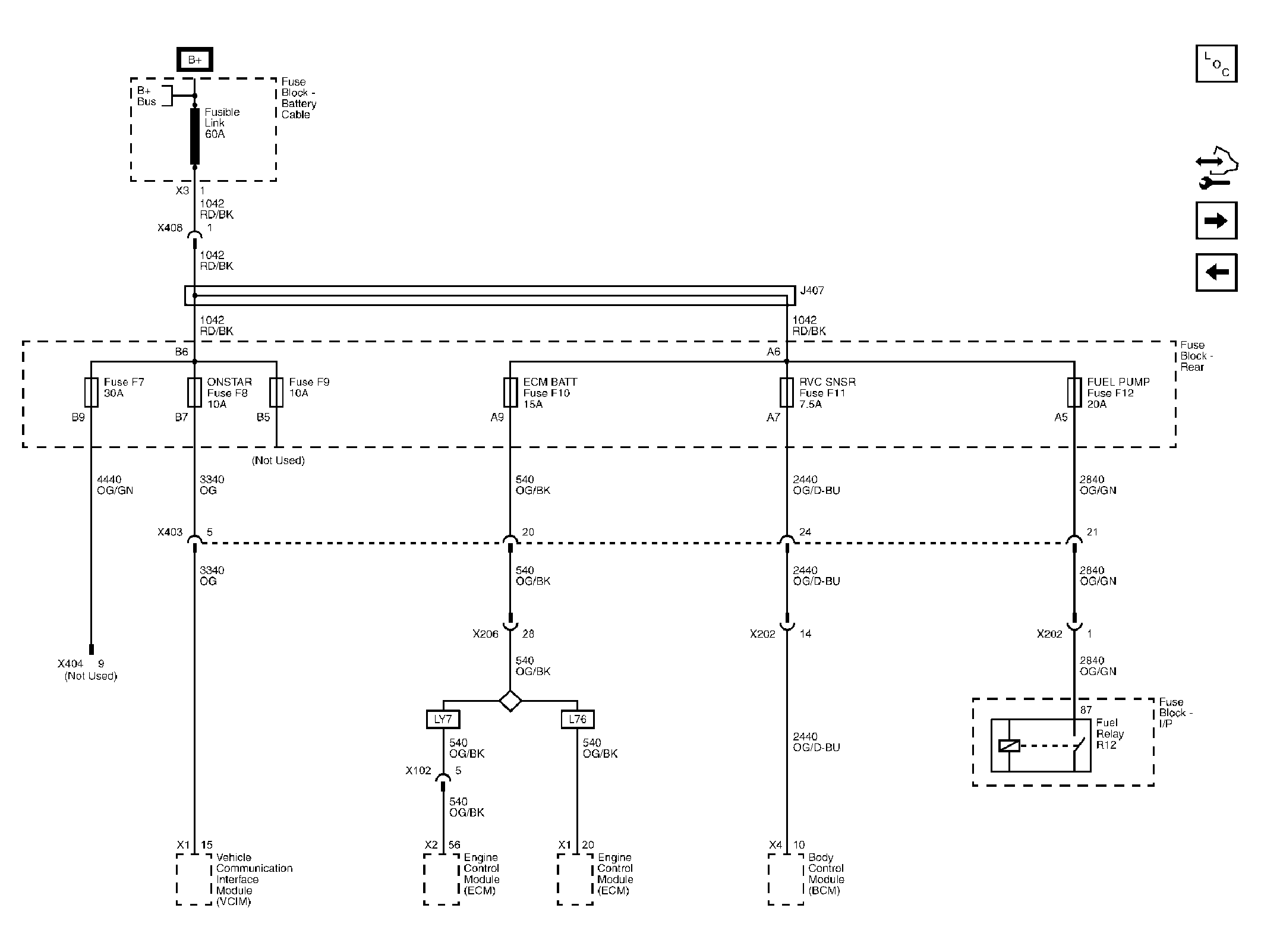

Fig 10: ECM BATT, FUEL PUMP, ONSTAR, and RVC SNSR Fuses

Courtesy of GENERAL MOTORS CORP.

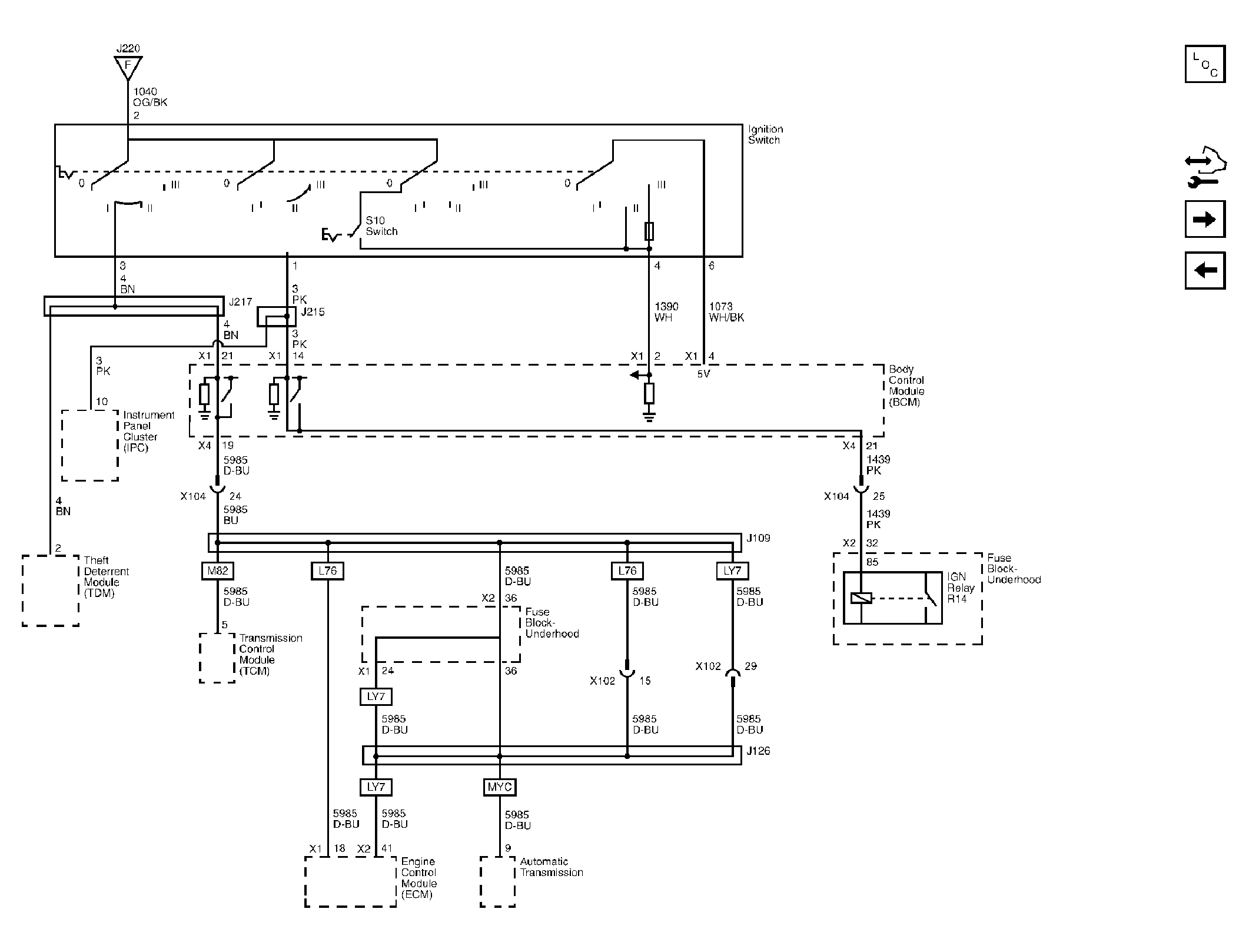

Fig 11: Ignition Switch

Courtesy of GENERAL MOTORS CORP.

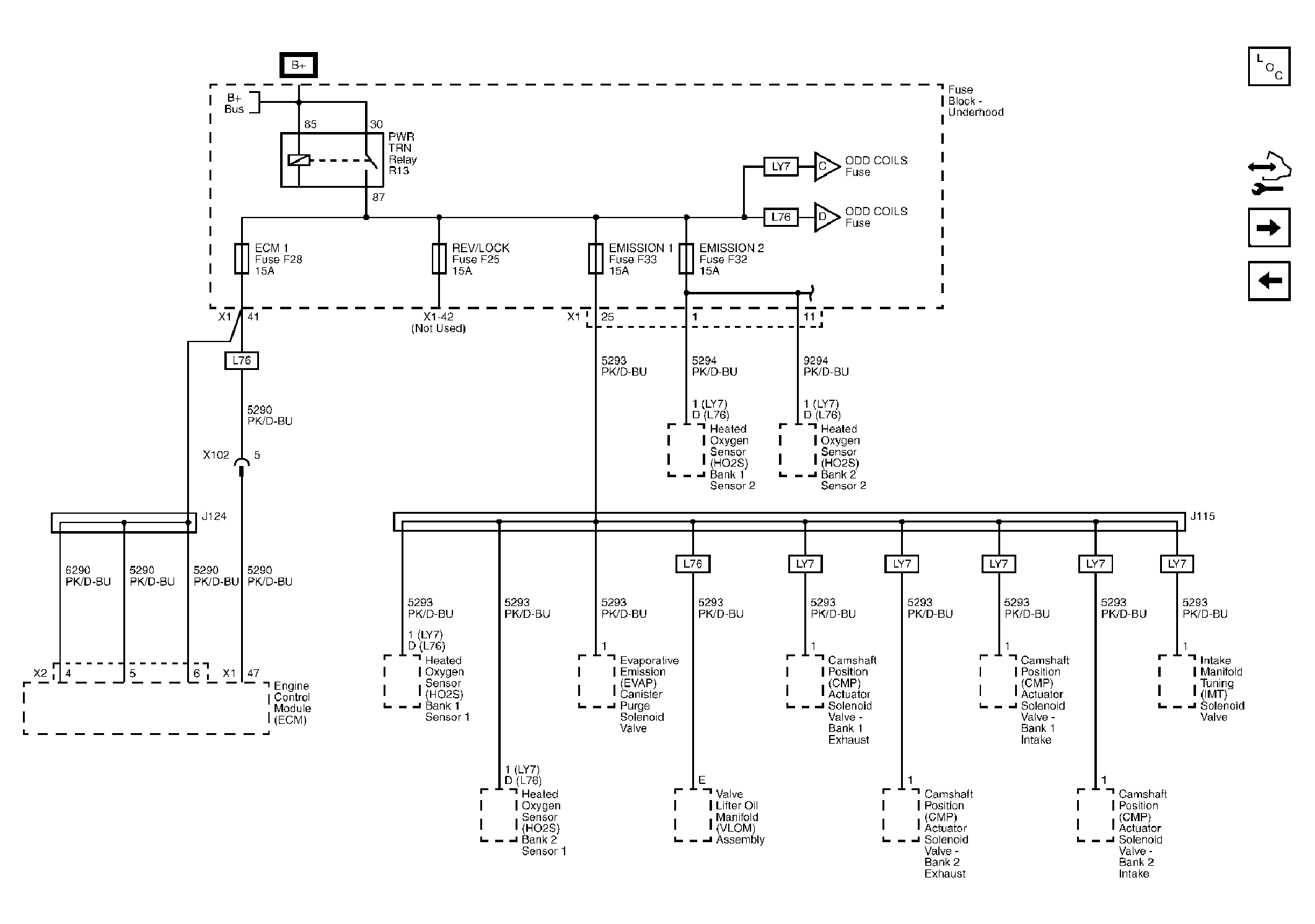

Fig 12: ECM 1, EMISSION 1, EMISSION 2, and REV/LOCK Fuses

Courtesy of GENERAL MOTORS CORP.

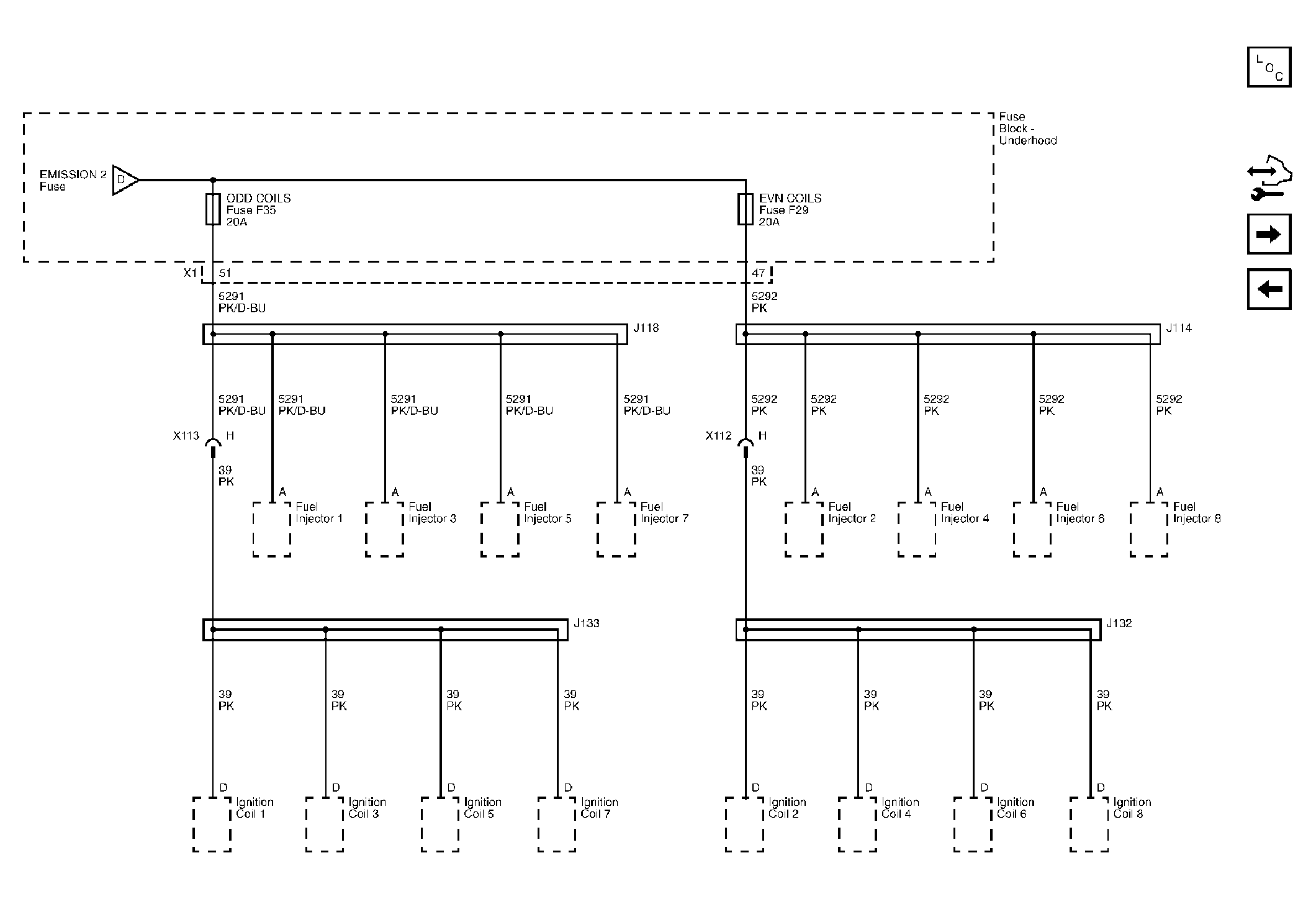

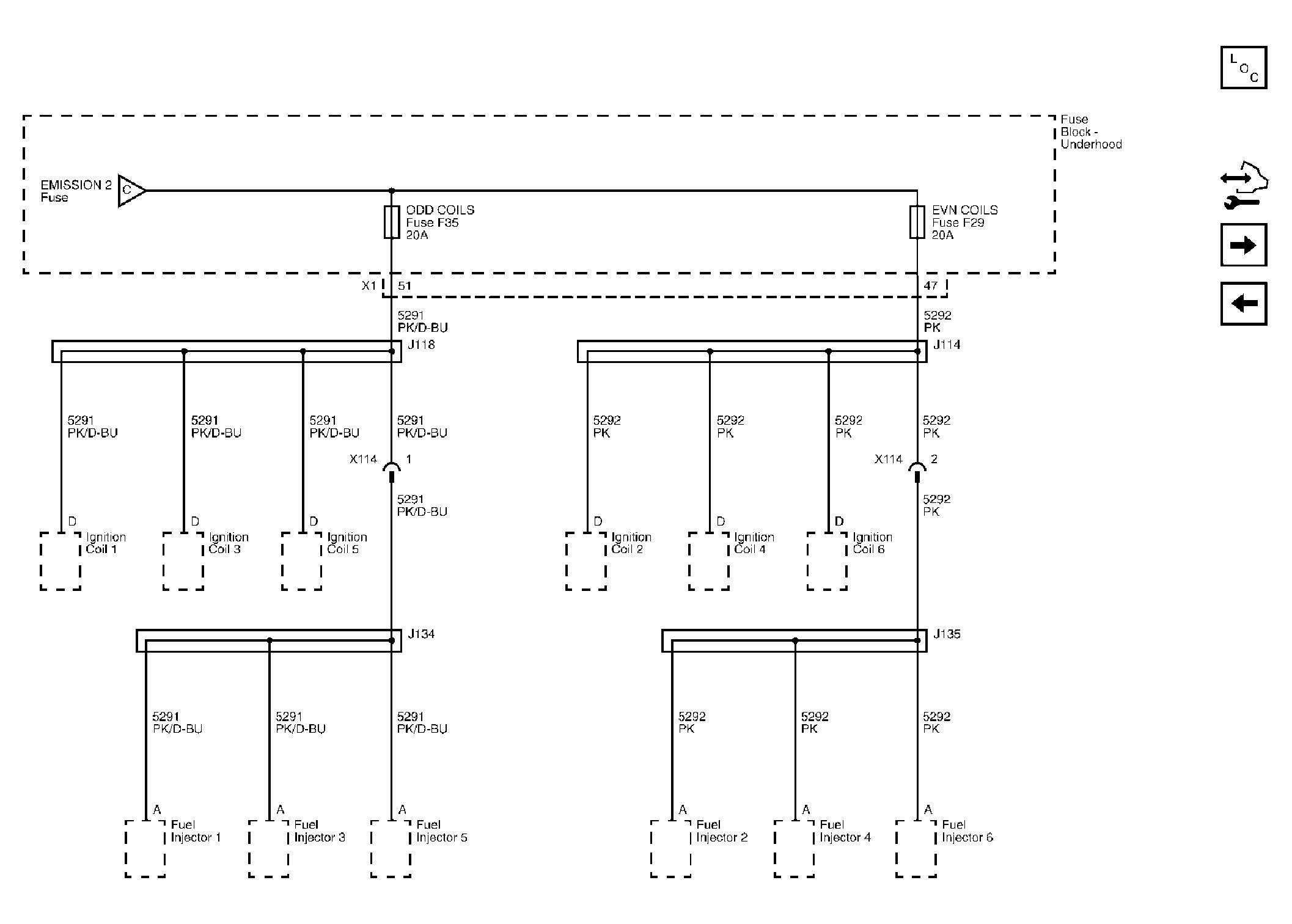

Fig 13: EVN COILS and ODD COILS Fuses (LY7)

Courtesy of GENERAL MOTORS CORP.

Fig 14: EVN COILS and ODD COILS Fuses (L76)

Courtesy of GENERAL MOTORS CORP.

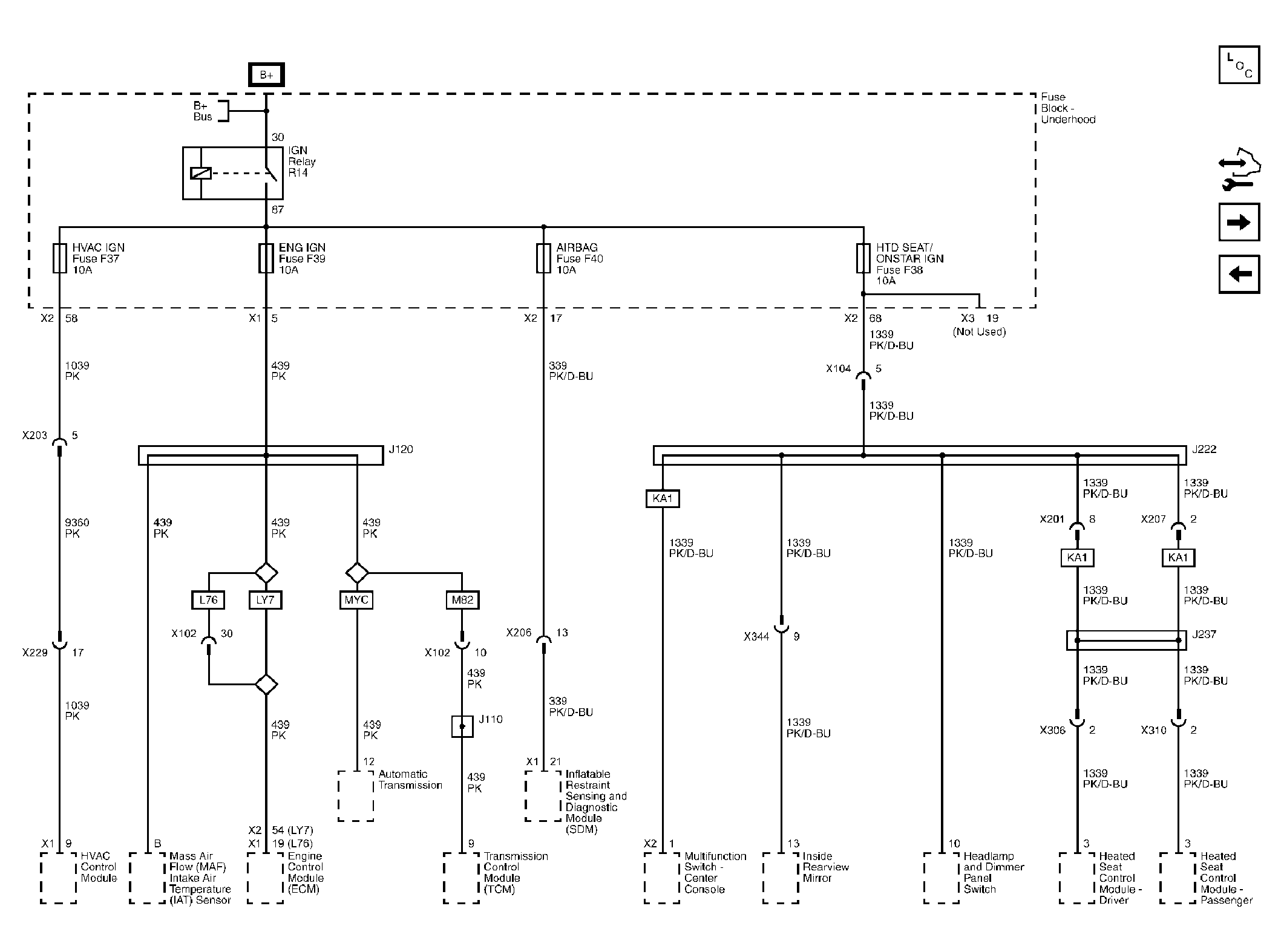

Fig 15: AIRBAG, ENG IGN, HTD SEAT/ONSTAR IGN, and HVAC IGN Fuses

Courtesy of GENERAL MOTORS CORP.

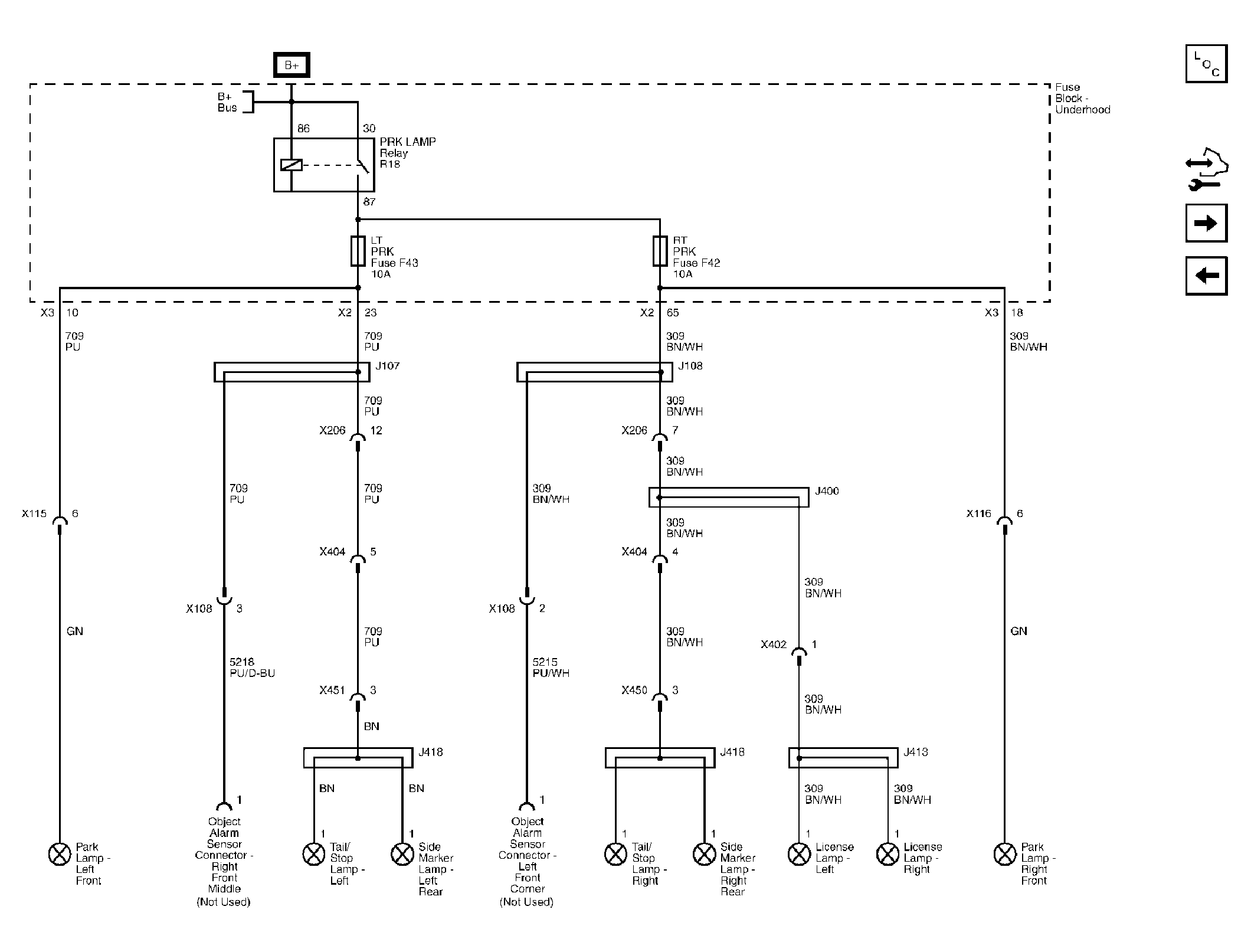

Fig 16: Park Lamp, Headlamps, Tail Lamps and Licence Lamps

Courtesy of GENERAL MOTORS CORP.
