Removal Procedure

  1. Remove the digital radio receiver module. Refer to Digital Radio Receiver Replacement .
    2. Fig 1: Digital Radio Receiver Bracket & Body Retaining Clips
    GM2094148Courtesy of GENERAL MOTORS CORP.
  2. Disengage the digital radio receiver bracket to body retaining clips (2).
  3. Lower the rear end of the digital radio receiver bracket (3) away from the body (1).

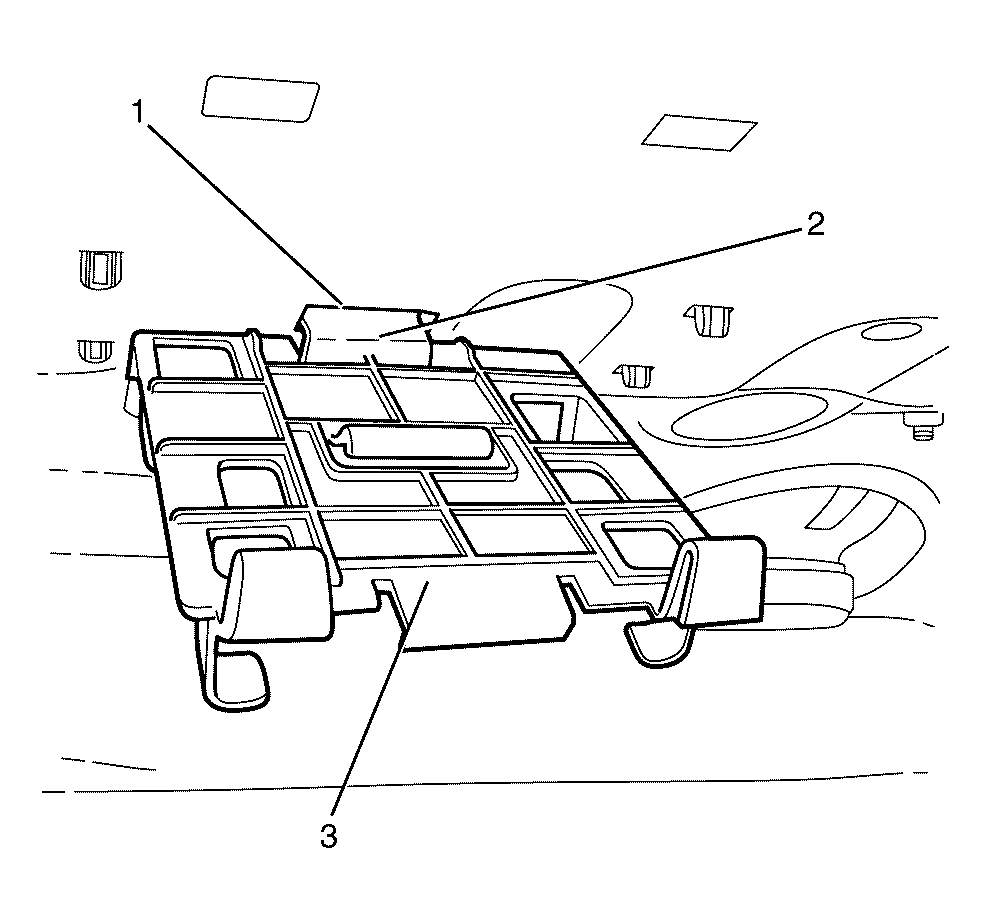

    4. Fig 2: Digital Radio Receiver Bracket, Retainer & Body Slot
    GM2094150Courtesy of GENERAL MOTORS CORP.
  4. Slide the digital radio receiver bracket retainer (2) out of the body slot (1).
  5. Remove the digital radio receiver bracket (3) from the vehicle.
