Intake Manifold Cover Replacement




Intake Manifold Cover Replacement

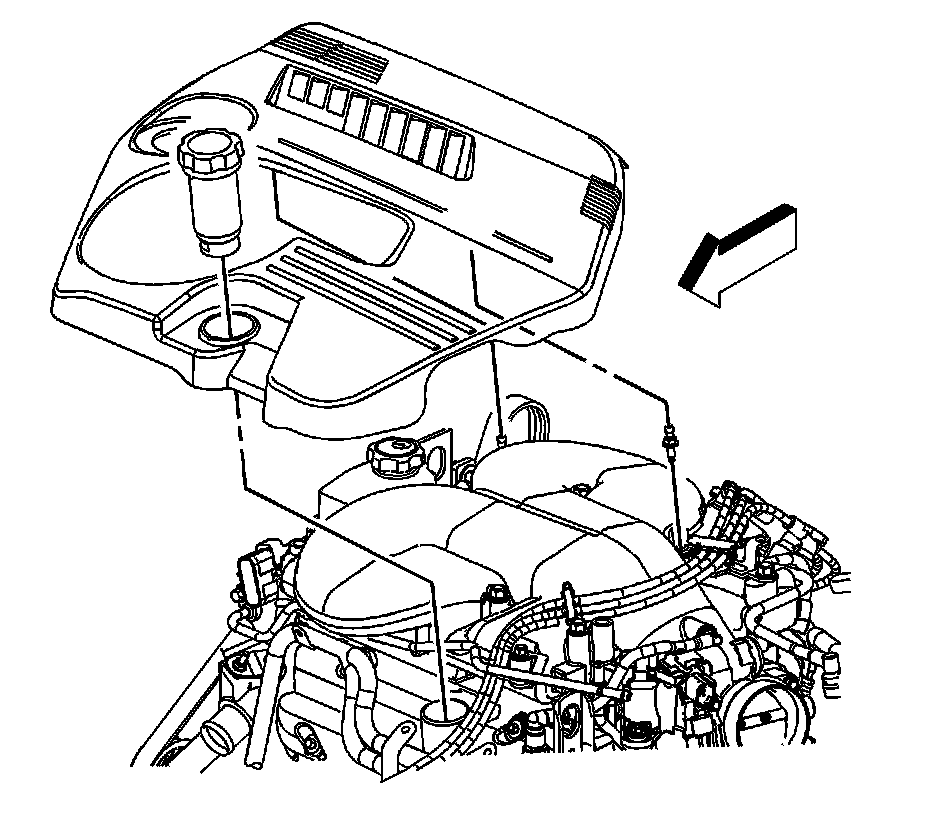

Removal Procedure




1. Remove the engine oil fill cap and tube.
2. Grasp the cover by the sides and pull up, disengaging the cover grommets from the ball studs.

Installation Procedure




1. Place the cover over the ball studs, aligning the cover with the power steering reservoir cap and the oil fill tube opening.
2. Push down on the cover above the studs in order to engage to cover grommets to the studs.
3. Install the engine oil fill cap and tube.
