Underhood Fuse Block




Electrical Center Identification Views

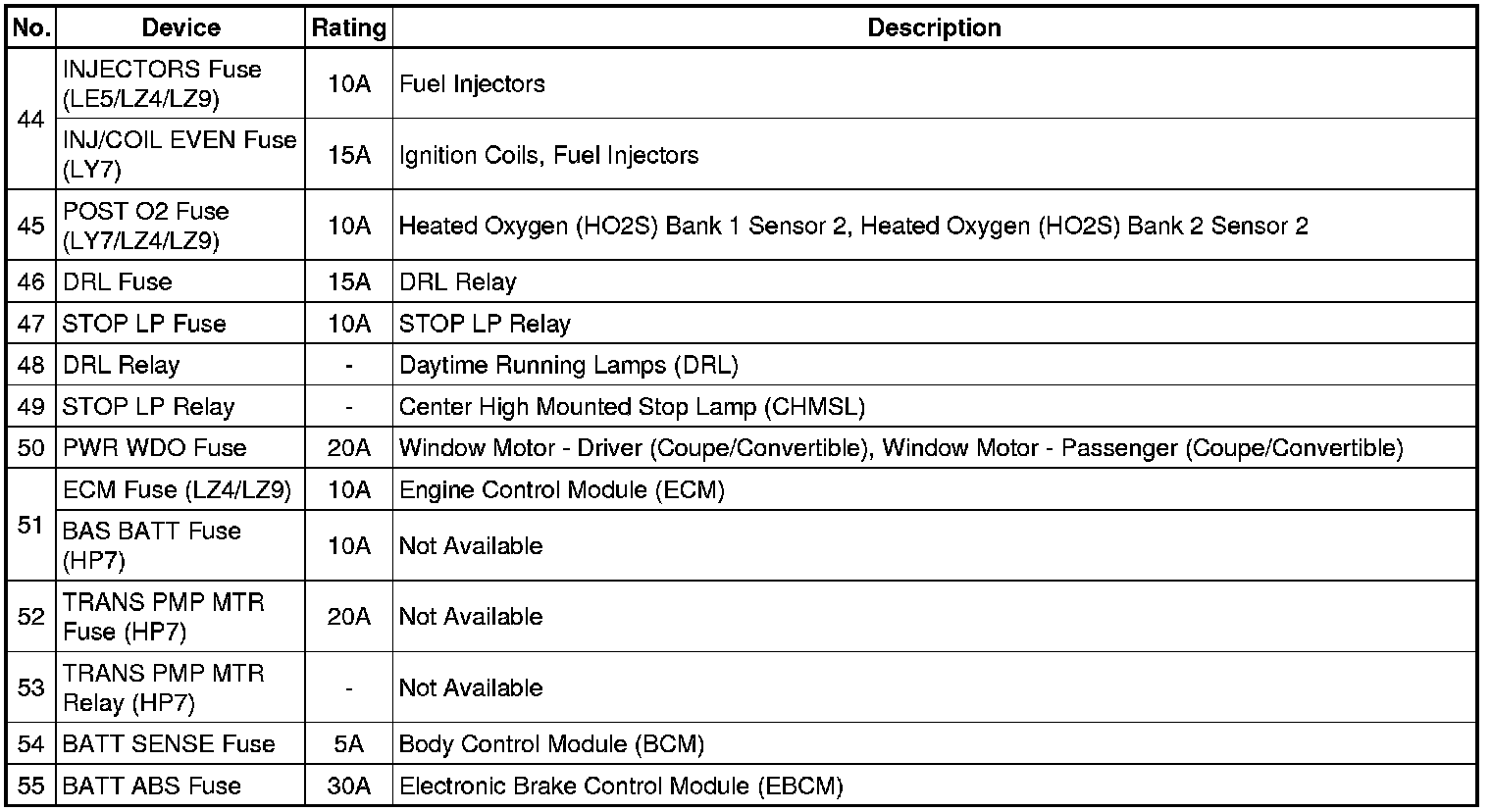

Fuse Block - Underhood Label

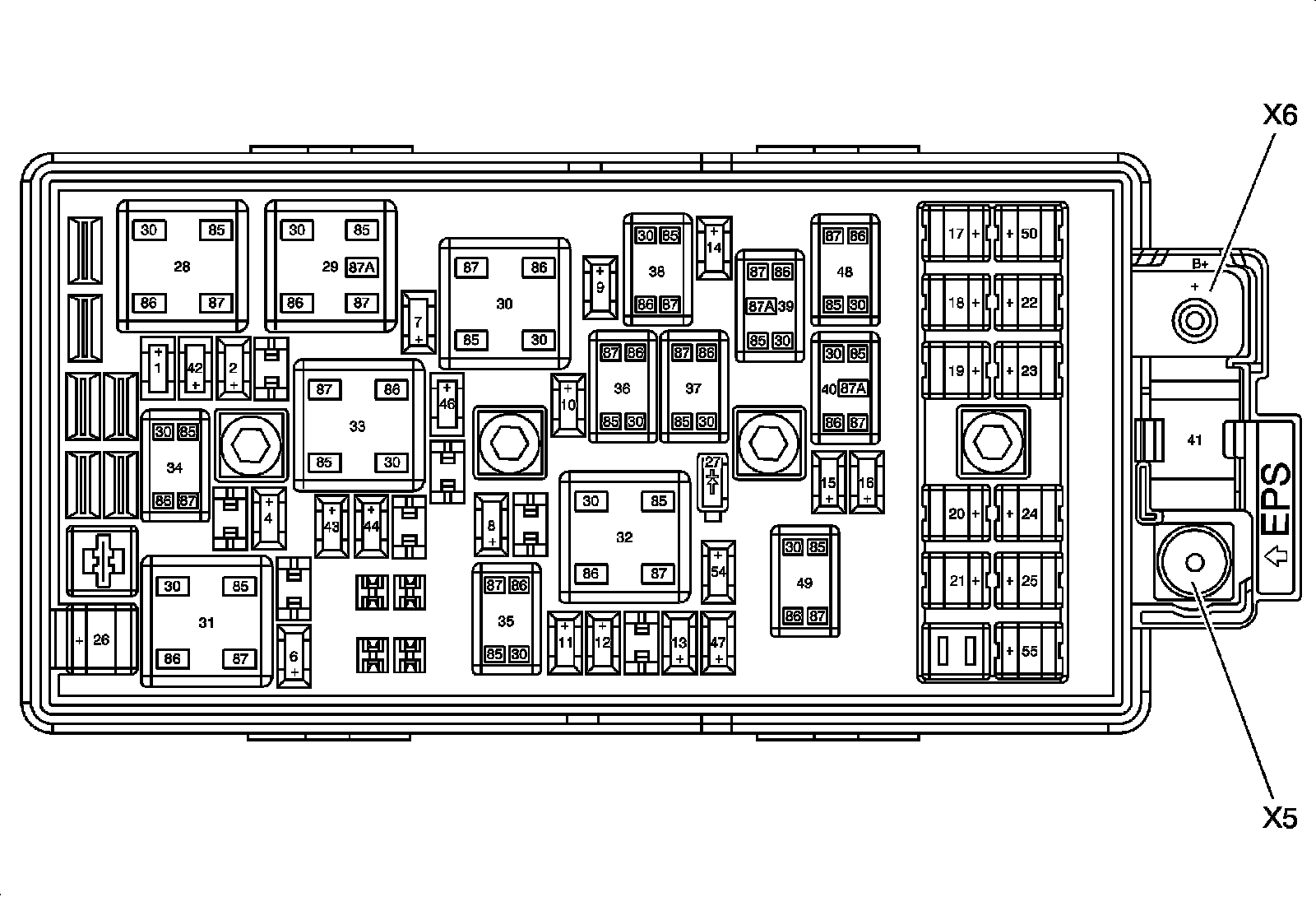

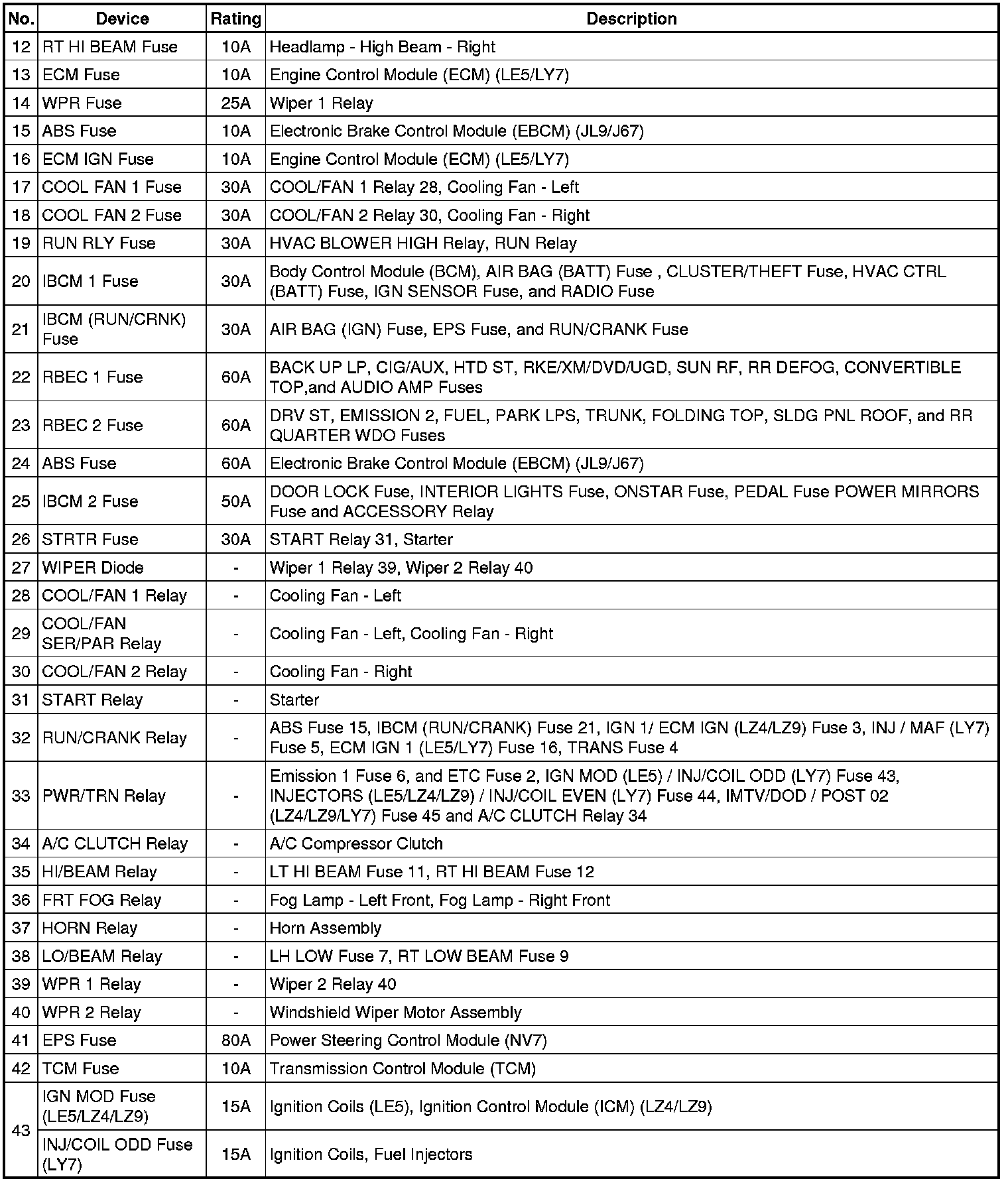

Fuse Block - Underhood Top View (LE5)

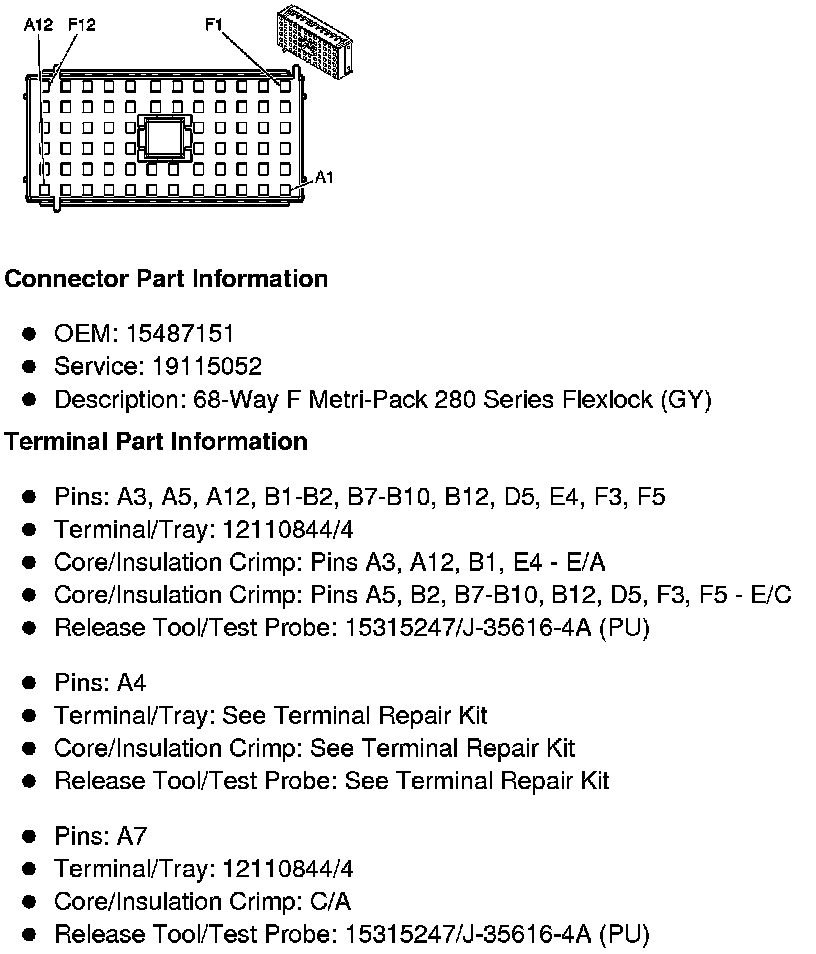

Fuse Block - Underhood Bottom View

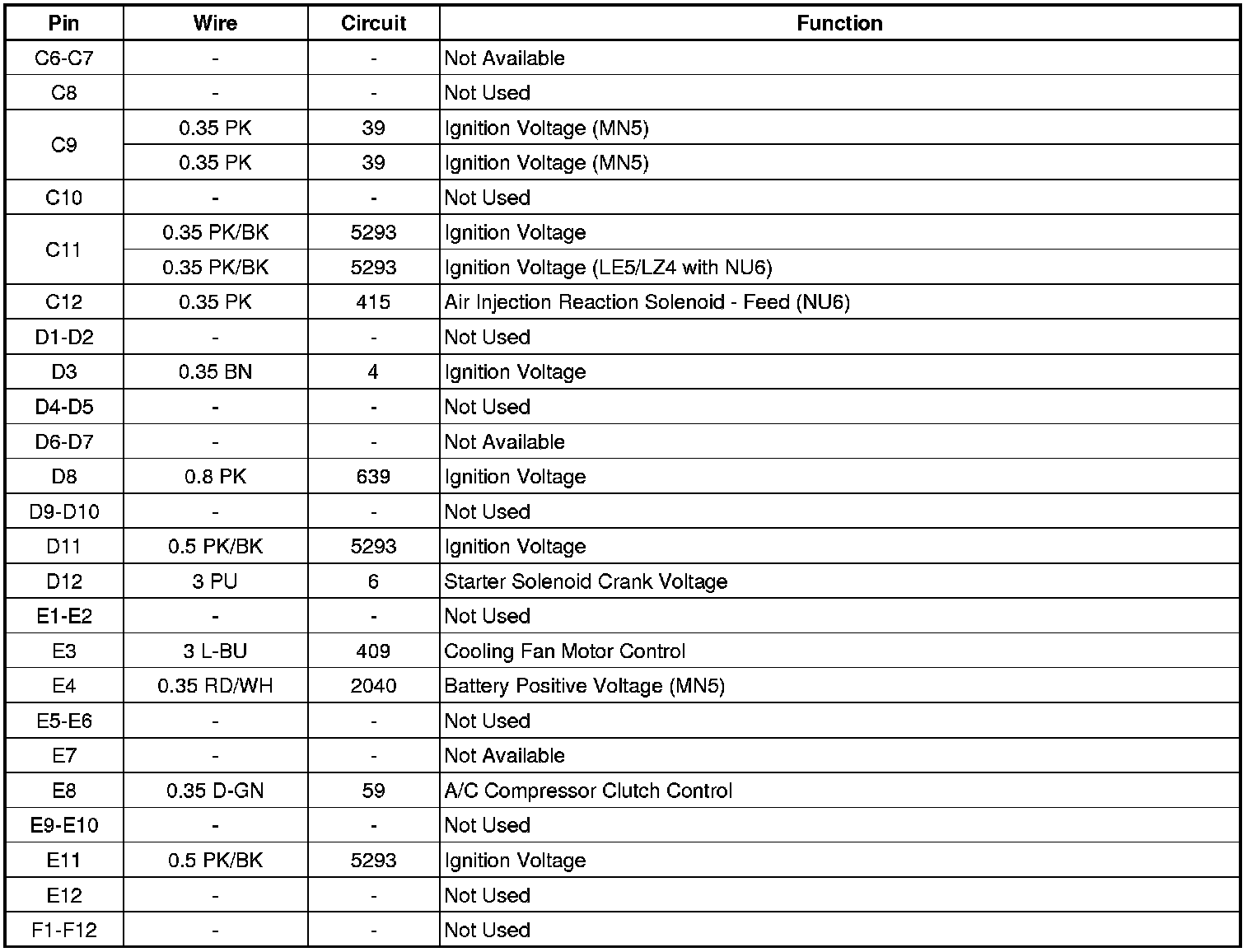

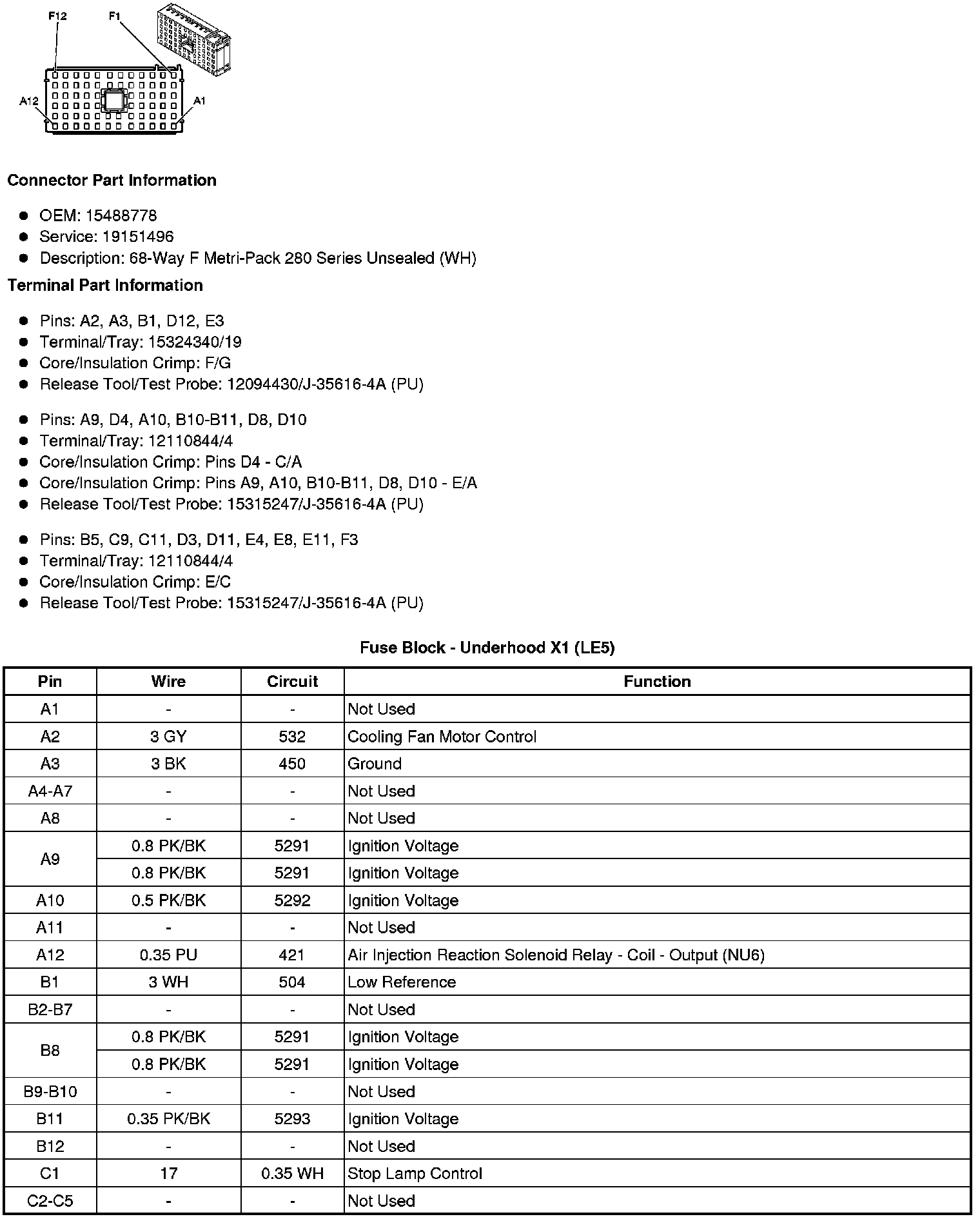

Fuse Block - Underhood X1 (LE5)

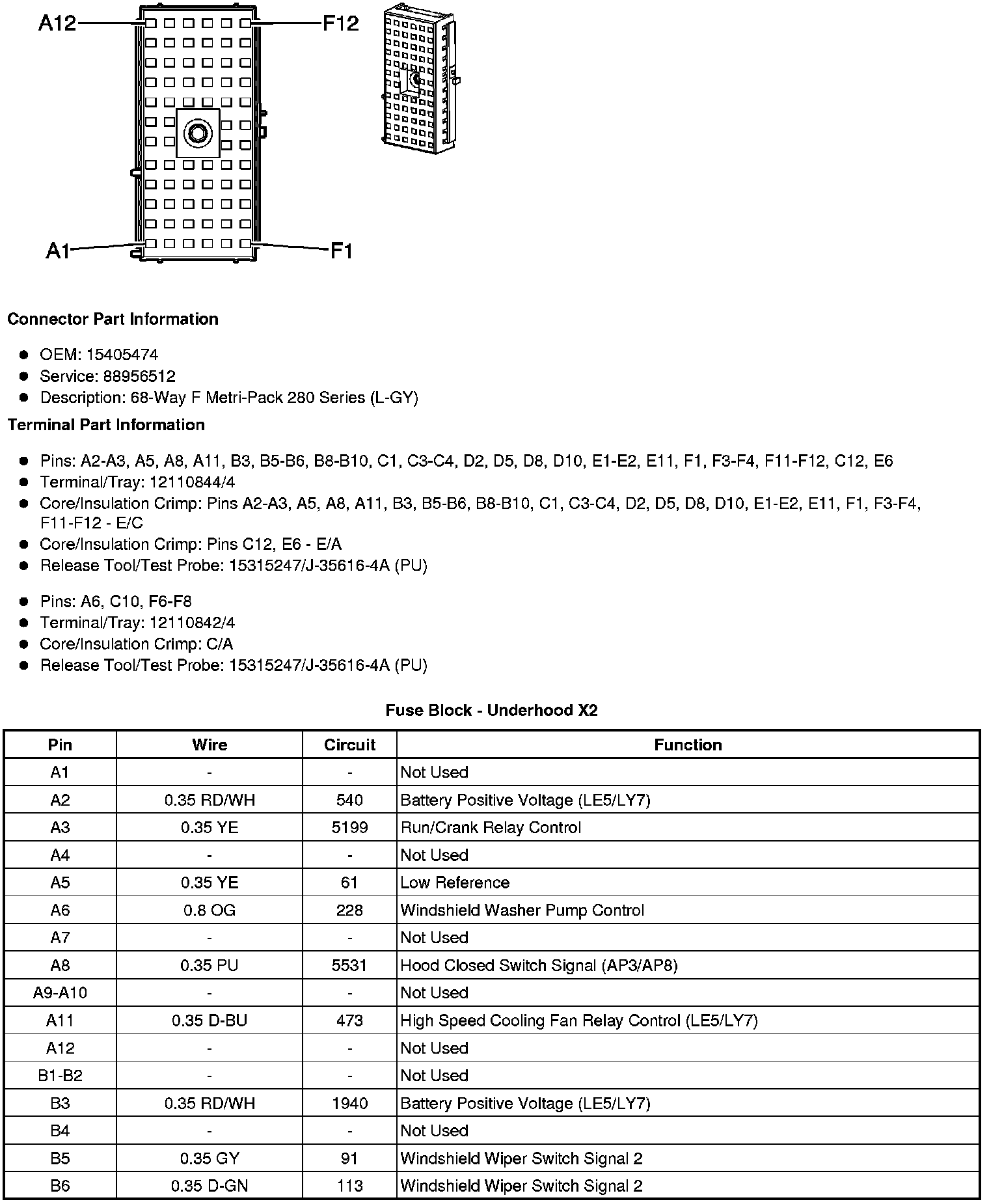

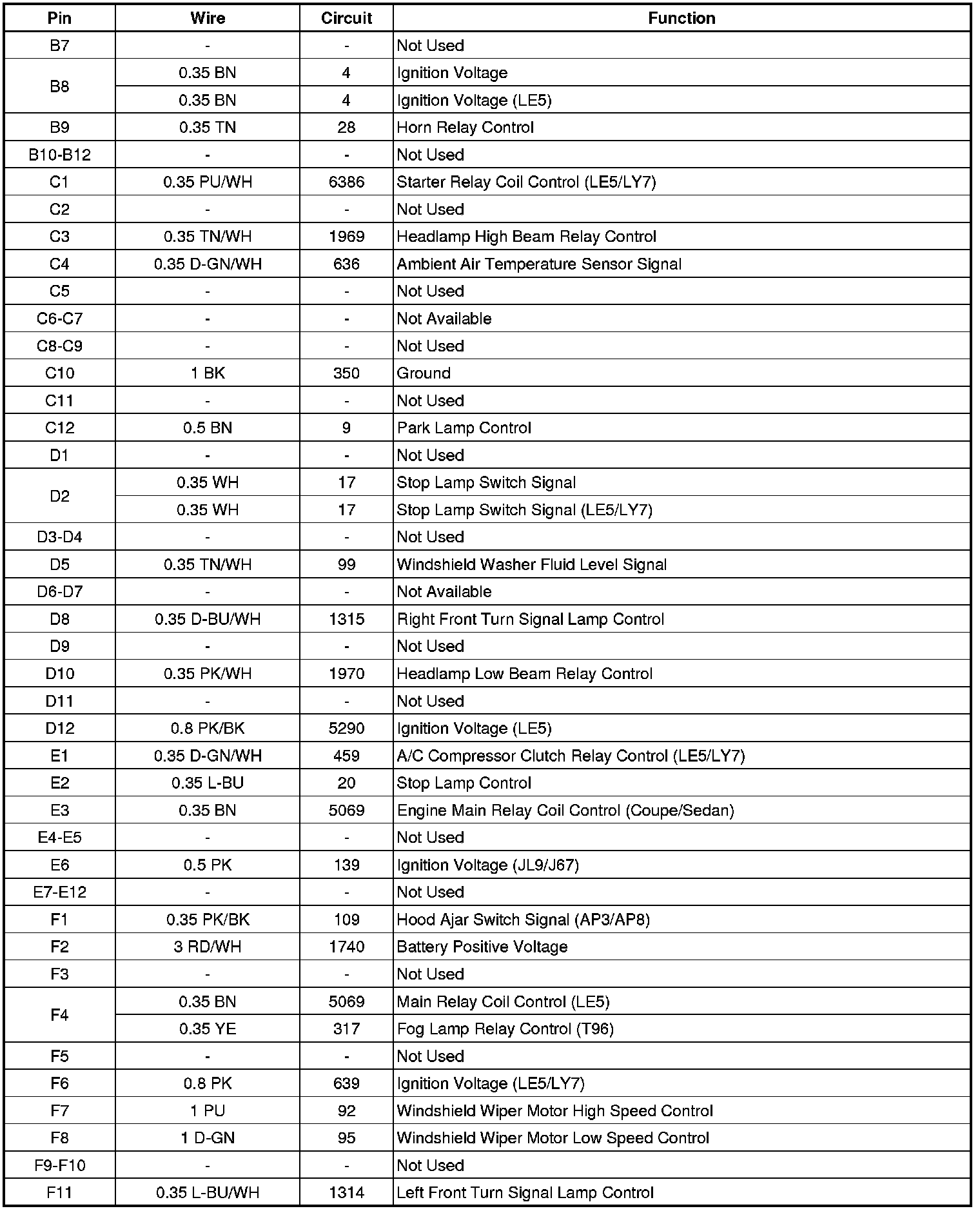

Fuse Block - Underhood X2

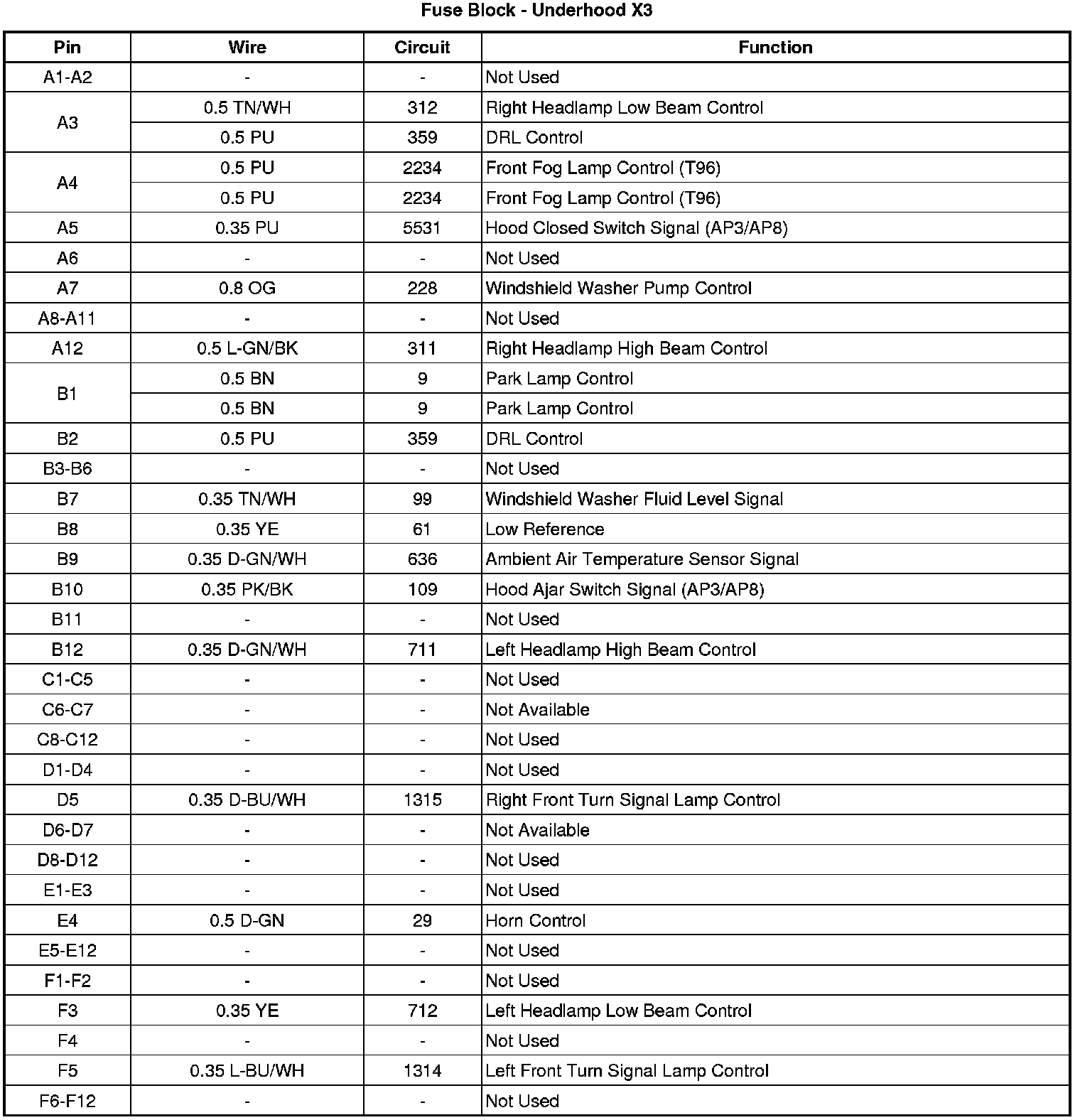

Fuse Block - Underhood X3

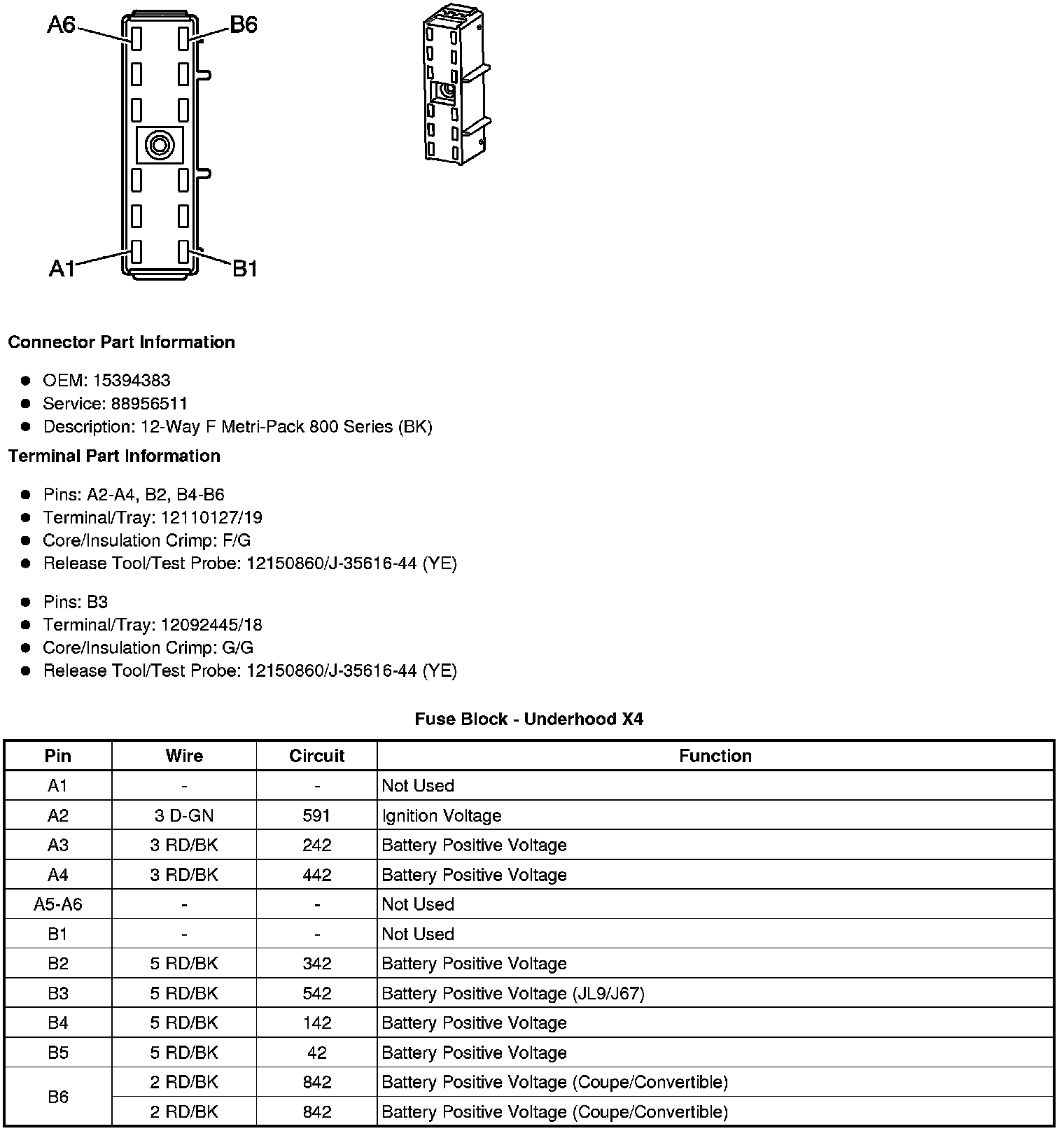

Fuse Block - Underhood X4





Fuse Block - Underhood X5









Fuse Block - Underhood X6
