Radio/Navigation System Schematics

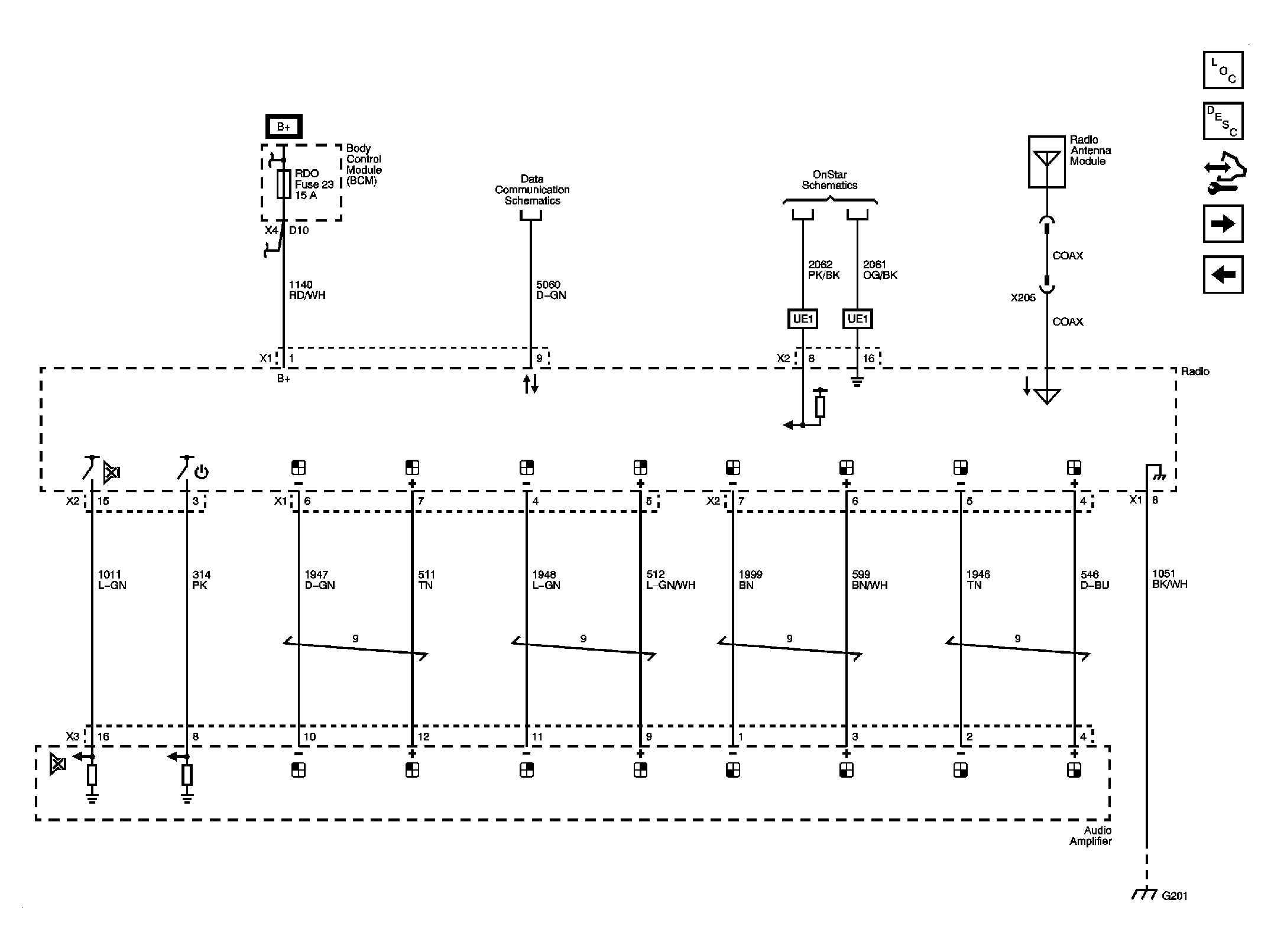

Fig 1: Radio (UQ4) Schematics

Courtesy of GENERAL MOTORS CORP.

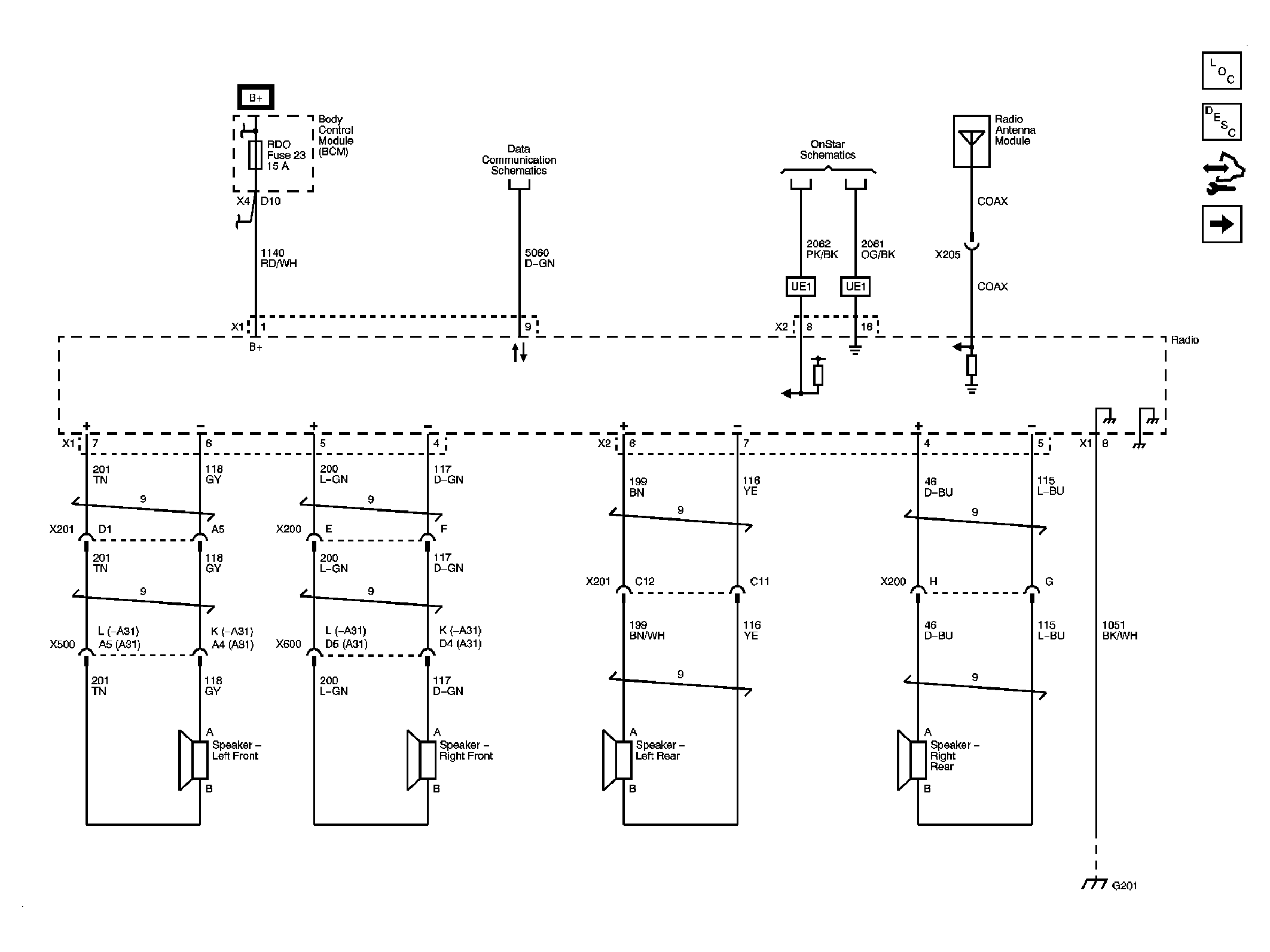

Fig 2: Power, Ground, Communication (UQ3) Schematics

Courtesy of GENERAL MOTORS CORP.

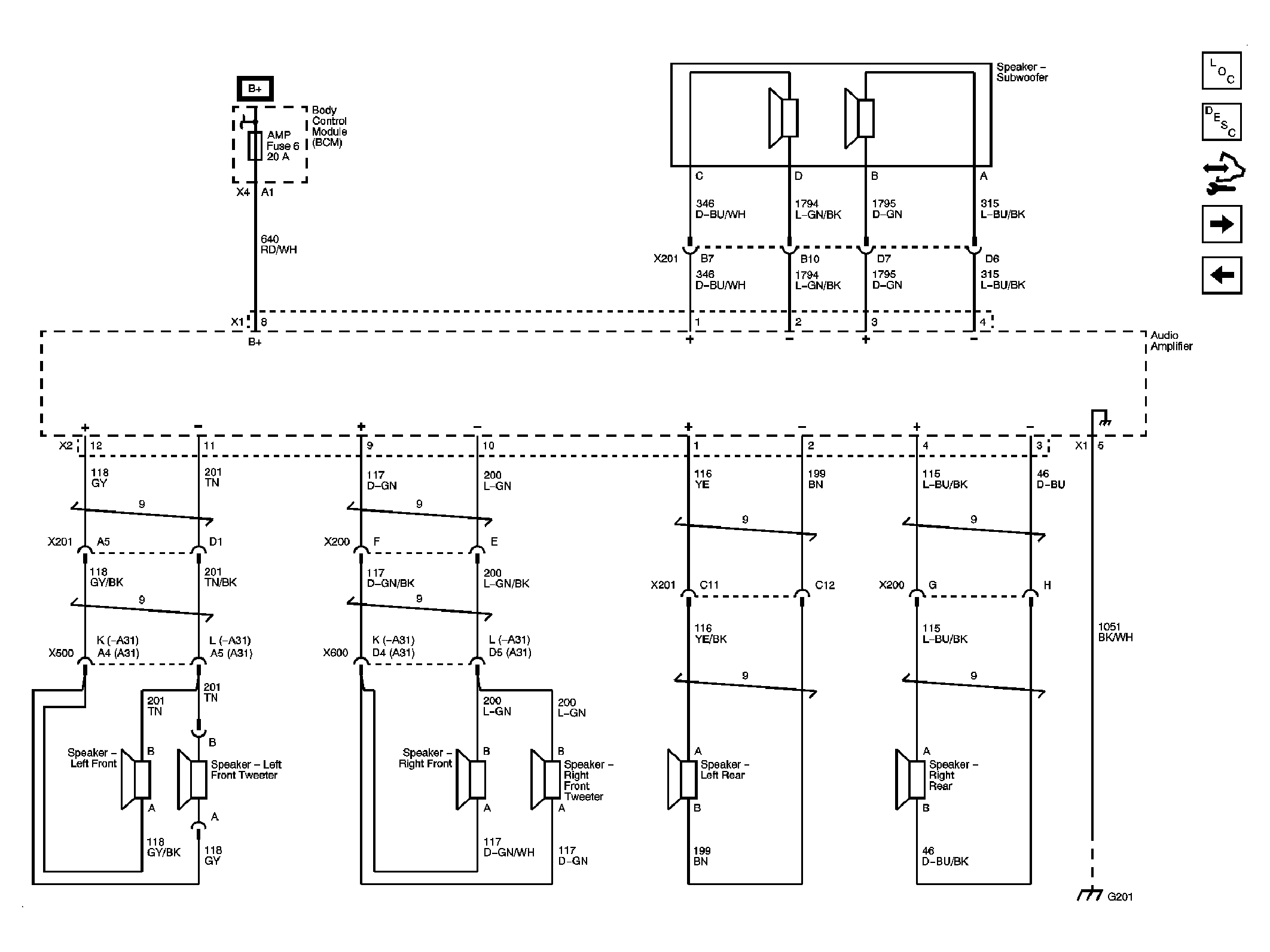

Fig 3: Amplifier, Speakers (UQ3) Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 4: Digital Radio Receiver (U2K) Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 5: Redundant Radio Controls Schematics

Courtesy of GENERAL MOTORS CORP.
