Y4M - Manual Transmission

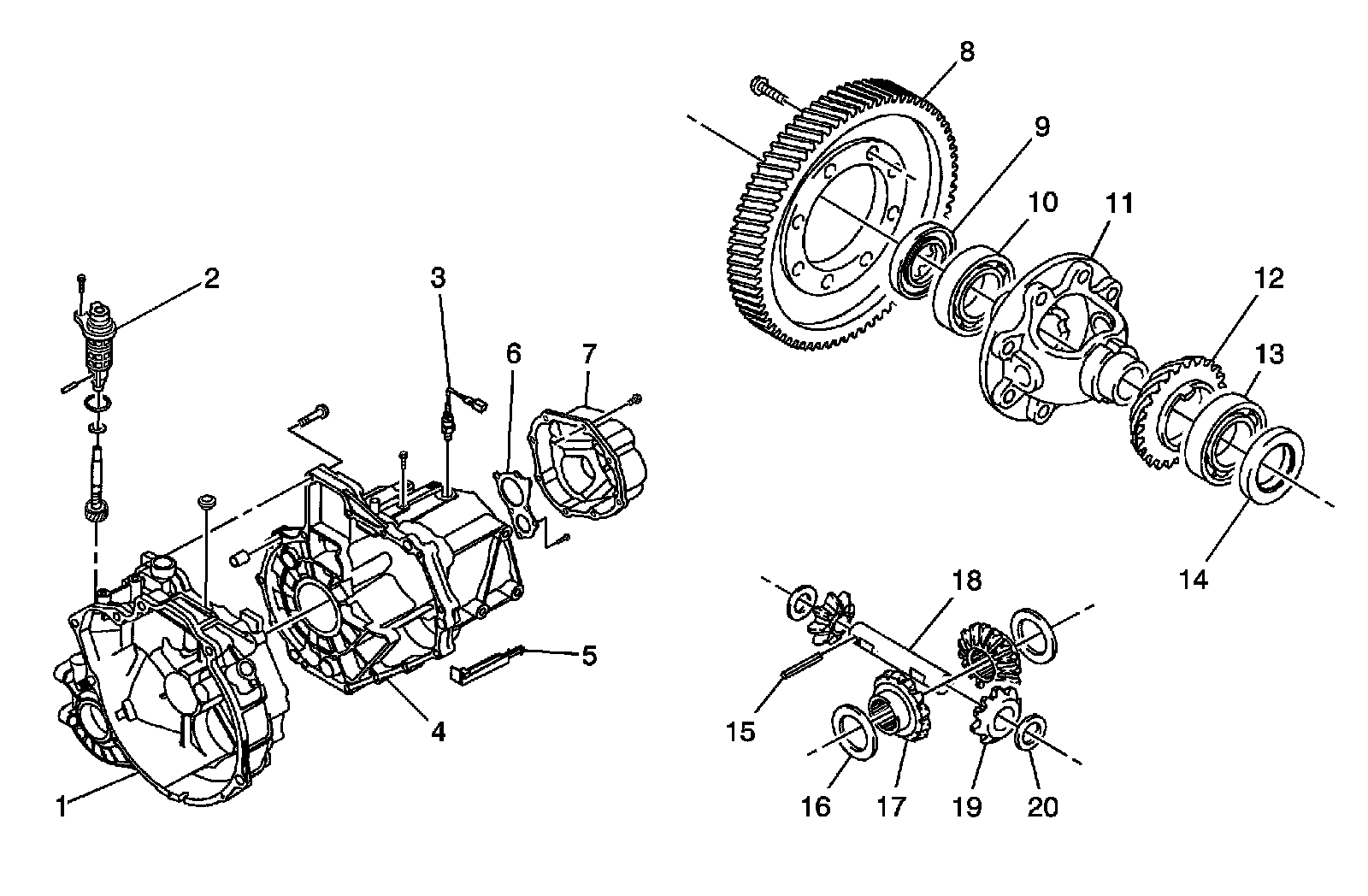

Manual Transmission Component Views

Differential and Case




1 - Transaxle Case - Right
2 - Speedometer Driven Gear (Vehicle Speed Sensor)
3 - Back Up Light Switch
4 - Transaxle Case - Left
5 - Oil Gutter
6 - Left Case Plate
7 - Side Cover
8 - Differential Ring Gear
9 - Differential Oil Seal - Left
10 - Differential Bearing - Left
11 - Differential Case
12 - Speedometer Drive Gear
13 - Differential Bearing - Right
14 - Differential Oil Seal - Right
15 - Differential Pinion Gear Shaft Pin
16 - Differential Side Gear Adjust Shim
17 - Differential Side Gear
18 - Differential Pinion Gear Shaft
19 - Differential Pinion Gear
20 - Differential Pinion Gear Washer
