Transmission Position Sensor/Switch: Diagrams




Component Connector End Views

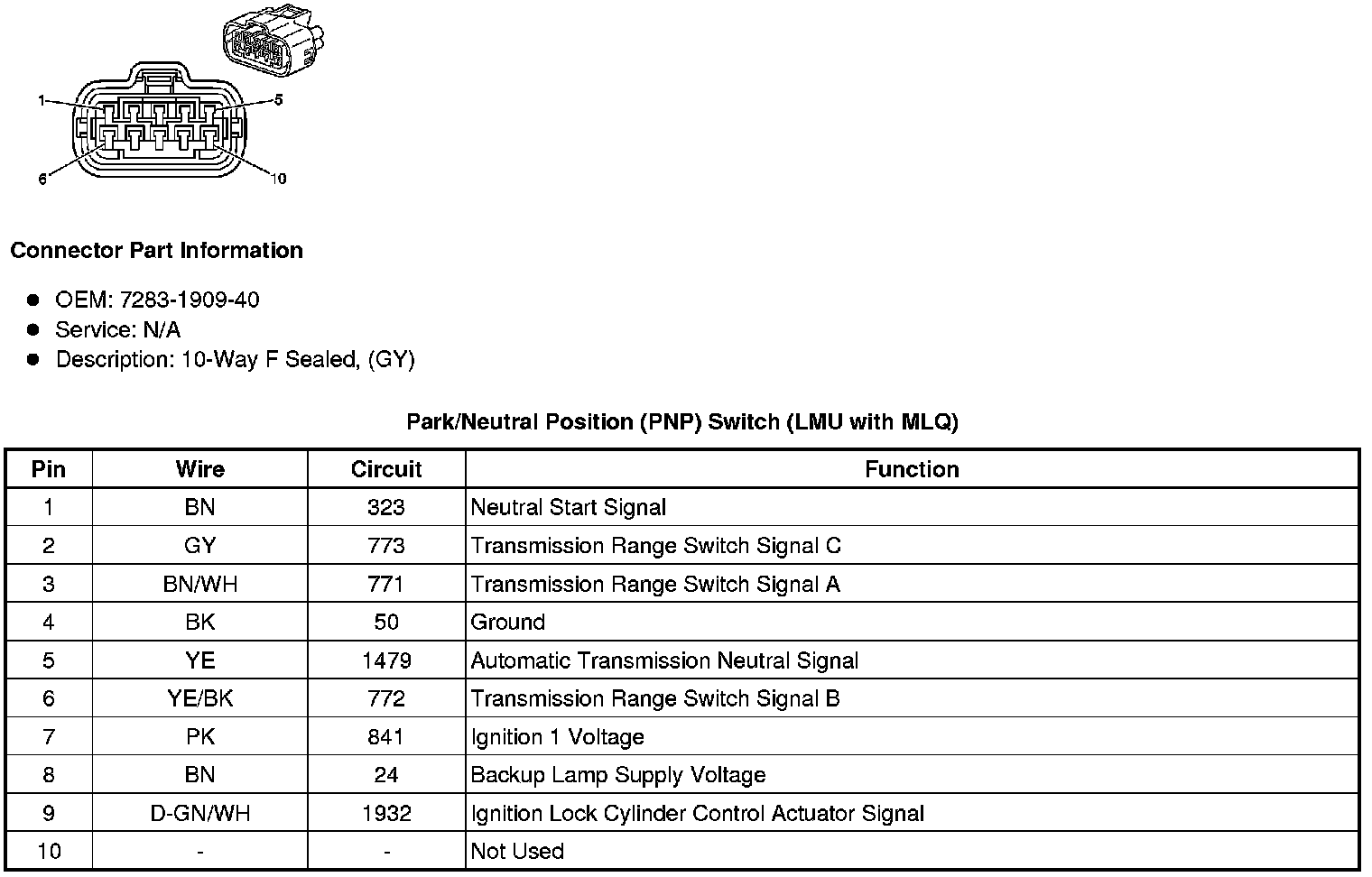

Park/Neutral Position (PNP) Switch (LMU with MLQ)

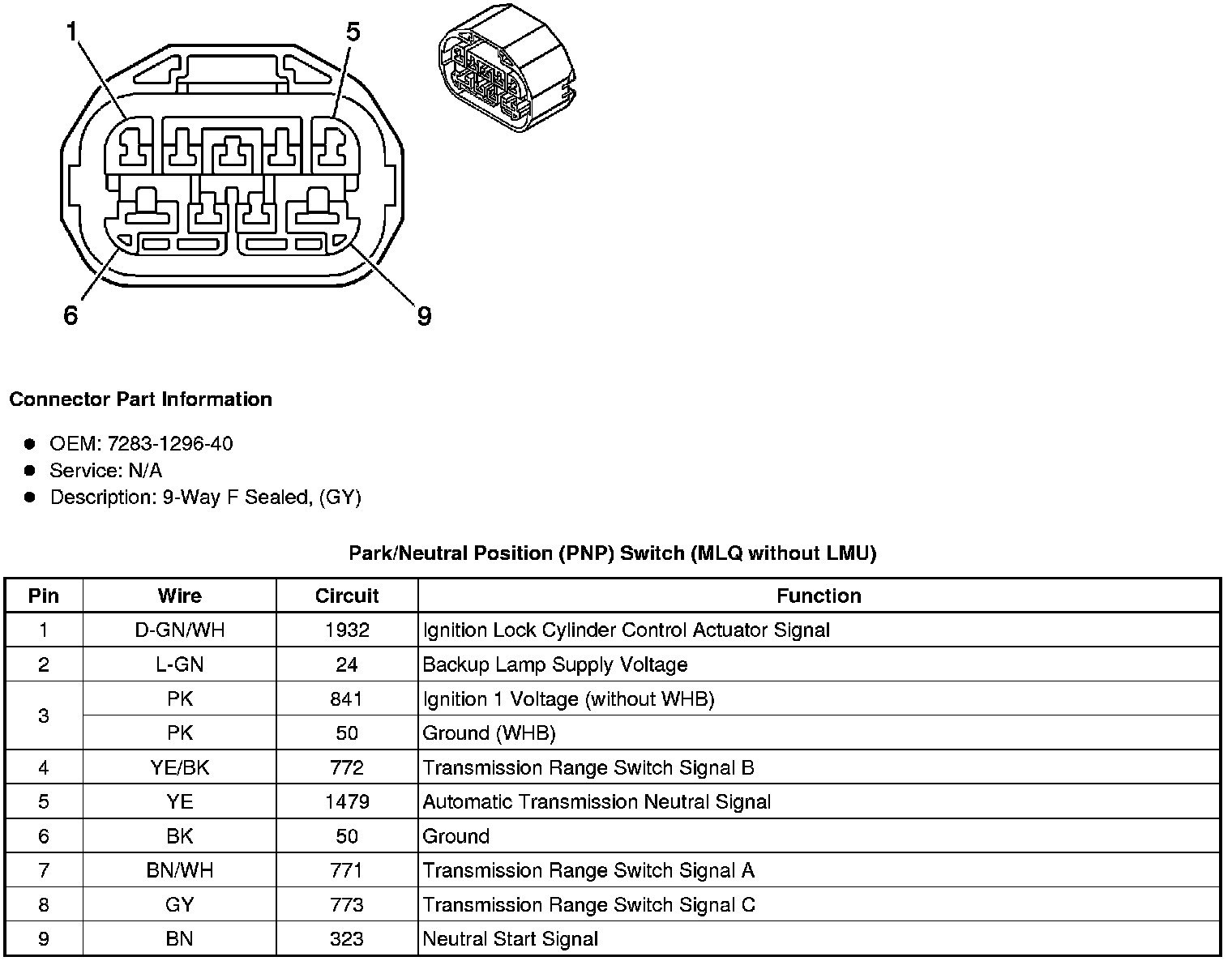

Park/Neutral Position (PNP) Switch (MLQ without LMU)
