Without Variable Camshaft Phasing

Crankshaft Position Sensor Replacement

Removal Procedure




Warning: Refer to Battery Disconnect Warning (Battery Disconnect Warning).
1. Disconnect the negative battery cable.

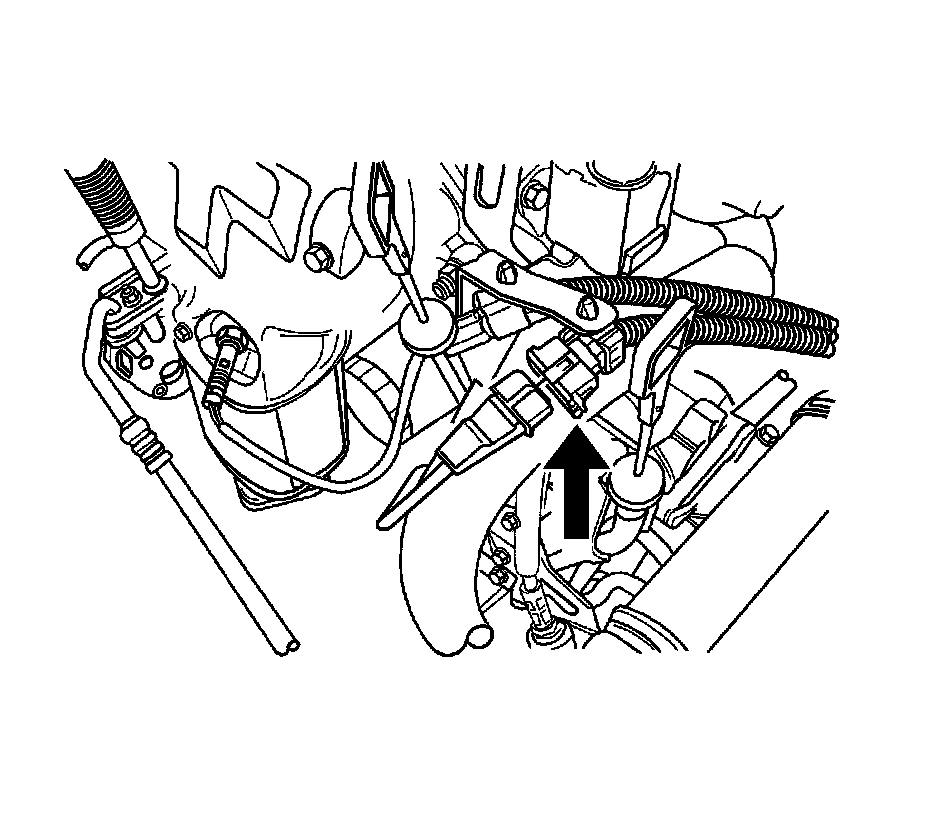

2. Disconnect the crankshaft position (CKP) sensor electrical connector.

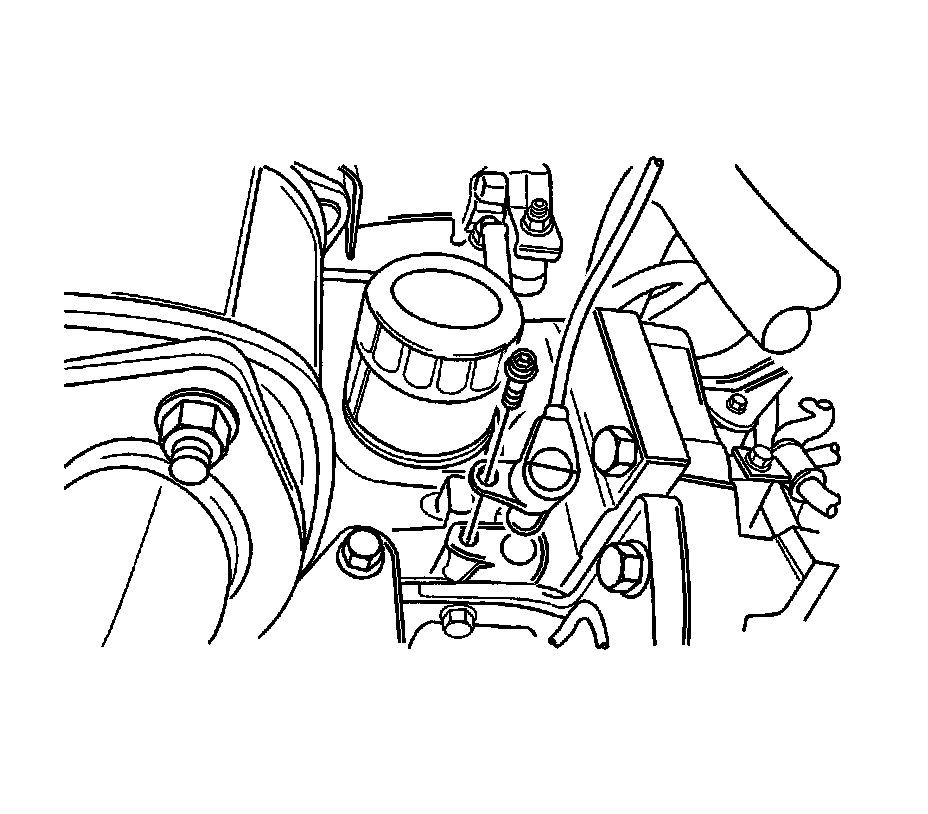

3. Remove the CKP sensor bolt.
4. Remove the CKP sensor.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the CKP sensor with the bolt.

Tighten the CKP sensor bolt to 6.5 Nm (58 lb in).




2. Connect the CKP sensor electrical connector.
3. Connect the negative battery cable.
