Crankshaft Position Sensor: Diagrams




Component Connector End Views

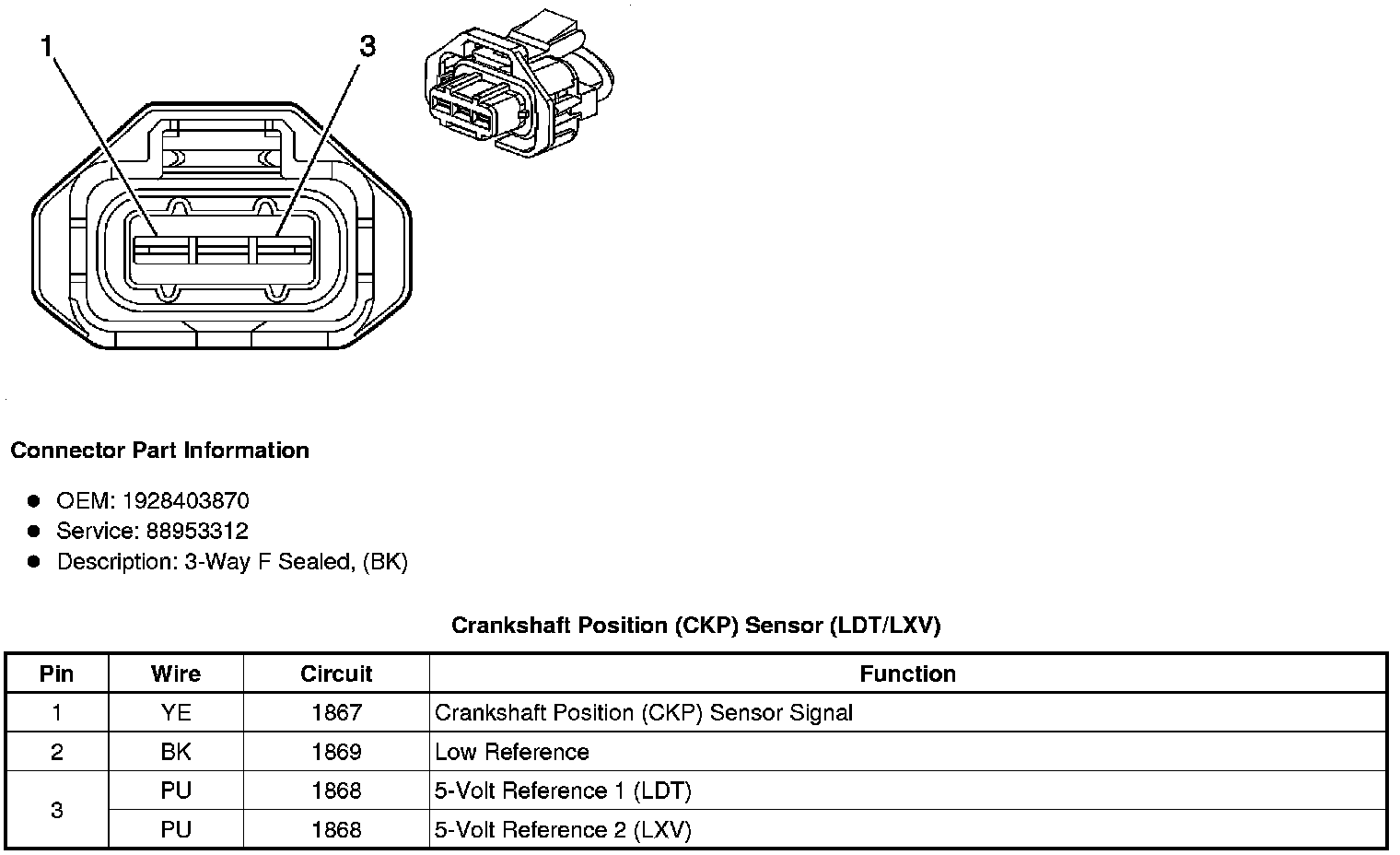

Crankshaft Position (CKP) Sensor (LDT/LXV)






Crankshaft Position (CKP) Sensor (without LDT/LXV)
