Blower Motor Relay: Service and Repair

Blower Motor Relay Replacement

Removal Procedure




Warning: Refer to Battery Disconnect Warning (Battery Disconnect Warning).
1. Disconnect the negative battery cable.
2. Remove the instrument panel fuse cover.

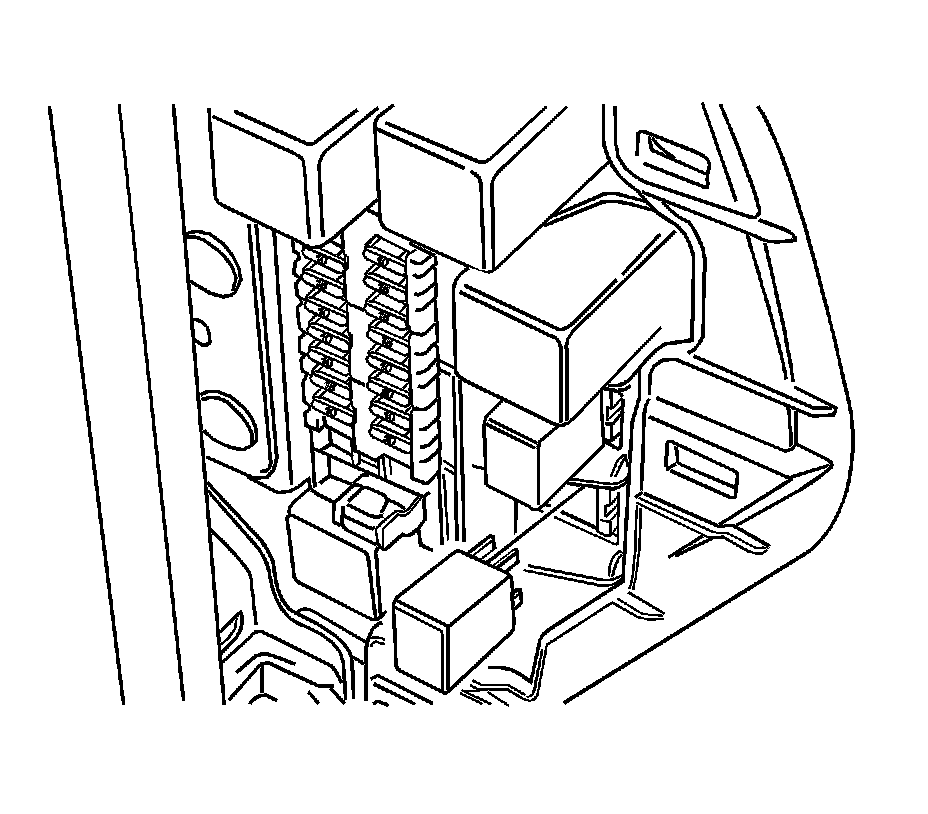

3. Pull out the relay at the front of the relay box.

Installation Procedure




1. Align the relay contacts with the relay terminal slots.
2. Push the relay firmly into the base. The relay must be seated and flushed with the base edge.
3. Replace the instrument panel access panel.
4. Replace the remote mirror/lighting control panel.
5. Connect the negative battery cable.
