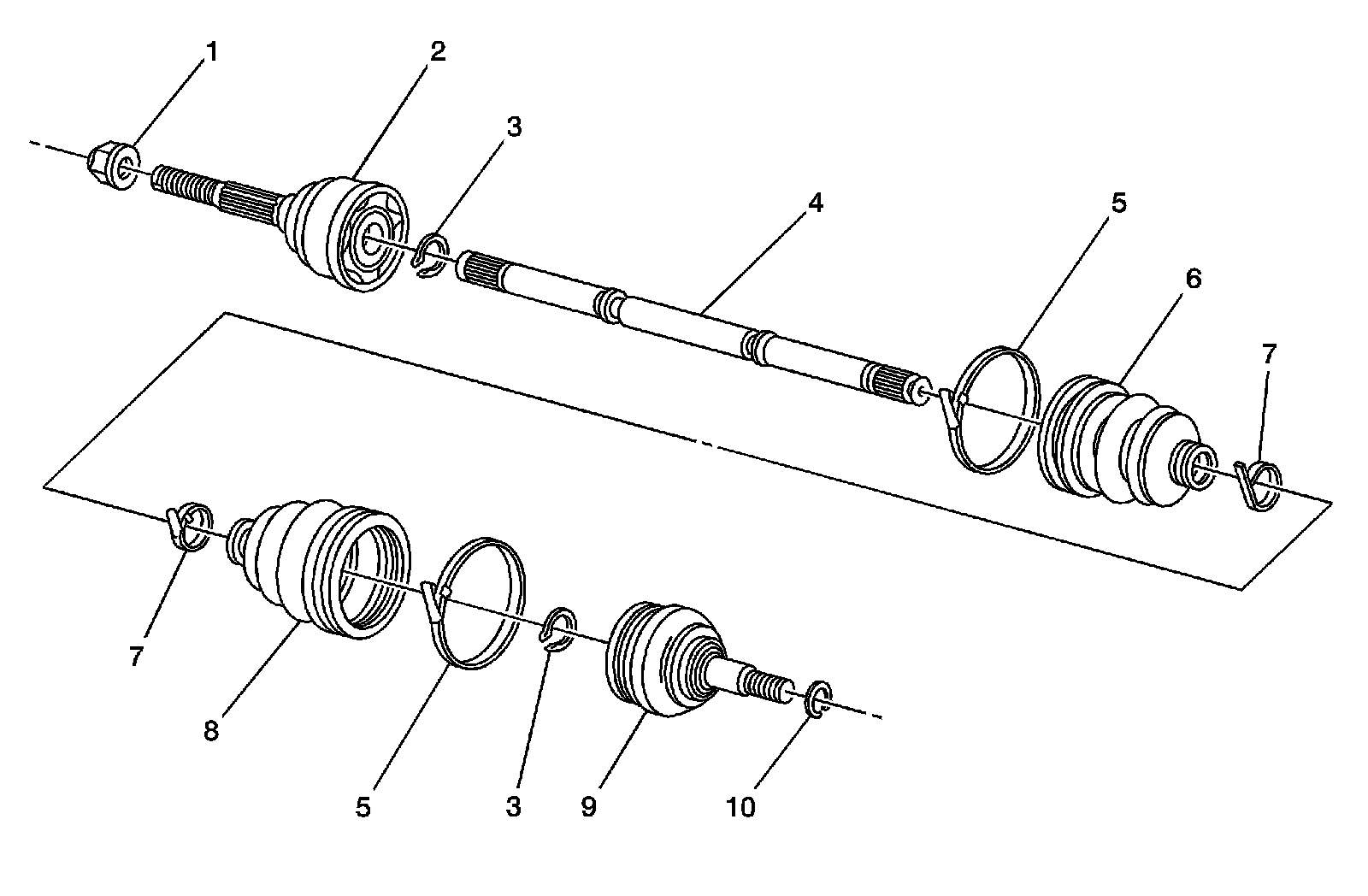

Front Drive Axle Disassembled Views (Manual)

Front Drive Axle Disassembled Views (Manual)

Manual

1 - Caulking Nut
2 - C/V Joint
3 - Race Retaining Ring
4 - Axle Shaft
5 - Seal Retaining Clamp
6 - Drive Axle Outboard Seal
7 - Seal Retaining Clamp
8 - Drive Axle Inboard Seal
9 - Cross Groove Joint
10 - Retaining Ring
