Service Part Identification Label




Service Part Identification Label

Body Identification Number Plate




1 - P/O Number
2 - Check Digit
3 - Car Type
4 - Body Type
5 - Battery Tray
6 - Production Date
7 - Sequential Number
8 - Hood
9 - Exterior Color
10 - Export Country
11 - Side Indicator Lamp
12 - Trunk Lid
13 - P/O Plate Serial Number

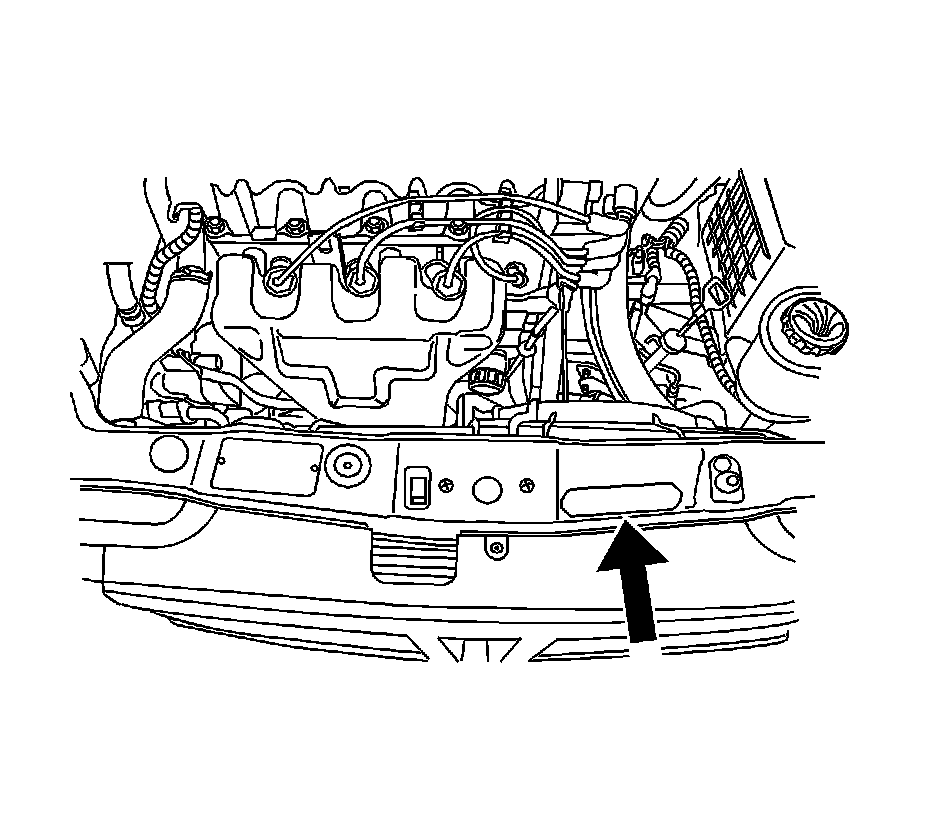

Body Identification Number Plate Location





The body identification number plate is attached to the top of the front panel support.
