Antilock Brake System Schematics

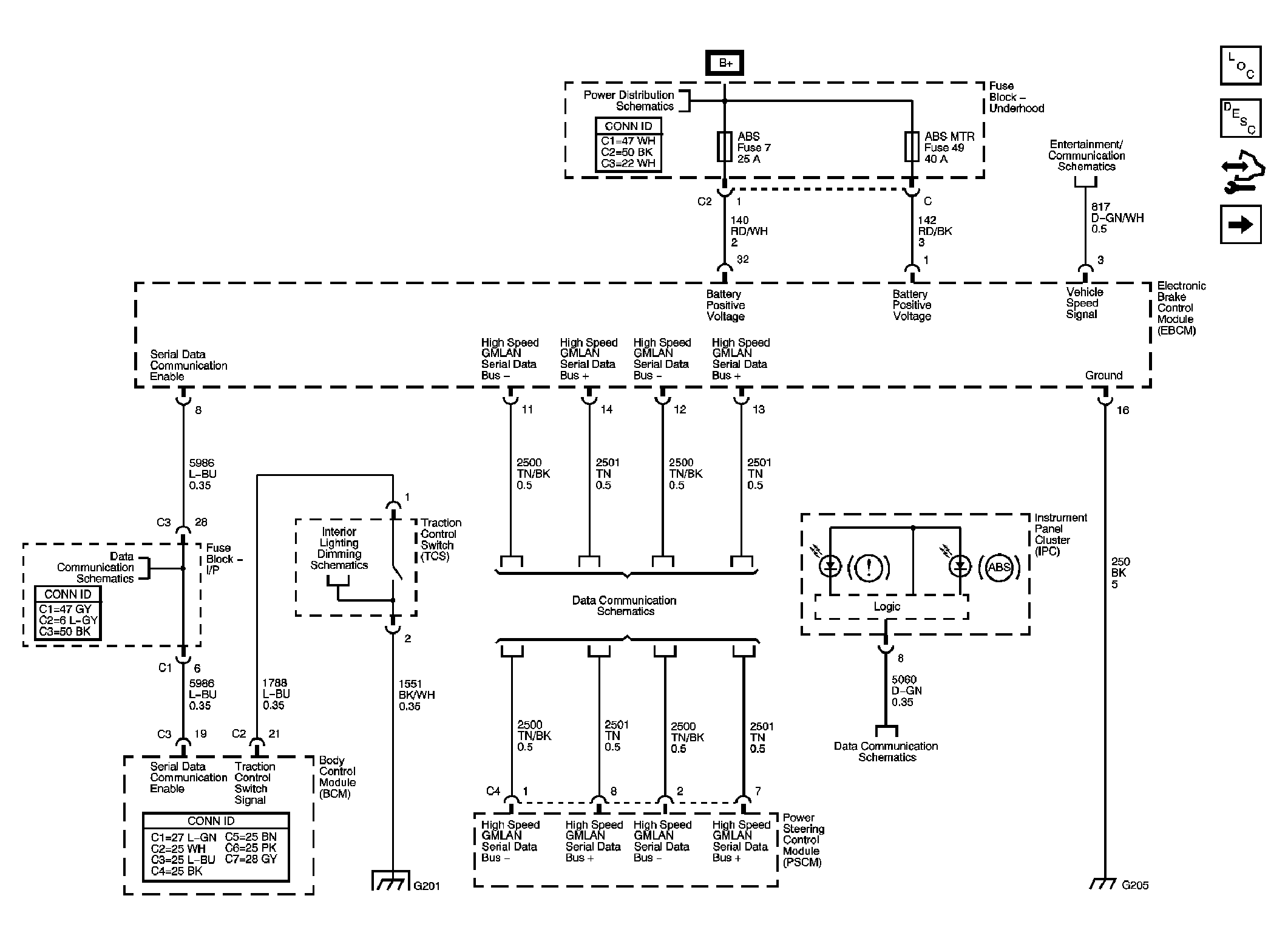

Fig 1: Serial Data, Traction Switch, and Instrument Panel

Courtesy of GENERAL MOTORS CORP.

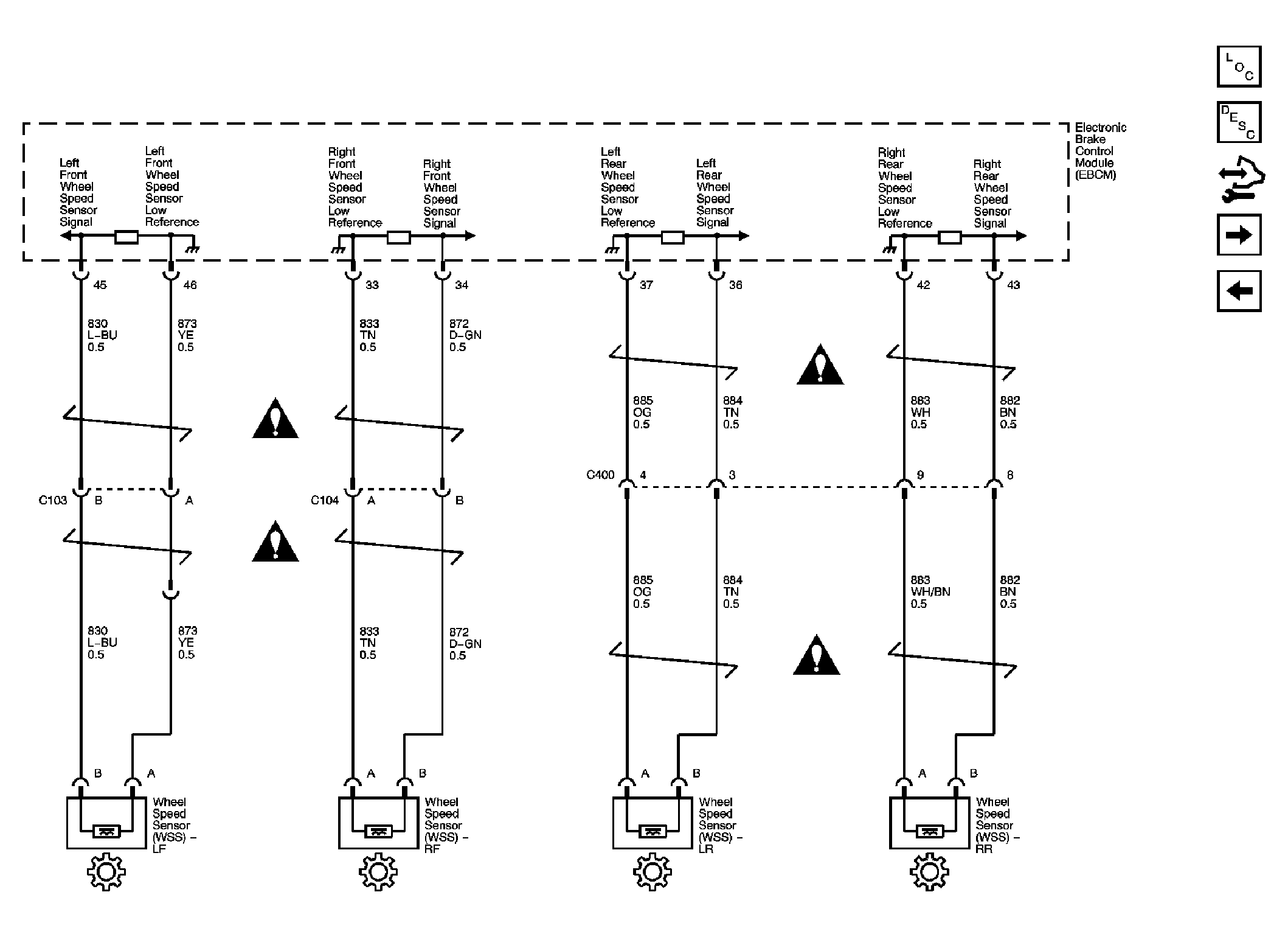

Fig 2: Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 3: Yaw Rate and Lateral Accelerometer Sensor (3.4L)

Courtesy of GENERAL MOTORS COMPANY

Fig 4: Yaw Rate and Lateral Accelerator Sensor, and Steering Angle Sensor (3.6L)

Courtesy of GENERAL MOTORS COMPANY
