Power Distribution Schematics

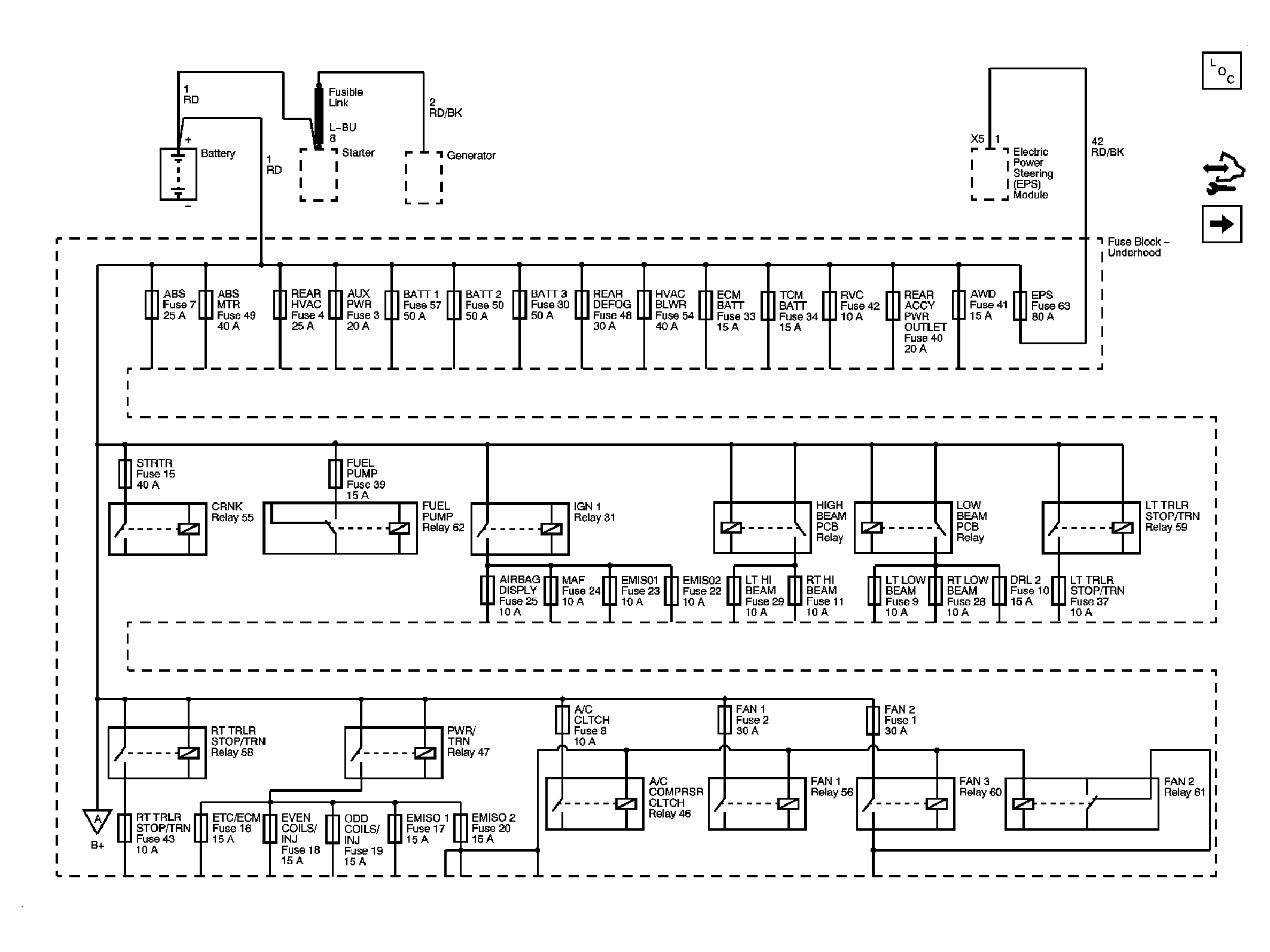

Fig 1: B+ BUS - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 2: B+ BUS - 2 of 2

Courtesy of GENERAL MOTORS CORP.

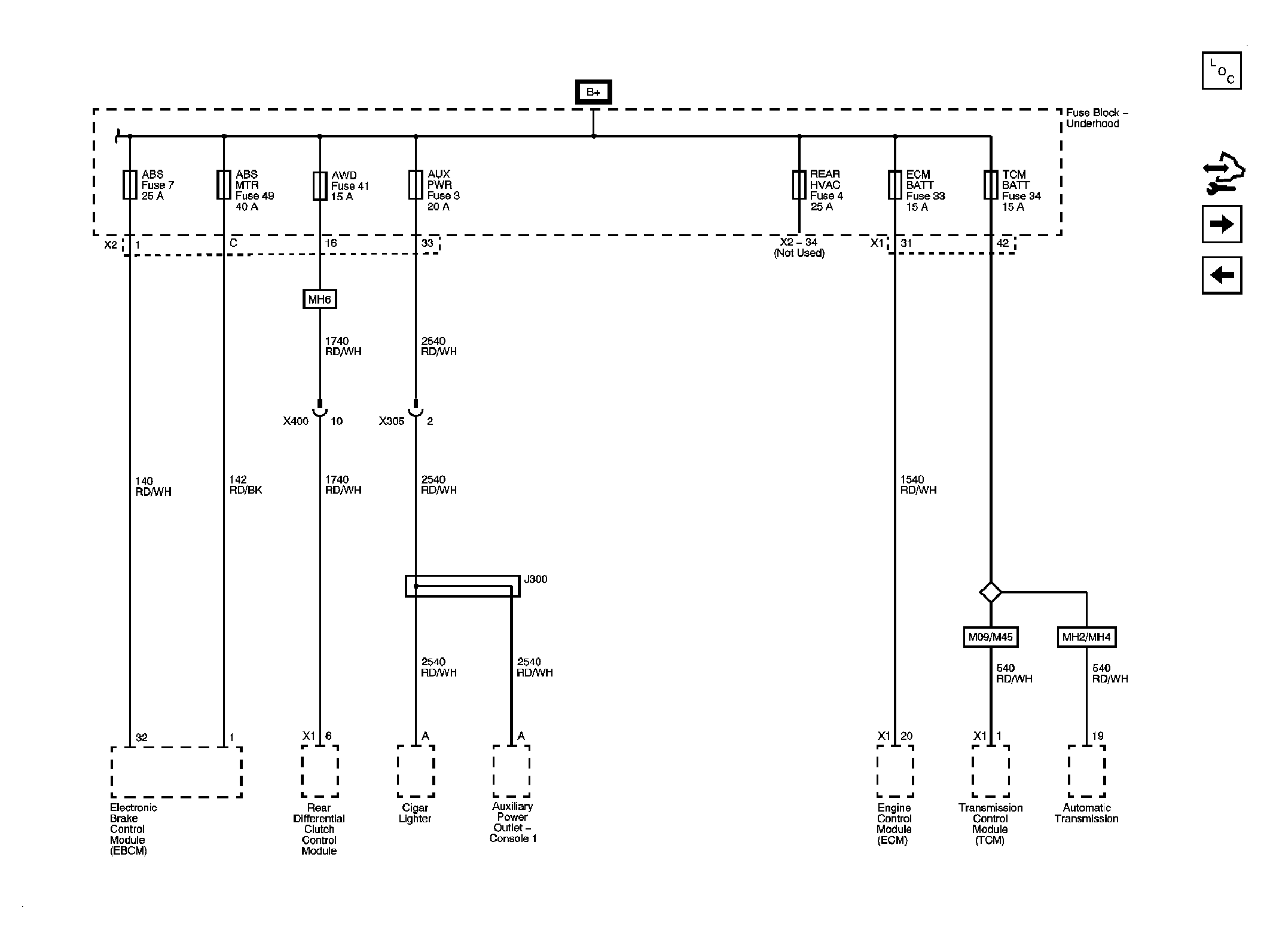

Fig 3: ABS, ABS MTR, AUX PWR, AWD, ECM BATT, REAR APO, REAR HVAC, and TCM BATT Fuses

Courtesy of GENERAL MOTORS CORP.

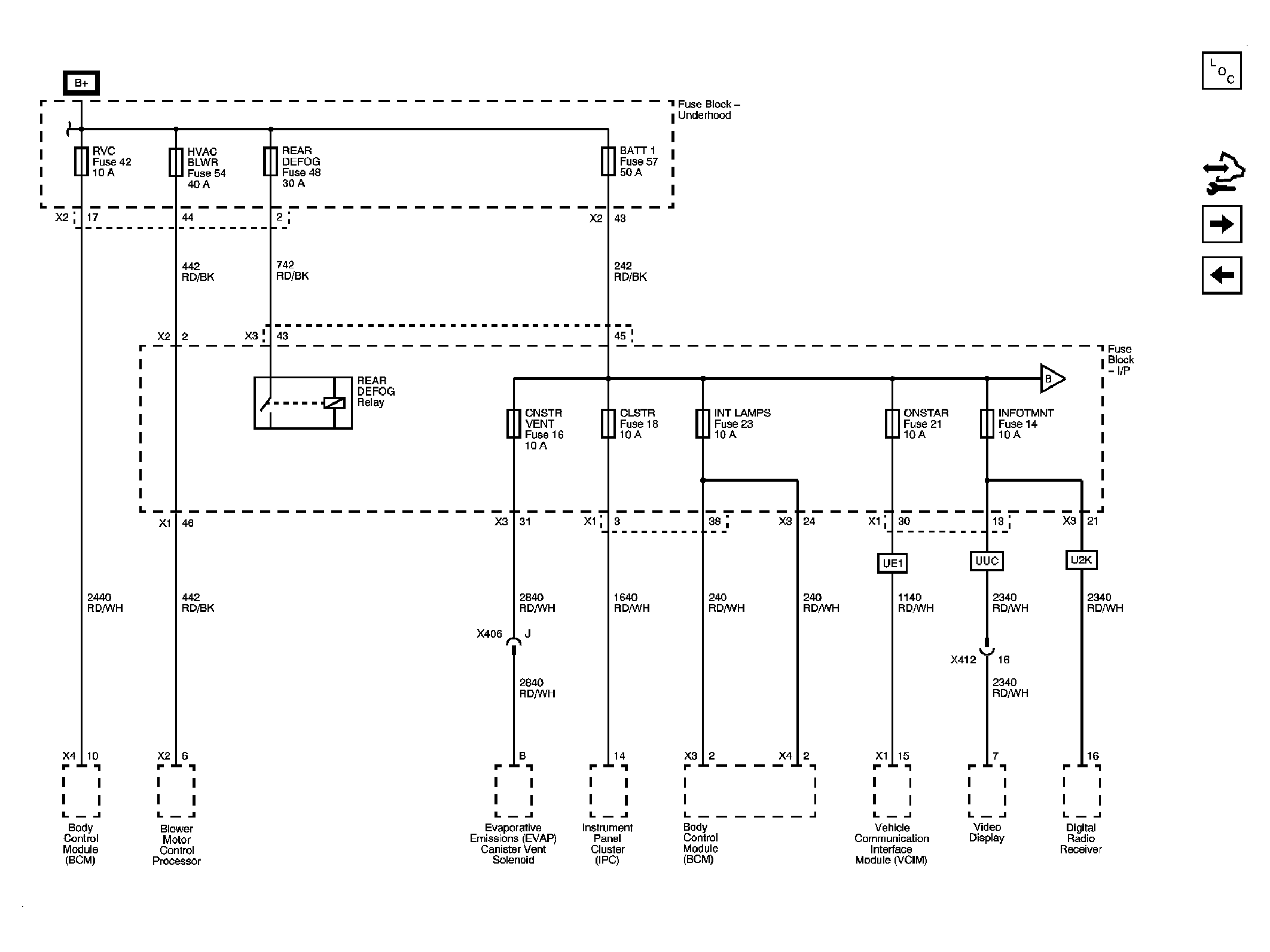

Fig 4: BATT 1, CNSTR VENT, CLSTR, HVAC BLWR, INFOTMNT, INT LAMPS, ONSTAR, REAR DEFOG and RVC Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 5: AMP, BCM, CHMSL/DM/LAMP, HVAC/RFA and RDO Fuse

Courtesy of GENERAL MOTORS CORP.

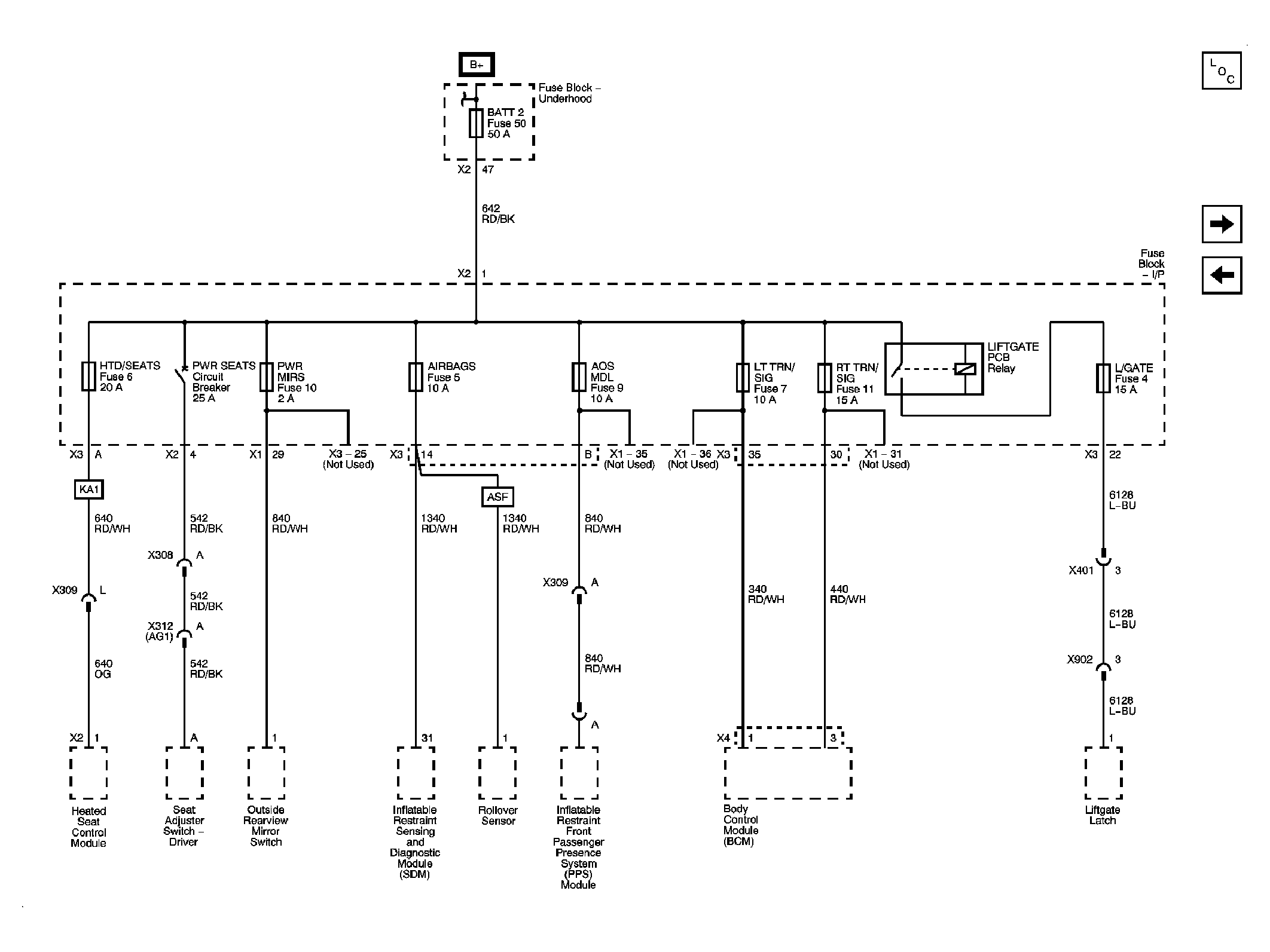

Fig 6: AOS MDL, BATT 2, HTD/SEATS, L/GATE, LT TRN/SIG, PWR MIRS, RT TRN/SIG and AIRBAGS Fuses and PWR SEATS Circuit Breaker

Courtesy of GENERAL MOTORS CORP.

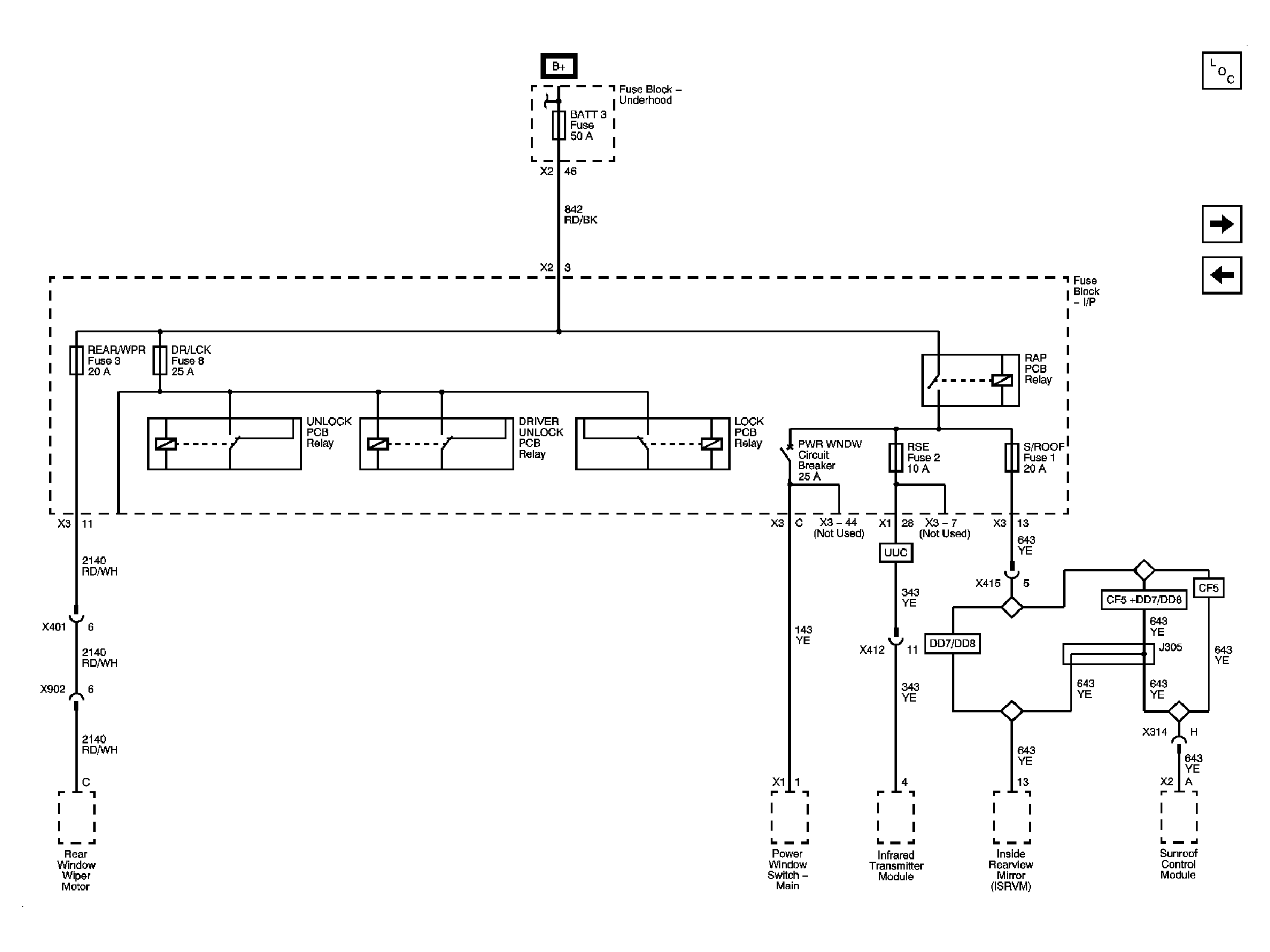

Fig 7: BATT 3, DR/LCK, REAR/WPR, RSE and S/ROOF Fuses and PWR WNDW Circuit Breaker

Courtesy of GENERAL MOTORS CORP.

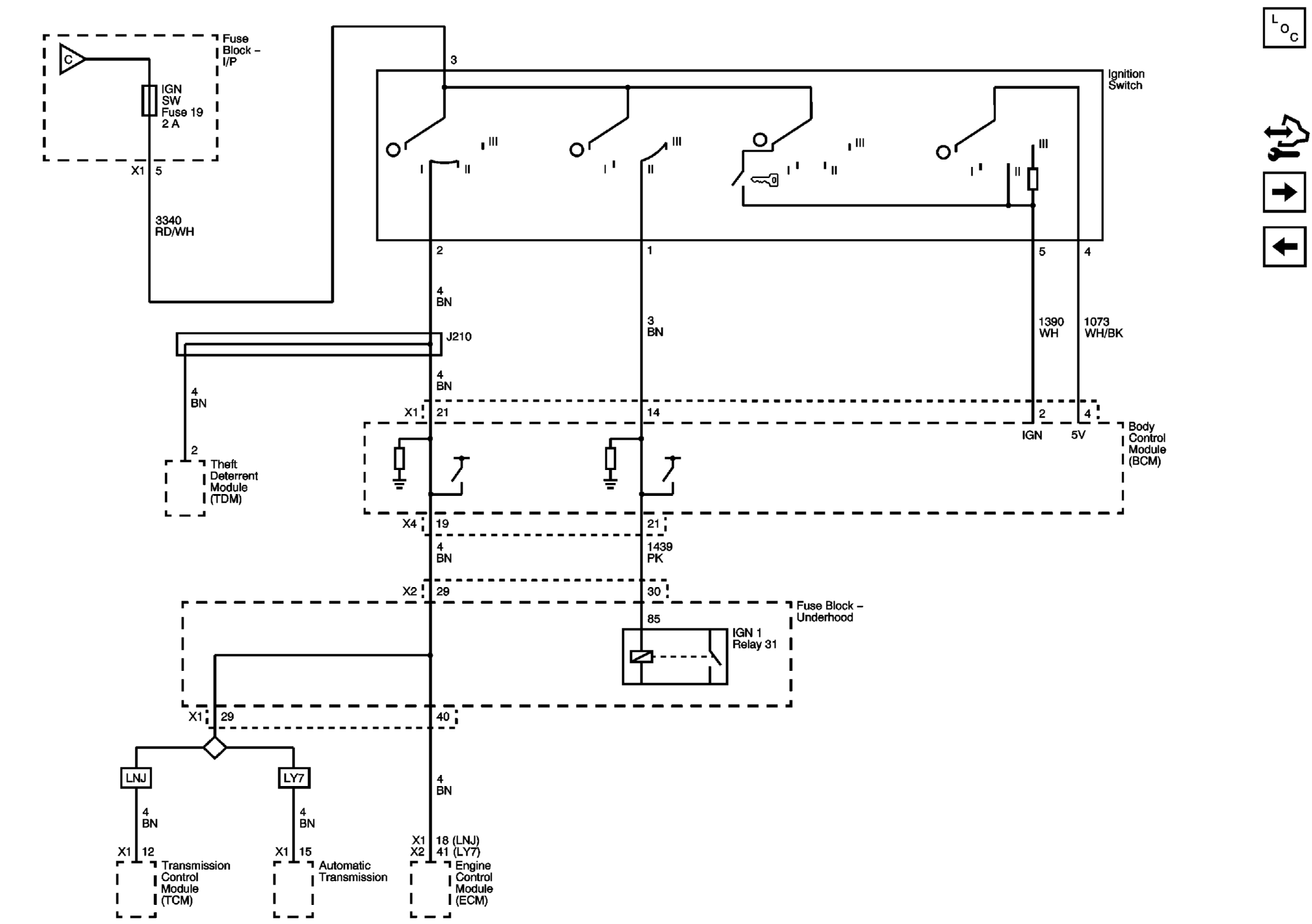

Fig 8: IGN SW Fuse and Ignition Switch

Courtesy of GENERAL MOTORS CORP.

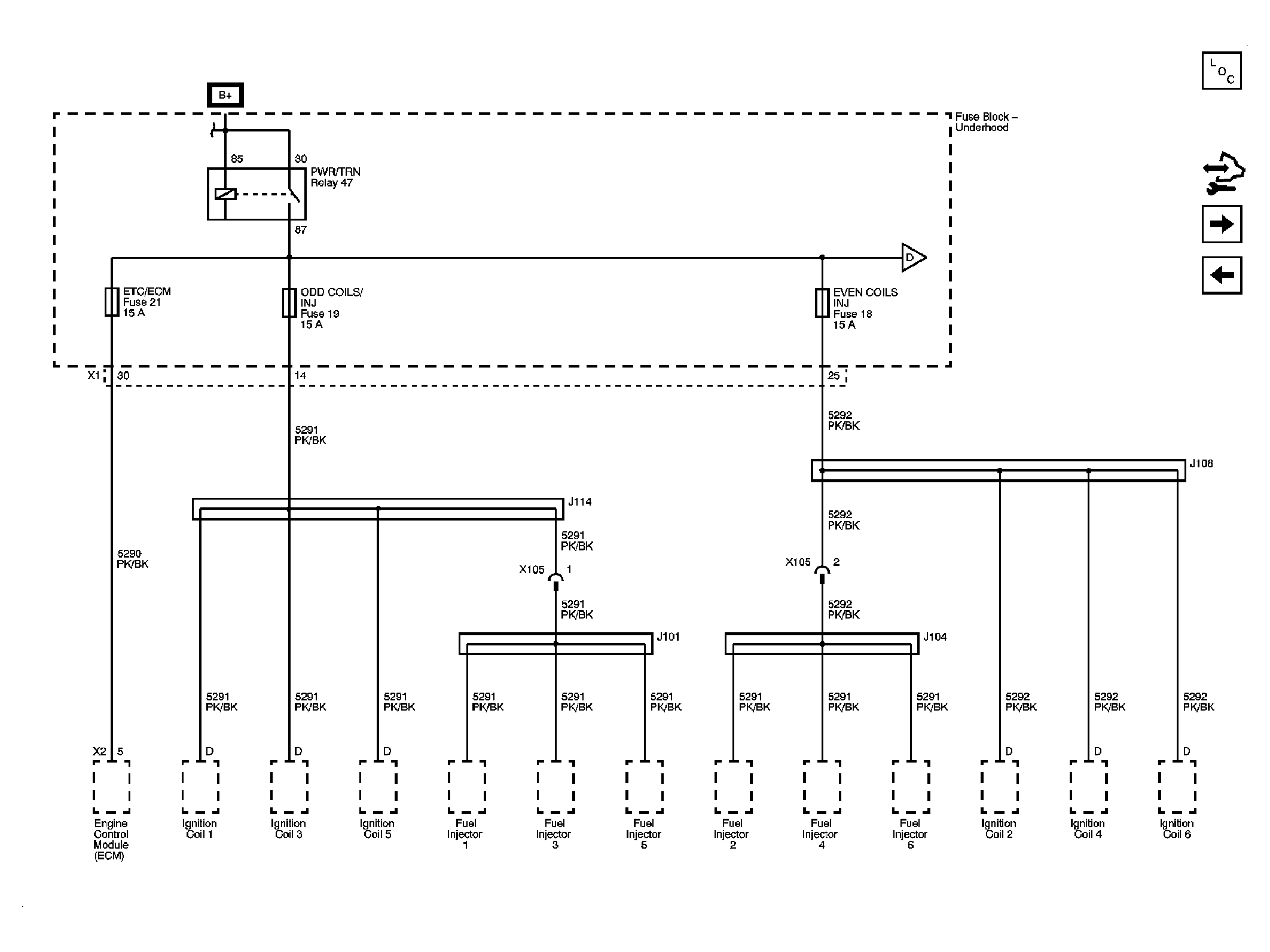

Fig 9: PWR/TRN RELAY, ETC/ECM, EVEN COILS/INJ and ODD COILS/INJ Fuses (LY7)

Courtesy of GENERAL MOTORS CORP.

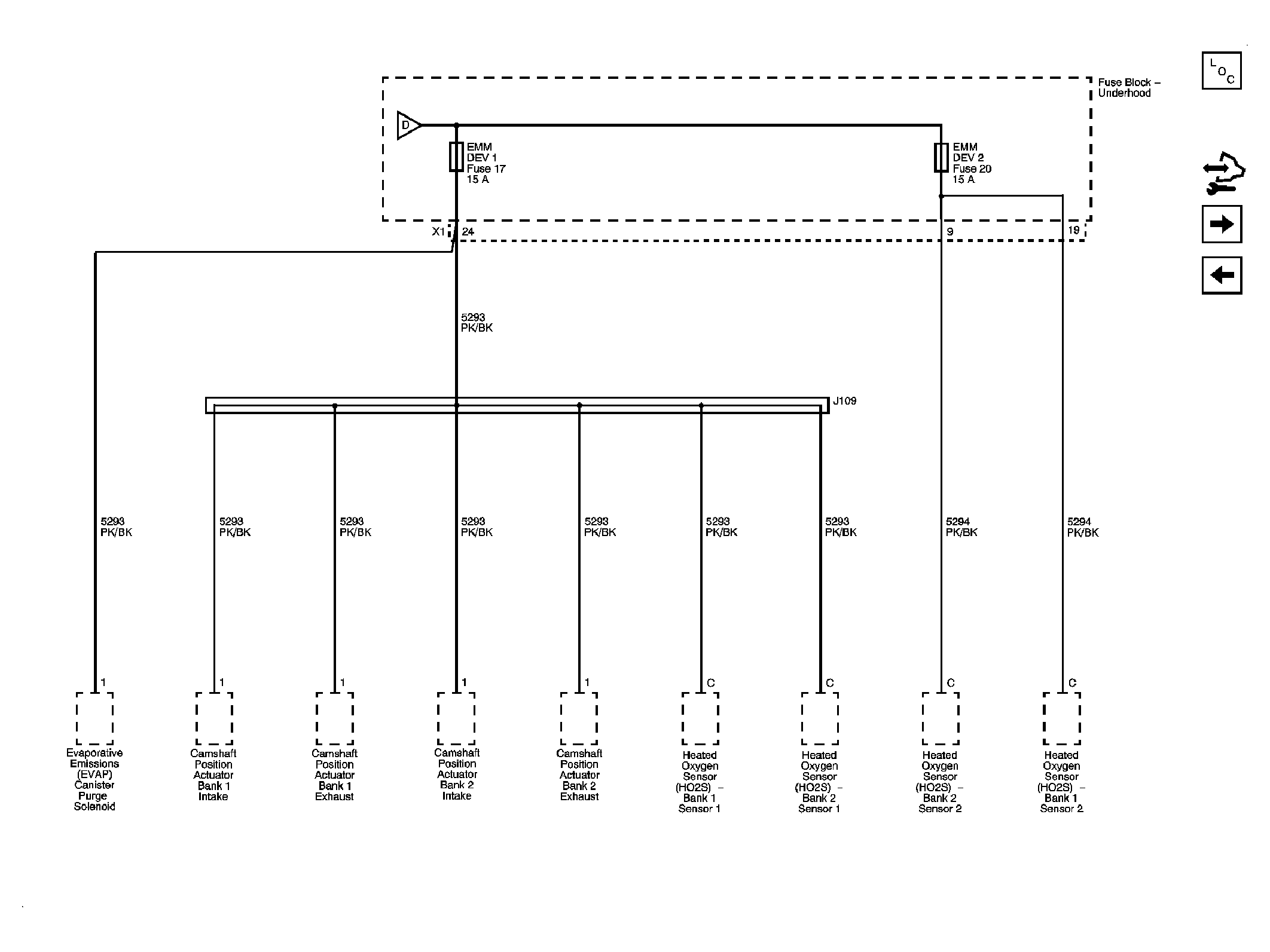

Fig 10: EMISO1 AND EMISO2 Fuses (LY7)

Courtesy of GENERAL MOTORS CORP.

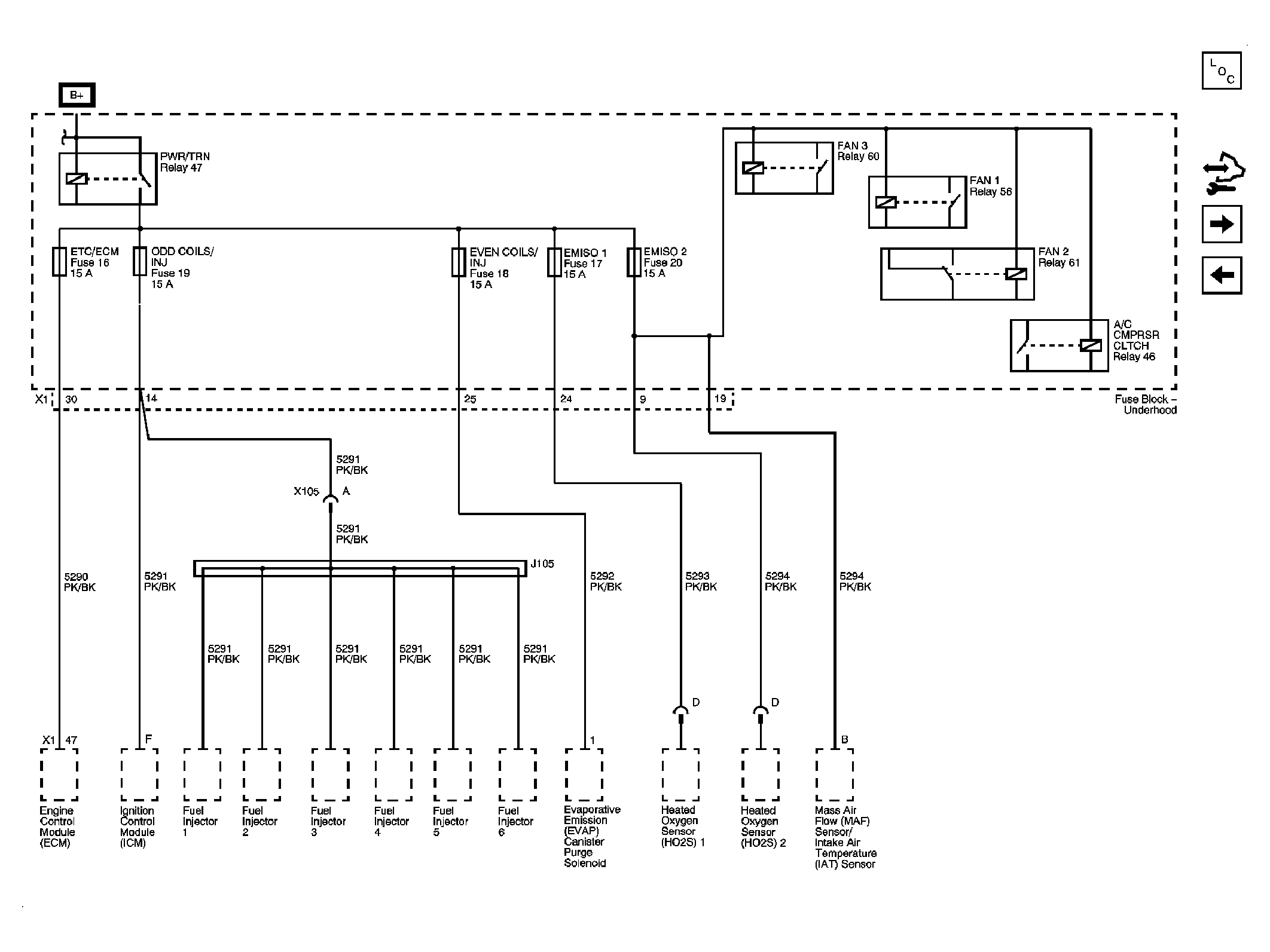

Fig 11: EMISO1, EMISO2, ETC/ECM, EVEN COILS/INJ AND ODD COILS/INJ Fuses (LNJ)

Courtesy of GENERAL MOTORS CORP.

Fig 12: IGN 1 Relay Bus - MAF, PCM IGN, AIRBAG DISPLY and TRANS Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 13: DRL 1, DRL 2, FOG LAMP, LT HI BEAM, LT LO BEAM, RT HI BEAM, and RT LO BEAM Fuses

Courtesy of GENERAL MOTORS CORP.

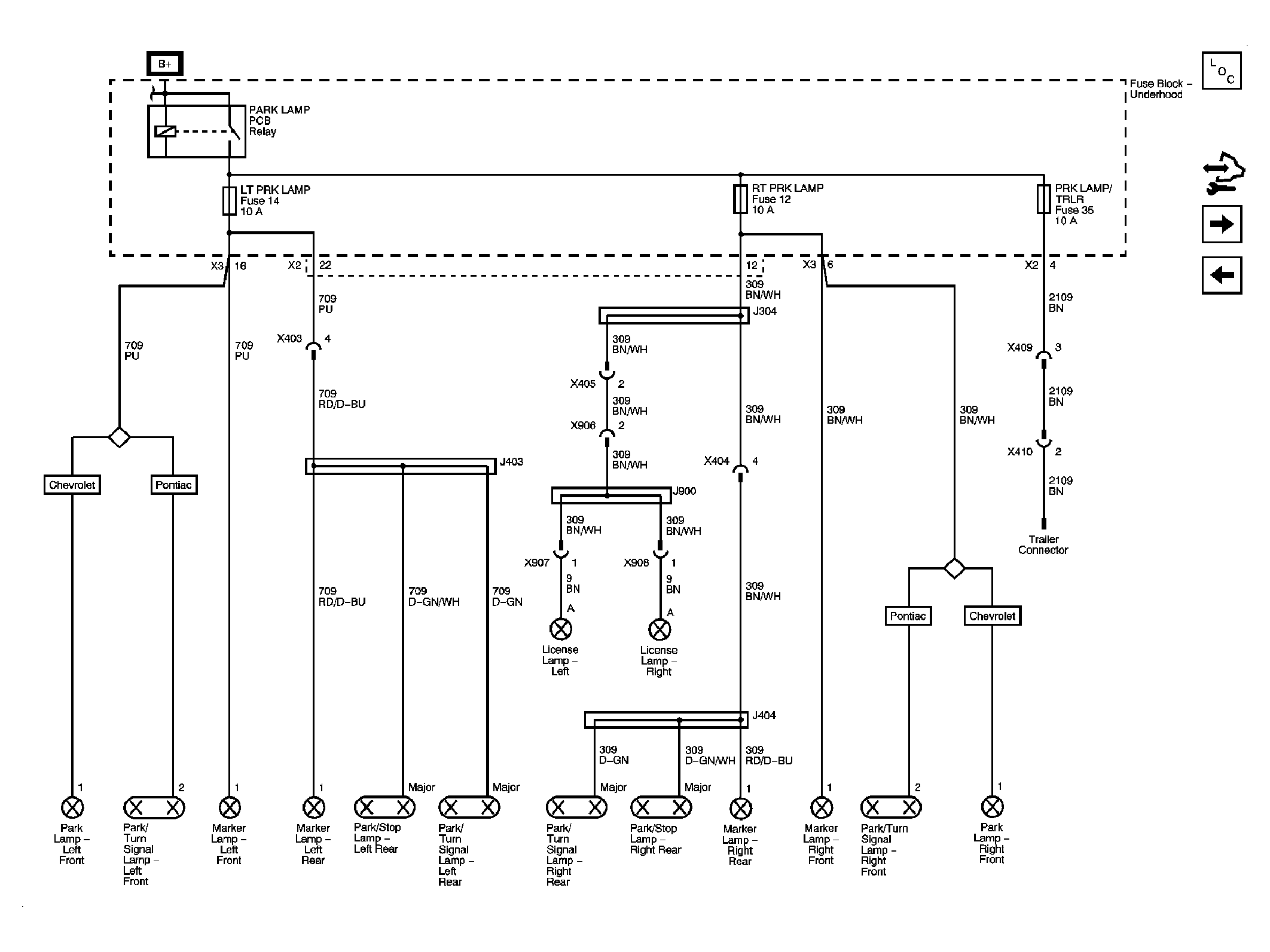

Fig 14: LT PRK LAMP, RT PRK LAMP and PRK LAMP/TRLR Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 15: HORN, LT TRLR STOP/TRN, RT TRLR STOP/TRN and STOP LAMP Fuses

Courtesy of GENERAL MOTORS CORP.
