Home >> Pontiac >> 2008 >> Torrent AWD V6-3.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Instrument Panel Fuse Block
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Instrument Panel Fuse Block

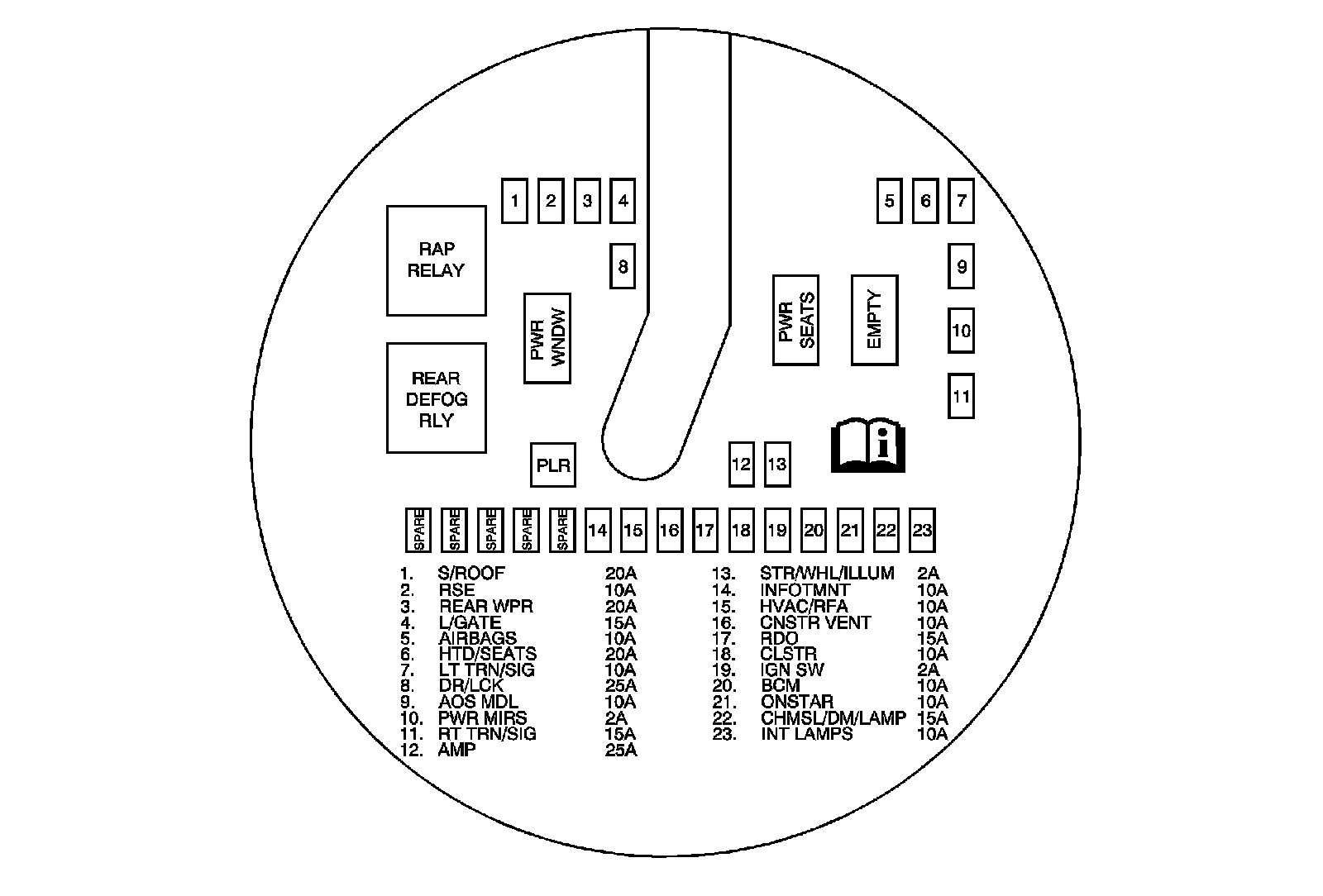

Electrical Center Identification Views

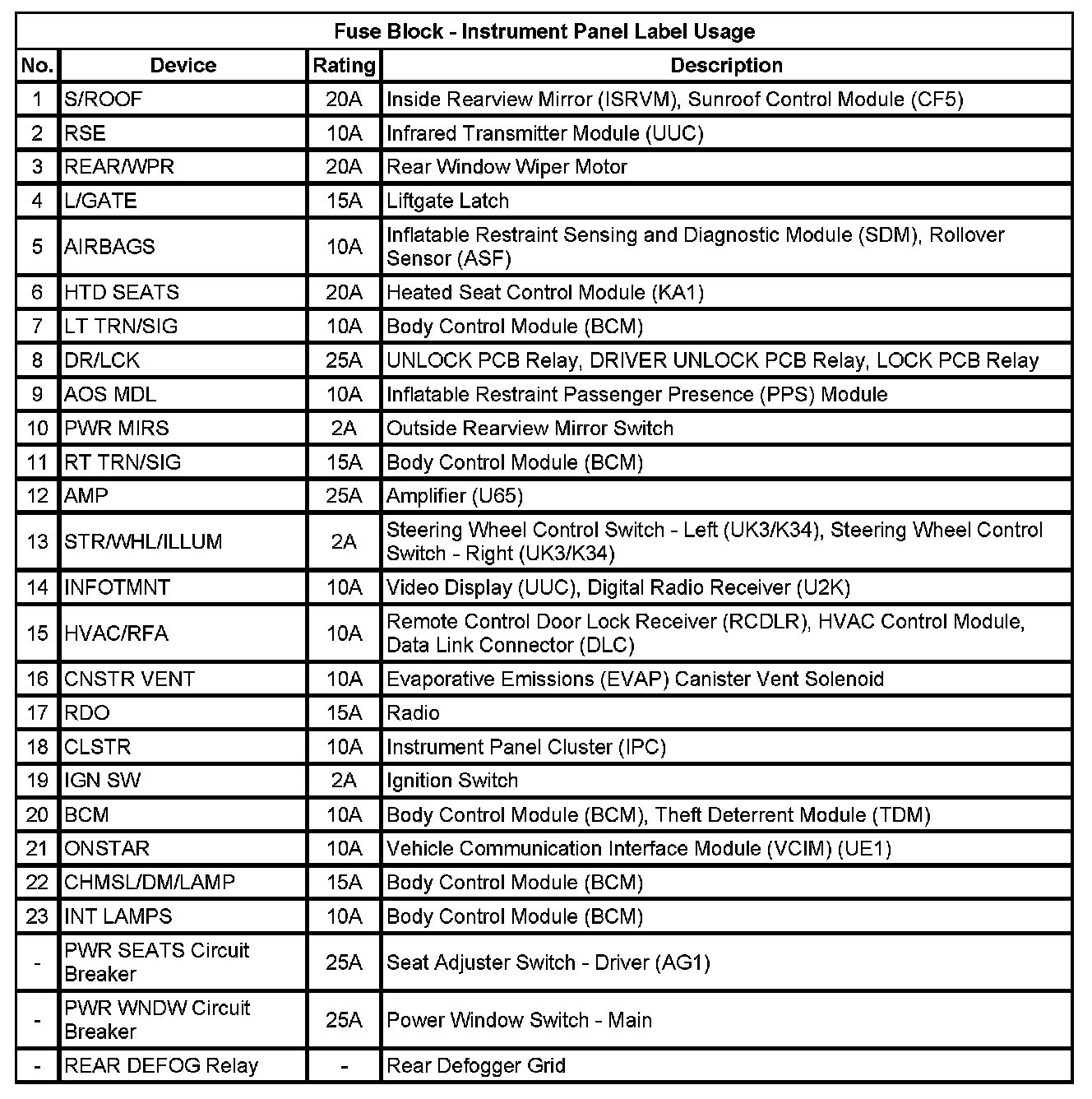

Fuse Block - Instrument Panel Label
