Electrical Diagrams



Automatic Transmission Controls Schematics

Power, Ground, and Serial Data

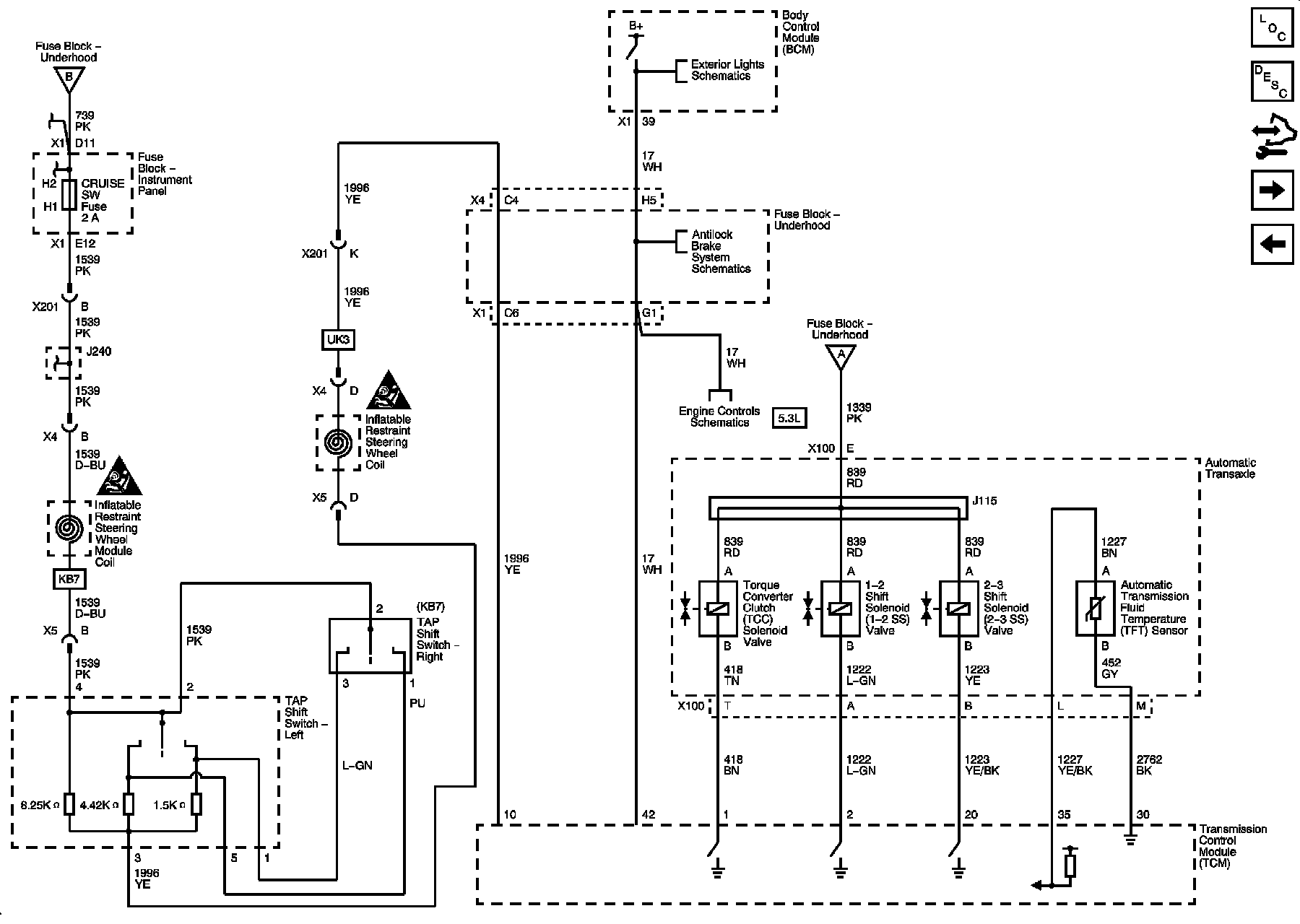

Tap Shift Switches, Stop Lamp Signal, TFT Sensor and TCC Shift Solenoids





VSS and AT Sensors, Pressure Control Solenoid Valve and TCC Release Switch





PRNDL and IMS Switch

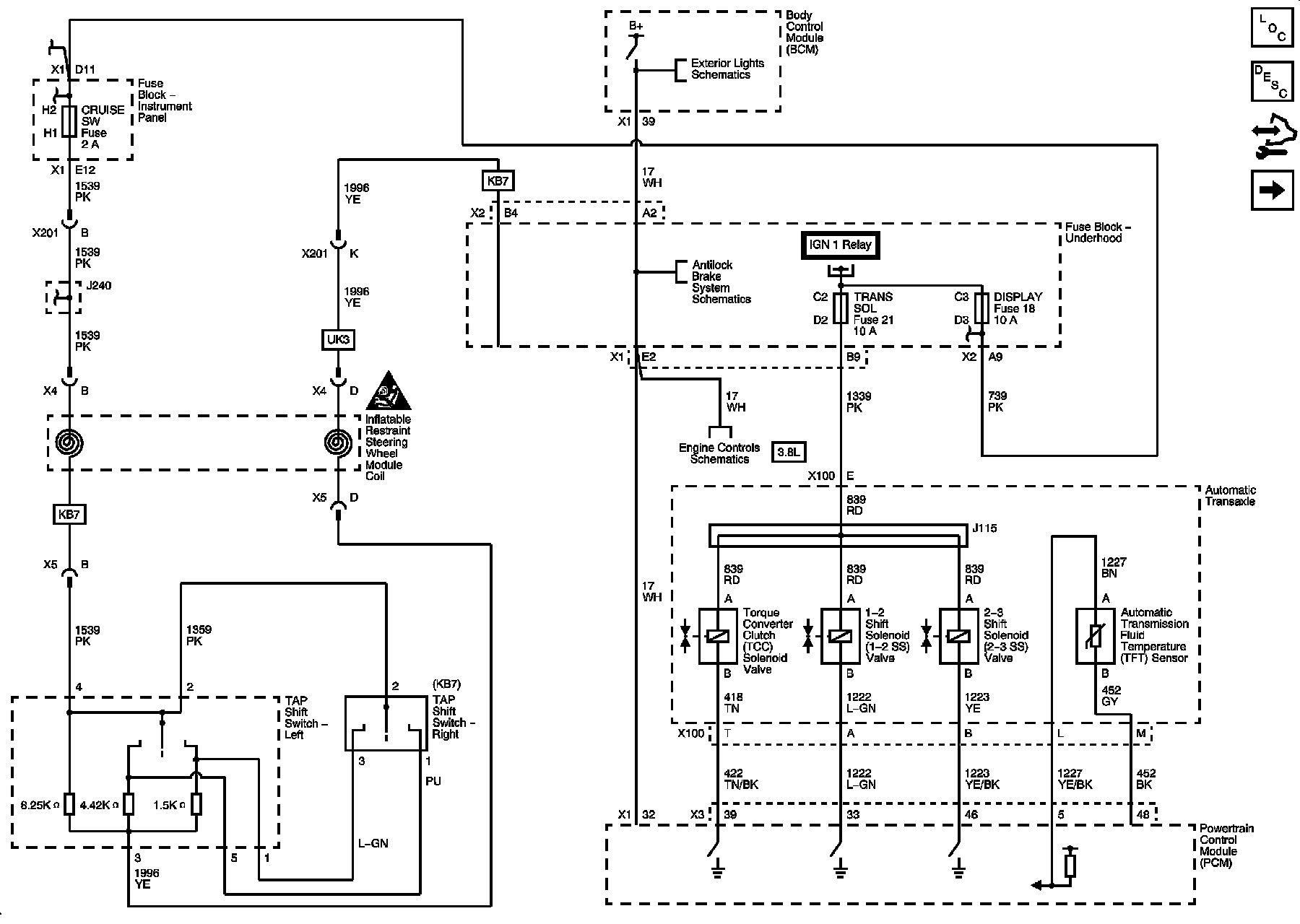

Tap Shift Switches, Stop Lamp Signal, TFT Sensor and TCC, Shift Solenoids





VSS and AT ISS Sensors, Pressure Control Solenoid Valve, and TCC Release Switch





PRNDL and IMS Switch
