Connector Views



Heated Oxygen Sensor (HO2S) 1 (LS4 - 5.3L)

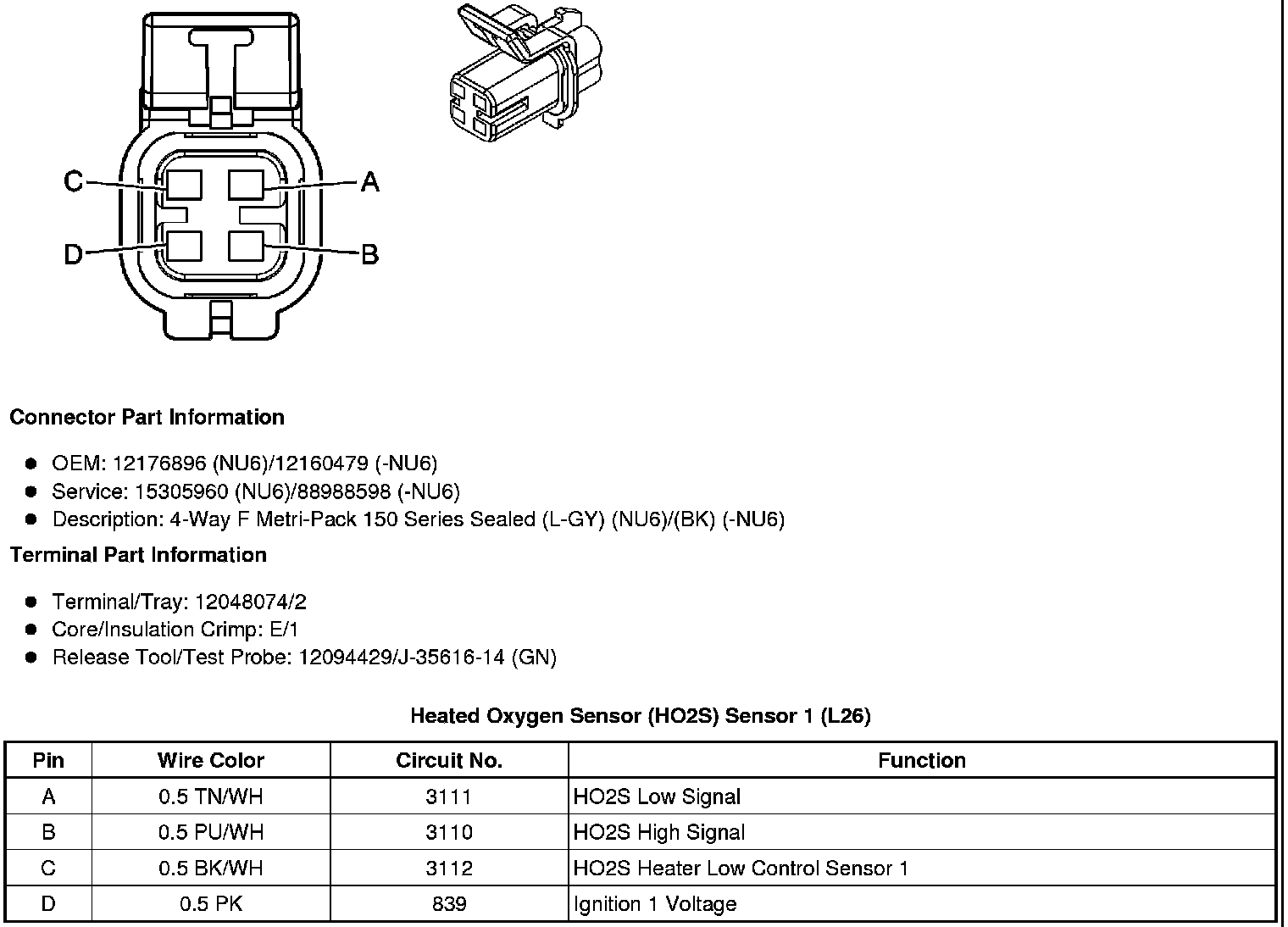

Heated Oxygen Sensor (HO2S) Sensor 1 (L26)






Heated Oxygen Sensor (HO2S) 2 (LS4 - 5.3L)

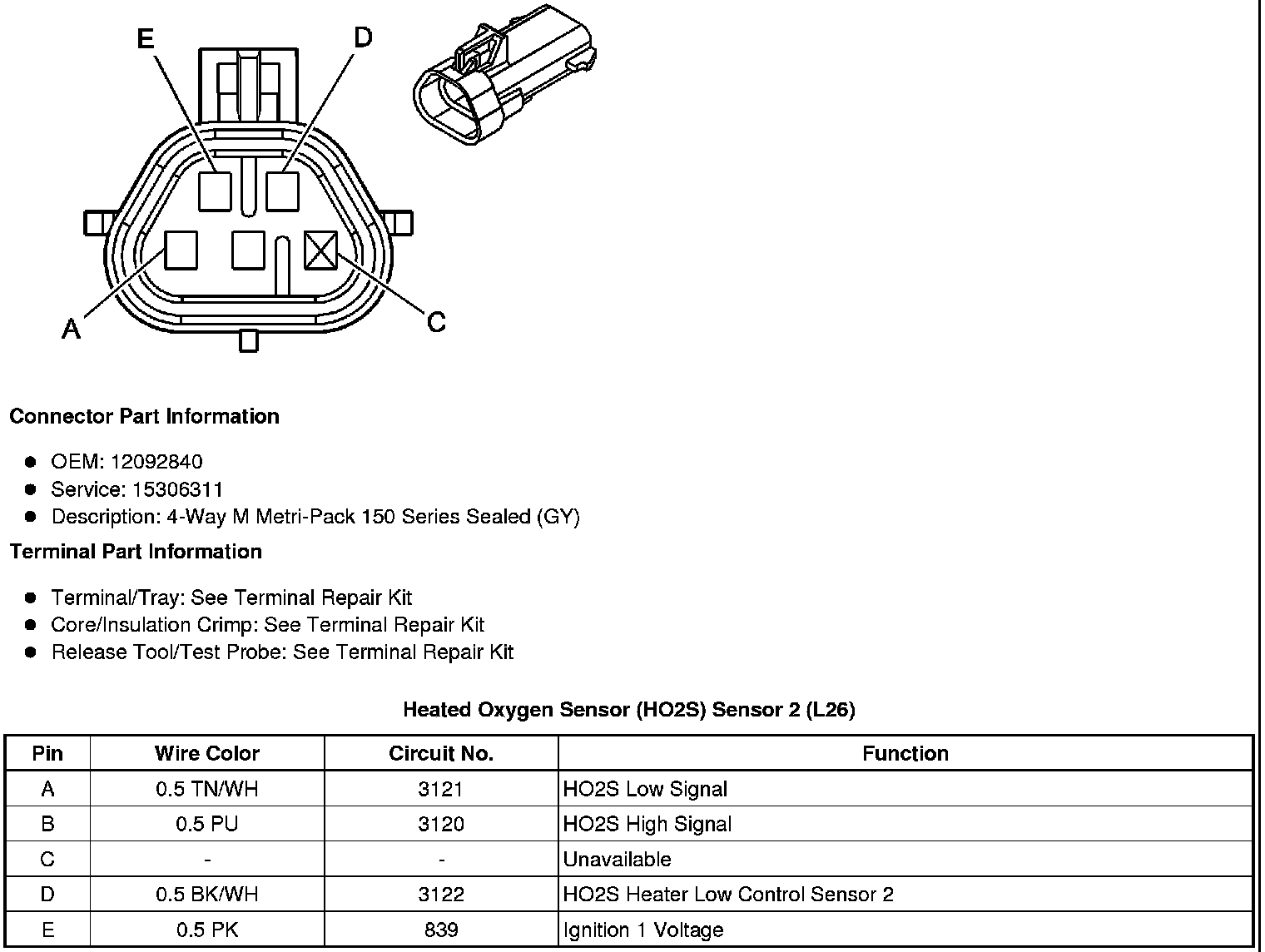

Heated Oxygen Sensor (HO2S) Sensor 2 (L26)
