Fuse Block Underhood Connector Views



Electrical Center Identification Views

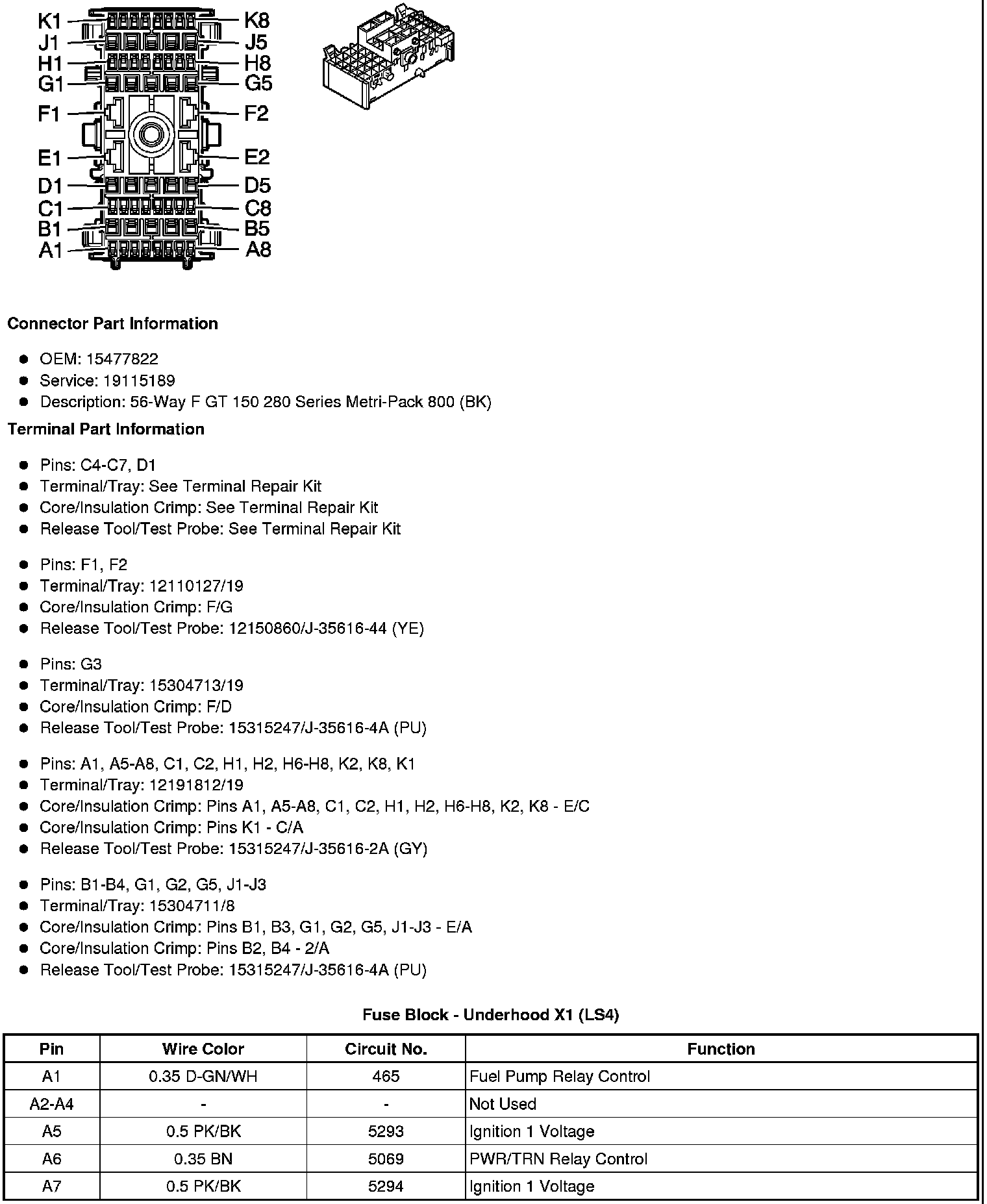

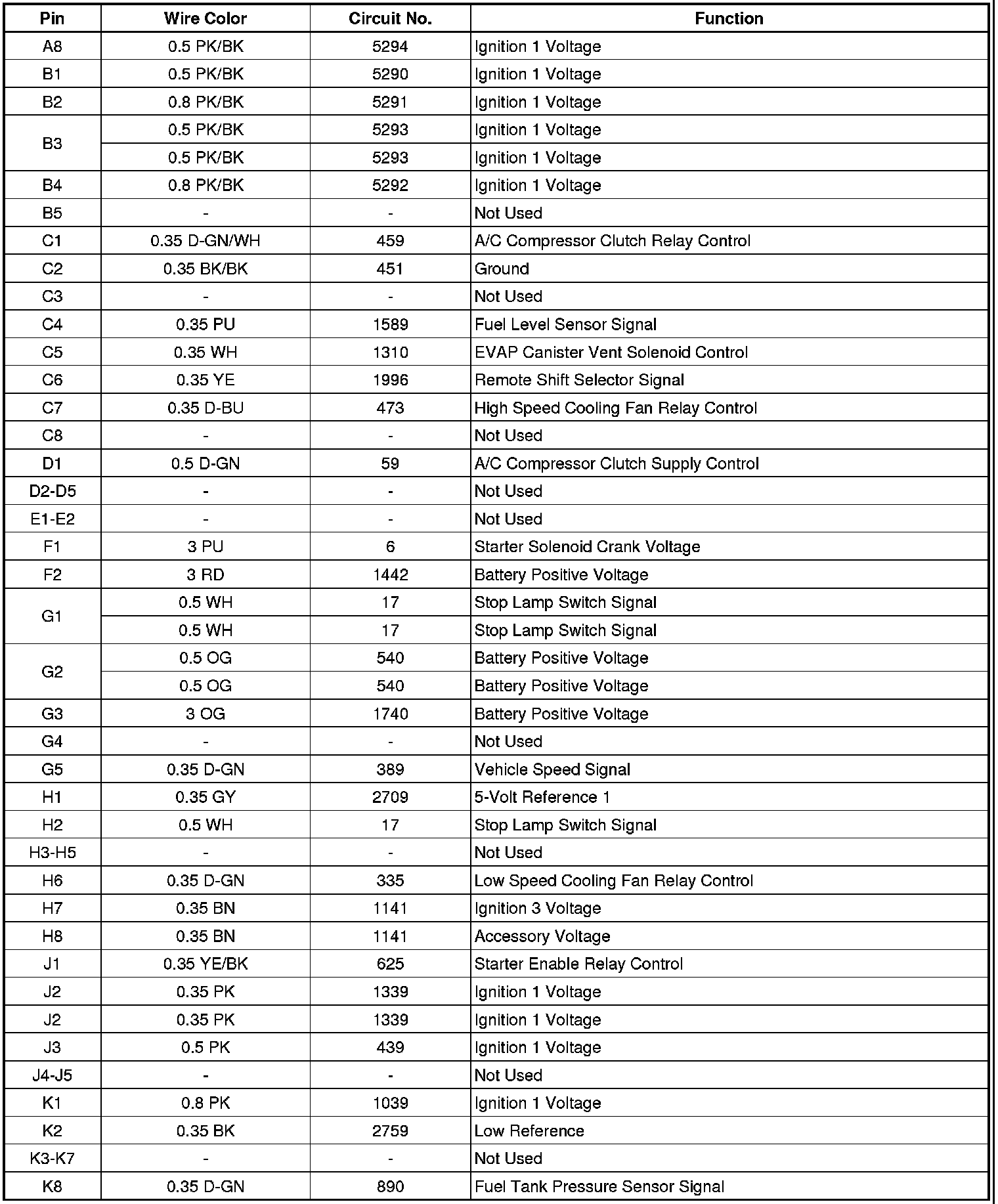

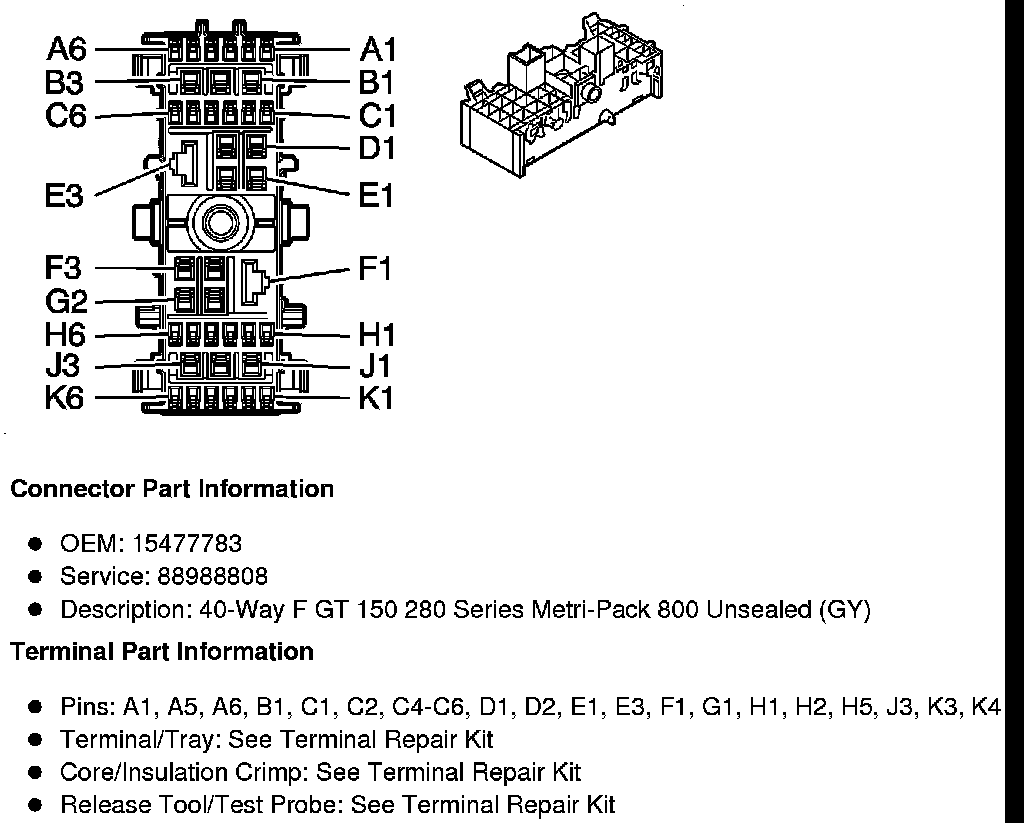

Fuse Block - Underhood X1 (LS4 - 5.3L)

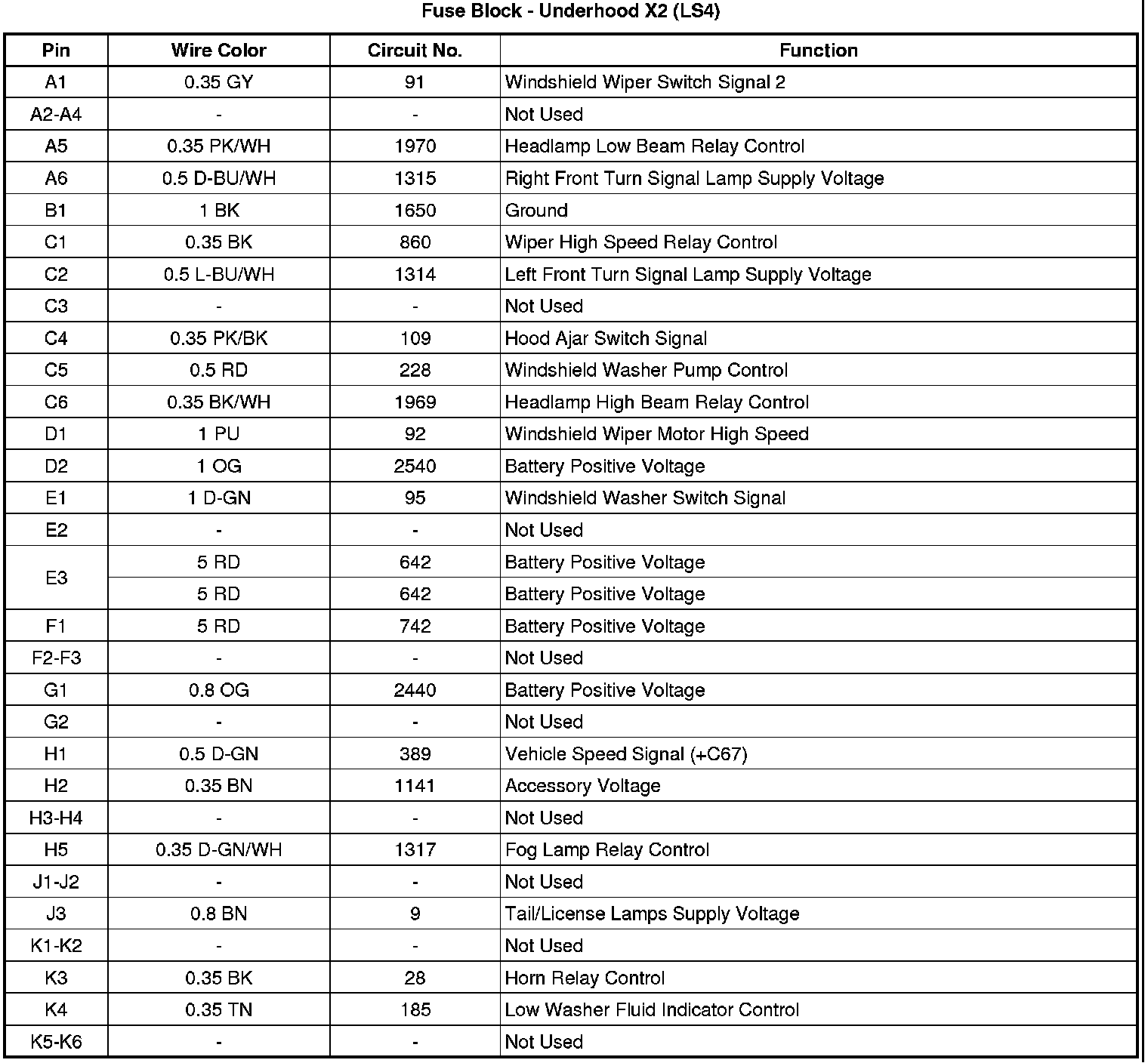

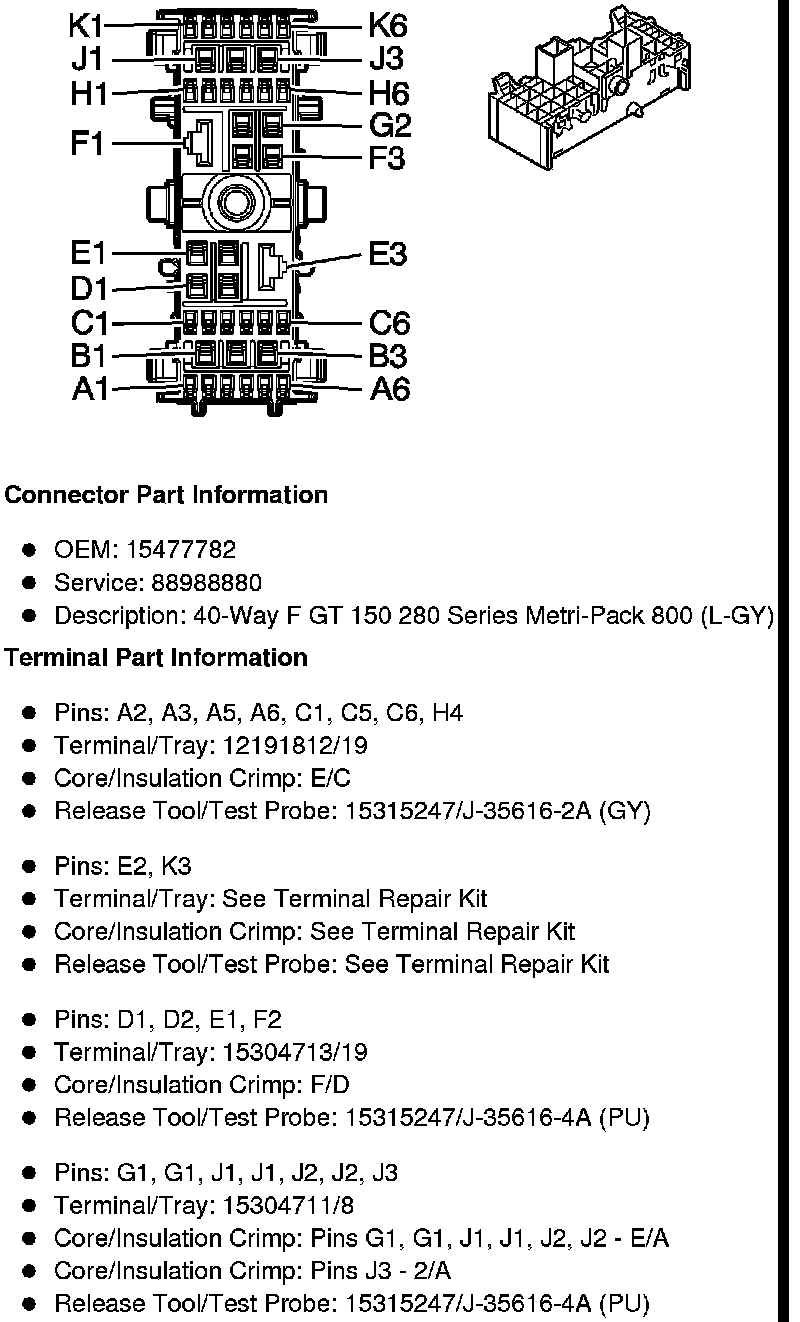

Fuse Block - Underhood X2 (LS4 - 5.3L)

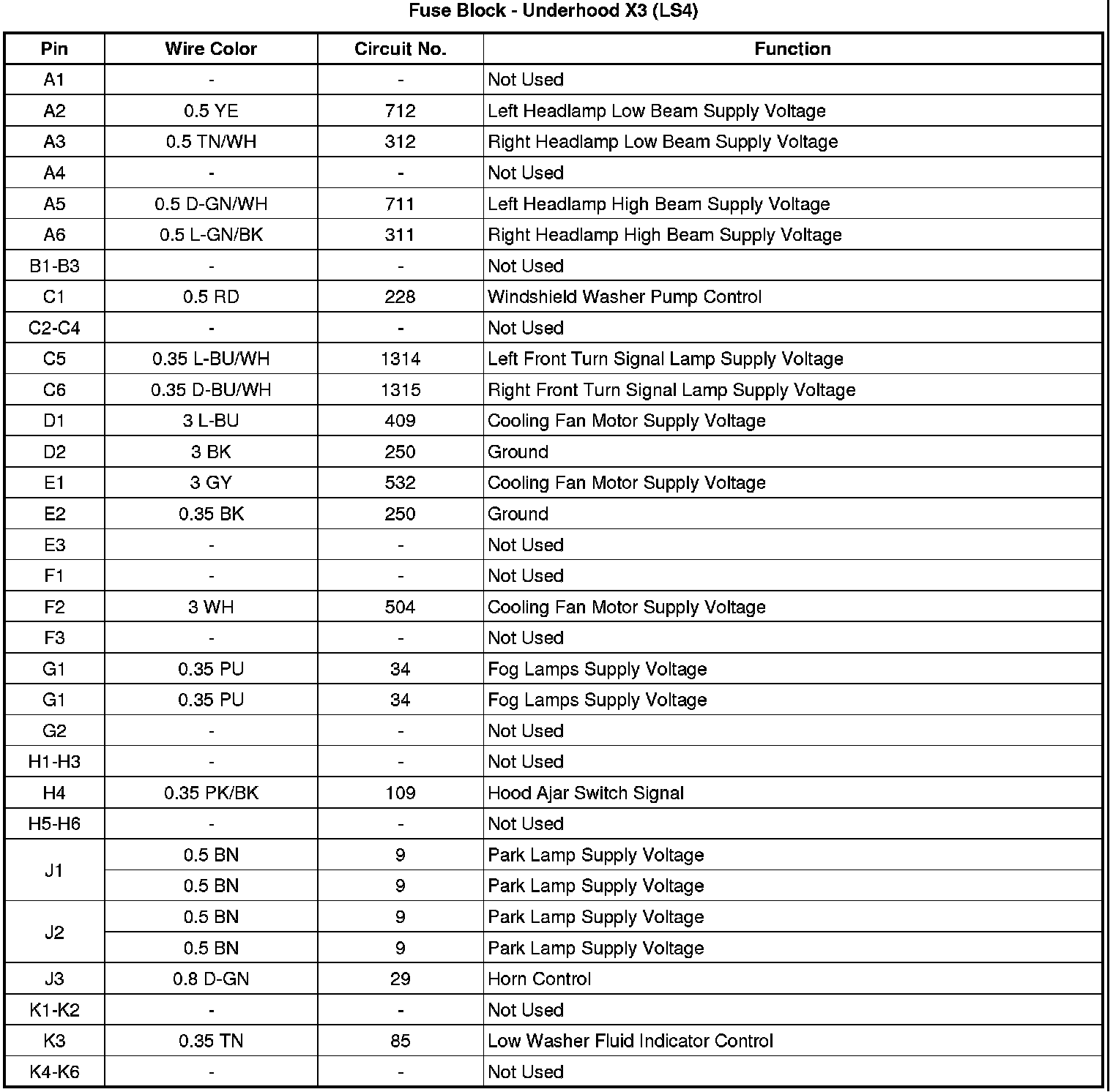

Fuse Block - Underhood X3 (LS4 - 5.3L)

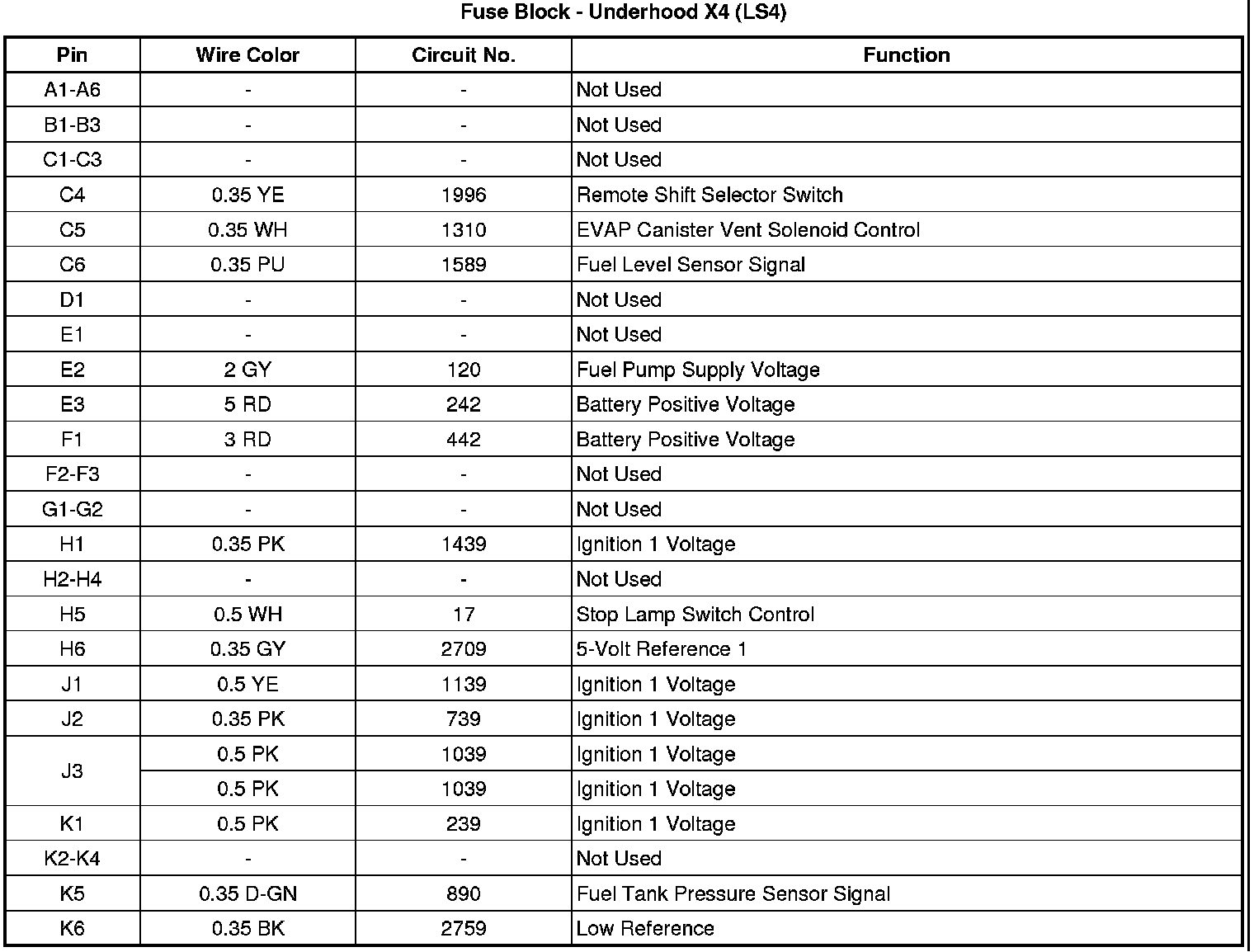

Fuse Block - Underhood X4 (LS4 - 5.3L)
