Air Injection Control Valve

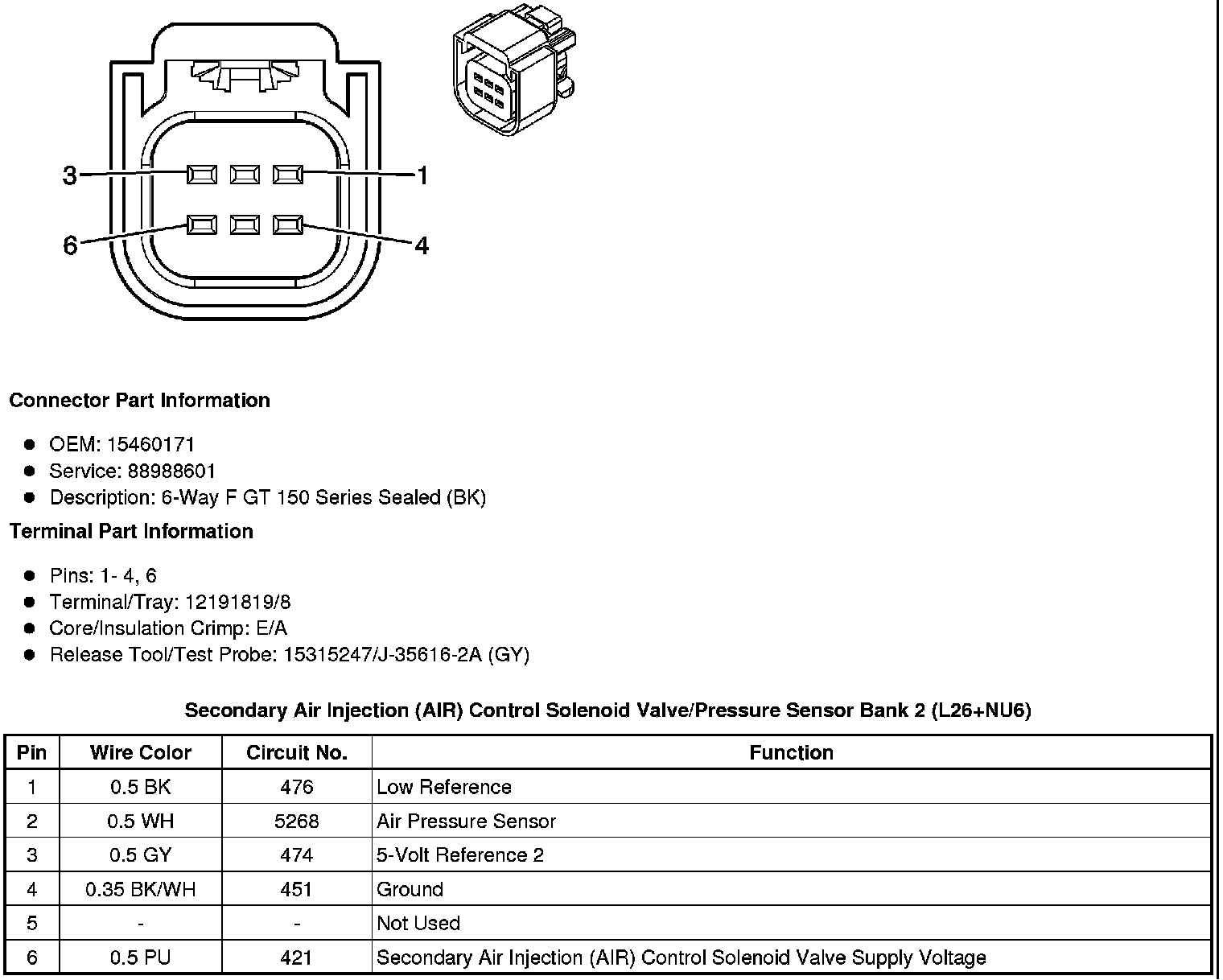

Secondary Air Injection (AIR) Control Solenoid Valve/Pressure Sensor Bank 2 (L26+NU6)
