Power Locks

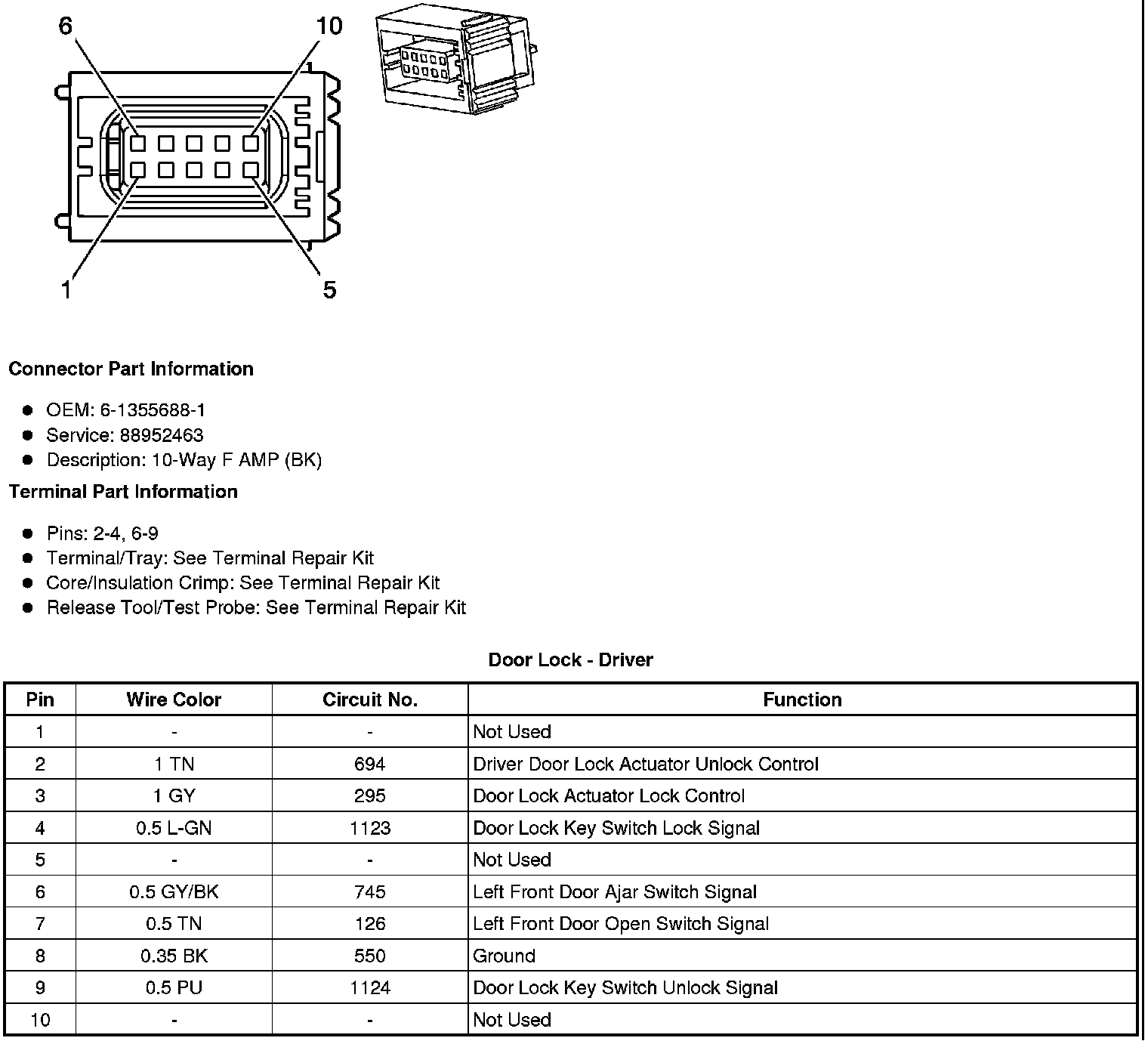

Door Lock - Driver

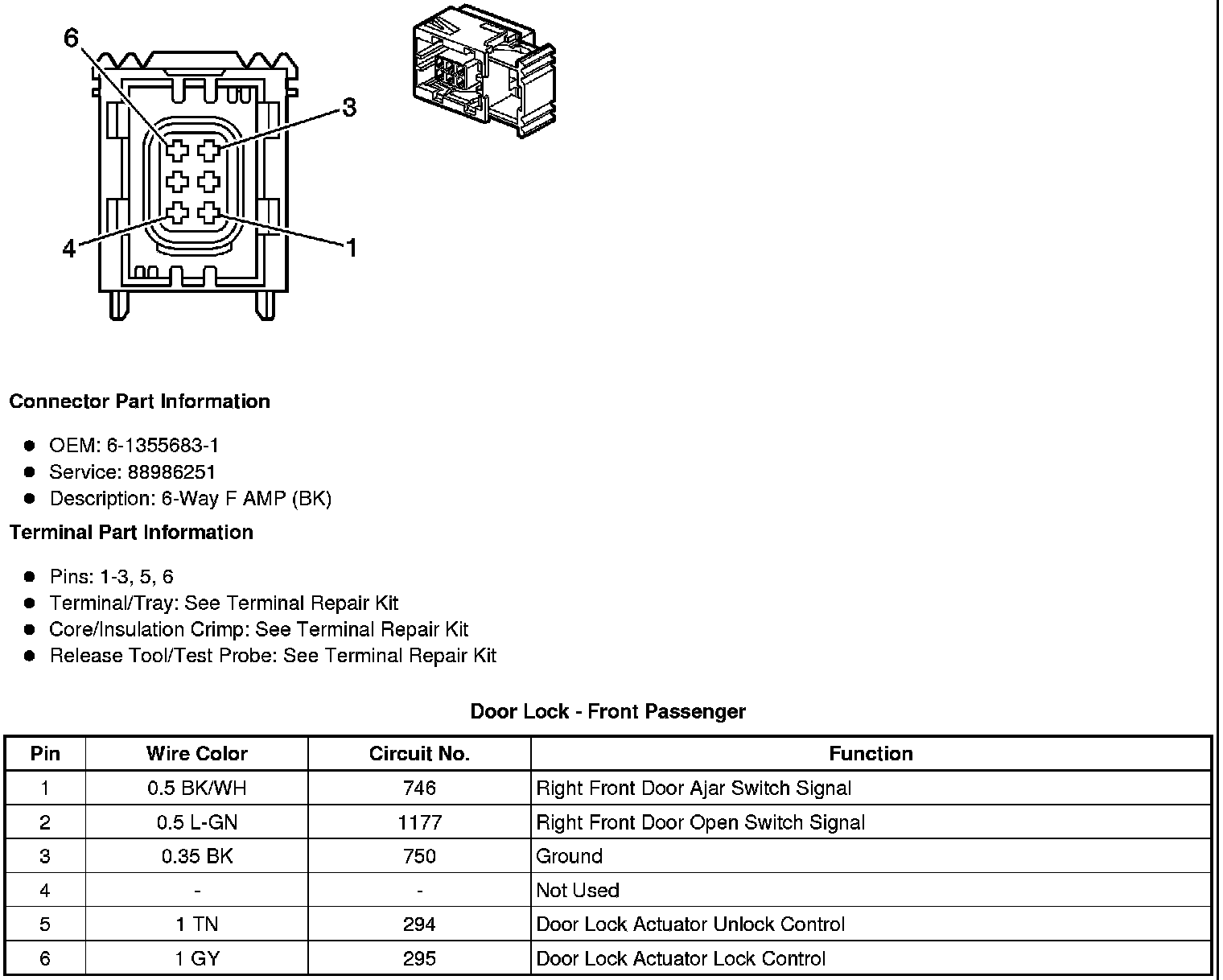

Door Lock - Front Passenger

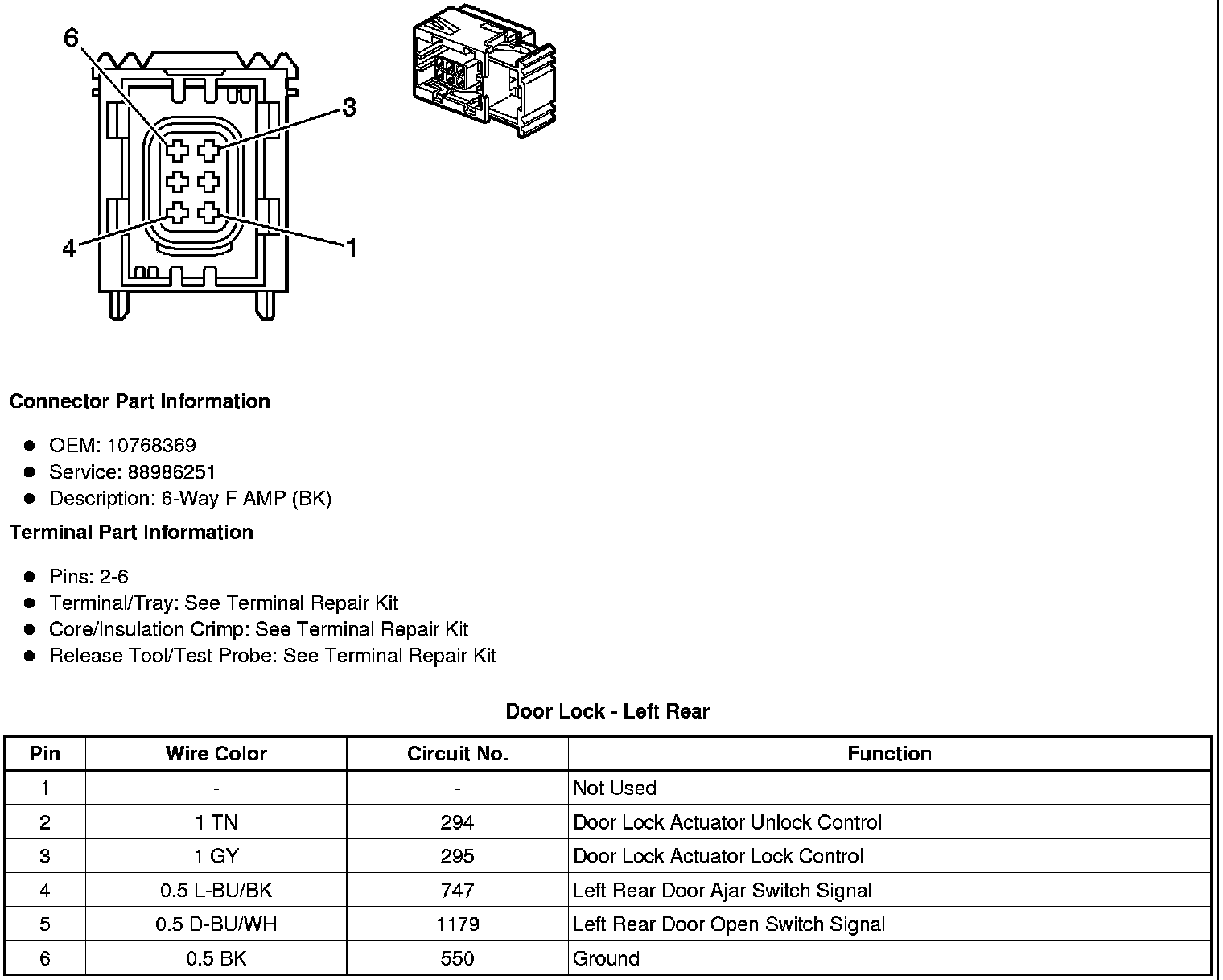

Door Lock - Left Rear






Door Lock - Right Rear






Door Lock Switch - Driver






Door Lock Switch - Front Passenger

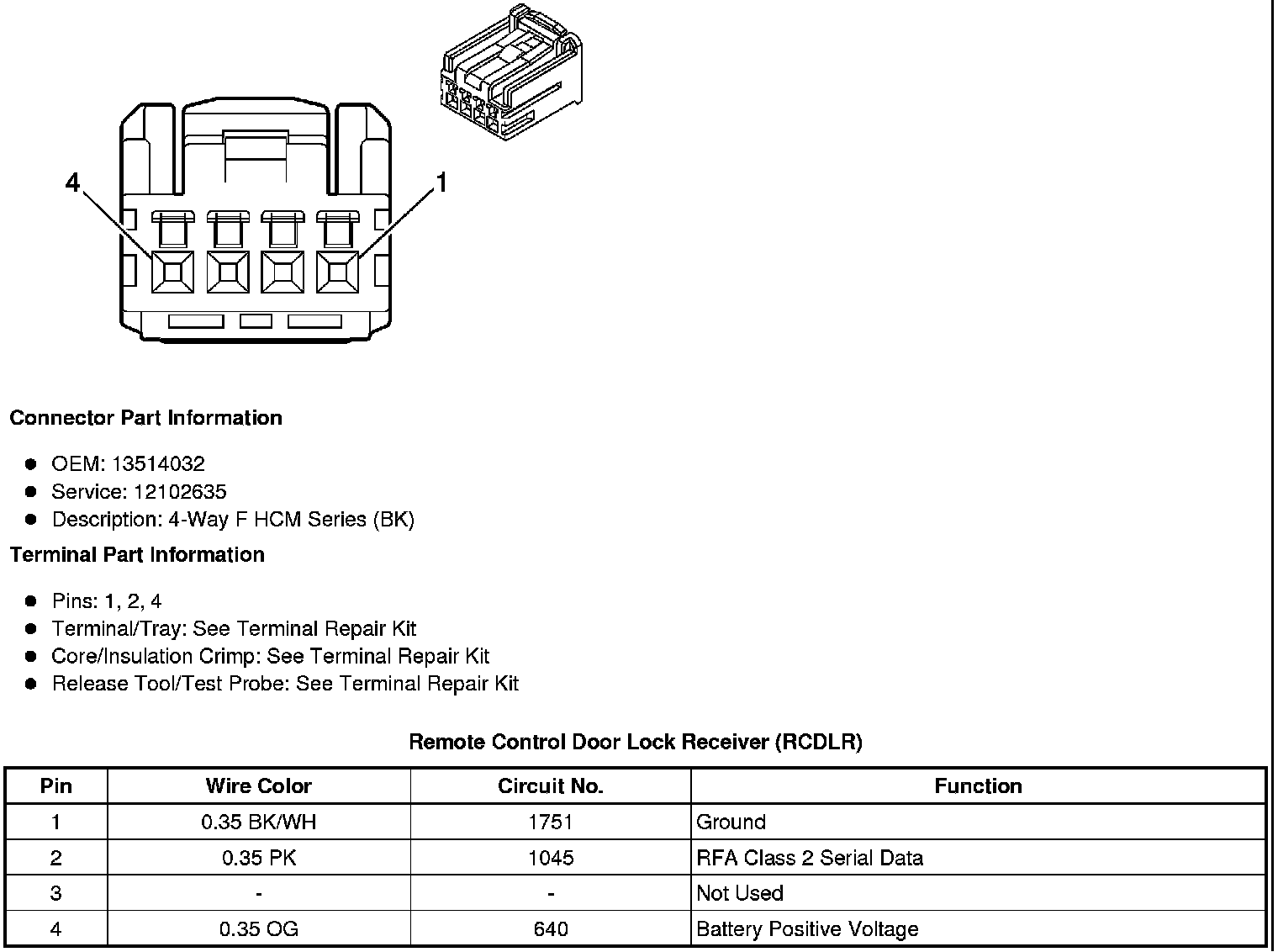

Remote Control Door Lock Receiver (RCDLR)
