Fuse Block Underhood Connector Views



Electrical Center Identification Views

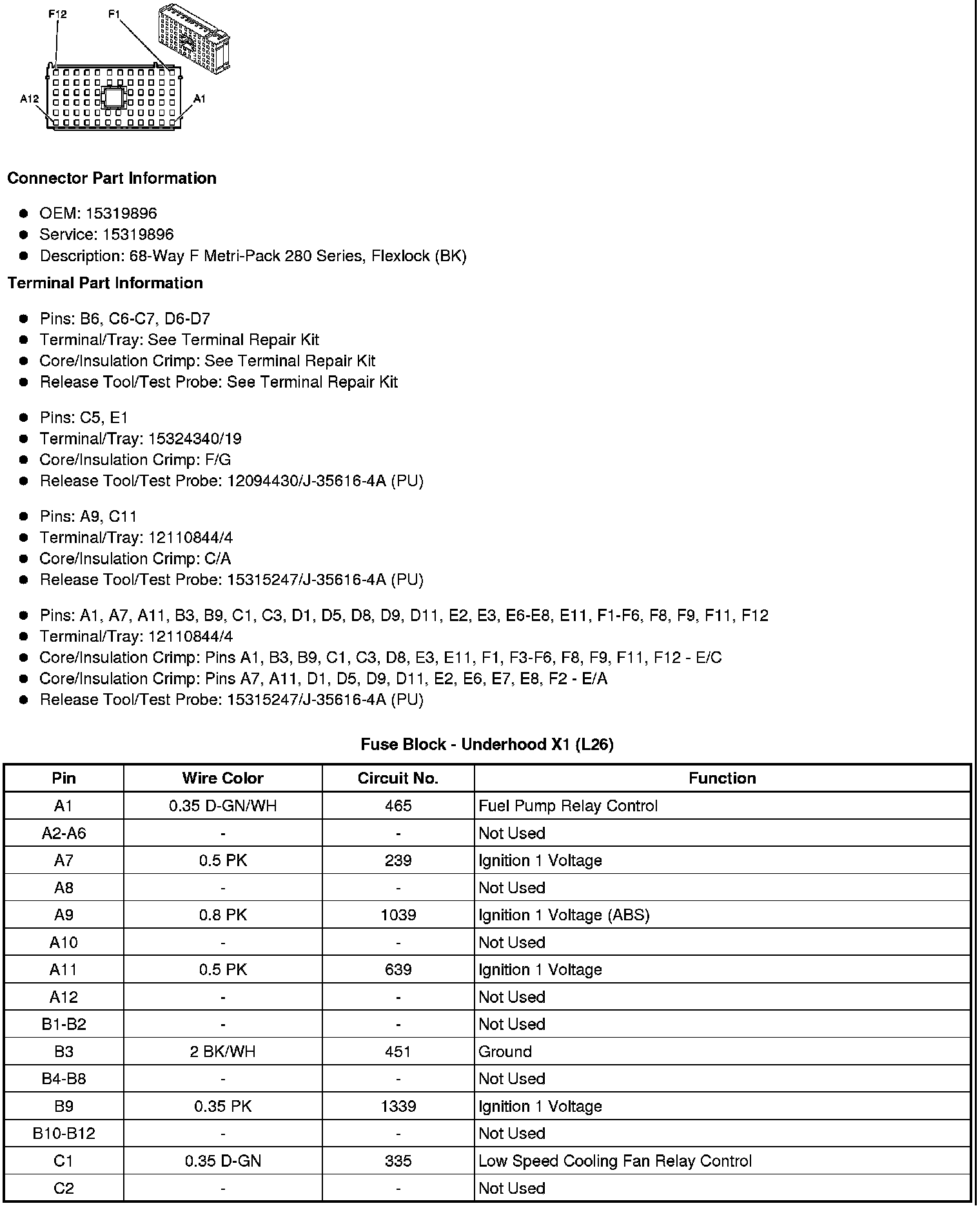

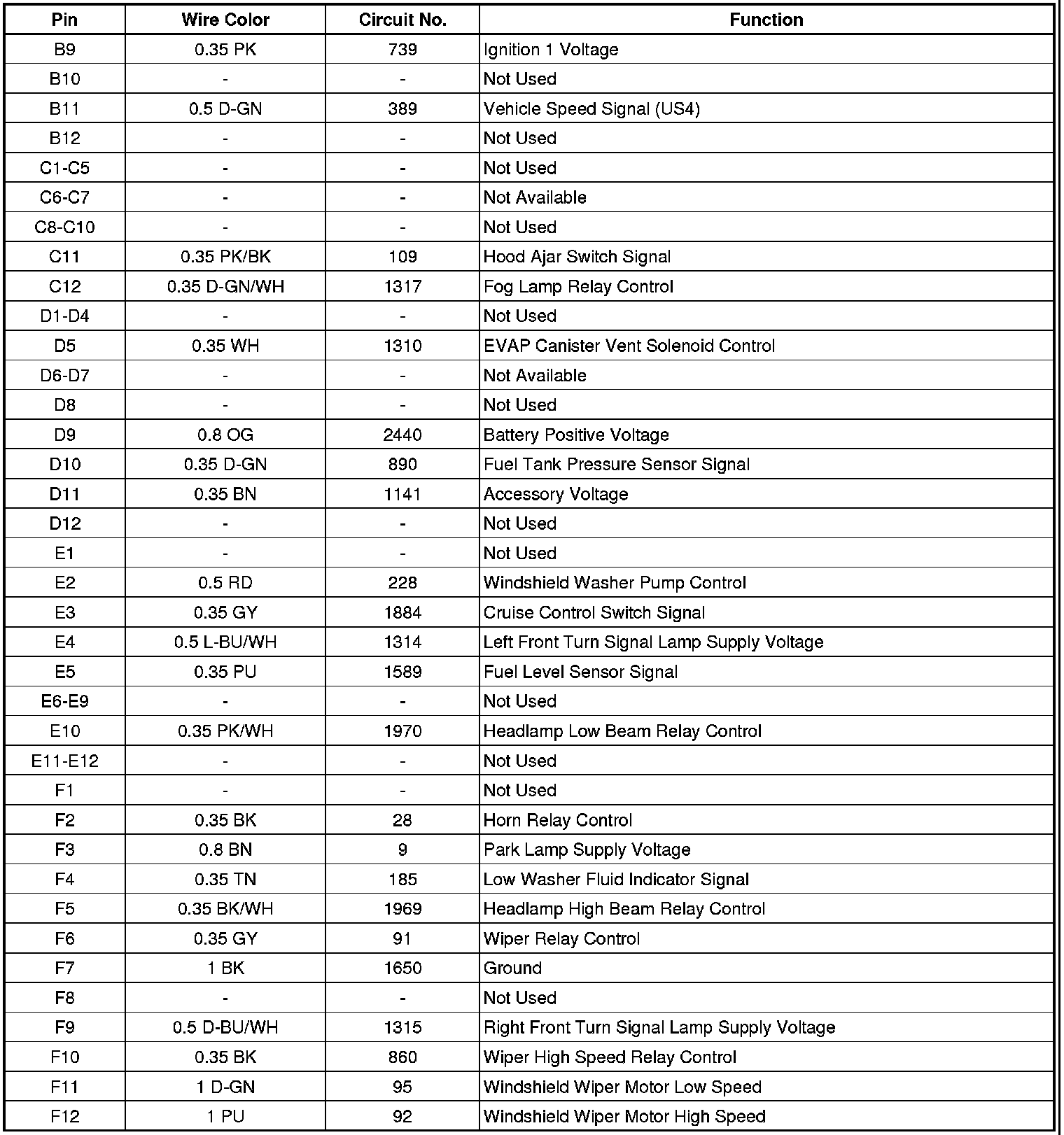

Fuse Block - Underhood X1 (L26 - 3.8L)

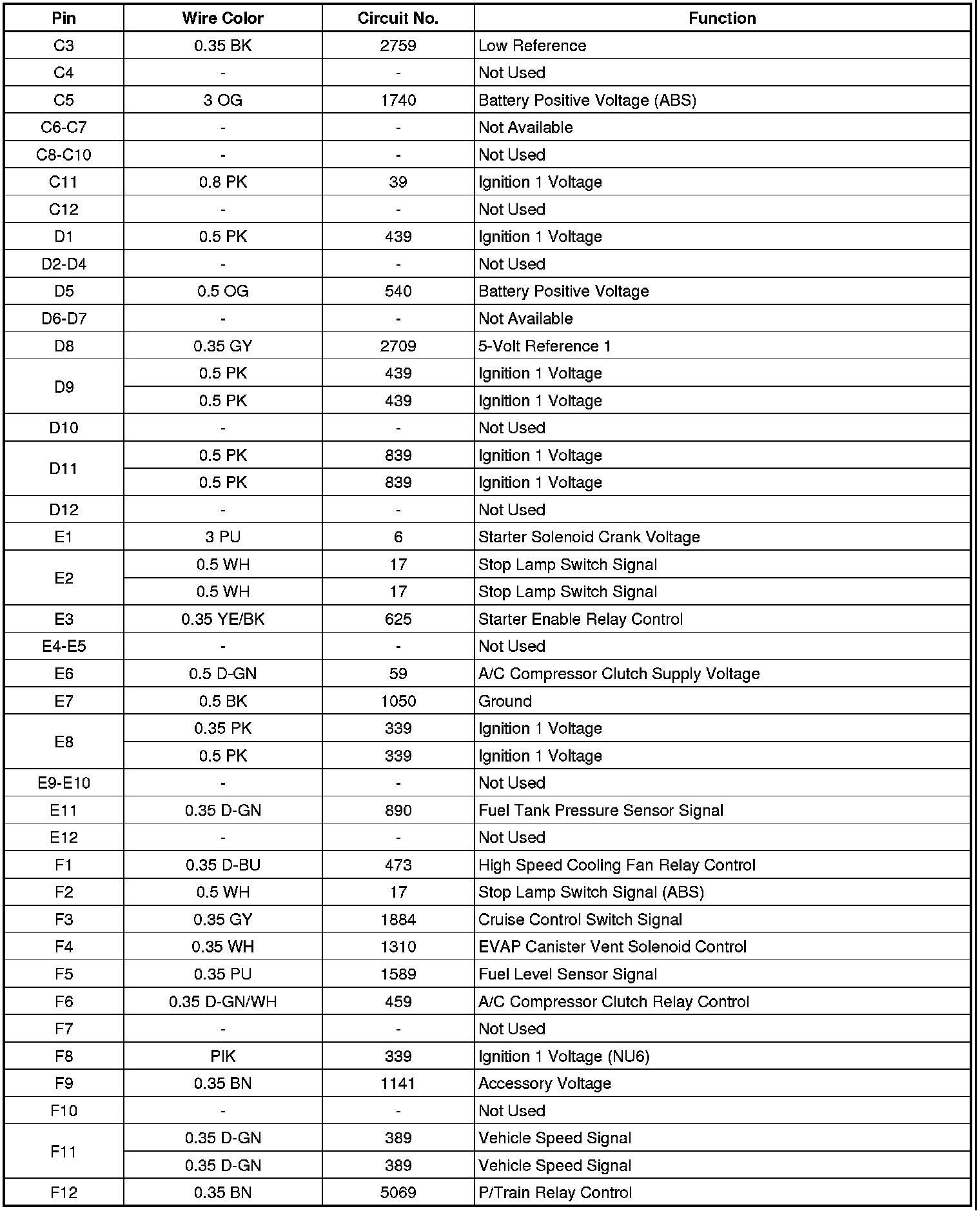

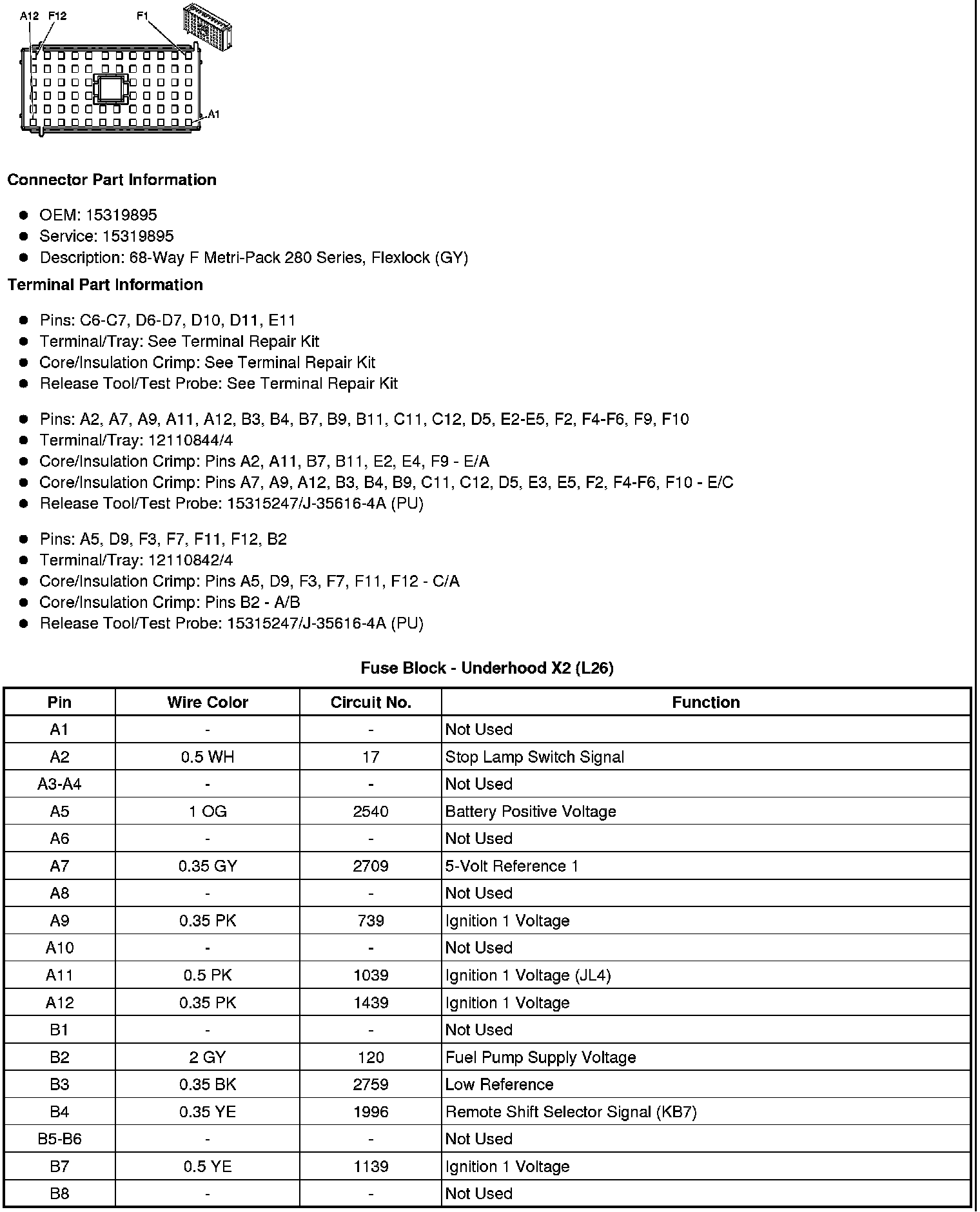

Fuse Block - Underhood X2 (L26 - 3.8L)

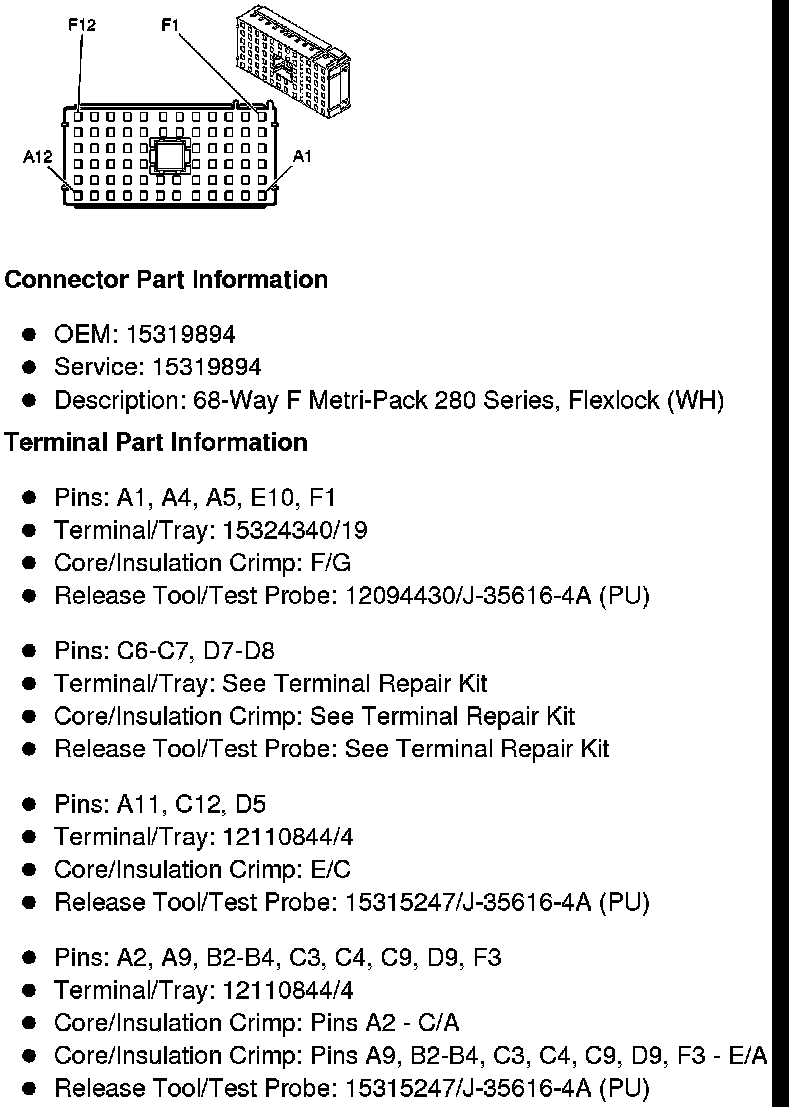

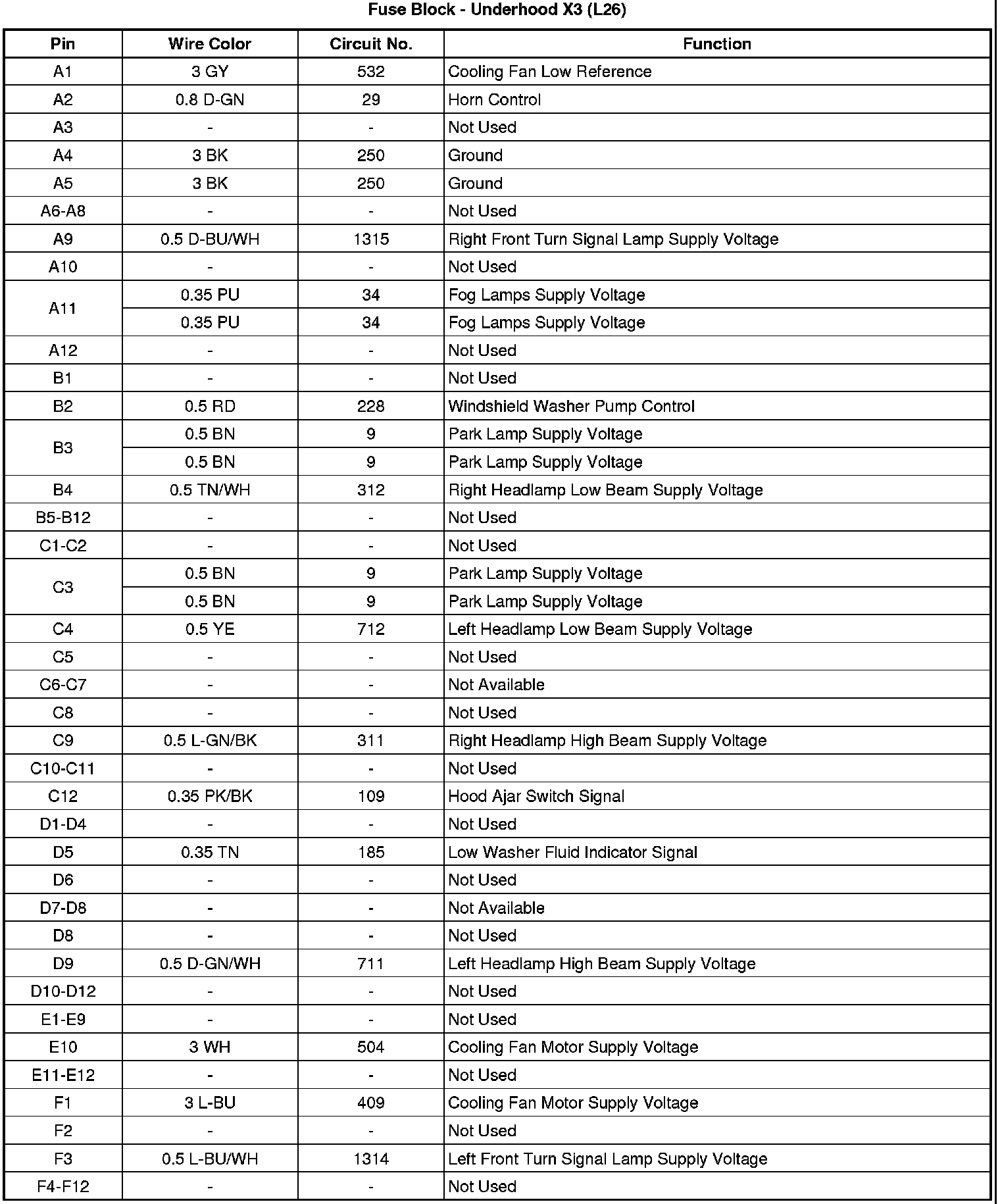

Fuse Block - Underhood X3 (L26 - 3.8L)

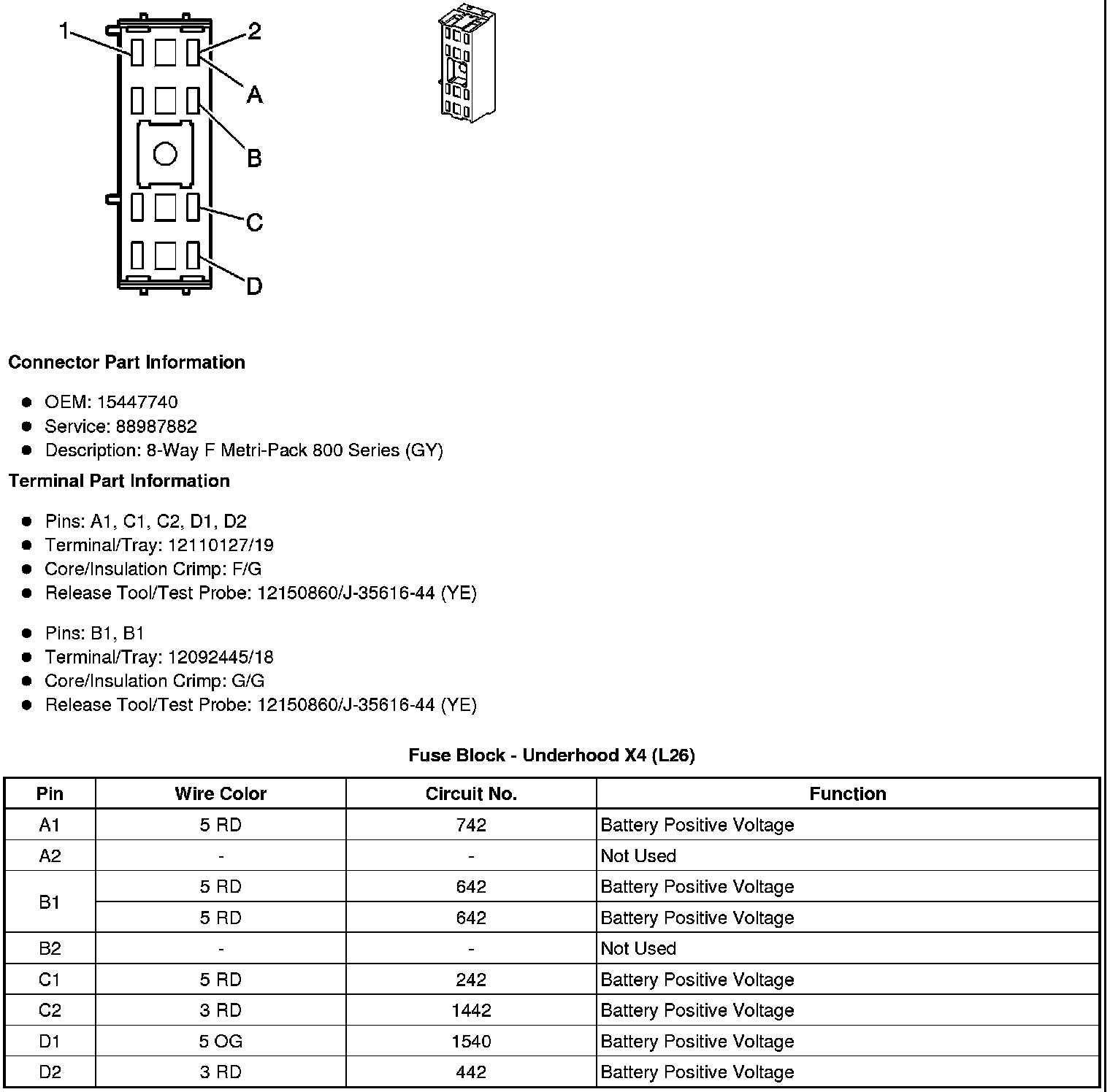

Fuse Block - Underhood X4 (L26 - 3.8L)
