Driver/Vehicle Information Display

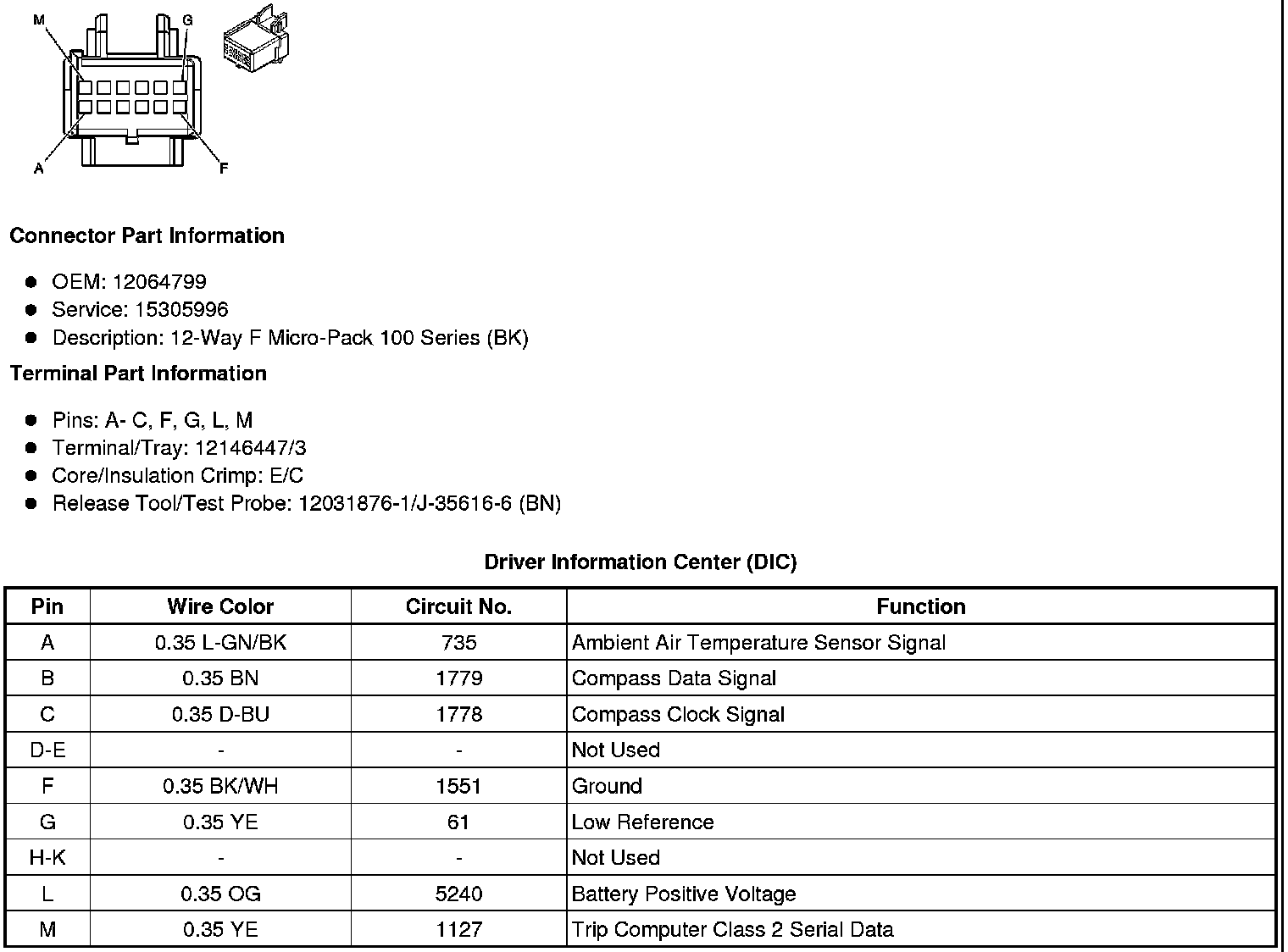

Driver Information Center (DIC)

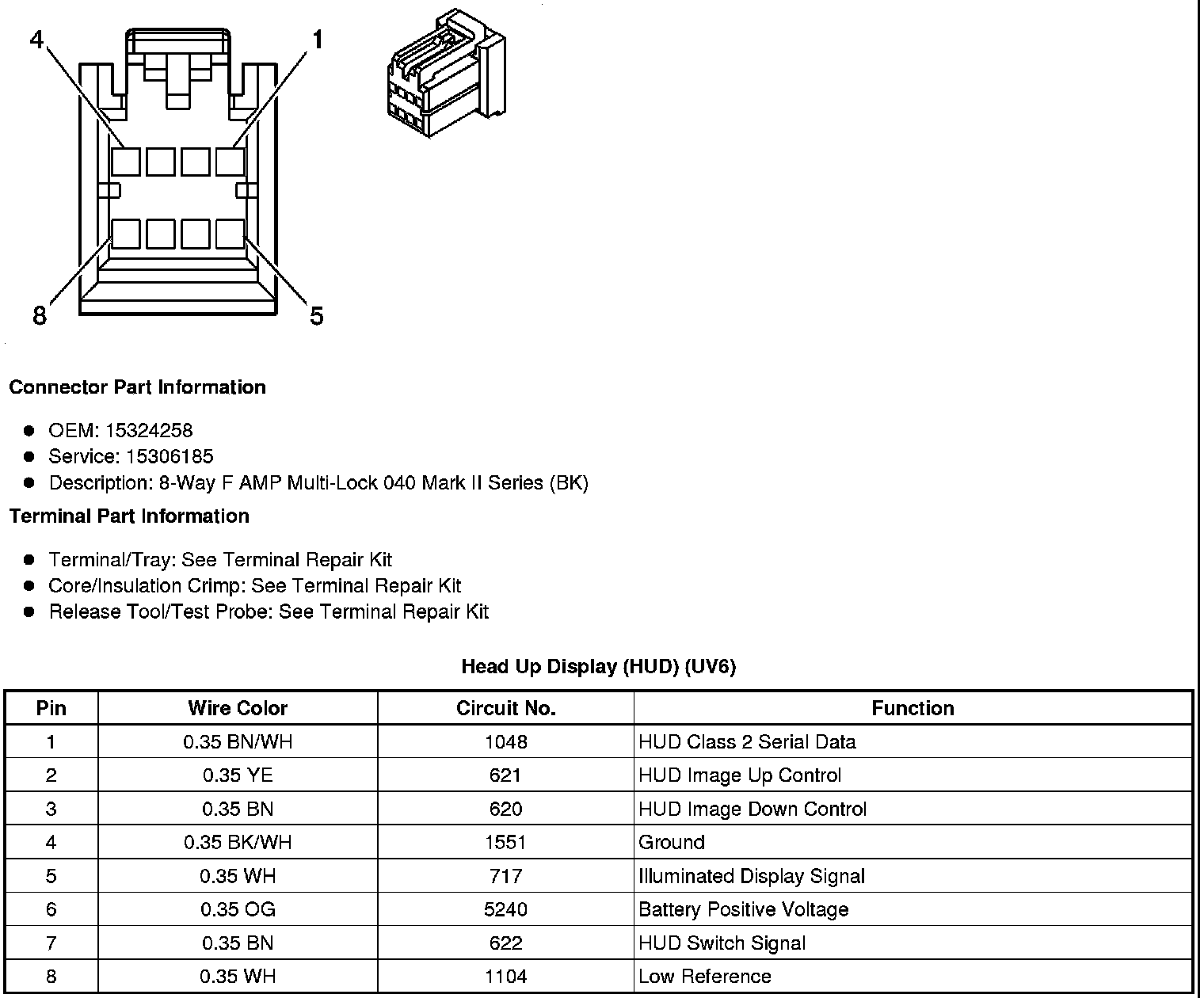

Head Up Display (HUD) (UV6)

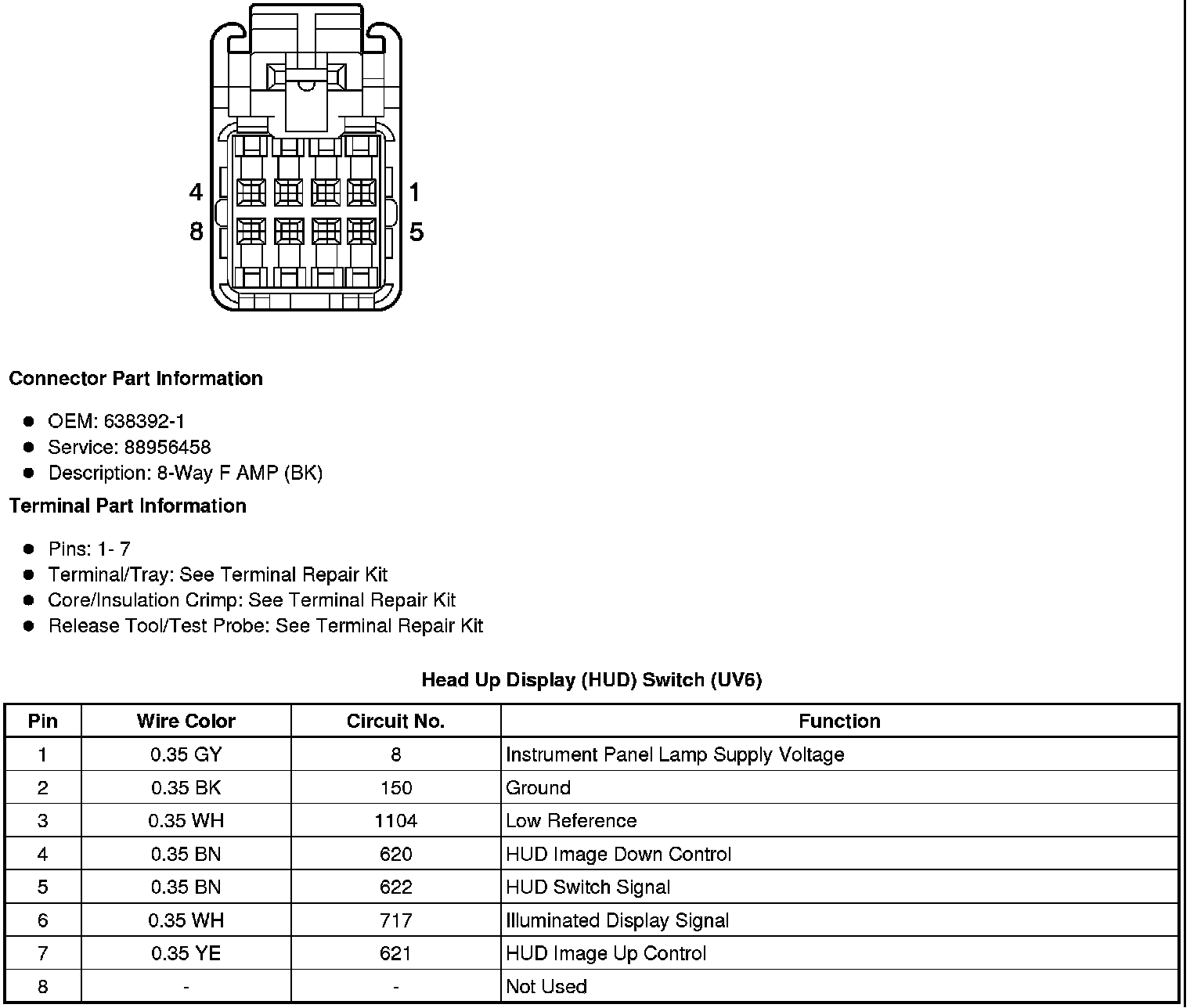

Head Up Display (HUD) Switch (UV6)








Electronic Compass Module
